Description

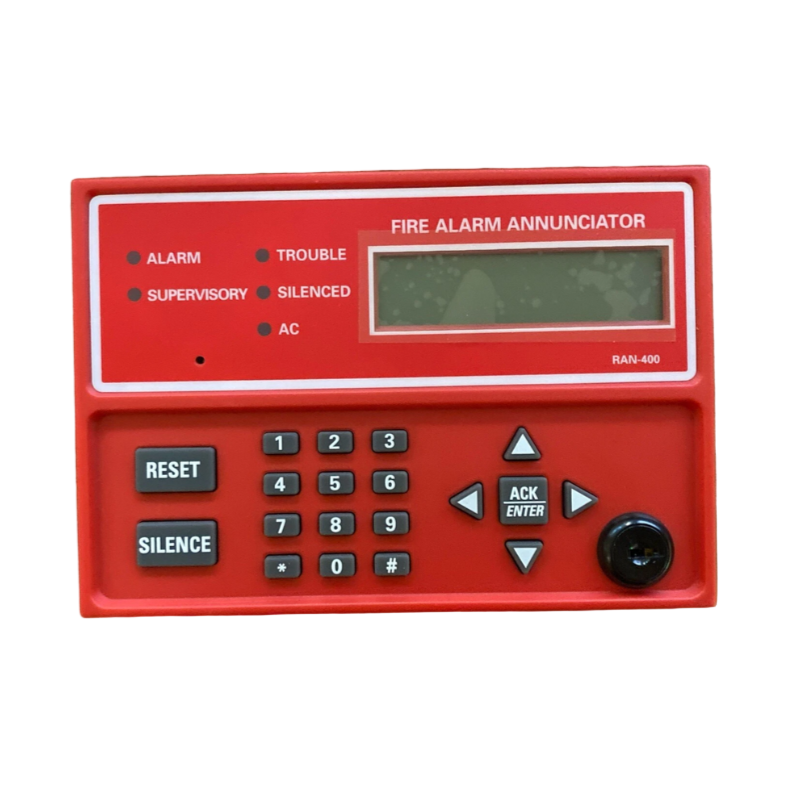

The Gamewell-FCI GWRAN-400 is a remote annunciator designed for use with the Flex 410 fire alarm control panel. It supports full system control operations, alarm and trouble reporting, and programming, with mounting in a standard dual-gang electrical box.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Gamewell-FCI |
| Category |
Fire Alarm Systems |
| Part Number |
GWRAN-400 |
| Subcategory |
Annunciator Panels |
| Type |
Remote annunciator |
| Compatibility |
Flex 410 Fire Alarm Control Panel |
| Supported Annunciators |
Up to four units per FACP |
| Control Functions |
Provides full system control operations |
| Display Functions |
Displays alarm and trouble information |
| Programming Support |
Can be used for system programming |
| Detector Compatibility |
All zones support 2-wire and 4-wire detectors |
| Audible Signaling |
Supports ANSI tones and single stroke B |
| Strobe Synchronization |
ADA-compliant strobe synchronization |
| Mounting |
Dual-gang electrical box installation |
| Compliance |
NFPA 72 compliant audible signals |
| Dimensions |
2 × 8 × 5 in |
| Weight |
2.14 lbs |
Information About GWRAN-400
The GWRAN-400 is a Gamewell-FCI remote annunciator designed to extend monitoring and control of the Flex 410 conventional fire alarm system. It replicates all system functions, including alarm/trouble indication and full control operations, while also enabling system programming directly from the remote location. Each Flex 410 control panel can support up to four GWRAN-400 annunciators, allowing coverage across multiple areas of a building. With ADA-compliant strobe synchronization, ANSI tones, and compatibility with 2- and 4-wire detectors, the unit ensures regulatory compliance and broad device support.
Key Features:
- Remote annunciator capability: Provides full system control, alarm/trouble display, and programming functions from a remote location.
- Multi-unit support: Each Flex 410 panel can accommodate up to four GWRAN-400 annunciators for distributed monitoring.
- Detector compatibility: Supports both 2-wire and 4-wire detectors across all zones for installation flexibility.
- Integrated audible and visual signaling: Includes ANSI-compliant audible signals and ADA strobe synchronization to meet NFPA 72 standards.
- Compact installation: Designed to mount in a standard dual-gang electrical box for easy integration into existing spaces.
- System reliability: Displays critical alarm and trouble information promptly to ensure quick response.
- Programmable functions: Enables system programming directly through the annunciator for convenience and efficiency.
- Durable design: Built with a compact 2 × 8 × 5 in enclosure, weighing 2.14 lbs for easy installation.
The GWRAN-400 delivers the reliability and precision required for extended monitoring and control of Gamewell-FCI Flex 410 fire alarm systems.
