Description

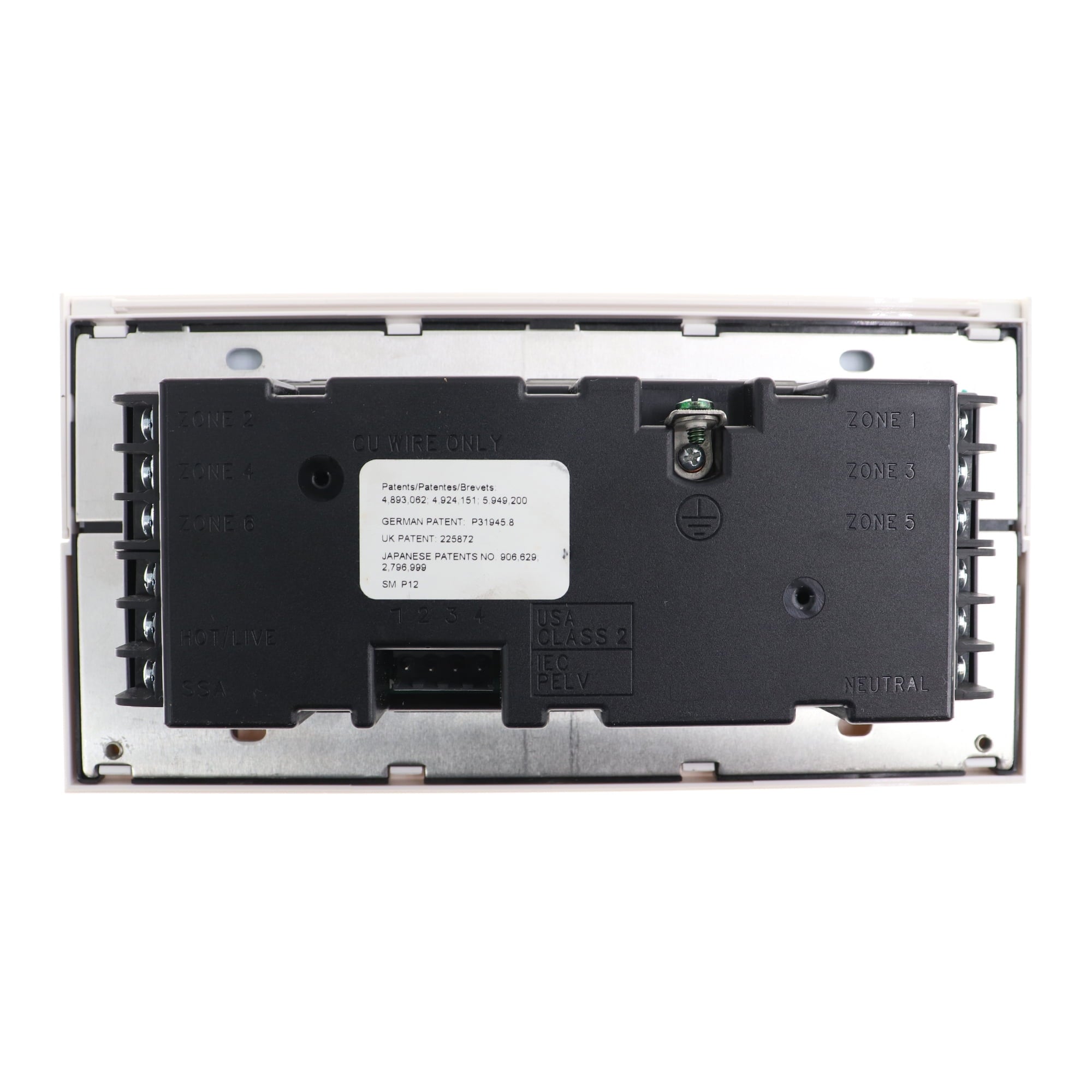

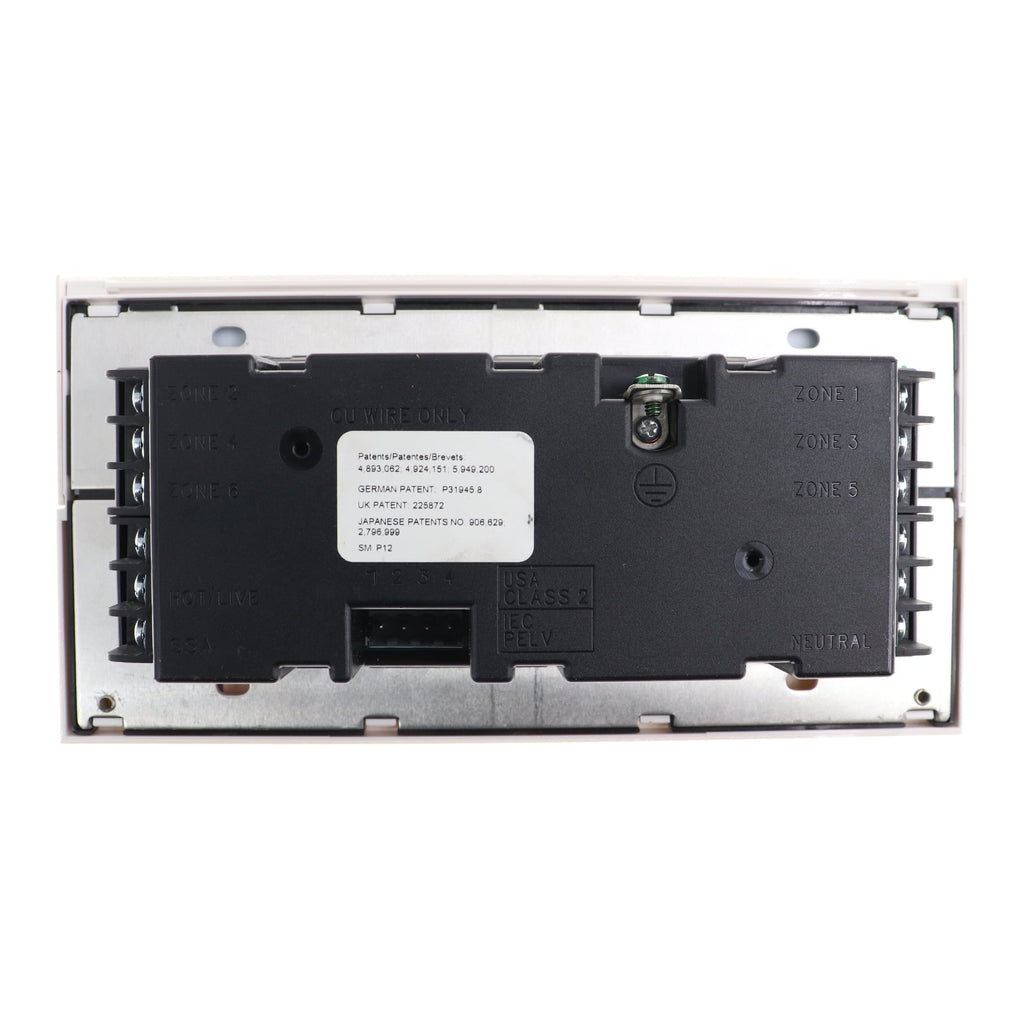

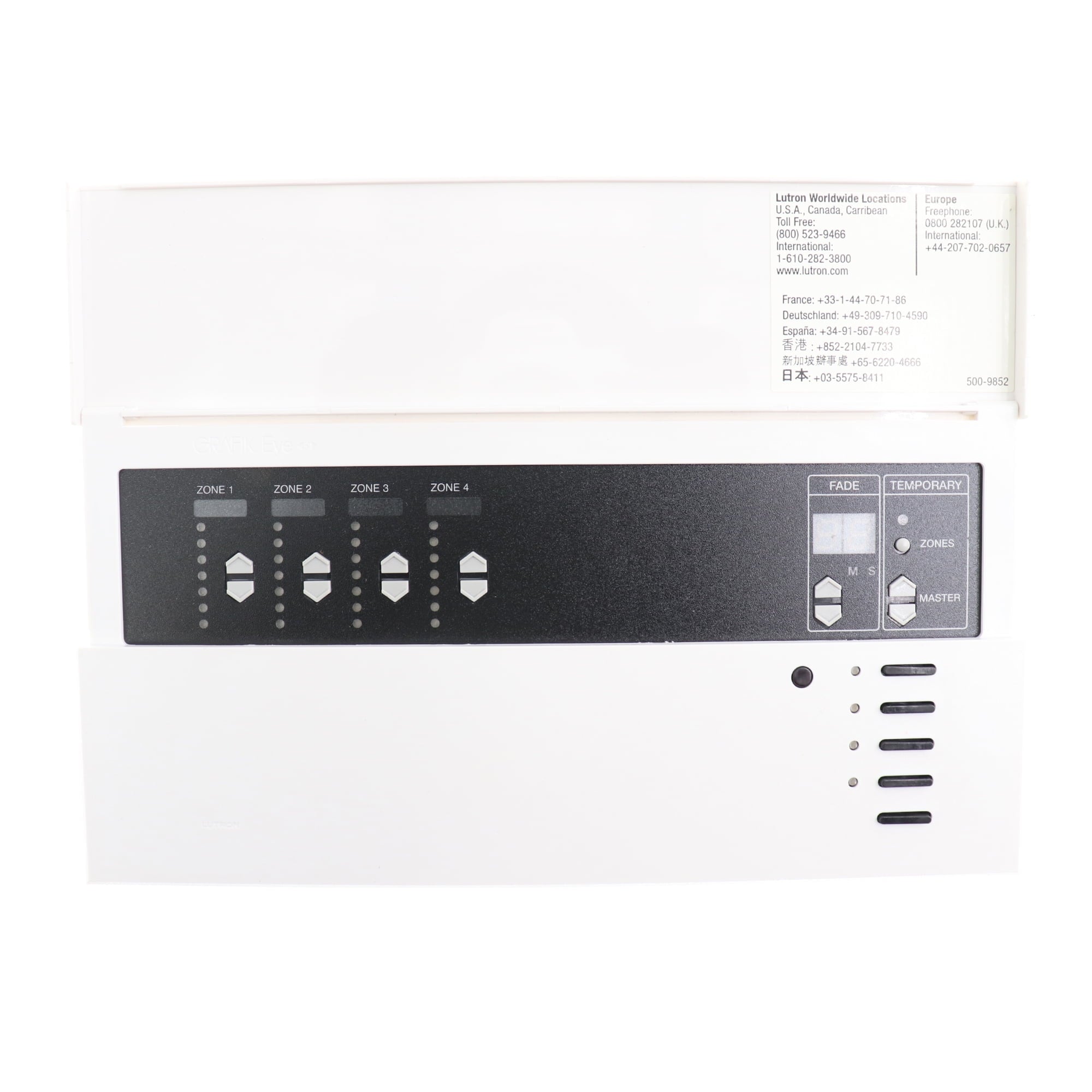

The Lutron GRX-3104-A-WH is a wall-mounted lighting controller that enables push-button access to four preset lighting scenes and an off state. Designed for the GRAFIK Eye 3100 Series, it operates at 120V and manages up to 800W per zone. With a clean white finish and intuitive interface, it fits seamlessly into both residential and commercial environments. It includes an integrated infrared receiver for use with compatible remote controls.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
GRX-3104-A-WH |
| Subcategory |
Scene Controllers |
| Series |
GRAFIK Eye® 3100 Series |
| Voltage |
120 VAC |
| Wattage Capacity |
800W per zone / 2000W total |
| Number of Zones |
4 |
| Control Type |
Push-button with scene recall
|
| Remote Compatibility |
Yes (infrared, remote sold separately) |
| Color |
White (Opaque Finish) |
| Mounting Type |
Wall-mounted |
| Load Types Supported |
Low voltage, magnetic, electronic |
| Operating Temperature |
0°C to 40°C |
| Scene Lockout |
Yes |
| Weight |
1.15 lb (0.52 kg) |
Information About GRX-3104-A-WH
The GRX-3104-A-WH is part of the GRAFIK Eye® 3100 Series by Lutron, tailored for dynamic multi-zone lighting control. This four-zone unit can handle up to 2000W across zones, supporting both low voltage and magnetic/electronic loads with or without power interfaces. It features built-in scene recall and lockout capabilities, making it suitable for spaces requiring consistent ambient presets. The opaque white cover and compact design ensure aesthetic compatibility with most wall installations.
Key Features:
- Four-Zone Scene Control: Allows precise control of up to four independent lighting zones.
- High Load Capacity: Supports up to 800W per zone, 2000W total per unit.
- Push-Button Interface: Enables direct setup and scene recall using front-panel buttons.
- Infrared Receiver: Built-in IR receiver enables remote operation (remote sold separately).
- Scene Memory Lockout: Protects programmed lighting scenes from accidental changes.
- Multiple Load Compatibility: Compatible with low voltage, magnetic, and electronic loads.
- Clean White Finish: Blends easily into modern or traditional interior designs.
- Temperature Rated: Operates reliably between 0°C and 40°C.
The GRX-3104-A-WH delivers the reliability and precision required for smart, adaptable zone-based lighting control systems.
