Description

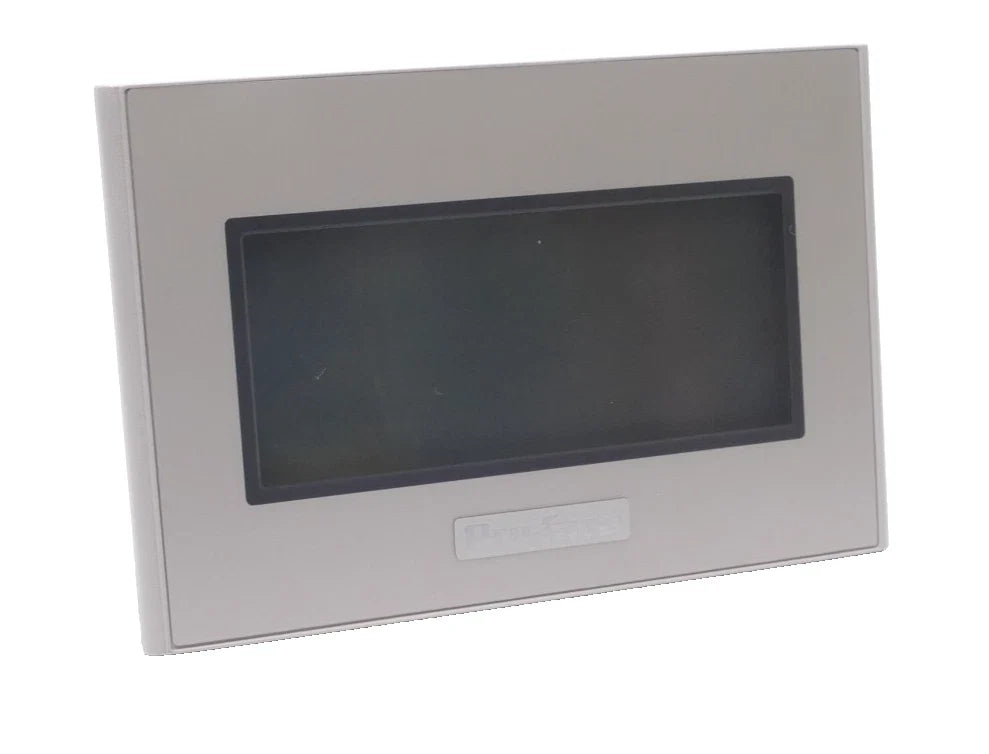

The Pro-face GP4106W1D by Schneider Electric is a compact monochrome HMI designed for operator interaction in industrial automation systems. It features a 3-inch class STN LCD with resistive touch input and supports RS-422/485 serial communication. This HMI is used for monitoring, control, and visualization in space-constrained control panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Pro-face (Schneider Electric) |
| Category |
Human Machine Interface |
| Part Number |
GP4106W1D |
| Subcategory |
Operator Interfaces |
| Series |
GP4100 Series |
| Display Type |
STN Monochrome LCD |
| Display Size |
3.4 in |
| Resolution |
200 × 80 pixels |
| Display Colors |
Monochrome White / Red / Pink (16 levels) |
| Touch Panel Type |
Resistive film (analog) |
| Touch Resolution |
1,024 × 1,024 |
| Rated Input Voltage |
24 VDC |
| Power Consumption |
11 W |
| Communication Interface |
RS-422 / RS-485 |
| USB Ports |
1 × USB Type-A, 1 × USB mini-B |
| Installation Method |
Panel mounting |
| Front Protection Rating |
IP65f, NEMA Type 4X/13 |
| Operating Temperature |
0 to 50 °C |
| External Dimensions |
116.5 × 77.5 × 28 mm |
| Panel Cut-Out Size |
105 × 66 mm |
| Weight |
0.2 kg (0.45 lb) |
Information About GP4106W1D
The GP4106W1D is part of the Pro-face GP4100 Series within Schneider Electric’s HMI product family. It is designed for panel-mounted operation and provides a monochrome display with multiple brightness and contrast adjustment levels. The unit supports a wide range of industrial communication speeds and integrates USB interfaces for data transfer and configuration. Built for industrial environments, it meets multiple international safety standards and provides front-panel protection rated for harsh conditions.
Key Features:
- Compact Monochrome HMI: Designed for operator control in limited panel space.
- 3.4-Inch STN LCD Display: Provides clear monochrome visualization with 200 × 80 resolution.
- Resistive Touch Panel: Supports precise analog touch input with long operational life.
- RS-422/485 Communication: Enables reliable serial connectivity with PLCs and controllers.
- Adjustable Display Settings: Offers multiple brightness and contrast levels via touch control.
- Industrial Protection Rating: Front panel rated IP65f / NEMA Type 4X/13 when installed.
- Wide Environmental Tolerance: Operates across broad temperature and humidity ranges.
The GP4106W1D delivers the reliability and precision required for operator interface functions in industrial automation environments.
