Description

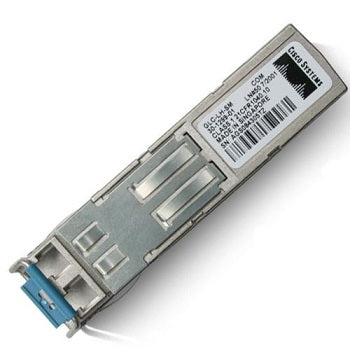

The GLC-LH-SM is a Cisco-compatible 1G SFP transceiver module designed for long-range single-mode fiber (SMF) applications, supporting data rates from 1.063 to 1.25 Gbps.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
GLC-LH-SM
|
| Subcatecory |
Optical Transceivers – SFP Modules
|
| Data Rate |
1.063–1.25 Gbps |
| Transmitter Type |
FP Laser |
| Tx / Rx Wavelength |
1310 nm / 1310 nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector Type |
Duplex LC |
| Cable Type |
Duplex Fiber |
| Optical Budget |
13 dB |
| Tx Power Range |
-9 dBm to 3 dBm |
| Operating Temperature |
0°C to 70°C |
| Weight |
22 g |
Information About GLC-LH-SM
The GLC-LH-SM operates over single-mode fiber using 1310 nm wavelength for both transmission and reception. It supports a maximum distance of 10 kilometers, making it suitable for campus backbones, metropolitan access, and long-haul connections. This SFP module uses a Fabry-Perot (FP) laser transmitter, offering stable signal performance in standard temperature environments ranging from 0°C to 70°C. It features an optical budget of 13 dB, which ensures reliable operation under typical link loss conditions.
Key Features:
-
1310 nm FP Laser: Provides stable transmission for long-range Gigabit links
-
Single-Mode Fiber Support: Enables links up to 10 km
-
Standard Duplex LC Connector: Simplifies deployment with common SMF patch cords
-
Wide Optical Budget (13 dB): Tolerates typical link losses
-
High Compatibility: Interoperable with Cisco and MSA-compliant equipment
The GLC-LH-SM ensures cost-effective, high-reliability 1G fiber connectivity across extended distances.
