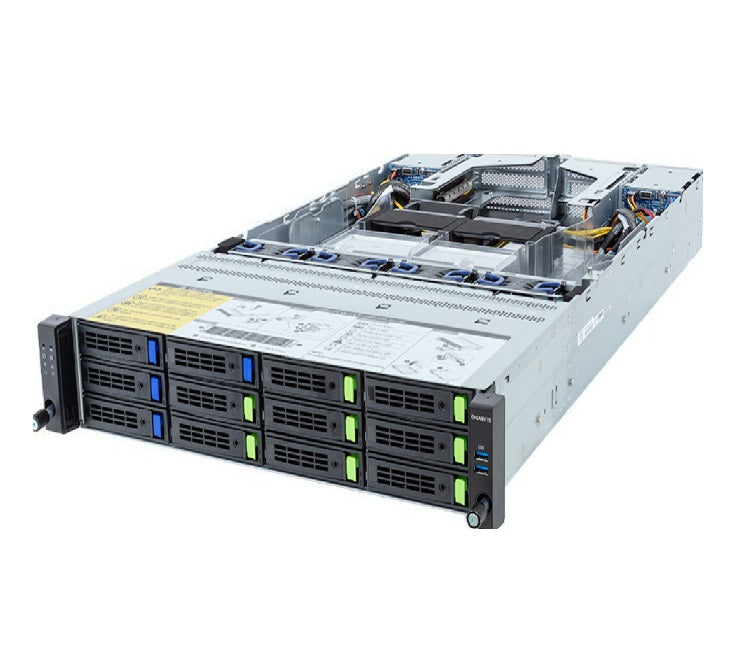

The Gigabyte R283-Z97-ACL1 (also referred to as part of the R283-Z97-AAL1 Rev. 3.x series) is a 2U dual-socket Barebone server optimized for AI training, inference, and high-performance computing (HPC). While it shares the same motherboard and CPU support as the R283-Z98-ACL1, it features a different storage layout focused on 3.5" drive compatibility.
Specifications
Model Number: R283-Z97-ACL1
Brand: Gigabyte
Alt Part Number(s): R283-Z97-ACL1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: R283-Z97-ACL1
Processor Type: Dual AMD EPYC 4005/ 4004 Series
Processor Core: 384 Core/768 Thread
Processor Power: TDP up to 400W
Processor Socket: 2 x LGA 6096 (Socket SP5)
Motherboard: MZ93-FS1
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 3 (2 data + 1 management)
Number of Drive Bays: 16 Bays, 3 × M.2 slots
Expansion Slots: (4 PCIe + 2 OCP) Slots
Memory Supported: Up to 6TB
Memory Technology: DDR5 RDIMM
Memory Speed: 6400MT/s, 4800MT/s
Memory Slots: 24 DIMM Slots
Memory Channels: 12-channel memory per processor
Power Supply: Dual 2700W 80 PLUS Titanium (redundant)
System Cooling: 4 x 80mm hot-swap high-performance Fans
Form Factor: 2U Rackmount
Height: 3.44"
Width: 17.24"
Depth: 32.09"
