Overview

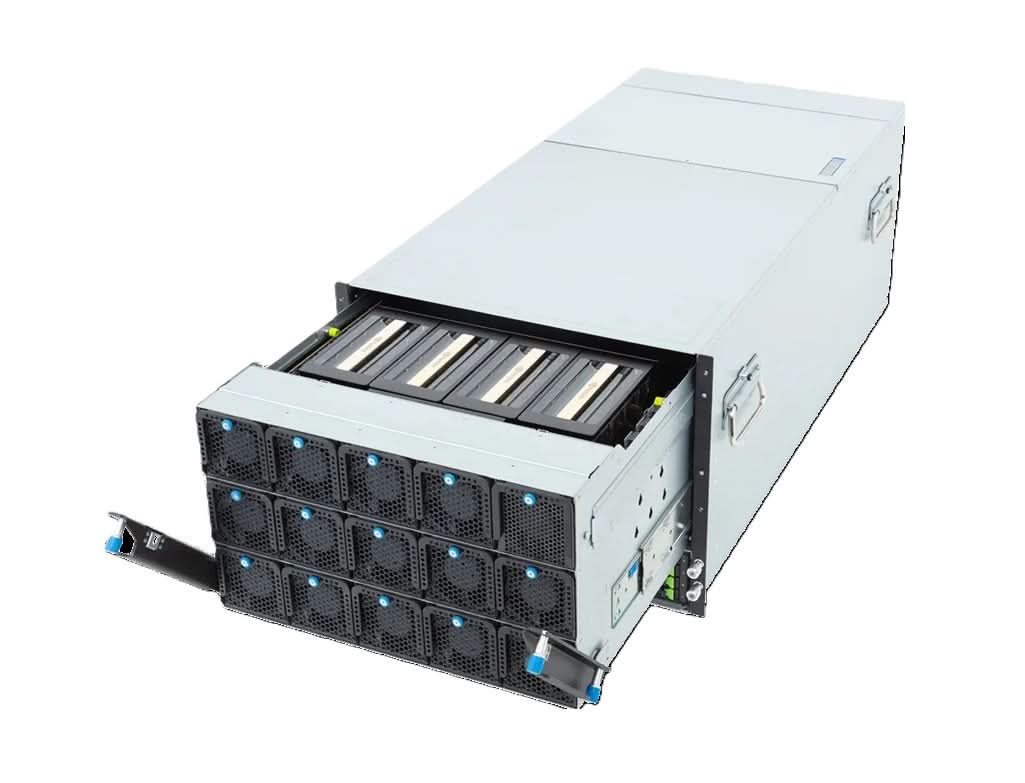

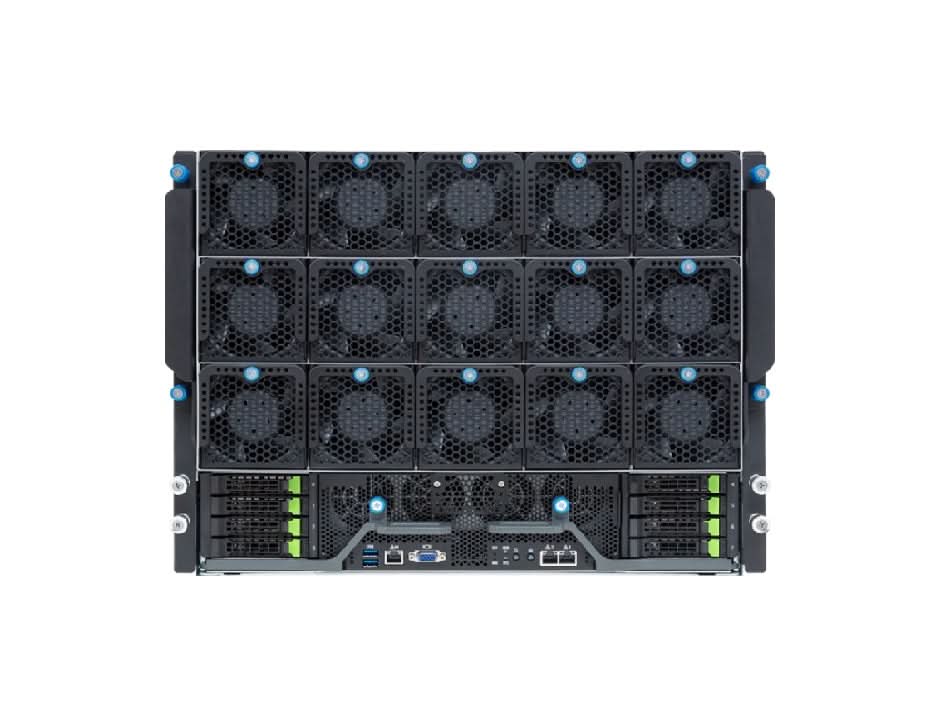

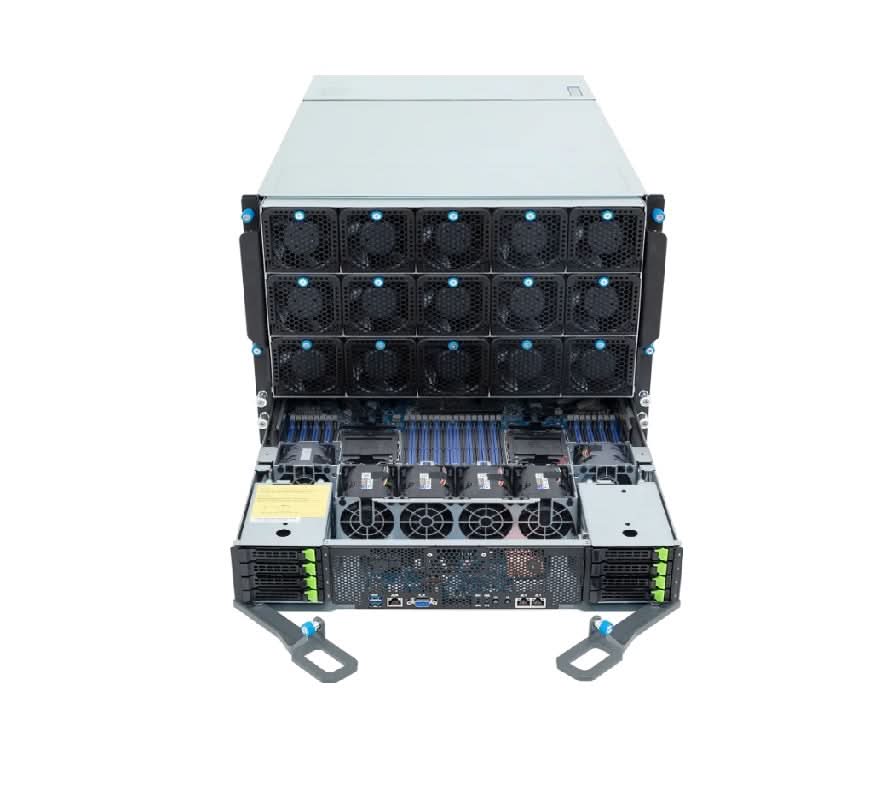

Gigabyte G894-SD1-AAX5 is an 8U rackmount GPU server featuring dual Intel Xeon 6 6700/6500 series processors with 350 W TDP and support for up to 2 TB DDR5 memory across 32 DIMM slots. It includes Nvidia HGX B200 with 8 SXM GPUs, 8 Gen5 NVMe drives, PCIe Gen5 expansion, and advanced management protocols for AI, HPC, and enterprise workloads.
Specifications
Model Number: G894-SD1-AAX5
Brand: Gigabyte
Alt Part Number(s): G894-SD1-AAX5
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G894-SD1-AAX5
Processor Type: Intel Xeon 6 6700/6500 Series
Processor Power: 350W
Processor Socket: 2 x LGA 4710 Socket E2
Number of Channels: 8-Channel
Memory Supported: 2TB
Memory Technology: DDR5
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Expansion Slots: 16
Chipset Type: System on Chip
Modular GPU: Nvidia HGX B200 with 8 x SXM GPUs
Motherboard: MSB4-PE0
Controller Type: PCIe Gen5 x4
Graphics Controller: ASPEED AST2600
Storage Type: 8 x 2.5" Gen5 NVMe
Power Supply: 6+6 3000W 80 Plus
Memory Slots: 32 x DIMM
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 8U Rackmount/GPU Server
*
