Overview

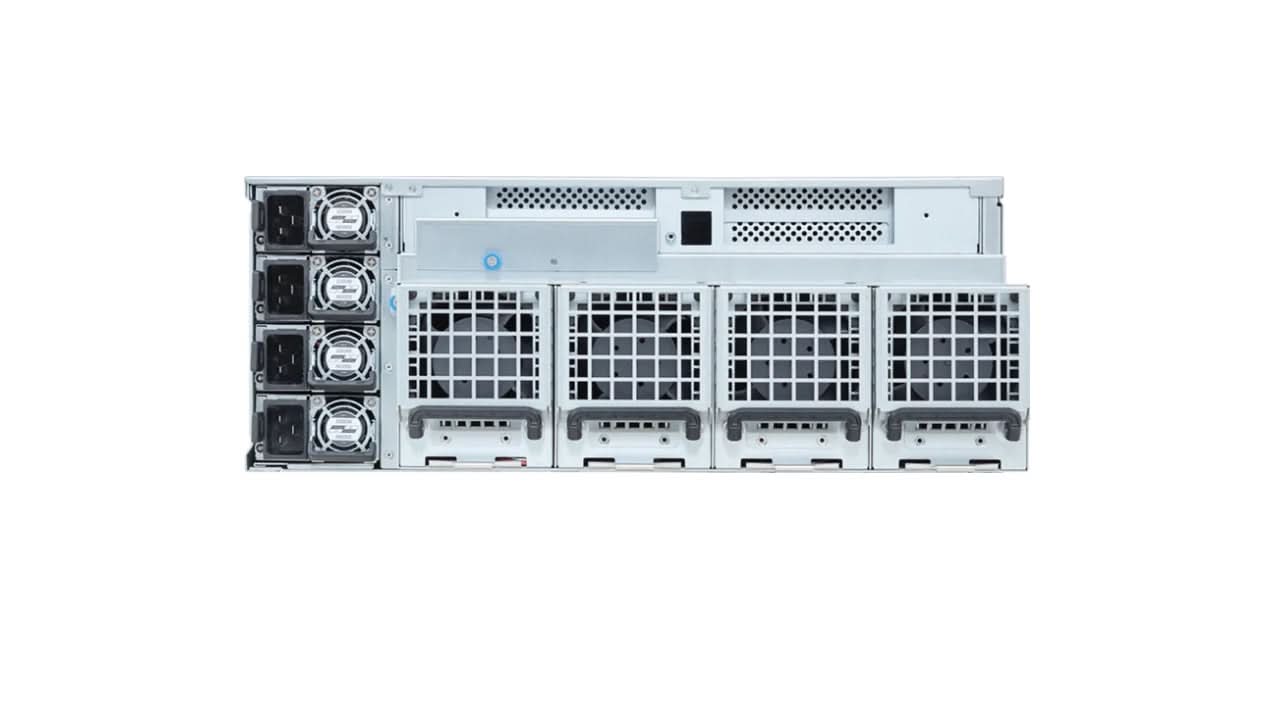

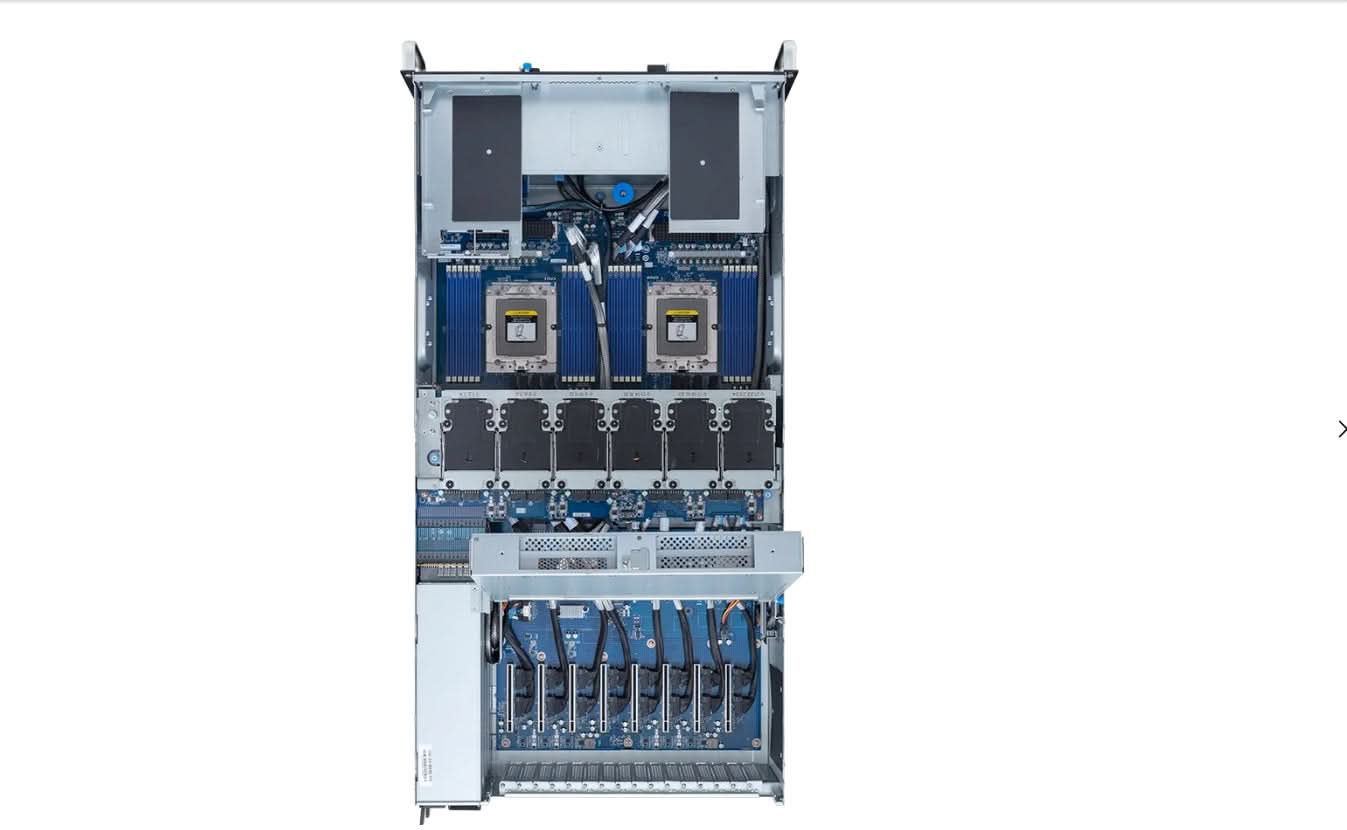

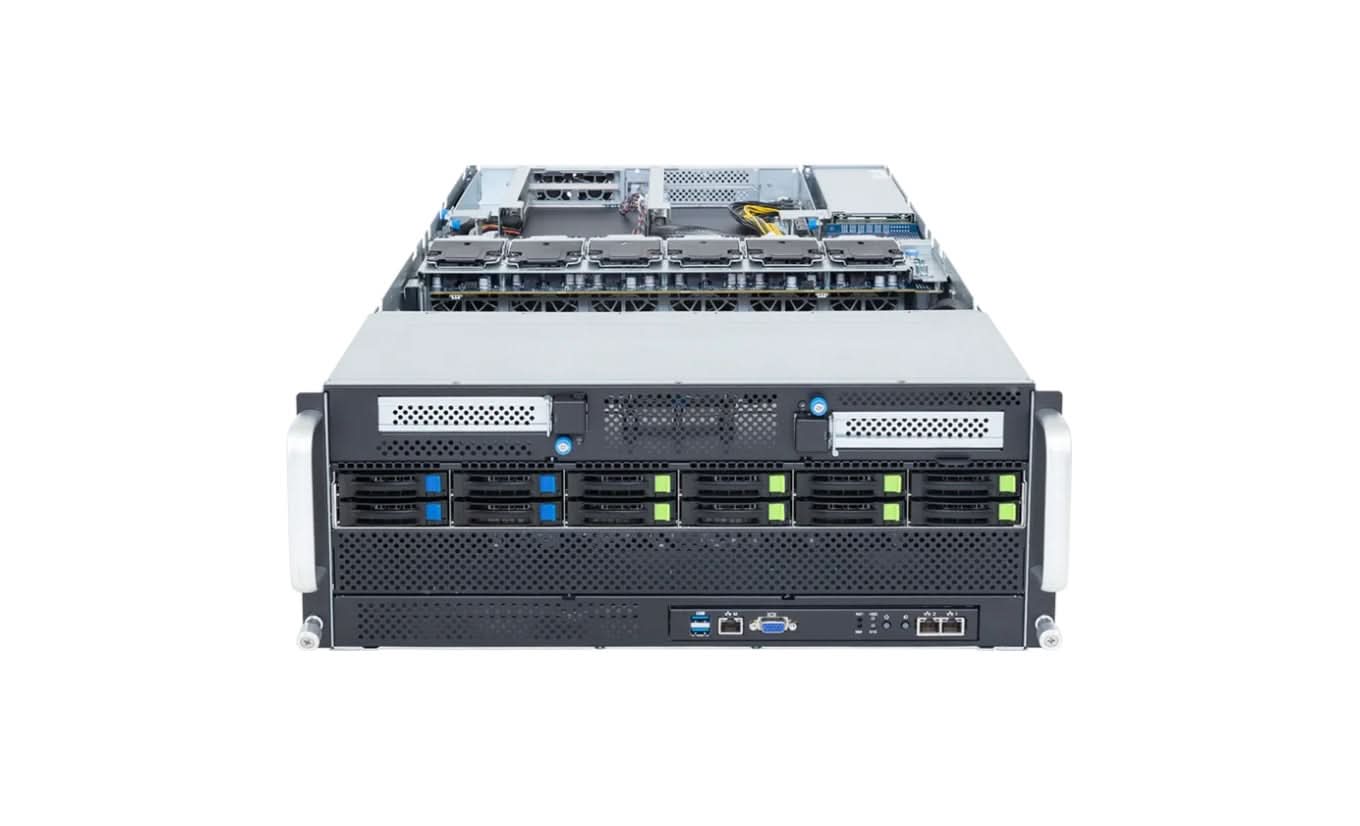

Gigabyte G494-ZB1-AAP2 AMD EPYC DDR5 4U Rackmount/GPU Server
Specifications
Model Number: G494-ZB1-AAP2
Brand: Gigabyte
Alt Part Number(s): G494-ZB1-AAP2
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G494-ZB1-AAP2
Processor Type:AMD EPYC 9005, AMD EPYC 9004 Series Processors
AMD EPYC9005: Up to 5200 MT/s (1DPC)
Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC9004: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Processor Power: Up to 400W
Processor Socket: 2 x LGA 6096 Socket SP5
Chipset Type: System on Chip
Motherboard:MZB3-G41
Number of Channels: 12-Channel
Storage: 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
4 x 2.5" SATA/SAS-4 hot-swap bays
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
Graphics Controller: Aspeed AST2600
Memory Supported: 6 TB
Memory Technology: DDR5 RDIMM
Memory Slots: 48 x DIMM
Expansion Slots: 16
Power Supply: Quad 3000W 80 PLUS
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 4U Rackmount/GPU Server
*
