Description

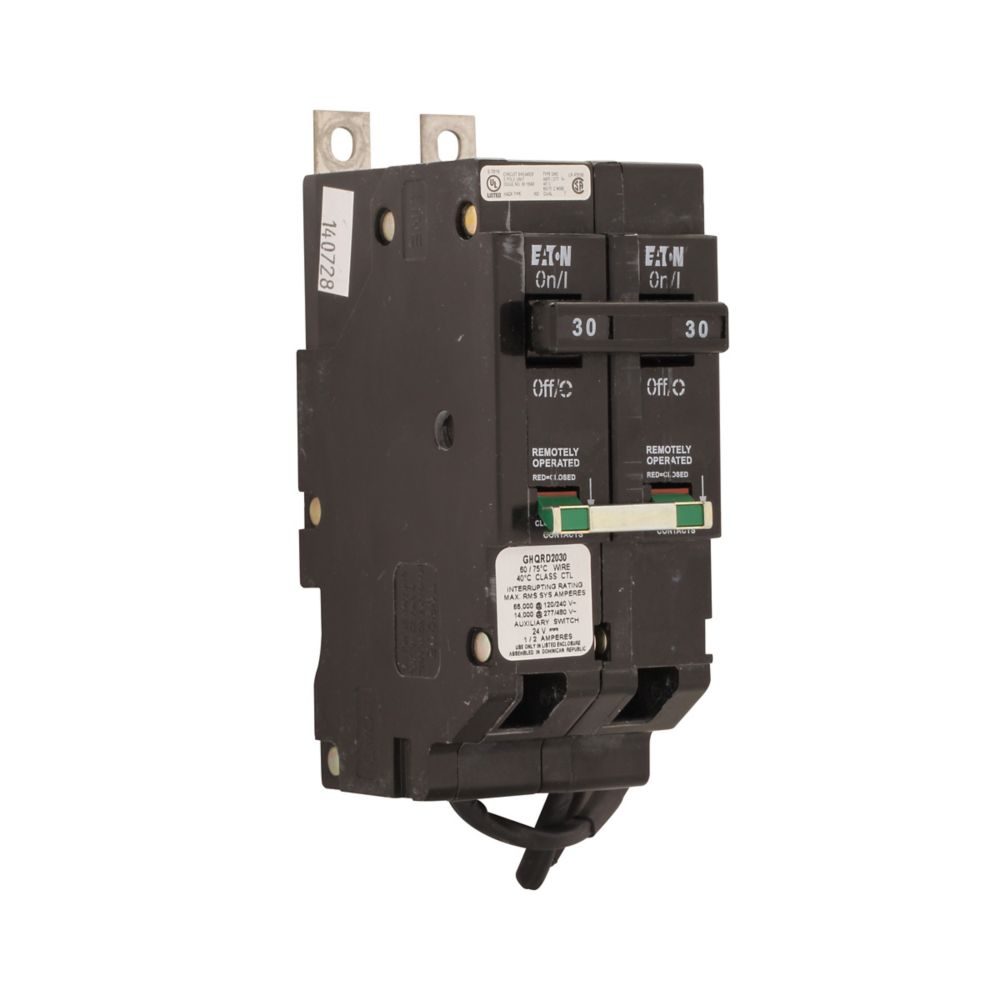

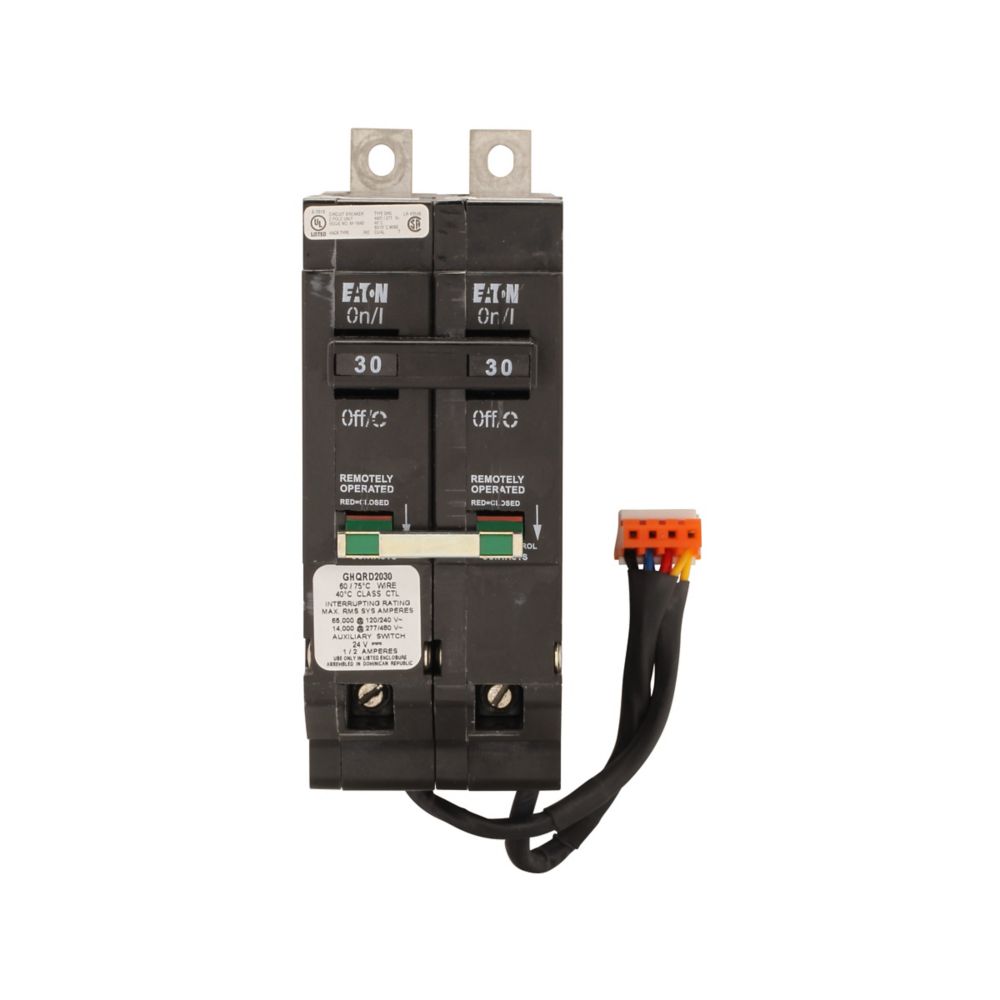

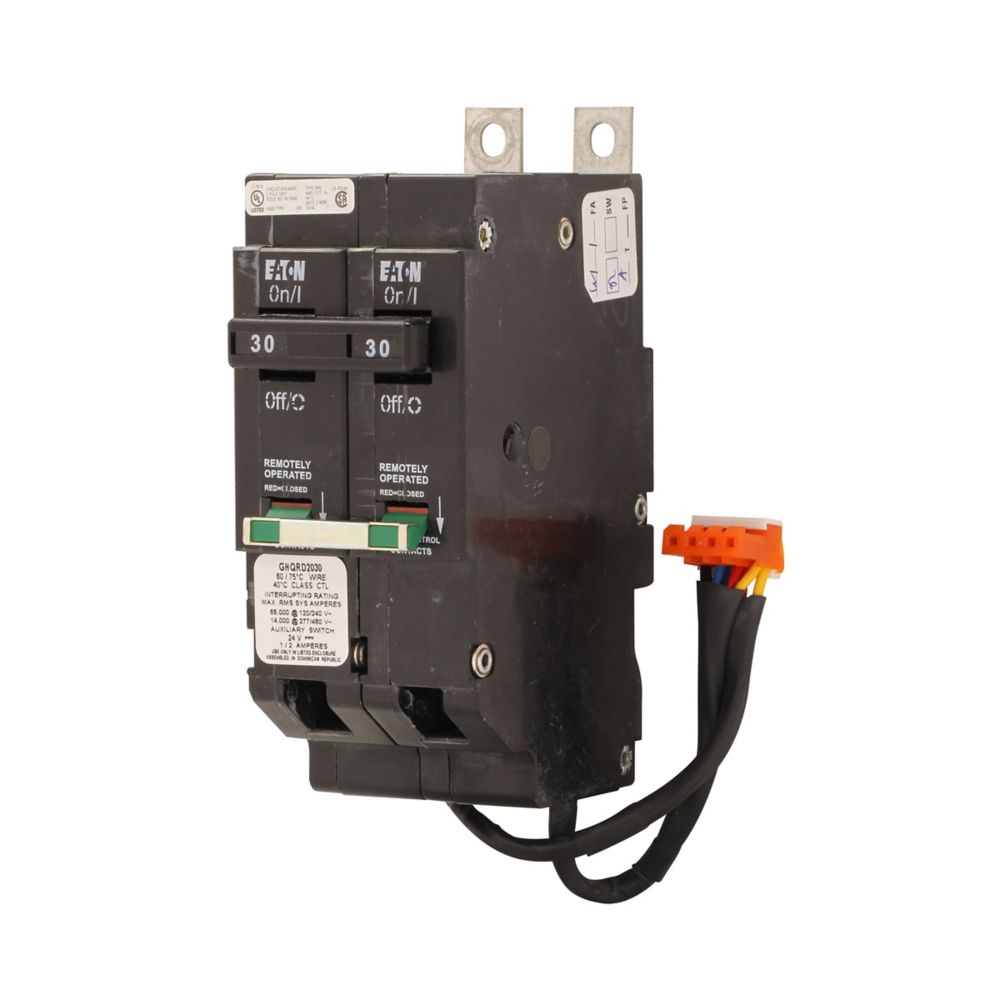

The Eaton GHQRD2030 is a two-pole, remote-operated molded case circuit breaker designed for controlled switching and overcurrent protection in commercial and industrial electrical systems. Rated at 30A, this Eaton GHQRD2030 operates within 480VAC systems and uses a 24 VDC solenoid to enable remote actuation while maintaining thermal magnetic protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
GHQRD2030 |
| Subcategory |
Molded Case |
| Series |
GHQR |
| Breaker Type |
Remote Operated Molded Case Circuit Breaker |
| Current Rating |
30 Amps |
| System Voltage |
480 VAC |
| Interrupting Rating |
14 kAIC at 277 V |
| Poles |
2 |
| Phase |
Single Phase |
| Trip Unit Type |
Thermal Magnetic |
| Trip Functions |
Long-Time and Instantaneous |
| Control Voltage |
24 VDC Solenoid Operated |
| Mounting Style |
Bolt-On |
| Terminal Connection |
Line Side Lug |
| Certifications |
UL 489, CSA |
| Weight |
5.19 lb |
Information About GHQRD2030
The GHQRD2030 is part of Eaton’s GHQR series, engineered to combine standard molded case protection with remote operating capability. It incorporates a thermal magnetic trip unit that provides long-time and instantaneous protection against overloads and short-circuit conditions. The breaker is configured with bolt-on mounting and line-side lug terminals, supporting secure installation in panelboards and distribution equipment. Designed for systems requiring centralized or automated control, it supports rectified or half-rectified AC control power for the solenoid operator and meets UL and CSA standards.
Key Features:
- Remote Operated Design: Integrated 24 VDC solenoid enables electrical remote switching and control.
- Thermal Magnetic Protection: Provides long-time and instantaneous trip response for circuit safety.
- 30 Amp Current Rating: Suitable for moderate-load branch and control circuits.
- Two-Pole Configuration: Supports single-phase applications requiring dual-conductor protection.
- 14 kA Interrupting Capacity: Rated at 14kAIC at 277V for effective fault interruption.
- Bolt-On Mounting Style: Ensures secure mechanical and electrical installation.
- GHQR Series Construction: Designed for reliability in controlled power distribution environments.
The GHQRD2030 delivers the reliability and precision required for remotely operated circuit protection and controlled power distribution systems.
