Description

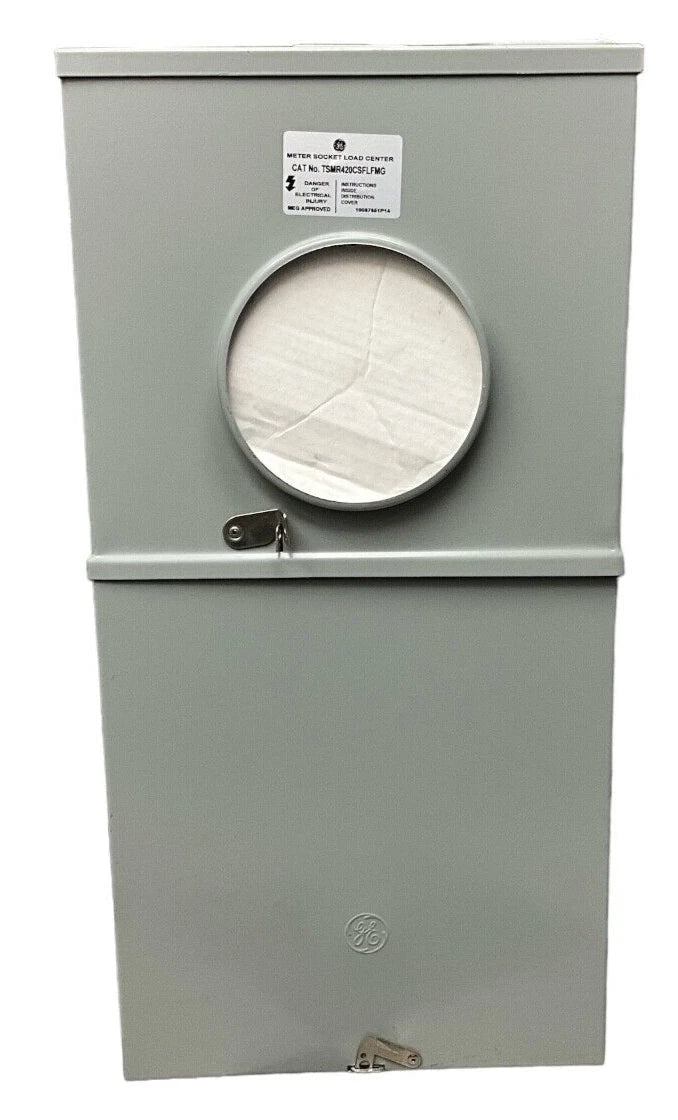

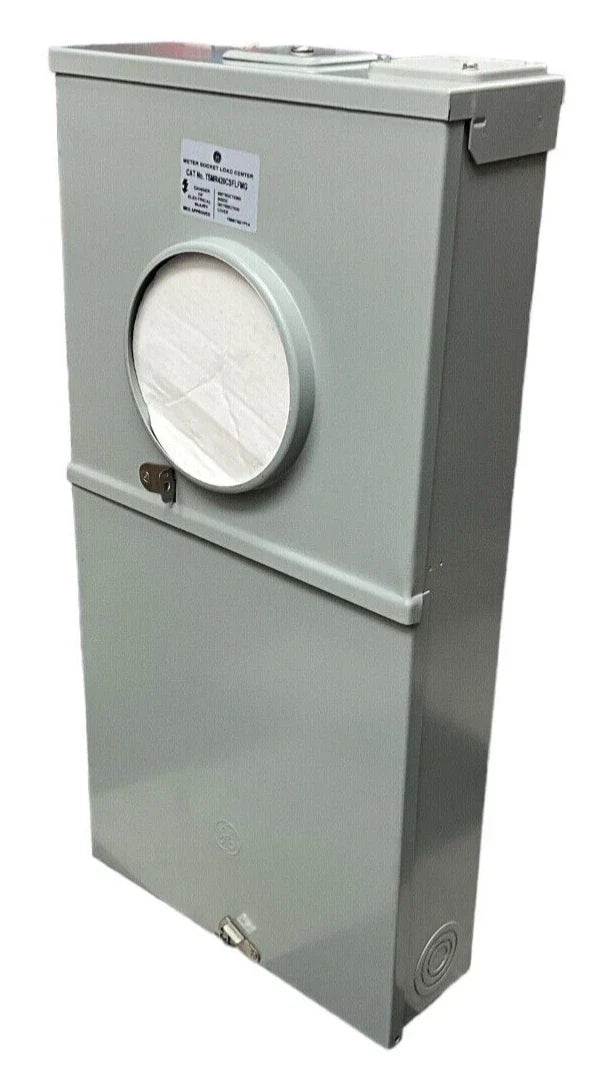

The General Electric TSMR420CSFLFMG meter socket load center is a 3-wire, 4/8-circuit main breaker unit designed for residential and outdoor service entrance applications. It operates on 120/240 VAC single-phase systems with a 200 A rating and features a ringless cover design for utility metering installations. Built with a NEMA 3R enclosure, the unit provides reliable circuit distribution and weather-resistant protection for exterior mounting environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
TSMR420CSFLFMG |
| Subcategory |
Meter Socket Load Centers |
| Type |
3-Wire 4/8-Circuit Main Breaker |
| Phase |
1 Phase |
| Voltage Rating |
120/240 VAC |
| Amperage Rating |
200 A |
| Wire Size |
6 AWG to 350 kcmil |
| Circuit Breaker Style |
Plug-In |
| Feed Configuration |
Either |
| Terminal Type |
Feed-Through Lug |
| Enclosure Type |
NEMA 3R |
| Cover Type |
Ringless |
| Factory Installed Ground Kit |
Yes |
| Mounting Type |
Surface |
| Application |
Service Entrance Equipment, Outdoor and Residential Applications |
| Operating Temperature |
60/75°C |
| Service & Voltage |
1 Phase, 3 Wire, 120/240 VAC |
| UL/CUL Listing |
UL |
| Dimensions |
14 in W x 4-1/2 in D x 28-1/2 in H |
| Weight |
38 lb |
Information About TSMR420CSFLFMG

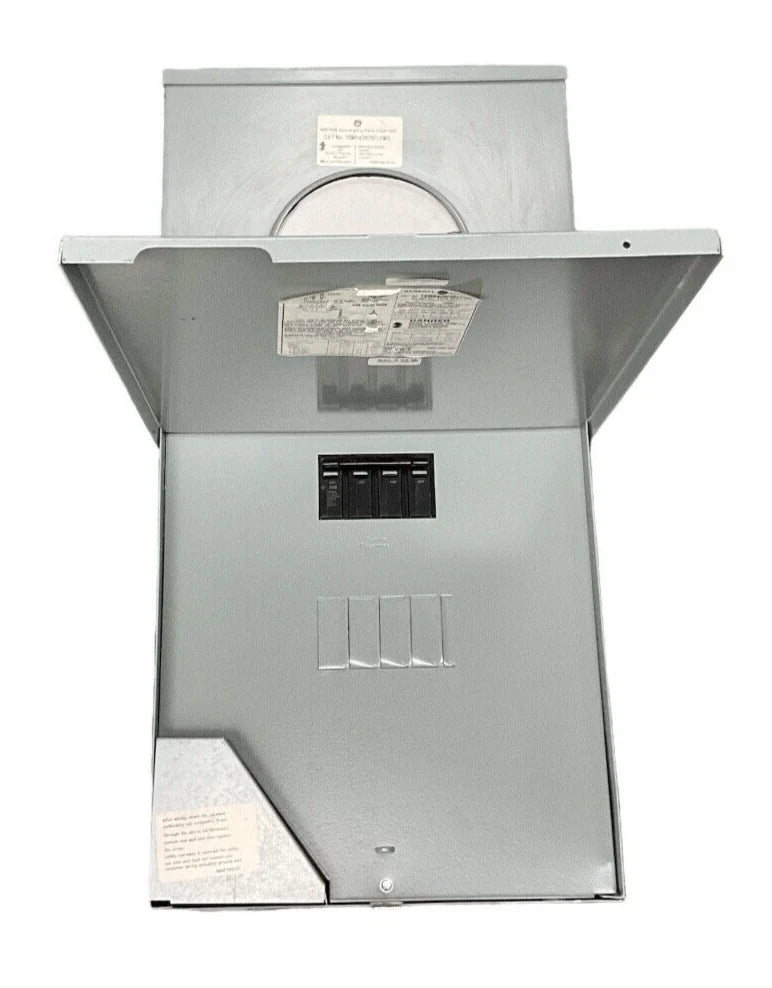

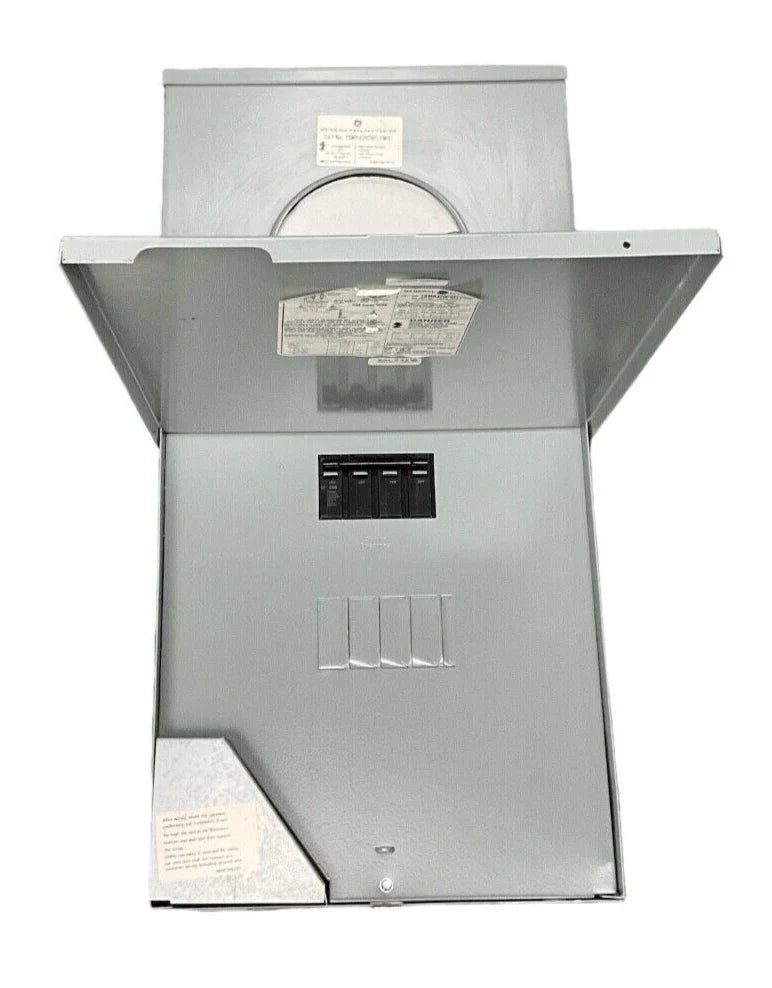

The TSMR420CSFLFMG is a main breaker meter socket load center manufactured by General Electric for residential electrical distribution and service entrance installations. This unit combines utility metering and branch circuit distribution within a compact outdoor-rated enclosure designed for single-phase 120/240 VAC systems. It supports a 3-wire configuration with feed-through lug terminals compatible with aluminum and copper conductors ranging from 6 AWG to 350 kcmil. The load center includes a factory-installed ground kit, ringless cover, and plug-in breaker configuration to simplify installation and maintenance in outdoor applications.
Key Features:
- 200 Amp Service Rating: Supports high-capacity residential electrical distribution systems.
- 4/8-Circuit Configuration: Provides flexible branch circuit expansion capability.
- Ringless Cover Design: Suitable for utility metering and service entrance installations.
- NEMA 3R Enclosure: Protects internal components in outdoor environments.
- Plug-In Breaker Style: Allows simplified circuit breaker installation and replacement.
- Feed-Through Lug Terminals: Compatible with copper and aluminum conductors.
- Factory-Installed Ground Kit: Reduces installation time and grounding setup requirements.
- Surface Mount Construction: Designed for secure outdoor wall mounting applications.
The TSMR420CSFLFMG delivers the reliability and precision required for residential service entrance and outdoor power distribution systems.
