Description

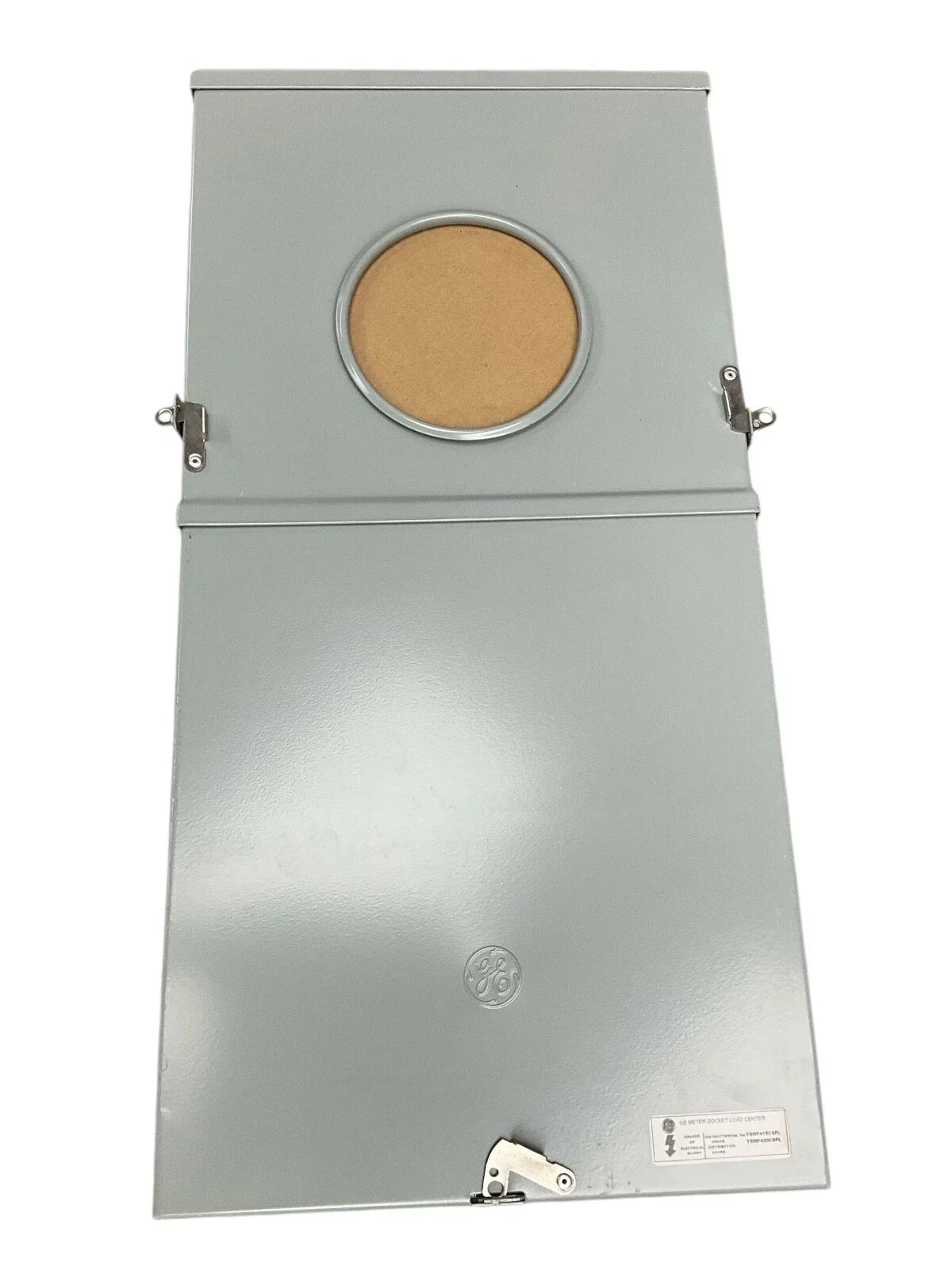

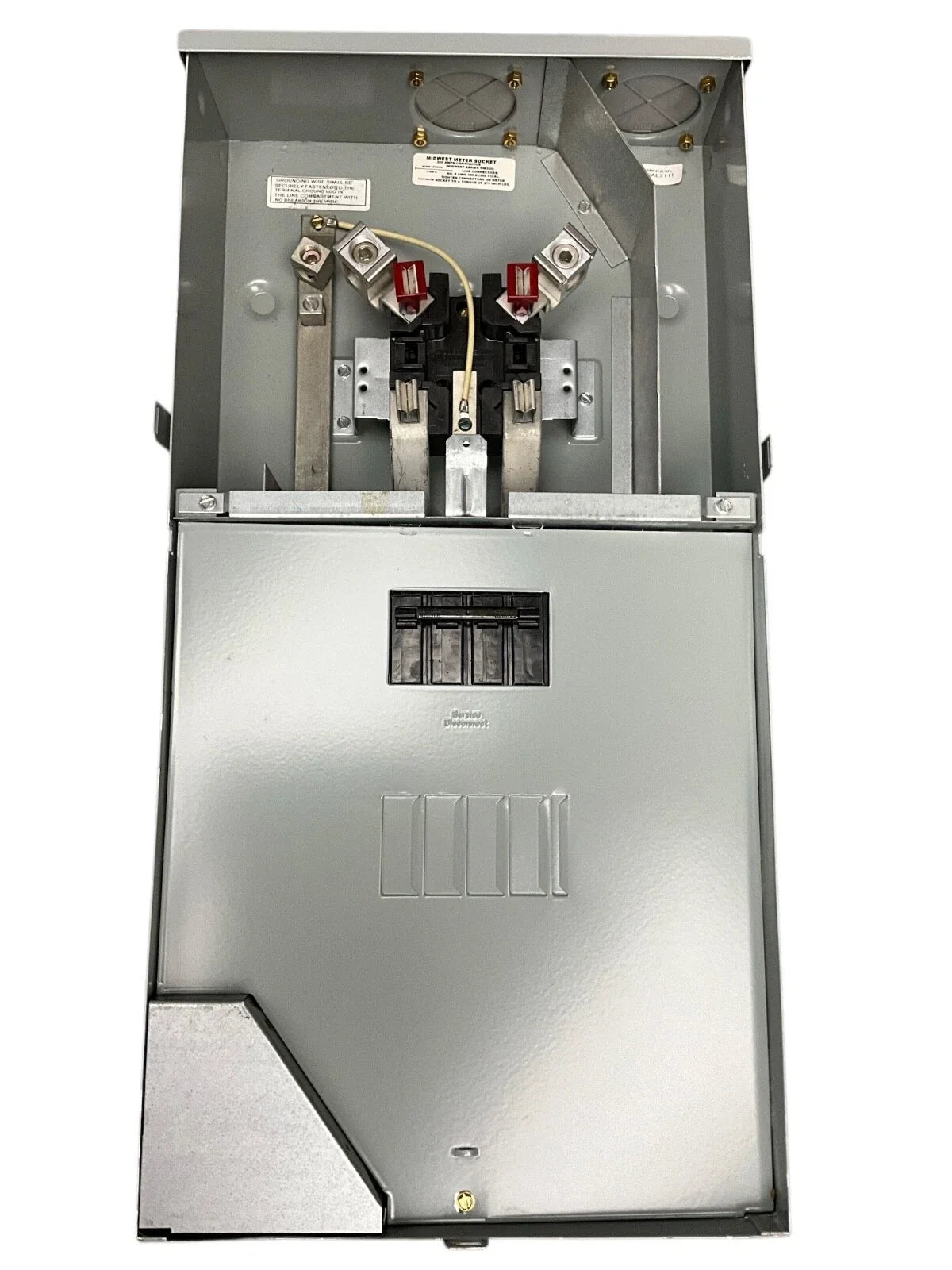

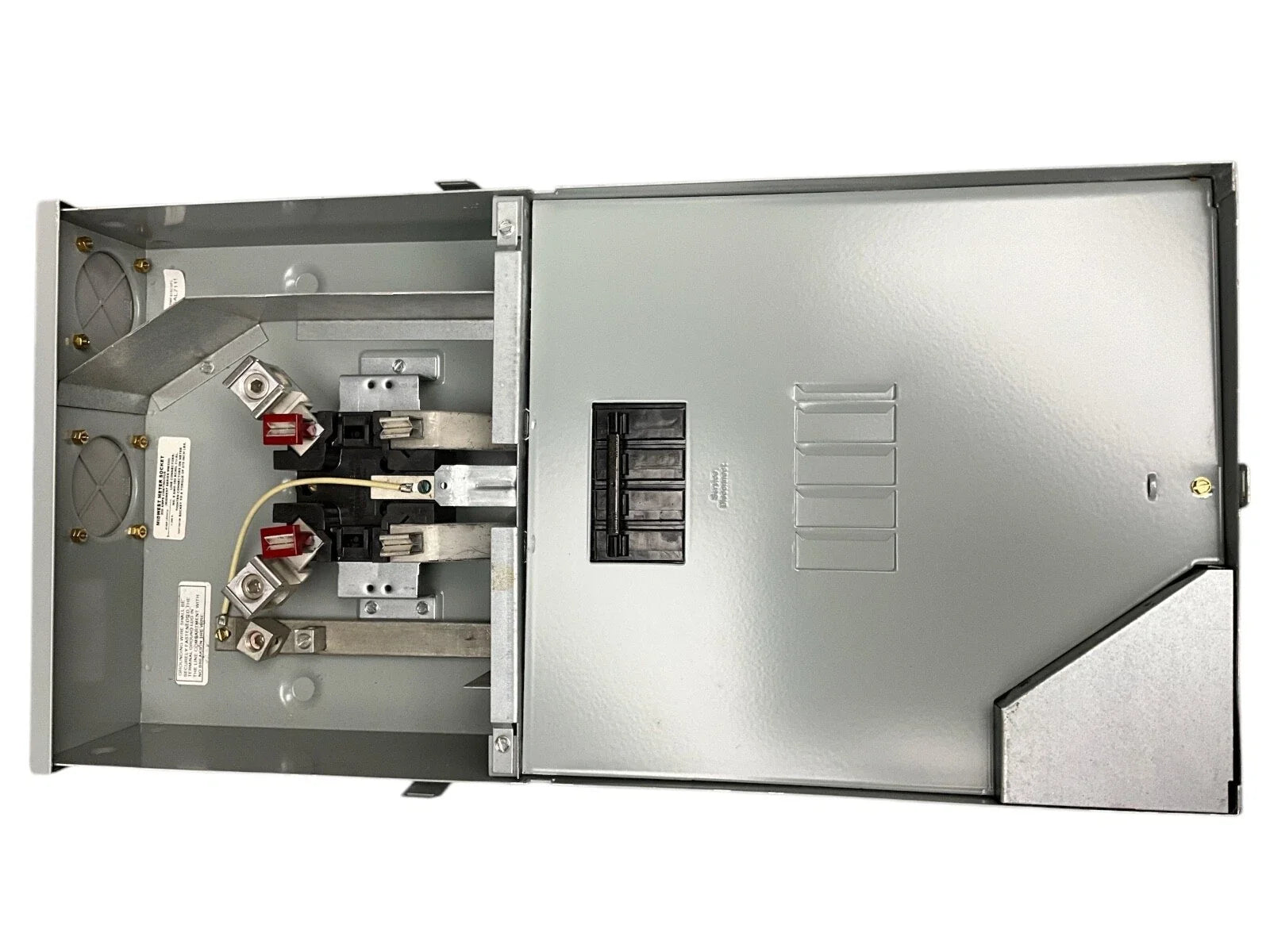

The General Electric TSMF415CSFL meter socket loadcenter is a 3-wire, 4/8-circuit main breaker unit designed for outdoor residential power distribution applications. It operates on 120/240 VAC single-phase systems with a 150 A rating and features a bonded neutral configuration for simplified installation. Housed in a NEMA 3R enclosure, the loadcenter provides durable protection for service entrance and branch circuit distribution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
TSMF415CSFL |
| Subcategory |
Meter Socket Loadcenters |
| Type |
3-Wire 4/8-Circuit Main Breaker |
| Phase |
1 Phase |
| Voltage Rating |
120/240 VAC |
| Amperage Rating |
150 A |
| Wire Size |
6 AWG to 350 kcmil Aluminum/Copper |
| Application |
Outdoor and Residential Applications |
| Mounting Type |
Surface Mount |
| Terminal Type |
Feed-Through Lug |
| Enclosure Type |
NEMA 3R |
| Cover Type |
Ring |
| Includes |
Removable Closing Cap |
| Dimensions |
28-1/2 in H x 14 in W x 4-1/2 in D |
| Weight |
35 lb |
Information About TSMF415CSFL
The TSMF415CSFL is a main breaker meter socket loadcenter manufactured by General Electric for residential and outdoor electrical distribution systems. This unit combines metering and load distribution functions in a compact surface-mounted enclosure designed for 120/240 VAC single-phase service. It features a 3-wire 4/8-circuit configuration with feed-through lug terminals that support aluminum or copper conductors ranging from 6 AWG to 350 kcmil. The loadcenter includes a removable closing cap, bonded neutral arrangement, and a NEMA 3R weather-resistant enclosure suitable for outdoor installations.
Key Features:
- 150 Amp Capacity: Supports residential electrical service applications up to 150 A.
- 4/8-Circuit Configuration: Provides flexible branch circuit distribution capacity.
- Single-Phase Operation: Designed for 120/240 VAC residential power systems.
- NEMA 3R Enclosure: Weather-resistant housing for outdoor installations.
- Bonded Neutral Design: Simplifies grounding and neutral connection requirements.
- Feed-Through Lug Terminals: Compatible with aluminum and copper conductors.
- Surface Mount Installation: Allows secure exterior mounting for service entrance setups.
- Removable Closing Cap: Facilitates maintenance and installation access.
The TSMF415CSFL delivers the reliability and precision required for residential outdoor metering and branch circuit distribution applications.
