Description

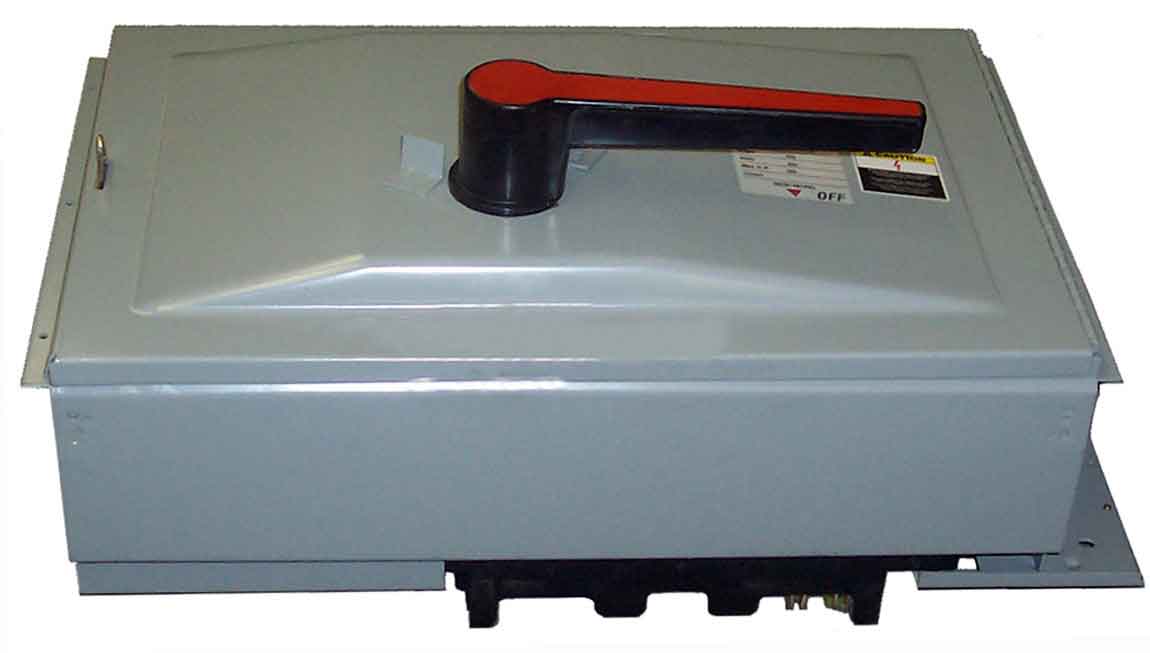

The General Electric ADS32400HBFP is a 400 A, 240 V 3‑pole fused panelboard disconnect switch designed for commercial and industrial electrical distribution. This unit provides reliable overcurrent protection and manual circuit disconnection. It is suitable for use with Spectra™ series switchboards and other electrical control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
ADS32400HBFP |
| Subcategory |
Panelboard Disconnect Switches |
| Series |
ADS / Spectra™ |
| Amperage |
400 A |
| Voltage |
240 V AC |
| Poles |
3 |
| Phase |
3 |
| Mounting Type |
Panel |
| Interrupting Rating |
200 kA @ 480 V |
| Enclosure Type |
NEMA 1 |
| Configuration |
Single |
| Number of Wires |
2 |
| Application |
Spectra™ Switchboards, Electrical Distribution and Control |
| Height |
10 inches |
| Type |
Type ADS Fused |
| Weight |
85 lbs |
Information About ADS32400HBFP
The ADS32400HBFP is part of GE’s ADS series, engineered for safe and dependable operation in high-current environments. It features a 3-pole, single-configuration design with a 200 kA interrupting rating at 480 V. The panelboard disconnect is designed for panel mounting and includes NEMA 1 enclosures for indoor installations. Key technologies include fused protection, robust construction, and compatibility with Spectra™ series switchboards for commercial electrical distribution.
Key Features:
- Series ADS: Part of GE’s Spectra™ series for industrial and commercial applications.
- Amperage Rating: 400 A for high-current protection.
- Voltage Rating: 240 V AC for standard three-phase systems.
- Poles: 3-pole configuration for full three-phase control.
- Interrupting Rating: 200 kA @ 480 V for high short-circuit protection.
- Mounting Type: Panel-mounted for secure integration.
- Fused Protection: Type ADS fused design for circuit safety.
- NEMA 1 Enclosure: Provides indoor protection and durability.
The ADS32400HBFP delivers reliable overcurrent protection and safe manual disconnection for industrial electrical systems.
