IS215ACLEH1A Application Control Layer Module for GE EX2100

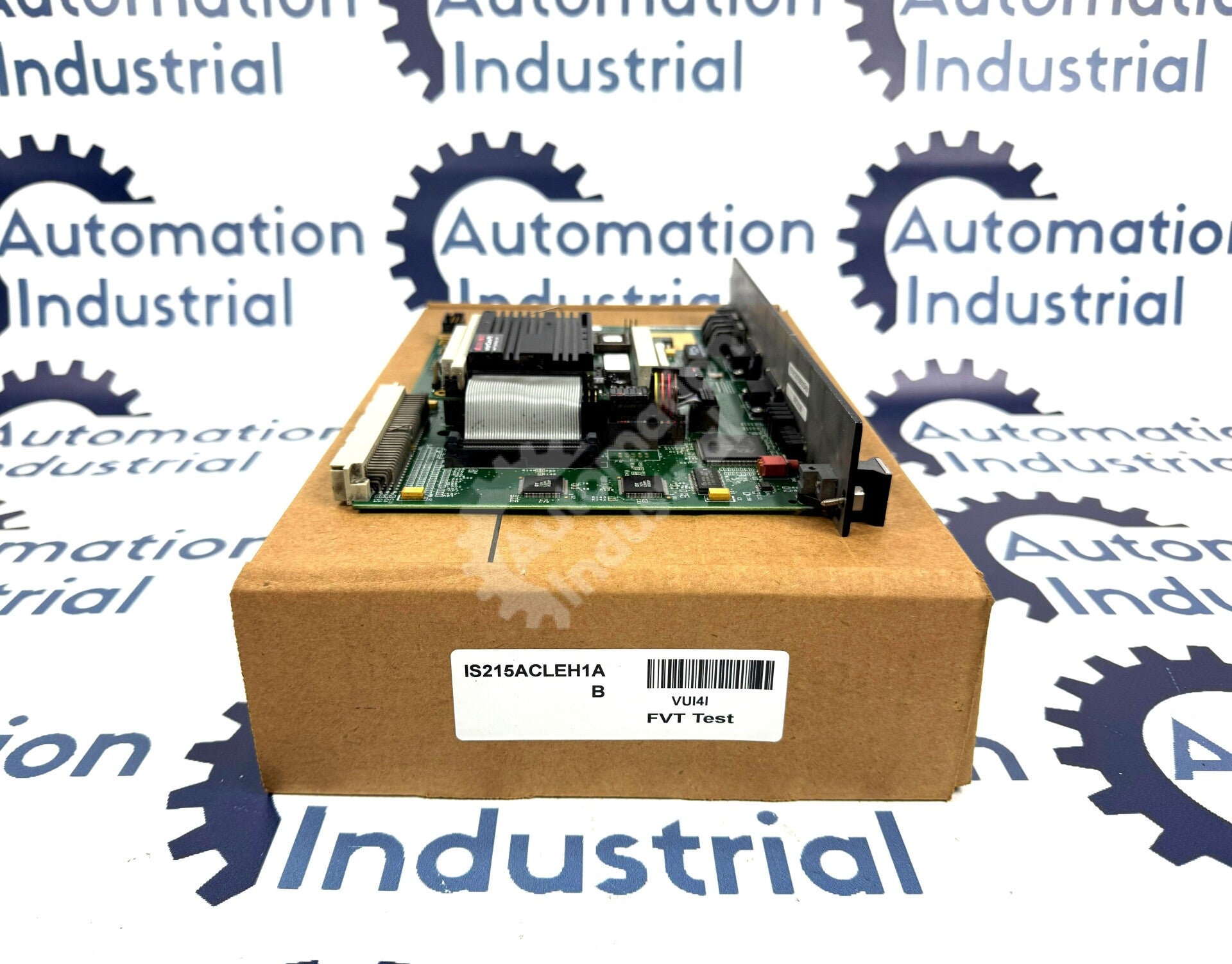

The IS215ACLEH1A is one of the earlier hardware variants of GE's ACLE, the Application Control Layer module that serves as the master processor of EX2100 excitation control. It runs the regulator's control block-ware under the QNX operating system and belongs to the same IS200/IS215 hardware generation as the GE Speedtronic Mark VI turbine controls. This listing is the H1A variant at the H1AB revision.

Role in the Excitation System

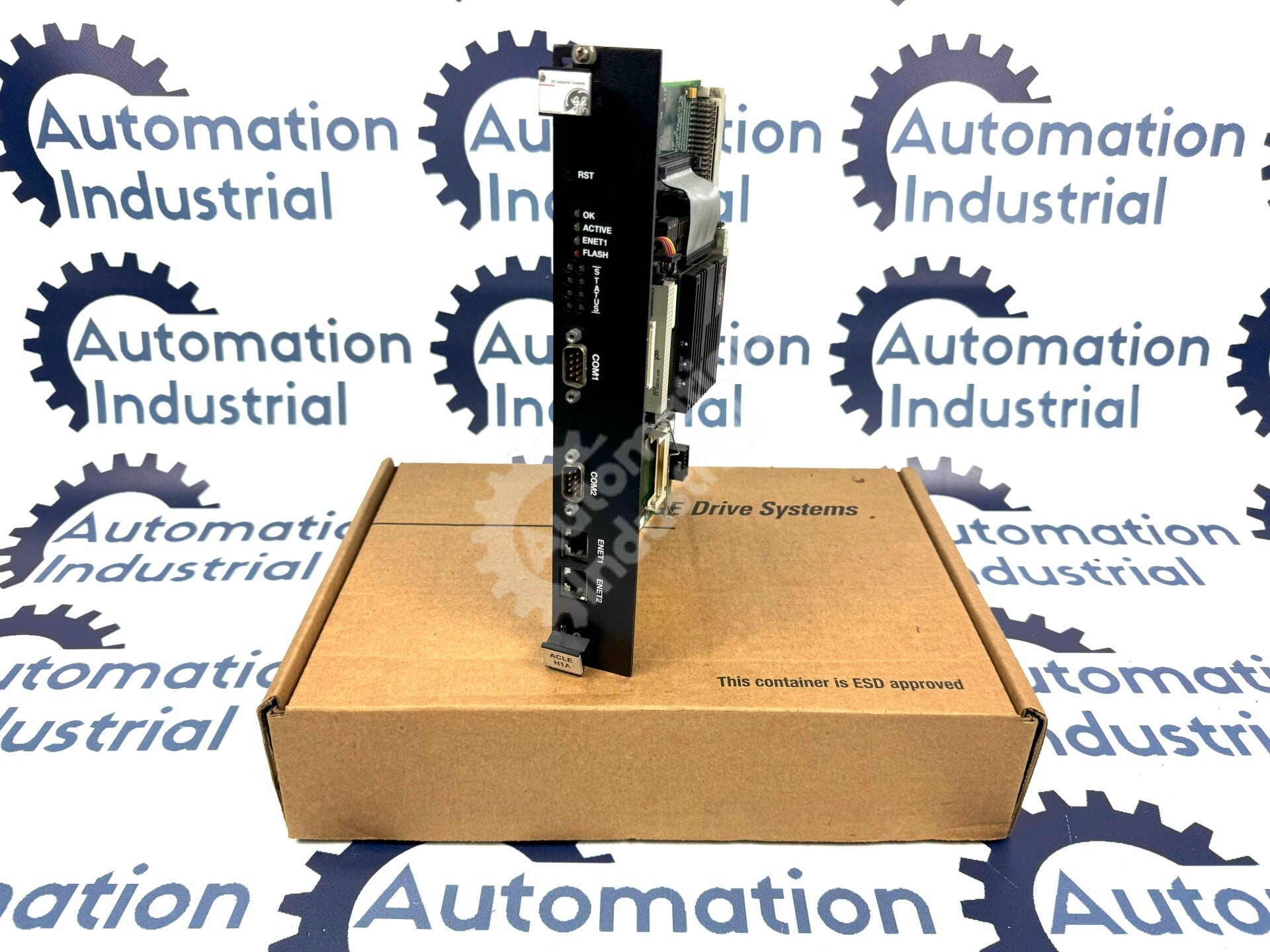

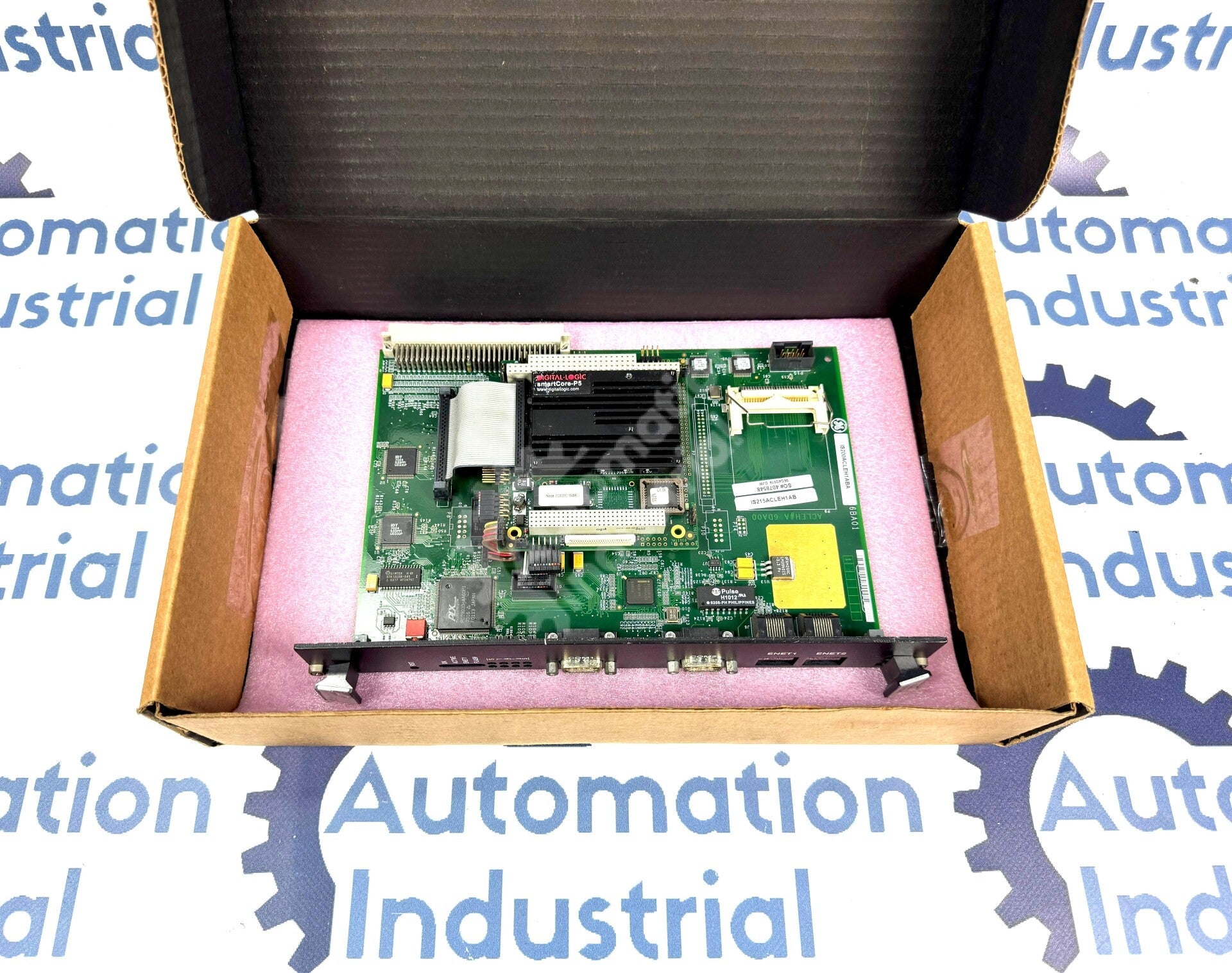

Inside an EX2100 exciter the ACLE is the decision-maker: it loads and validates the application configuration, runs the voltage-regulator logic, checks run and start permissives, forces internal Boolean and I/O points during commissioning, and raises application-level alarms. It talks to the IS200DSPXH1 DSPX signal-processor board over 32-bit dual-port RAM across the backplane, with the DSPX handling the fast thyristor firing. The module takes two slots and seats in the standard EX2100 racks built on IS200ESBP, IS200EBKP, IS200ERBP or IS200ERRB backplanes. It arrives as a sealed carrier-plus-processor assembly and is meant to be replaced as a whole unit.

The Symptom That Looks Like a Dead Controller — But Usually Isn't

The most expensive mistake in excitation troubleshooting is swapping the ACLE when the fault is upstream in software or elsewhere in the rack. Because the module validates its configuration against the hardware at every power-up, the classic dead-controller symptom is frequently nothing more than a configuration or firmware problem. Before ordering, confirm the following:

• Is the application actually loaded? A failed or partial runtime download over ENET1, or a configuration that no longer matches the hardware, will stop the exciter with a fully functional board in the slot. Re-download from the toolbox first.
• Is the compact flash intact? Corrupted non-volatile flash can prevent a clean start; that is a media issue, not a processor failure.
• Is the DSPX healthy? A fault on the IS200DSPXH1 or in the gate-firing path can present as an ACLE alarm.
• Is rack power solid and the backplane clean? Check the EX2100 supply and the ESBP, ERBP, ERRB or EBKP seating before condemning the card.
• Is the toolbox link up? A broken COM or Ethernet connection — verify the 336A3582P1 cable path — can look exactly like a hung controller.

Only after those are ruled out does a replacement ACLE make sense. That discipline is what keeps a planned repair from becoming a guessing game.

Decoding H1A and Its Revisions

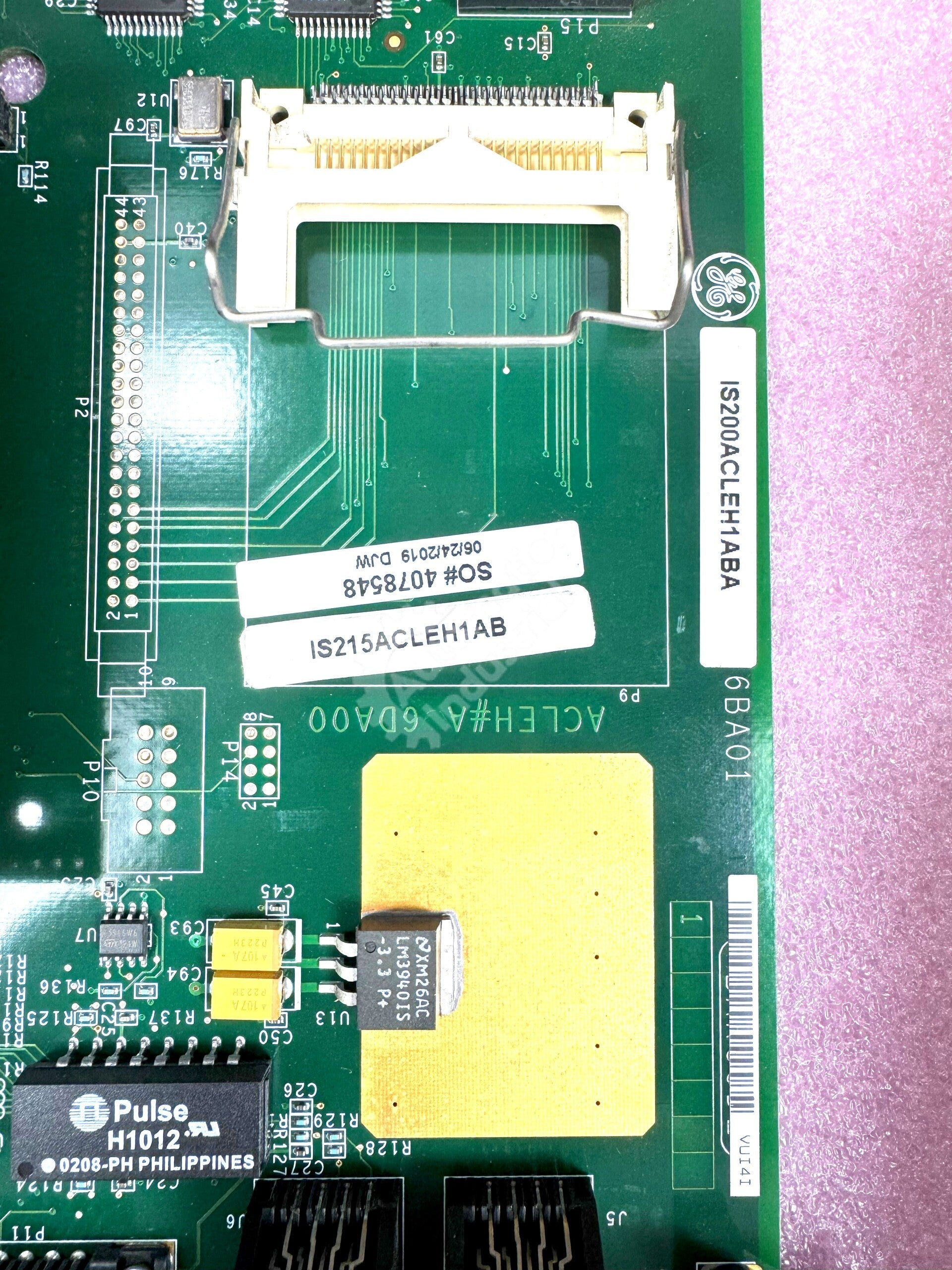

Read the number in blocks: IS215 is the Mark VI / IS200 special assembly, ACLE is the functional module type, H1A is the hardware variant, and the trailing letter in H1AB is the revision. Later revisions are generally intended to be backward compatible within the H1A family, but the surest replacement is one that matches the full suffix on the board you are pulling. See the GE Speedtronic Part Number Decoder for a field-by-field walkthrough.

Boards You May Need Alongside It

Common companions are the IS200DSPXH1 DSPX and the EX2100 backplanes named above; the ACLE also supersedes the older ACLA module in these systems. Explore related GE control hardware in the GE Mark VI IS200 Boards and GE Speedtronic Turbine Control Boards collections.

What We Need to Quote Your IS215ACLEH1A

For an accurate quote, include the full part number and suffix (IS215ACLEH1A / H1AB), the board revision, a photo of the label, the EX2100 or EX2100e system and the generator it serves, the ControlST or toolbox version if known, the quantity, and how quickly you need it. GE documents this module in publication GEI-100584.

Send those details and we reply within 24 hours, ship worldwide DDP, and accept purchase orders from qualified buyers.
