Inside the Rack: How GE's Boards Get Their DC Rails

Power in a GE Innovation Series board rack arrives in an unusual form: a 48 V square-wave switched at 25 kHz, produced by an external supply. It is the RAPA board's job to turn that waveform into the clean, regulated DC control voltages the rack's processor and interface boards actually run on, distributed to every slot over the P1 backplane connector. This listing is an open-box IS200RAPAG1BAA — configuration group G1B, revision BAA, from the Mark VI-era Speedtronic hardware family — new surplus that has never converted a watt in the field.

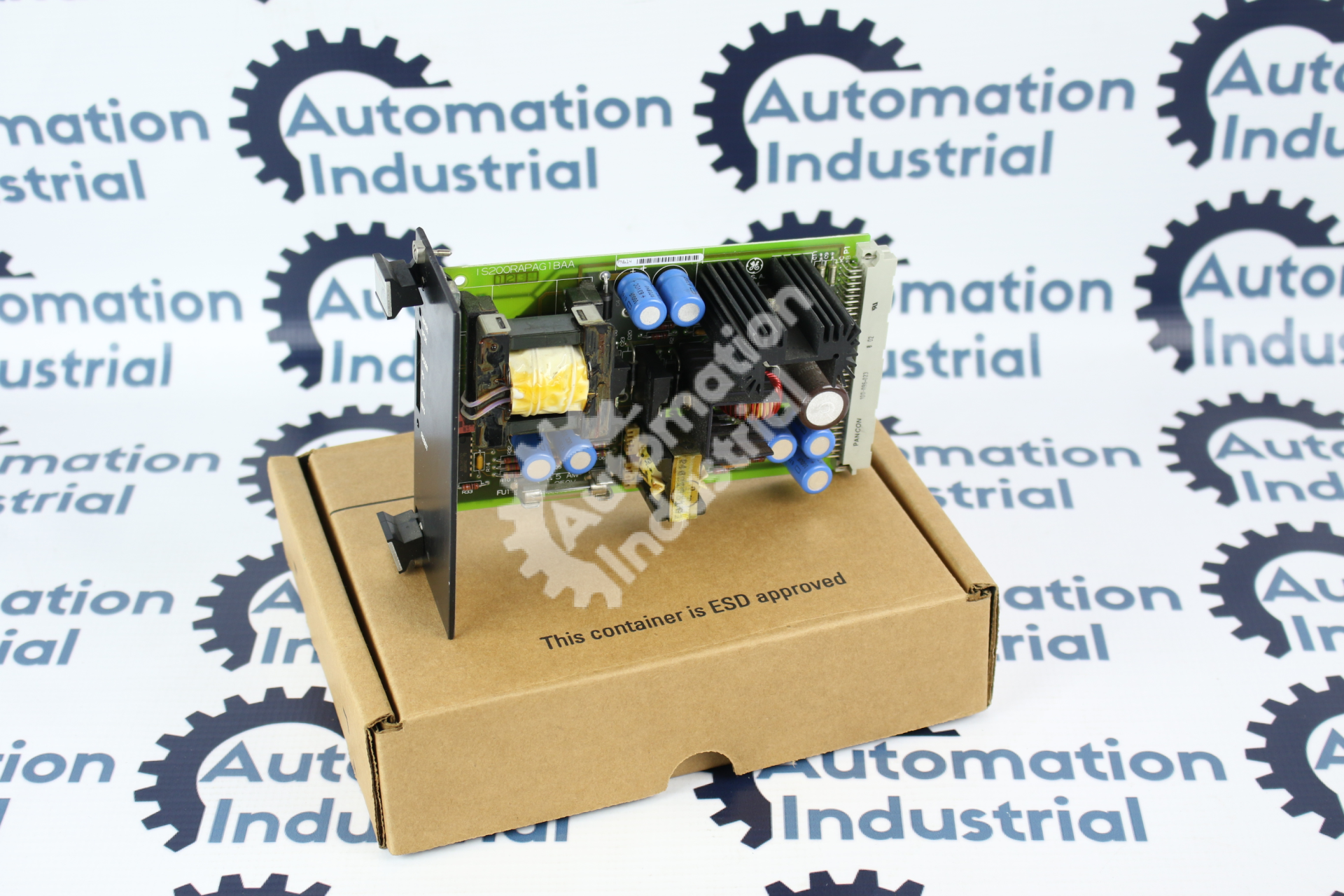

The board announces its health through a two-slot-wide faceplate: an IPOK LED confirming valid input power, an MPOK LED confirming the module's regulated outputs, a reset button, and an access opening over four test points documented as P5, P15, N15, and DCOM. Onboard, alongside the switching hardware, heat sinks, and a 1 A, 250 V fuse, sits a 1024-bit serial memory holding the board's own ID and revision, readable through P1 on the BRDID line.

Why Plants Keep a Spare Rack Power Supply on the Shelf

A failed I/O board takes out a function. A failed rack supply takes out the rack. That asymmetry is why maintenance planners treat the RAPA as a single point worth stocking: it is one board, it is compact, and its absence has plant-level consequences while its presence on a shelf costs nothing but the purchase. Open-box surplus fits this role well — unfielded hardware, factory packaged, ready to sit in stores until the day it becomes the most important part on site. If your spares audit shows no RAPA against a running Innovation Series rack, this unit is a clean way to close that gap before an outage does it for you.

Confirming the Fault: Input Side vs Output Side

If you are buying under failure conditions rather than for the shelf, invest thirty minutes first. The RAPA's LEDs split the diagnosis cleanly down the middle:

• Input side (IPOK dark): the 48 V, 25 kHz feed is not arriving. The external supply generating it, the interconnecting wiring, and upstream protection are your suspects. A new RAPA plugged into a dead feed stays dead.
• Output side (IPOK lit, MPOK dark): rails out of tolerance. Genuine RAPA failures live here — but so do downstream shorts. A failed board elsewhere in the rack can clamp a rail and frame the supply for it. Lighten the rack's load and re-test before passing sentence; check the onboard fuse while you are there.
• Neither side (both LEDs lit, rack still down): measure the rails at the faceplate test points. If they read true, your problem is not power — look at the boards, the backplane, or reset signaling, which this board participates in and which can hold a powered rack silent.

Suffix Notes for IS200RAPAG1BAA Buyers

Decode it as IS200 + RAPA + G1B + BAA: hardware era, function (Rack Power Supply Board), configuration group, revision. The group is the hard requirement — G1A and G1B are separate configurations with no documented interchangeability, so buy the group on your label. The revision chain within G1B (BAA, BBA, BCA) tracks design updates; BAA is the earliest of the three we stock, and revision substitution policy belongs to your site's records. One more verification habit worth keeping: make sure the rack you are repairing is actually an Innovation Series board rack — the Mark VI <R>, <S>, and <T> VME control racks are a different assembly with different power hardware, and the IS200 prefix on this board causes more cross-rack confusion than any other single thing. The GE Speedtronic Part Number Decoder covers the numbering conventions in depth.

Open-Box Surplus with Factory Packaging

This unit is new surplus without the original outer box: factory packaged, unused, verified before it ships. The exact condition and warranty language for this board is preserved in the table below — that statement, not marketing prose, is what governs.

Quote IS200RAPAG1BAA in One Business Day

Send a Request a Quote with the full part number, a label photo, the application the rack serves, the control generation, quantity, and whether the need is urgent or planned. We reply within 24 hours, ship worldwide on DDP terms with duties handled, and accept purchase orders. Building a fuller spares package? Start with GE Mark VI IS200 Boards and the complete GE Speedtronic Turbine Control Boards catalog.

General Information about the Product
Part Number	IS200RAPAG1B Mark VI IS200
Description	GE IS200RAPAG1B IS200RAPAG1BAA Rack Power Supply Board Mark VI OPEN BOX
Condition	newSurplusNoBox Factory Packaged. With 1 Year Warranty.
