What the IS200RAPAG1BBA Rack Power Supply Board Does

Most boards in a GE Innovation Series board rack never touch raw plant power — they live off regulated low-voltage rails, and those rails come from one place. The IS200RAPAG1BBA is that place: GE's RAPA Rack Power Supply Board, Mark VI-era Speedtronic hardware, group G1B at revision BBA. It accepts a 48 V DC square-wave input at 25 kHz — generated by an external supply, not a plain DC bus — and converts it into the DC control voltages it distributes to the rest of the rack through the P1 backplane connector. Vendor documentation also ties the board into the rack's power-on and reset signaling, which matters more for troubleshooting than most people expect.

A Dead Rack Is Not Always a Dead Power Supply

The RAPA sits at a diagnostic crossroads: every failure in the rack can be made to look like its fault. Here is the honest sorting procedure, built around the two faceplate LEDs:

• Step one — IPOK. The input power OK LED tells you whether the 48 V, 25 kHz feed is even arriving. Dark IPOK means your problem is the external supply, its cabling, or upstream protection. This is the single most common way a healthy RAPA gets condemned: the rack is dark, the supply board gets swapped, and the fault was a feed that never reached it.
• Step two — MPOK. Input present but module power OK dark means the regulated rails are out of tolerance. Before you conclude the RAPA failed: a shorted board elsewhere in the rack, or a backplane fault, will drag a rail down and produce exactly this picture. De-energize, pull boards, re-test with a lighter load.
• Step three — the fuse and the rails. The board carries a 1 A, 250 V fuse, and its faceplate opening exposes four test points (documented as P5, P15, N15, DCOM). A meter on those points turns speculation into numbers.
• Step four — reset behavior. The board's reset function means a supply that powers up but misbehaves can hold the rack in a reset state — a failure mode that presents as dead processors rather than as a power problem. If the rack powers but never comes alive, keep the RAPA on your suspect list even with rails present.

Work that sequence and you will either clear this board or convict it on evidence. Both outcomes save you money.

Understanding G1B and the BBA Revision Code

The number reads: IS200 (GE standard-assembly board, Mark VI hardware era) + RAPA (Rack Power Supply Board) + G1B (configuration group) + BBA (revision). Two ordering rules follow. First, G1A and G1B are distinct groups within the family — we have found no trustworthy documentation that they interchange, so match the group on your installed board's label. Second, the G1B revision chain runs BAA, BBA, BCA; this is the middle revision. Sites differ on whether they allow revision substitution, so check your own engineering records rather than assuming. The overall numbering logic is unpacked in the GE Speedtronic Part Number Decoder.

Where This Board Sits in GE's Control Generations

RAPA belongs to the IS200 hardware generation that succeeded the Mark V's DS200 boards — if your plant is straddling that transition or you are mapping spares across generations, our guide Mark V vs Mark VI: DS200 to IS200 lays out how the numbering and hardware philosophy changed. Note also that this board's home, the Innovation Series board rack, is a different assembly from the Mark VI VME I/O racks of the <R>, <S>, and <T> cores — those racks take different supplies, so confirm which rack you are actually repairing before ordering. The board makes verification easy: it stores its own board ID and revision in a 1024-bit serial memory readable over the P1 connector's BRDID line, and the same information is printed on the label.

How We Handle Your RFQ

Send the full part number (IS200RAPAG1BBA), a label photo, the system the rack controls, your control generation, quantity, and urgency. We check the physical unit on the shelf against your details — group, revision, condition — and reply within 24 hours with a firm offer. This particular board is a used unit, cleaned and tested, with the warranty statement shown in the table below. If your outage clock is running, say so; urgent requests get handled first.

Get a 24-Hour Quote on IS200RAPAG1BBA

Use the Request a Quote button. We ship worldwide on DDP terms — customs and duties handled before the box reaches your dock — and we accept purchase orders. Related rack hardware is in our GE Mark VI IS200 Boards collection; the broader inventory lives under GE Speedtronic Turbine Control Boards.

General Information about the Product
Part Number	IS200RAPAG1B Mark VI IS200

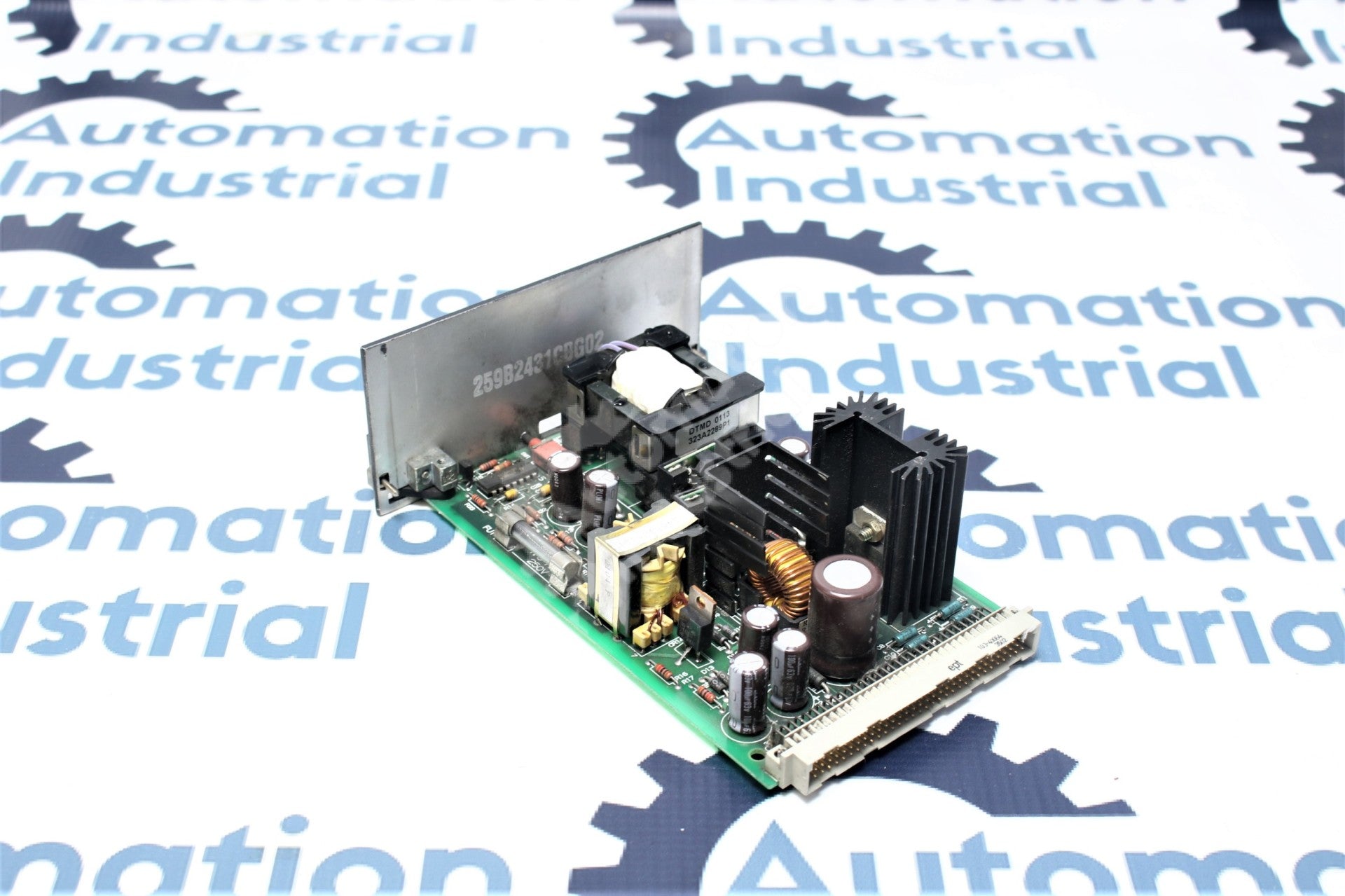

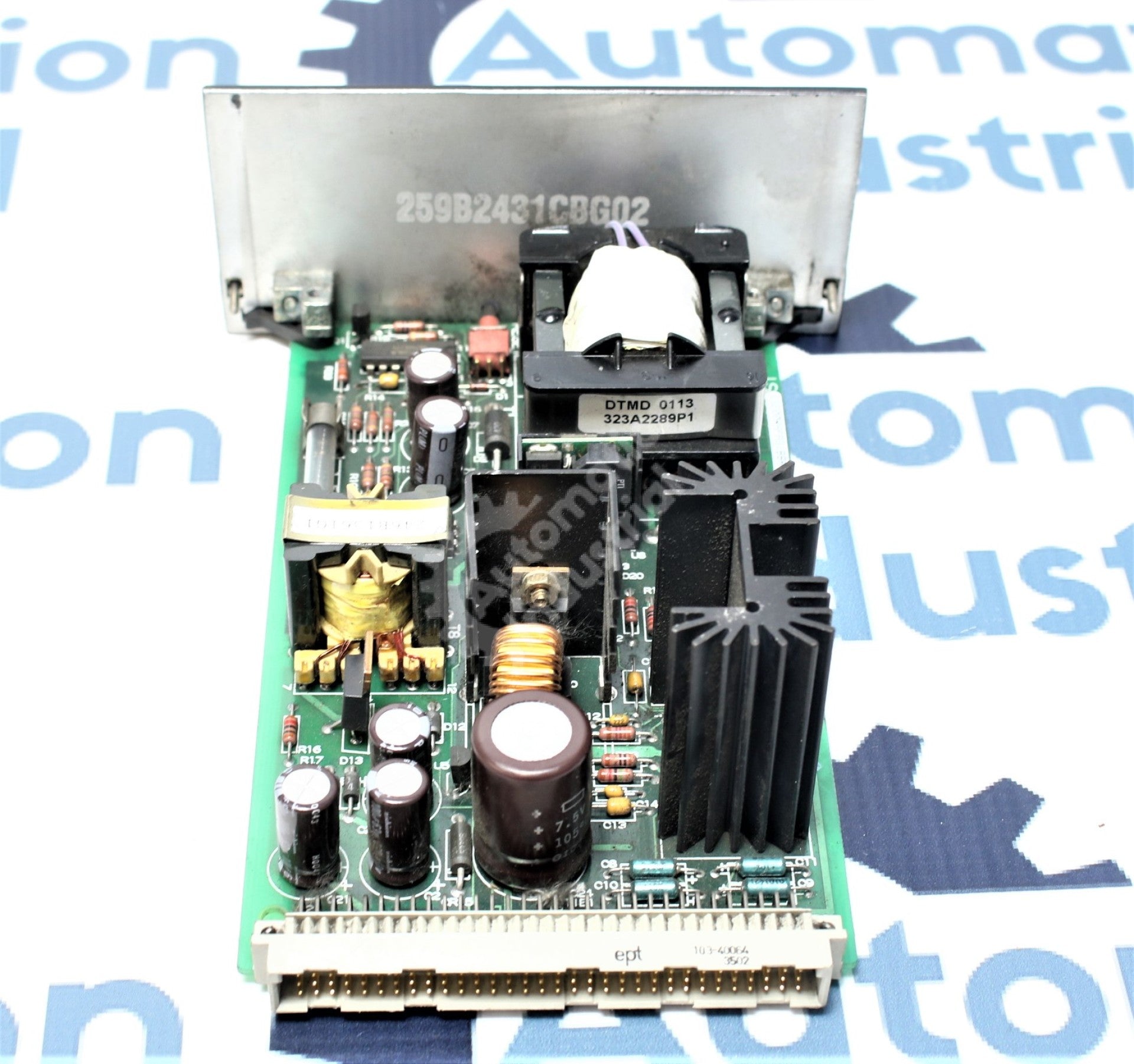

Description	GE General Electric IS200RAPAG1B IS200RAPAG1BBA Rack Power Supply Board Mark VI
Condition	used Clean and Tested. With 1 Year Warranty
