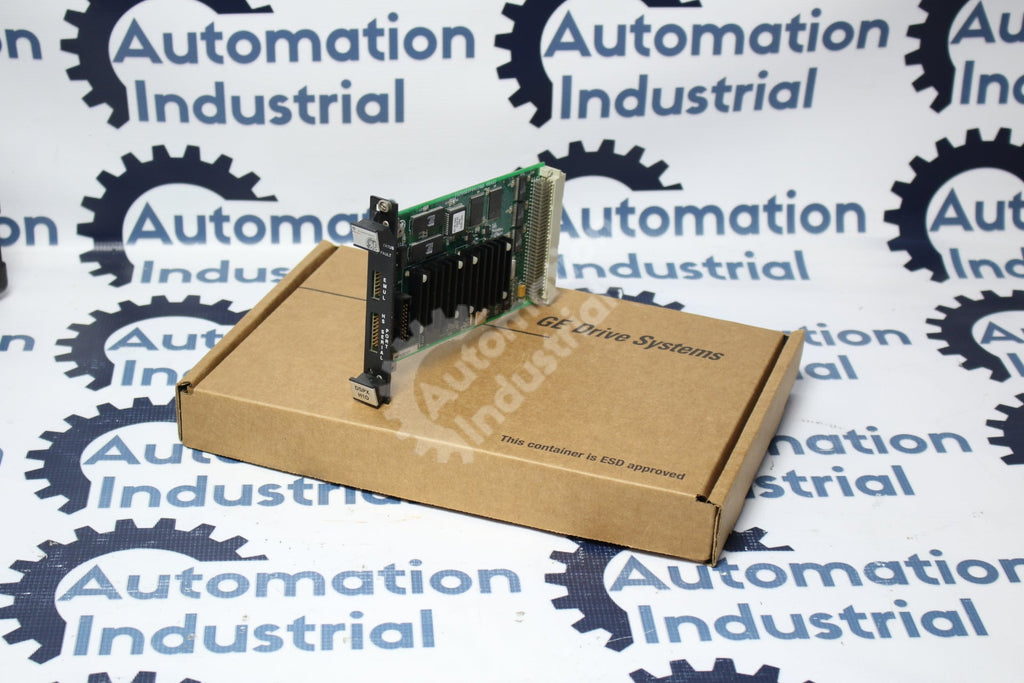

IS200DSPXH1DBD: What It Controls and Where It Sits

IS200DSPXH1DBD is GE's part number for a Digital Signal Processor Control Board (DSPX), the processing card at the heart of the EX2100 static excitation control system (the same family also appears on GE Innovation Series drives). Its job on the exciter is to act as the primary controller for the bridge and motor regulator functions and for generator field control. A detail that trips up a lot of buyers: this is not a card from the Mark VI turbine controller's own <R>/<S>/<T> racks. It's an excitation-side board that plugs into the EX2100's own VME-style rack via a 128-pin, 4-row DIN backplane connector. It shows up in Mark VI IS200 parts catalogs because EX2100 excitation and Mark VI turbine control are almost always installed together on the same unit and share GE's IS200 numbering scheme — not because the board physically lives in the turbine controller.

The DSPX is built around a digital signal processor running at 60 MHz paired with an application-specific integrated circuit (ASIC) that takes care of custom logic and interface functions. Onboard memory is segmented by role: FLASH for the boot loader, application code, configuration data, and history logging; RAM for active processing; NVRAM for nonvolatile storage; and a small add-only block that identifies the board's revision. It communicates over two 5 Mb/s ISBus ports (master or slave capable) and two dedicated TTL serial ports, one for a configuration tool and one for a programming board. On the front, STATUS and FAULT LEDs and dedicated DSP emulator / Engineering monitor connectors are the only user-facing features — there are no fuses, trimpots, or field test points to fiddle with.

Before You Buy: Common False Alarms

Don't let a DSPX fault code send you straight to a replacement order. Work through these first:

• Redundant channel comparison: most EX2100 regulators run several DSPX cards in parallel. A fault on just one channel, with the others clean, often points to a configuration or firmware mismatch rather than failed hardware.
• Seating and power: the 128-pin backplane connector and the exciter's power supply board are common sources of DSPX-looking faults. Reseat the card and verify supply rails before condemning the processor.
• Communications vs. processor fault: a break in the link between DSPX channels can present identically to an internal board failure.
• Re-commissioning: a replacement board doesn't arrive with your site's application code or configuration — that has to be loaded through the tool port and the Control System Toolbox, or the new board will fault too.

Only after ruling out configuration, seating, redundancy, and commissioning issues should you treat a persistent fault as a genuine board failure.

Understanding the IS200DSPXH1DBD Suffix

The part number splits into the IS200 platform prefix, the DSPX function code, and the H1DBD suffix, where H1 denotes the group/generation and DBD denotes the specific hardware and artwork revision. Order and quote the full IS200DSPXH1DBD string — revisions within the same group are not automatically interchangeable with each other. Our GE Speedtronic Part Number Decoder explains how to read a partial or worn label if you're not certain of the exact suffix on your unit.

Related Boards in the Rack

The DSPX shares the EX2100 backplane with the exciter's main I/O board, its power supply card, and the interface board that ties multiple DSPX channels together. If your site also runs older Mark IV or Mark V equipment, GE's numbering for this generation of hardware moved from DS200 prefixes to the IS200 prefixes used on Mark VI and EX2100 platforms — our Mark V vs Mark VI: DS200 to IS200 guide and GE Mark V DS200 Boards Explained article cover the transition. See the rest of the lineup in our GE Mark VI IS200 Boards collection and the broader GE Speedtronic Turbine Control Boards collection.

Information We Need for a Quote

• Full part number and suffix: IS200DSPXH1DBD
• Revision as shown on the physical label
• Photo of the ID label
• Exciter/turbine model and unit ID
• Planned outage or urgent breakdown
• Quantity needed

Request a Quote

This particular unit is listed in used condition, clean and tested, with a 1-year warranty (details in the table below). We work on a request-a-quote model rather than published pricing — send us your requirement and we'll respond within 24 hours. Worldwide DDP shipping and purchase orders are both supported, whether you're planning ahead or working an active outage.

General Information about the Product
Part Number	IS200DSPXH1D Mark VI IS200

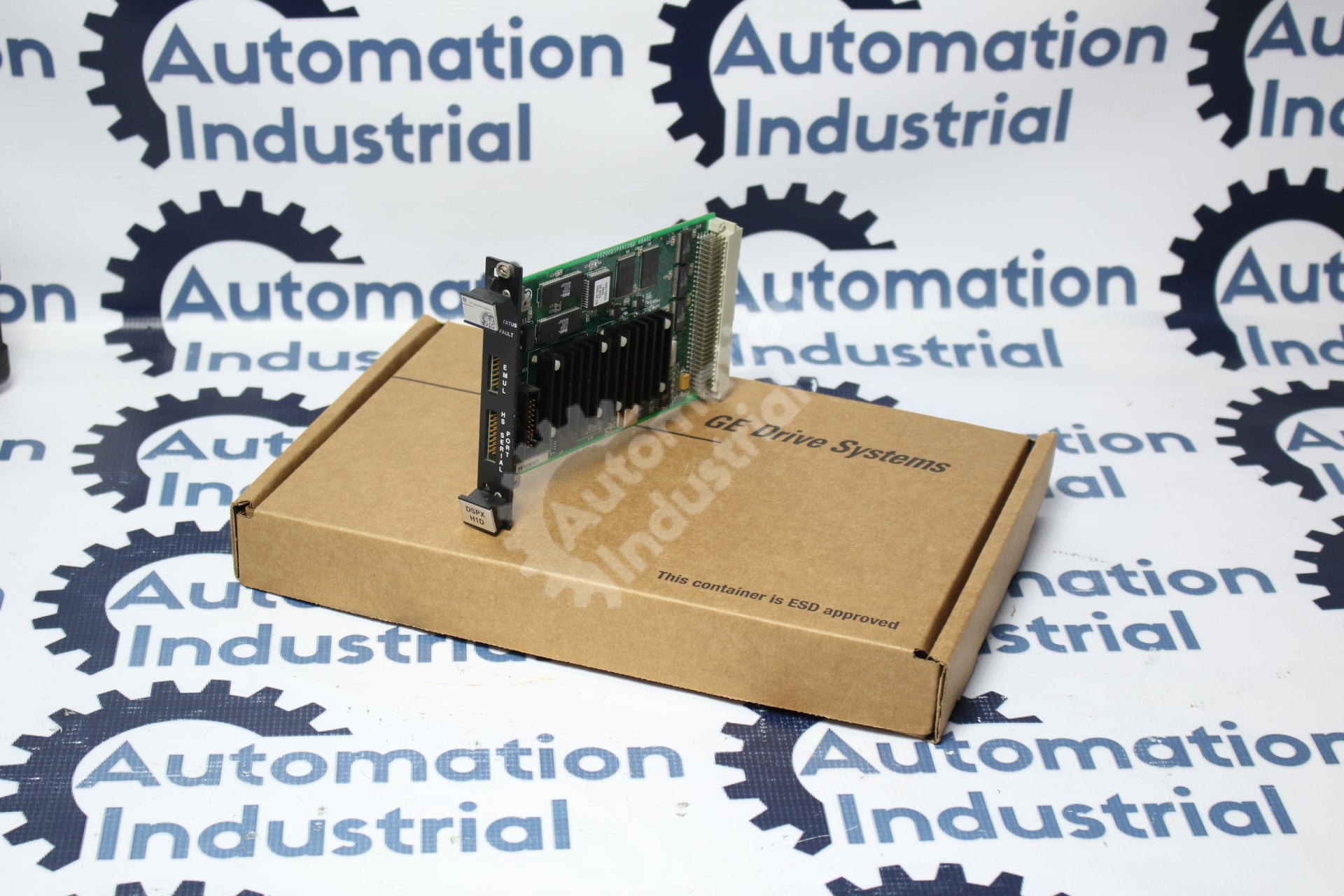

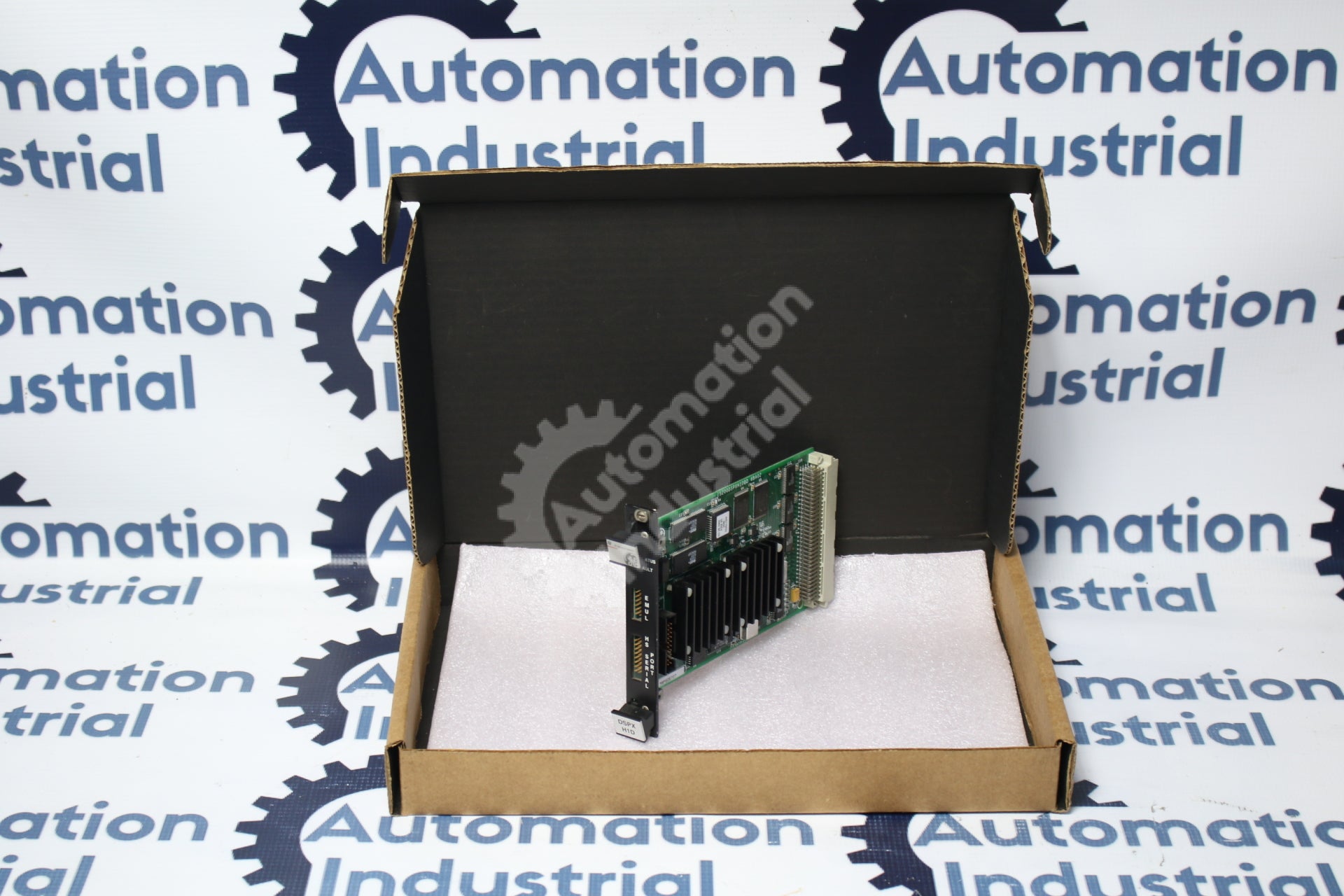

Description	GE General Electric IS200DSPXH1D IS200DSPXH1DBD Processor Board Mark VI
Condition	used Clean and Tested. With 1 Year Warranty.
