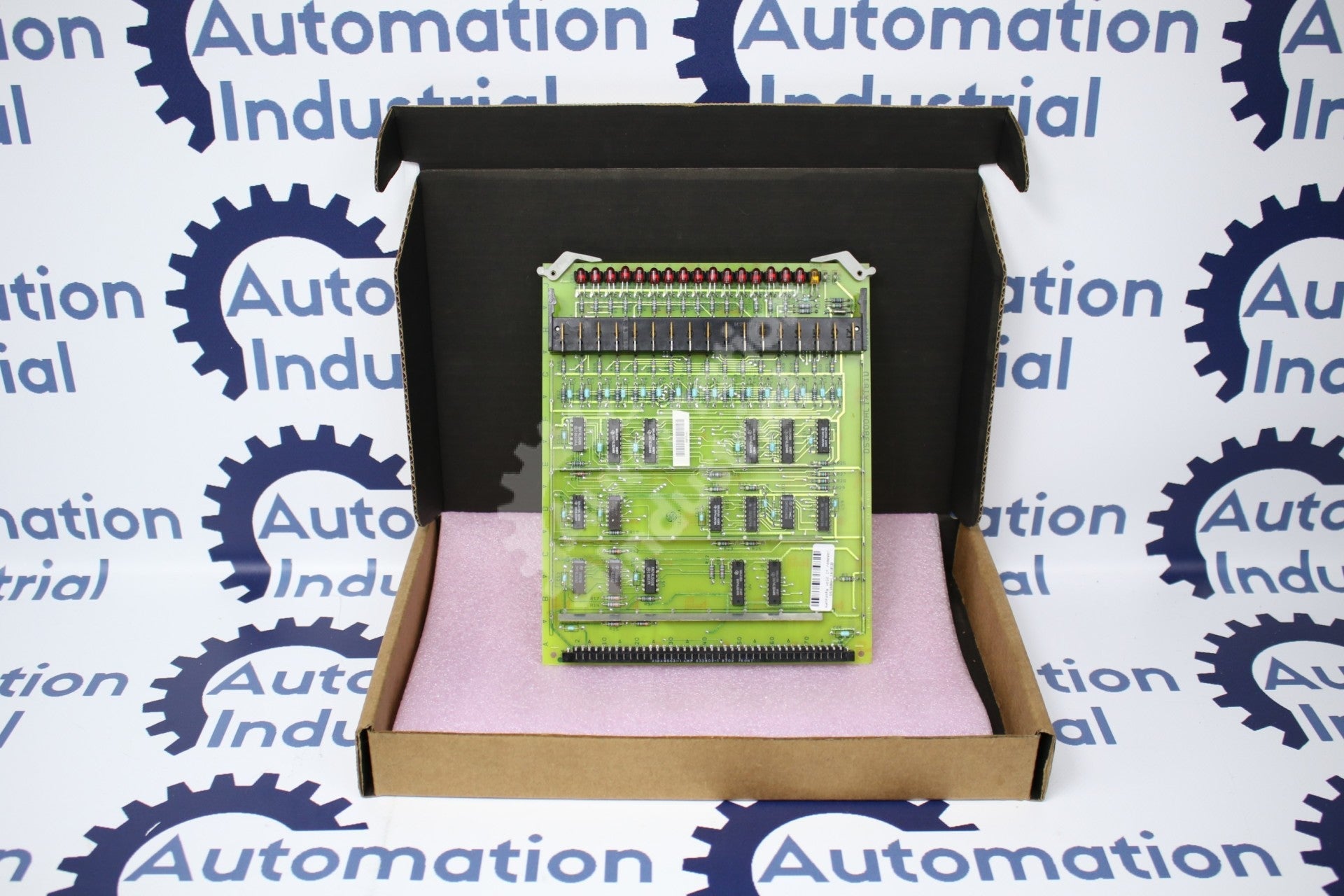

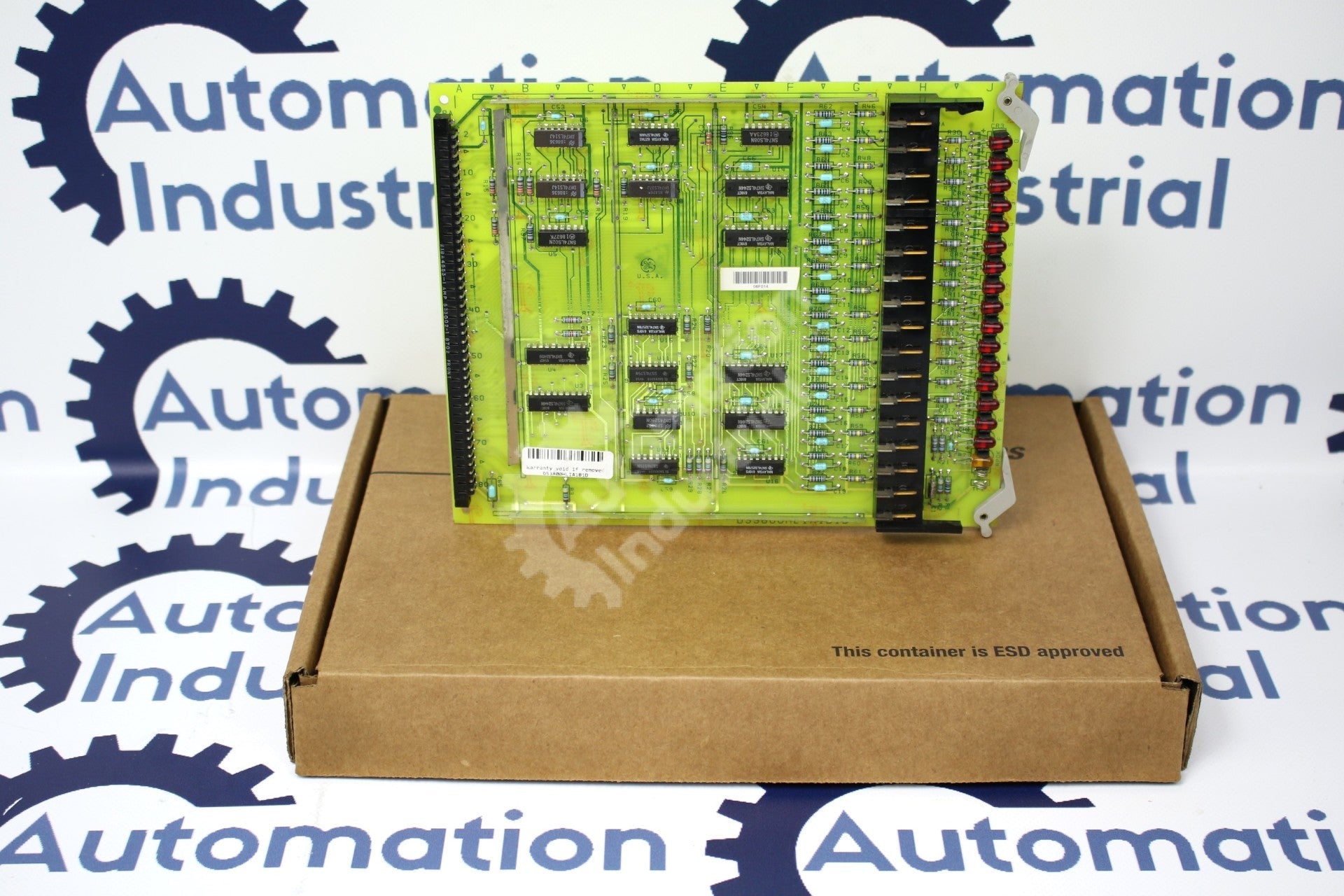

DS3800HLIA1B1D Logic Input Board (GE Mark IV DS3800)

The DS3800HLIA1B1D is the logic input board GE fitted in Speedtronic Mark IV turbine control panels. It brings the state of high-voltage field contacts into the control while isolating that field voltage from the processor electronics, and it is sometimes cataloged under the alternate names High Voltage Logic Input Isolator Board or Logic Input Auxiliary Card. This listing covers the 1B1D group of the HLIA family.

Inside the Triple-Redundant Mark IV Rack

Understanding where this card sits helps when you troubleshoot. The Speedtronic Mark IV runs a triple-modular-redundant control scheme: three parallel processor sections, <R>, <S>, and <T>, each perform the control and protection logic, and a fourth section, <C>, manages communications and the operator interface. Decisions are settled by two-out-of-three voting across the redundant sections. The DS3800HLIA1B1D plugs into the card rack that serves this architecture, presenting isolated field-input states to the logic. It seats through a modular connector at one end and is locked by retention levers at the other, which also keep the connector under proper contact pressure.

First Checks When Inputs Go Dead or Erratic

Erratic or dead discrete inputs are not always a board problem. Run these checks before buying a replacement:

• Start at the LEDs. An amber indicator confirms the card is powered and has passed its startup diagnostics; the red indicators show processing activity. A dark amber points at the supply or the card, while a healthy amber redirects you to the field side.
• Test the field circuit. Confirm the contact actually changes state and that its wiring and any field fuse are intact. This is where most “bad input” calls are really resolved.
• Check the power supply and backplane. If more than one card is affected, the fault is more likely a shared supply or rack issue than a single logic input board.
• Reseat the card. With power removed, unlock the levers, withdraw and reinsert the board to clear a marginal connector, then restore power and watch the indicators recover.

What the 1B1D Suffix Does and Does Not Tell You

The number is layered: DS3800 (Mark IV series) + HLIA (logic-input function) + 1B1D (group code for this version and revision). The group code is what separates one HLIA build from another, and it should be matched exactly on replacement because revisions within a family are not guaranteed to be drop-in equivalents. What the code does not do is publish the board's internal specifications; treat it as a variant identifier to match against your existing card. See the GE Speedtronic Part Number Decoder for the full breakdown.

Boards You May Be Sourcing Alongside It

Sites keeping Mark IV panels in service often order logic input cards together with the analog, processor, and supply boards from the same rack. Our GE Mark IV DS3800 Boards collection lists the family, and if an eventual control upgrade is on your roadmap, our Mark V vs Mark VI: DS200 to IS200 guide shows how later generations are numbered.

Get a Quote in 24 Hours

Include the full part number with the 1B1D suffix, the board revision, a photo of the label, your turbine frame and Mark generation, the quantity, and your urgency. We will confirm the exact card and its availability, respond within 24 hours, ship worldwide on DDP terms, and accept purchase orders.
