The Logic Element Board: Where Decisions Get Made

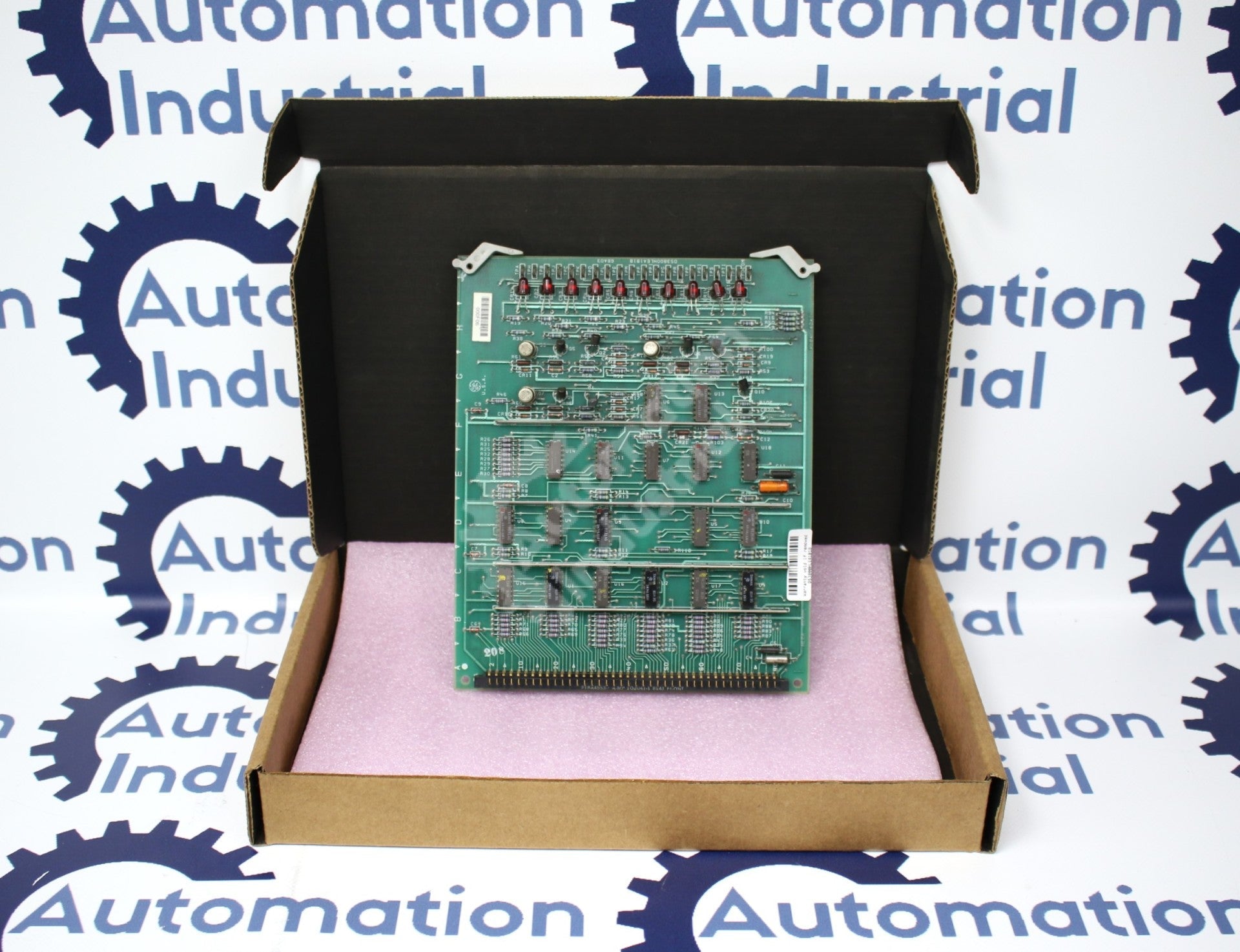

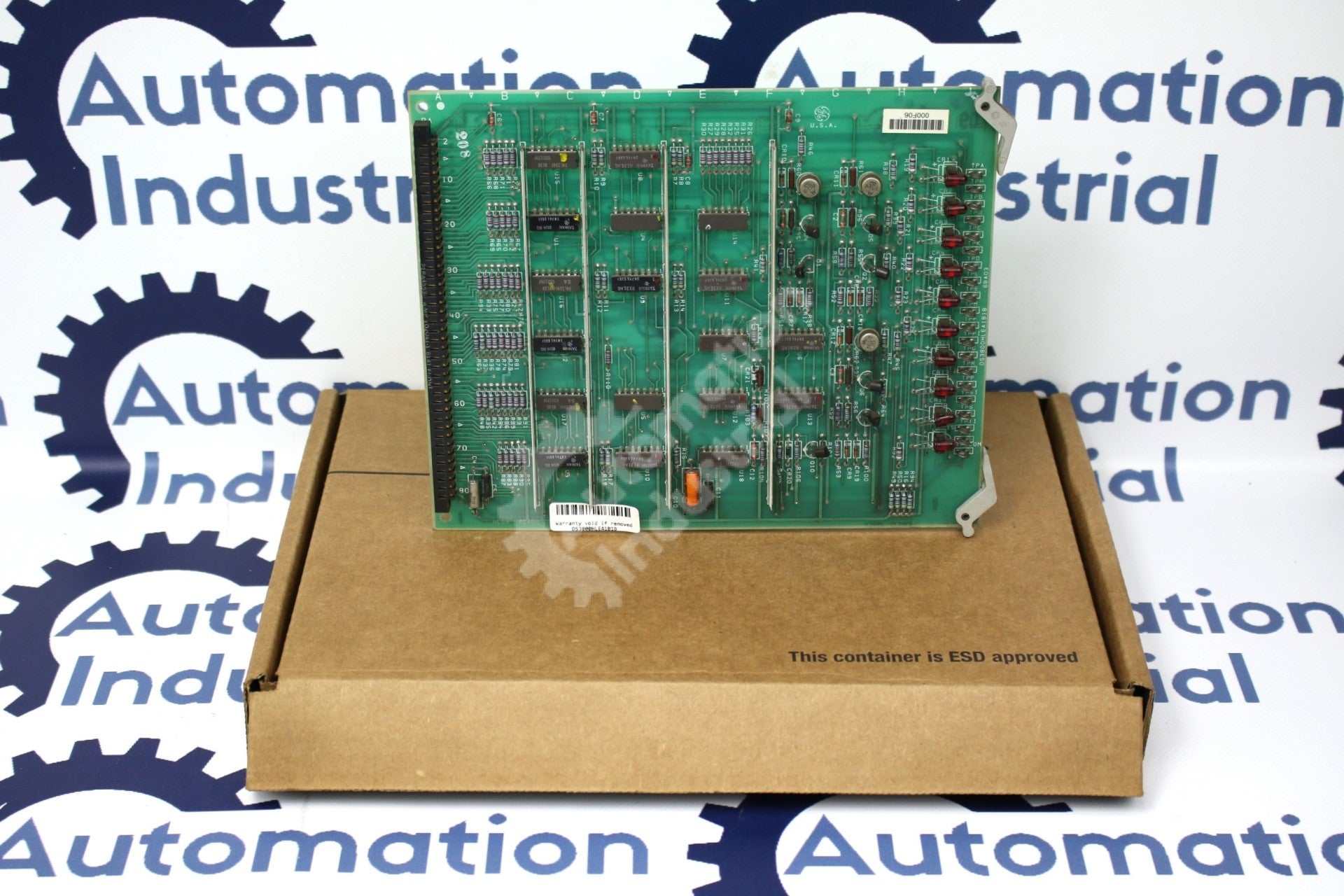

Inside a GE Speedtronic Mark IV panel, the DS3800HLEA is a logic element board — it receives and processes discrete input signals from sensors and control devices and carries out the logical operations that drive the turbine control system's decision-making. It's populated with 10 indicator LEDs visible from the front of the board, which briefly light as a self-test when the panel is powered up, and 3 configuration jumpers. A modular connector and retention levers let the board be inserted and removed from the rack without disturbing surrounding cabling, and an onboard transistor-to-transistor logic (TTL) device handles the interface logic between the board's integrated circuits. This DS3800HLEA1B1B is a used board, cleaned and tested, with a 1-year warranty.

Logic Element or Logic Input? Confirm Before You Order

One of the most common mix-ups in the DS3800 "HL" family is ordering the wrong board type entirely. GE's Mark IV logic hardware includes both logic element boards (HLEA, which is this board) and separate logic input boards (HLIA and HLIC), which condition the incoming discrete signals before the element board ever sees them. A fault that looks like a logic problem — an input reading stuck, a permissive that won't clear — can just as easily originate at a field contact, relay, or the input board as at the element board itself. Before ordering a replacement HLEA:

• Check the field contacts, relays, and terminal wiring feeding the logic input side of the rack — a stuck or corroded field contact produces symptoms that look identical to a logic card fault.
• Confirm whether the 10 status LEDs completed their power-up self-test correctly, and whether the pattern you're seeing is isolated to this board or common across the rack (which would point to power, not this card).
• Verify the 3 jumpers are set the way your system documentation calls for — a jumper left in the wrong position after any prior card swap can present exactly like a hardware failure.
• Identify which of the <R>, <S>, or <T> channels is actually raising the fault. Mark IV's triple modular redundant design votes two-out-of-three, so a single-channel logic mismatch can appear as a diagnostic without tripping the unit.

If those checks come back clean and the fault still isolates to this specific card, ordering a replacement DS3800HLEA is the right call.

What the 1B1B Suffix Identifies

DS3800 is the board family, HLEA is the four-letter functional code for this logic element board, and 1B1B identifies the specific production run and revision — run "B," revision "B." GE never published a public explanation of exactly what changed at each revision letter, so we treat the suffix as a required match to your existing board's label rather than a detail to round off. If you're substituting a different suffix than what's currently installed, send us a photo of your board's label first and we'll help confirm compatibility. Our GE Speedtronic Part Number Decoder covers this numbering logic across Mark IV, V, and VI systems in more depth.

Other Boards in the Logic Family

Beyond the logic input boards mentioned above, the DS3800HLNE serves as the network/highway controller tying logic communication together across the rack. If your troubleshooting points to a logic fault but you're not certain it's specifically on the element side, cross-check your panel's elementary diagrams before ordering. Our GE Mark IV DS3800 Boards collection covers the wider DS3800 lineup for reference.

What to Send Us for a Quote

• The full part number and suffix exactly as printed on the board label
• A photo of the label if there's any doubt about a character or revision letter
• Turbine model and confirmation the control system is Mark IV Speedtronic
• Quantity and urgency — spares stocking or unit currently down

We quote within 24 hours, ship worldwide DDP so duties are already handled on arrival, and accept purchase orders directly. Click Request a Quote to get started.

General Information about the Product
Part Number	DS3800HLEA1B1B Mark IV DS3800
Description	GE General Electric DS3800HLEA1B1B DS3800HLEA Logic Element Board Mark IV
Condition	used Cleaned and Tested. With 1 Year Warranty.
