A New-Surplus DS3800HFPG1D1G — What "New" Does and Doesn't Mean

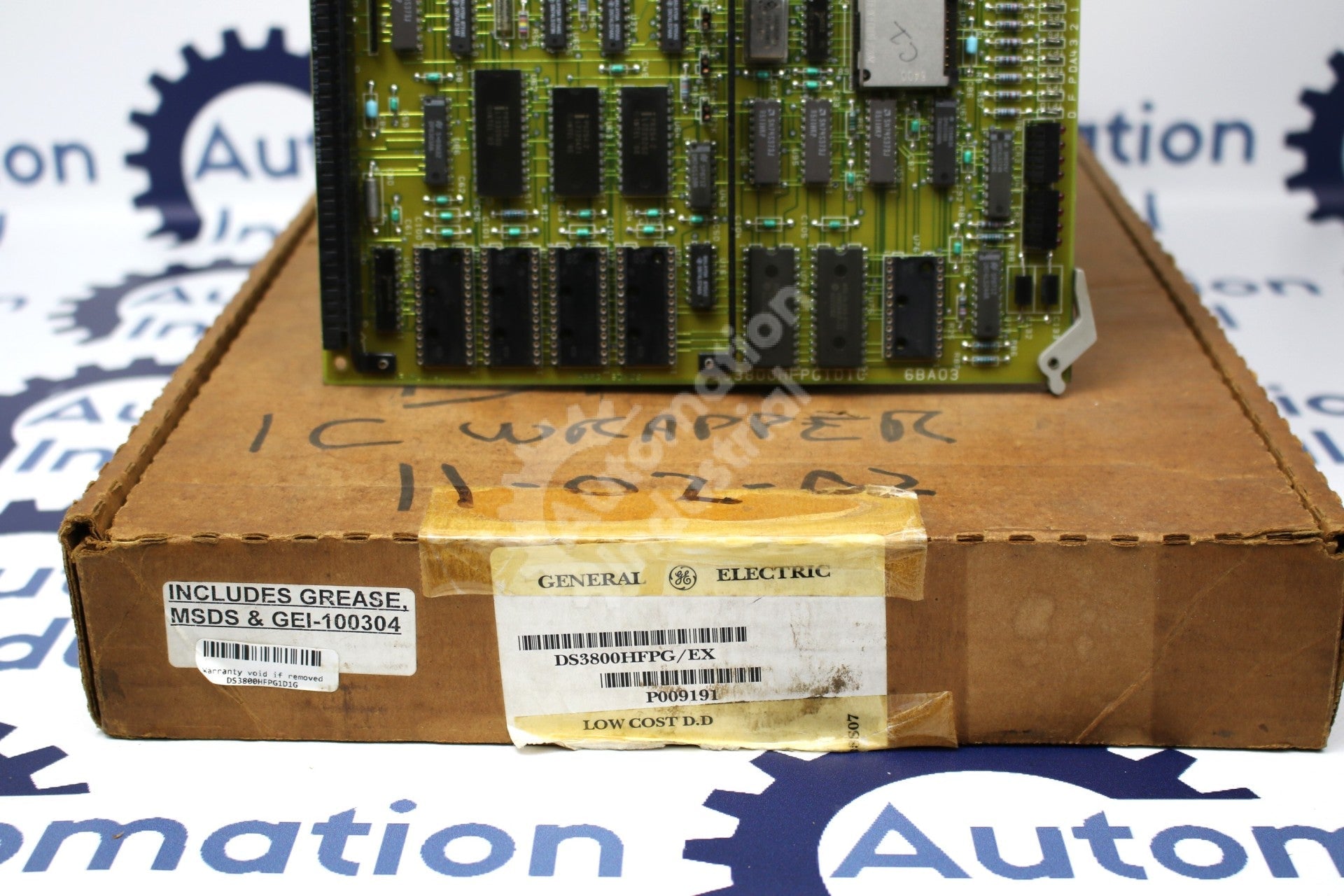

This DS3800HFPG1D1G is new-surplus factory-packaged stock: unused, but sourced outside GE's original distribution channel rather than fresh off a current production line (GE stopped building new Mark IV hardware long ago). It's still worth knowing what "new" changes and what it doesn't. The card's EPROM modules — which hold the firmware and application-specific programming for the drive function — ship blank or with generic content, the same as on a used replacement. Your turbine's actual configuration lives on the EPROM modules from your existing board, and those still need to move across to this card. Being new-surplus buys you a carrier board and connectors that have never been in service; it doesn't buy you a pre-programmed spare.

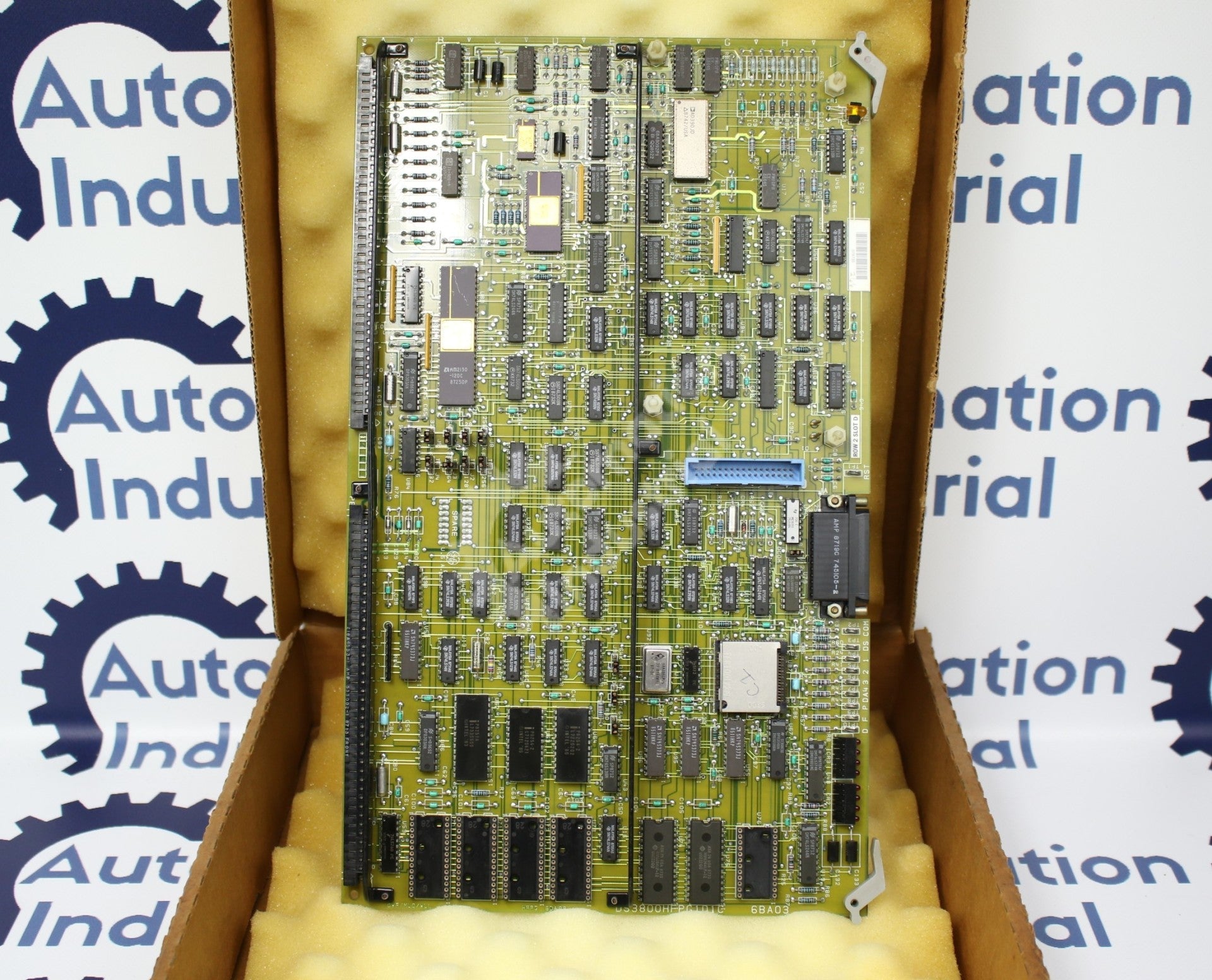

The board itself is the Drive Control Board in GE's Speedtronic Mark IV system: a double-width card built around a microprocessor and those EPROM modules, with a transistor-to-transistor logic (TTL) device managing interface logic between the integrated circuits. It occupies two rack slots, connecting through modular connectors at the rear and secured with retention levers, with a 34-pin connector and test points on the front and a 40-pin connector on the board surface for ribbon-cable connections.

Before You Assume the Board Is at Fault

• Ribbon cable routing. A cable from the 40-pin connector crossing the microprocessor can block cooling airflow, causing intermittent faults under load that clear once the board cools — easy to mistake for a failing processor.
• Full seating on both rear connectors. Because it's a double-width card, engagement on only one of the two rear connectors can cause erratic behavior.
• The EPROM modules from your old board are what actually determine whether a replacement works in your application — have them ready to transfer, and check their seating if a "new" replacement doesn't behave as expected.
• Test points on the front let you isolate a fault to a specific circuit before committing to a full board swap.

Reading the 1D1G Suffix

"DS3800" identifies the Mark IV series, "HFPG" is the Drive Control Board function code, and "1D1G" is the revision/variant suffix specific to this hardware and firmware combination. We stock this board across a number of suffixes — 1B1B, 1D1B, 1D1C, 1D1D, and 1D1G among them — and later letters do not automatically mean backward compatibility. Match the suffix on your existing label, and see our GE Speedtronic Part Number Decoder for the general logic behind these codes.

Related Boards in the Same Panel

The Drive Control Board is one of many DS3800-series cards in a Mark IV rack, alongside processor and regulator boards such as the DS3800HMPK, memory boards, and analog I/O cards. Browse the rest of the lineup in our GE Mark IV DS3800 Boards collection. If your site has since moved to Mark V (DS200-series) or Mark VI/VIe (IS200-series), that's a different hardware generation, not a drop-in swap — our Mark V vs Mark VI: DS200 to IS200 guide explains how they relate.

Ordering This New-Surplus Board

Send us the full part number with suffix (DS3800HFPG1D1G), a photo of your existing board's label, your turbine model and confirmation it's a Mark IV panel, the quantity you need, and your urgency. This unit is new-surplus factory-packaged stock with a 1-year warranty. We ship worldwide DDP (Delivered Duty Paid), accept purchase orders, and respond to quote requests within 24 hours.
