DS3800HFPG1D1C at a Glance

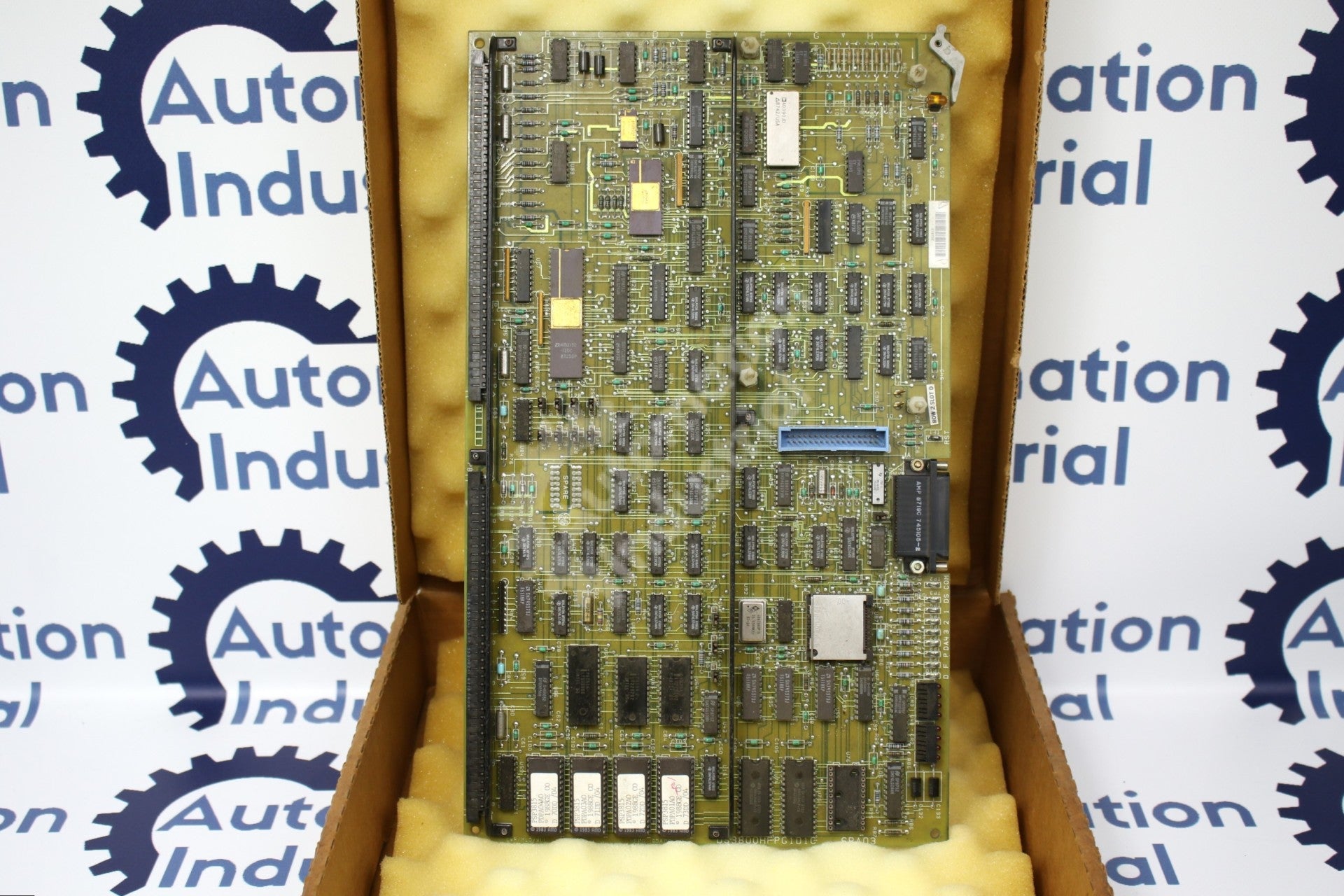

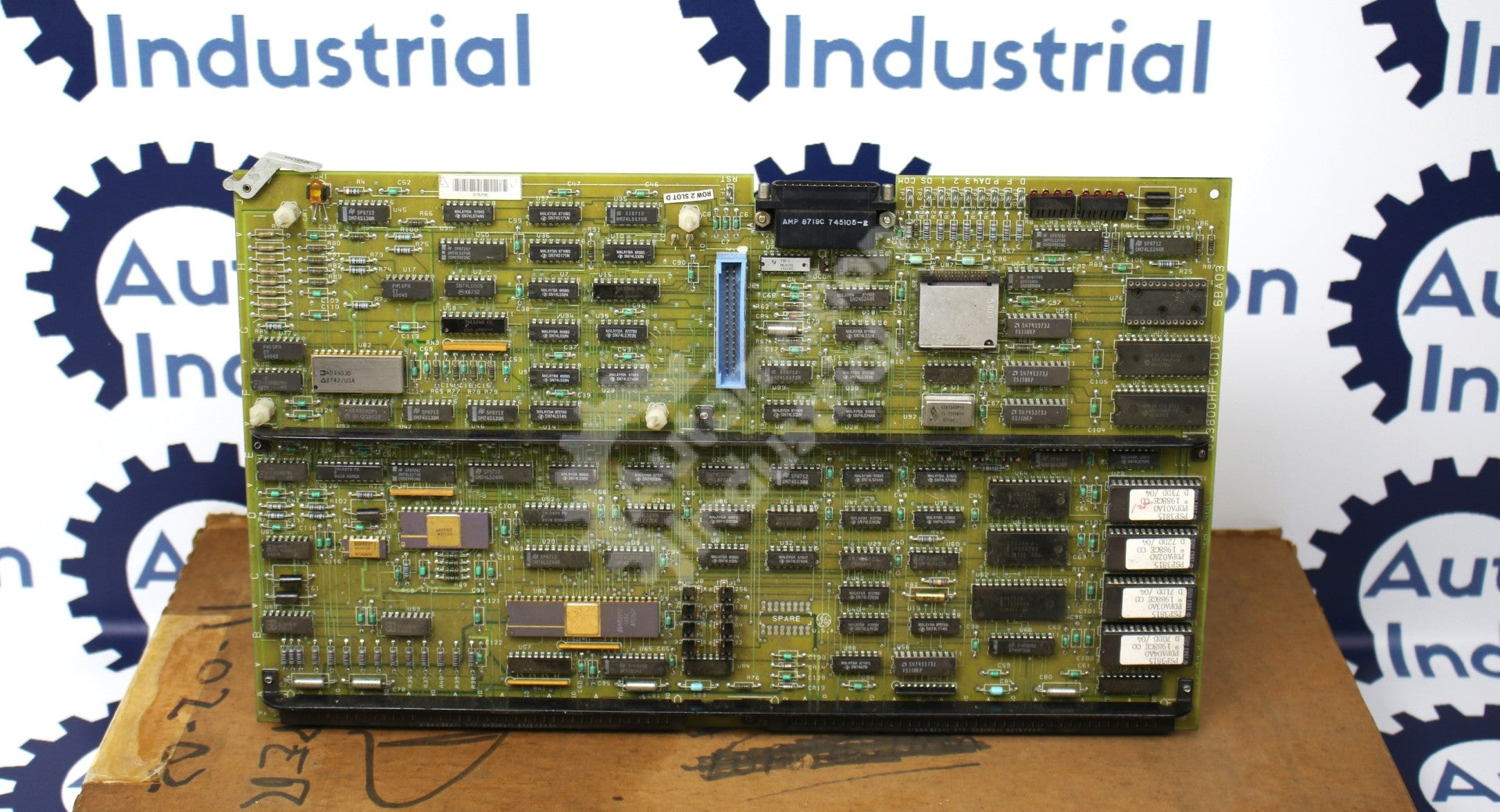

Start with the suffix: "1D1C" is what separates this specific hardware and firmware revision from the other DS3800HFPG variants in circulation. The function code HFPG marks the board as GE's Mark IV Drive Control Board, run by a microprocessor paired with EPROM modules that hold the drive firmware, with a transistor-to-transistor logic (TTL) device managing interface logic between the board's integrated circuits. It's a double-width card, occupying two rack slots and connecting to the backplane through modular connectors at the rear, held with retention levers; a 34-pin connector and test points sit on the front, with a 40-pin connector on the board surface for ribbon-cable connections.

Why a Working Panel Can Still Throw a Drive Fault

Not every fault that points at the drive circuit is this board's fault. Work through these before ordering a replacement:

• Reseat before you replace. Because this is a double-width card seated on two rear connectors, a board resting on just one of them can throw faults that look like a processor problem but are really a seating issue.
• Look at the ribbon cable path. A cable running across the microprocessor from the 40-pin connector can block cooling airflow — the board can then fault under load and check out fine once it's cooled, which reads like an intermittent, unrepeatable failure rather than a heat problem.
• Check the EPROM modules before the carrier board. The application firmware lives on modules that are meant to move from your old board to the replacement, which ships with empty sockets. A loose module can look exactly like a dead board.
• Use the front test points. They let you check individual circuits before you pull the whole card.

The Suffix Is Not Optional

GE issued the DS3800HFPG Drive Control Board across a number of revision suffixes over its production life — 1B1B, 1D1B, 1D1C, 1D1D, and 1D1G among the ones we carry — and they are not automatically interchangeable. Order by the full part number including the suffix, and check it against the label on your existing board rather than the generic DS3800HFPG number alone. Our GE Speedtronic Part Number Decoder explains how GE generally structured these codes, and we can confirm cross-suffix compatibility before you order if you're unsure.

This Card Doesn't Run the Panel Alone

A Mark IV rack pairs the Drive Control Board with other DS3800-series cards — processor boards like the DS3800HMPK, memory boards, and analog I/O boards among them — to run the full turbine control sequence. Browse the rest of the lineup in our GE Mark IV DS3800 Boards collection. If your plant has since moved to Mark V (DS200-series) or Mark VI/VIe (IS200-series), that's a different hardware generation, not a drop-in replacement — our Mark V vs Mark VI: DS200 to IS200 guide covers how they relate.

Get Your Quote in 24 Hours

Include the full part number and suffix (DS3800HFPG1D1C), a photo of your existing board's label, your turbine model and confirmation it's a Mark IV panel, the quantity you need, and your urgency. This unit is used, cleaned and tested, with a 1-year warranty. We ship worldwide on a DDP (Delivered Duty Paid) basis and accept purchase orders — submit a Request a Quote and we'll confirm fit before anything ships.
