DS3800DFPH1B1A in a Mark IV DS3800 Rack

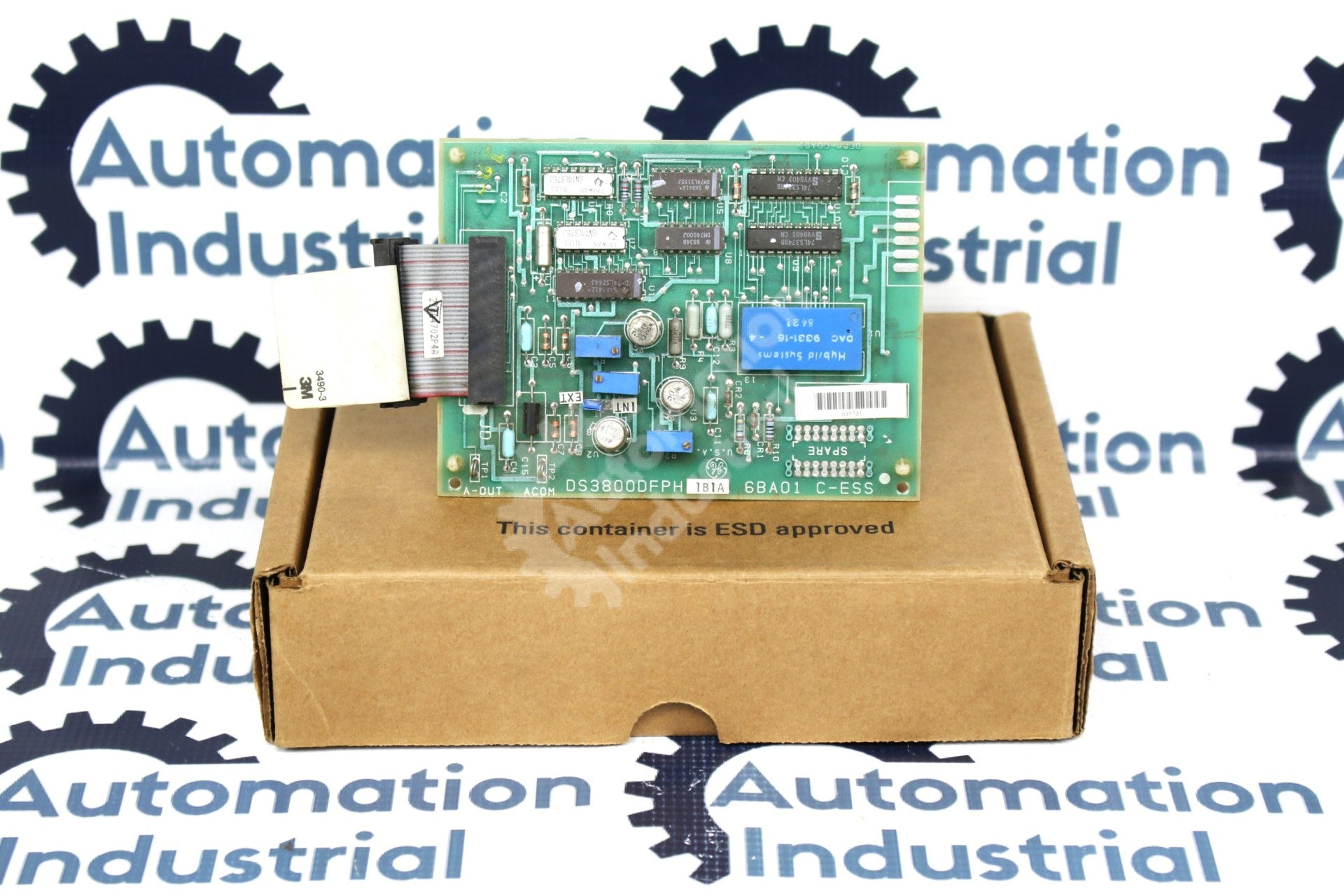

Offered here as a cleaned and tested used board with a one-year warranty, the DS3800DFPH1B1A is a GE Speedtronic Mark IV control board assembly from the DS3800 hardware generation. Each unit is reconditioned and functionally checked before it ships, so it arrives ready to serve as a like-for-like replacement for a 1B1A card already in service.

The Mark IV panel is a triple modular redundant (TMR) design: three independent control processors, <R>, <S> and <T>, execute the same control logic and settle disagreements by two-out-of-three voting, while a <C> communications processor carries data to the CRT operator interface. The DFPH board is one of the DS3800 cards that populate this rack, linked to the rest of the system through ribbon cables and backplane connectors. Because the four-letter DFPH code marks a defined card position, confirm the board's precise role against your machine's elementary drawings before ordering; we do not publish channel counts or voltages that are not verifiable on the hardware itself.

Is the DFPH Really at Fault? Field Checks First

The most expensive mistake in turbine-control maintenance is replacing a good board. A surprising share of "board failures" turn out to be something adjacent. Work these checks before you pull the DFPH:

• Power and rails. Verify the DC outputs of the DS3800 power supply feeding the rack. A drooping rail can make every card in the cage look suspect.
• Cabling and seating. Reseat the board and examine the ribbon cable and connector. Corrosion, a bent pin or a half-latched card produces the classic intermittent that comes and goes with vibration or temperature.
• Read the vote. Note which of <R>, <S> or <T> is flagging. A single core disagreeing tells a very different story from all three alarming together.
• Adjacent hardware. Check the boards the DFPH exchanges signals with; a defect upstream or downstream can masquerade as a DFPH fault.
• Configuration. If the board carries trimmer adjustments, a swapped-in card set differently from the original will not behave until it is calibrated to your site.

Matching the 1B1A Group and Revision

Read the part number as DS3800 (Mark IV family) + DFPH (card type) + 1B1A (group and revision). GE typically kept the base designation stable across production runs and advanced the trailing suffix, which is why the last four characters matter so much: a 1B1A is not automatically interchangeable with a different group even though the DFPH root is the same. Match the suffix to your installed board, and when in doubt, our GE Speedtronic Part Number Decoder lays out the naming convention.

Companion Boards and Later Speedtronic Options

Within the same Mark IV cabinet you will find other DS3800 cards, from microprocessor and memory boards to communication cards and power supplies. Our GE Mark IV DS3800 Boards collection groups them together, and the broader GE Speedtronic Turbine Control Boards catalog spans multiple generations. Planning ahead for obsolescence? The Mark V vs Mark VI: DS200 to IS200 guide is a useful primer on how GE renumbered boards in the newer platforms.

What to Include When You Ask Us to Quote

• The complete part number with its group suffix (DS3800DFPH1B1A);
• The revision and any handwritten or printed markings on the board label — a clear photo is ideal;
• Your turbine frame and confirmation that it is a Mark IV panel;
• Quantity, and whether you need it as an emergency replacement or a shelf spare.

Request Your Quote

This DS3800DFPH1B1A ships cleaned, tested and warranted for one year. Click Request a Quote and you will hear back within 24 hours. We deliver worldwide on DDP terms and accept purchase orders from established buyers, so your parts clear customs without surprise costs at the door.
