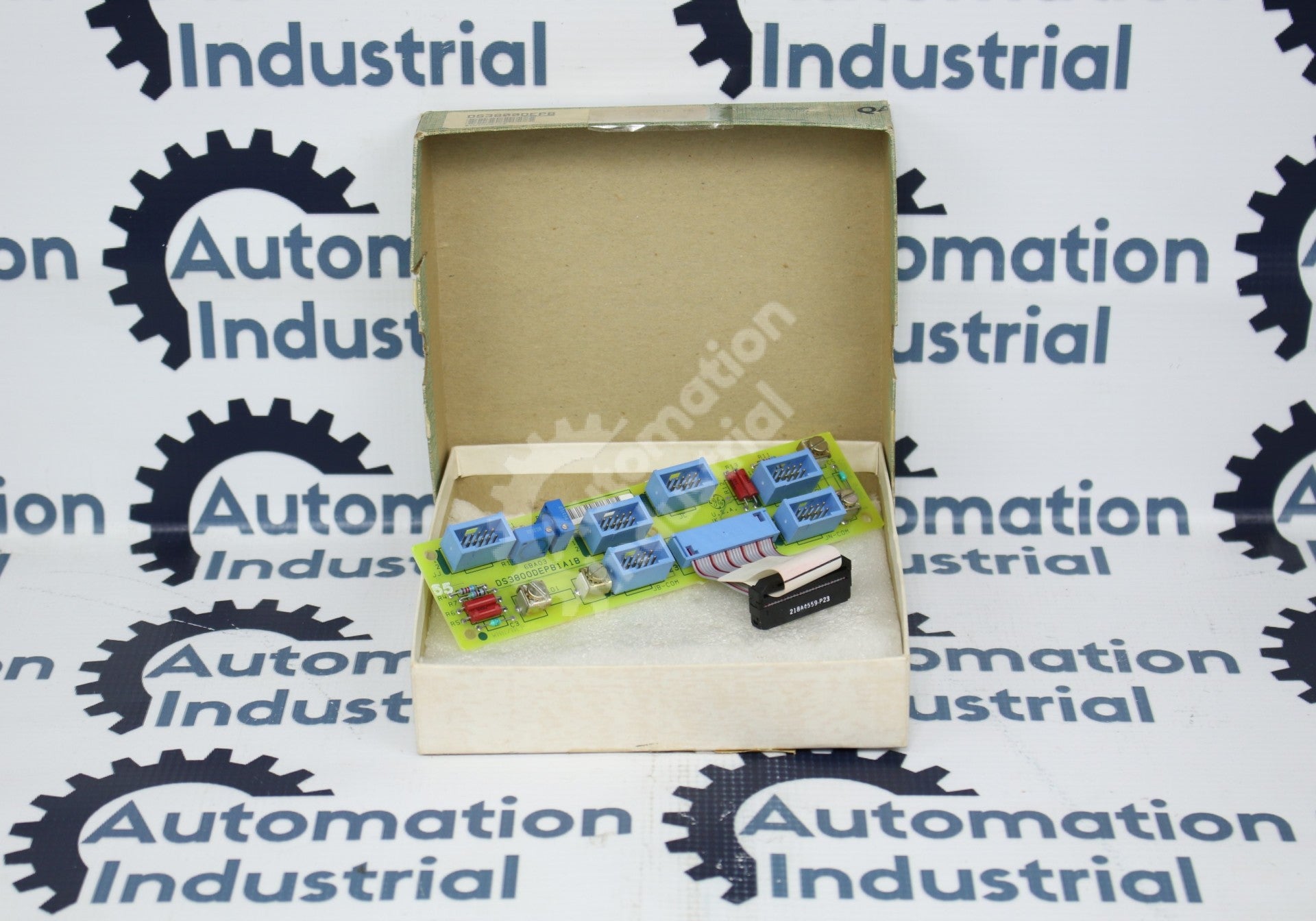

Offered as a factory-packaged, new-surplus board, the DS3800DEPB1A1B is the excitation power card from GE's Speedtronic Mark IV DS3800 series — the 1A1B denoting its hardware revision. It is a practical insurance spare for any site still operating Mark IV exciter equipment.

A sealed Mark IV exciter spare: DS3800DEPB1A1B

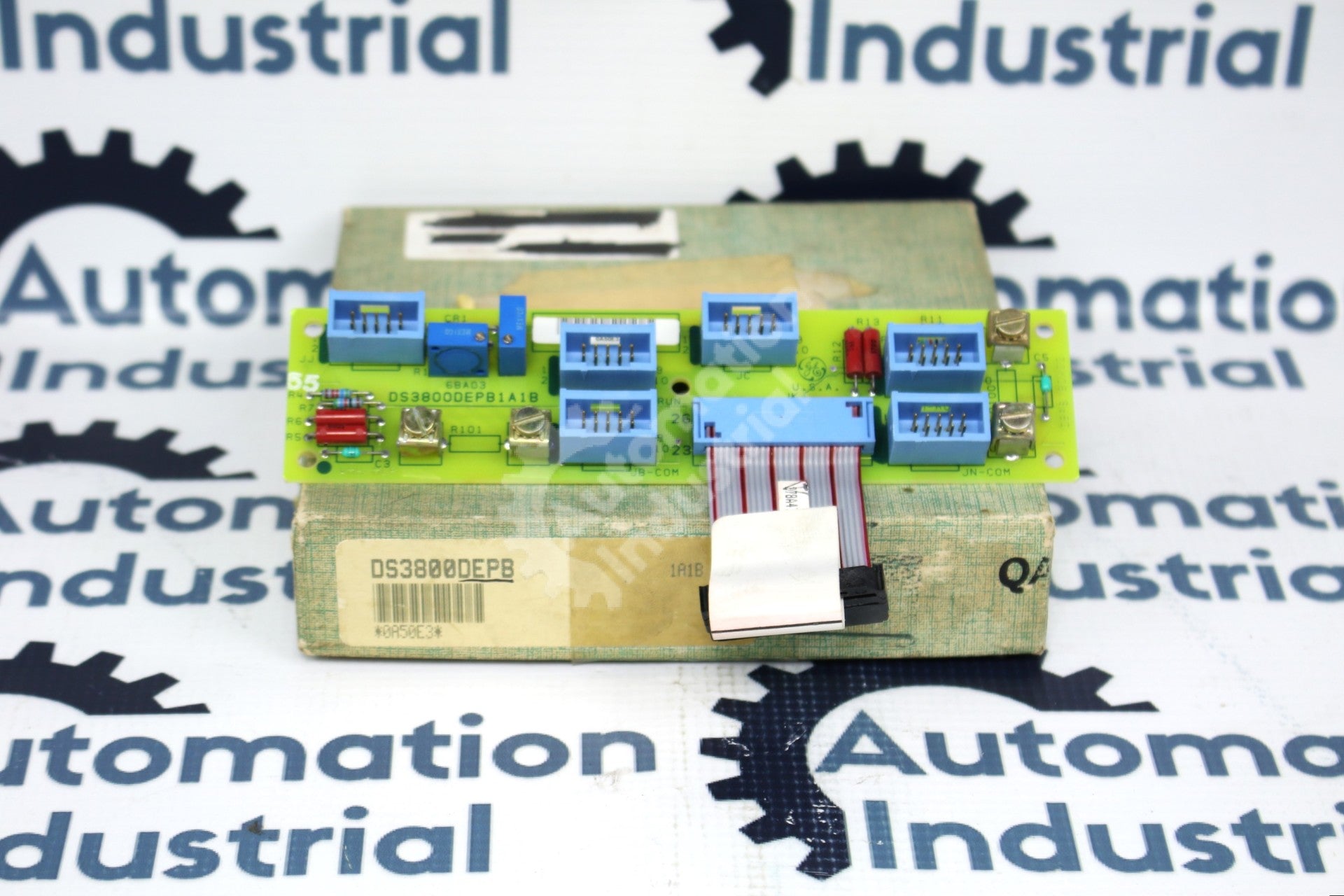

The DEPB is not a turbine-control board; it belongs to the excitation and exciter portion of the system, linked to the LCI (Load Commutated Inverter) equipment that drives the generator field. The board's construction is easy to recognize: a captive 20-pin ribbon cable that plugs it into the drive rack and must stay attached, five 10-pin ribbon connectors feeding the excitation circuits, two trimmer resistors for calibration, and terminals for added components. Supplied unused in its original packaging with a one-year warranty, this unit should stay in its anti-static wrap until you are ready to install it.

First checks when the excitation system trips

If an exciter fault sends you looking for a spare, take a moment to confirm the board is genuinely the cause. On Mark IV excitation equipment the usual false leads are:

• An out-of-range or missing feed voltage — measure the supply into the exciter and drive before anything else.
• A 20-pin ribbon that has vibrated loose; reseat it and re-check.
• Mis-routed or transposed 10-pin cables among the five identical connectors.
• External culprits — field leads, fuses, and the exciter power bridge — that trip the same alarms as a board fault.
• A trimmer resistor nudged out of calibration during earlier service.

Clearing those keeps a healthy board on the shelf and points you at the real defect.

Reading DS3800 function and revision codes

Every field in the number carries meaning: DS3800 for the Mark IV board family, DEPB for the excitation-power function, and 1A1B for the specific group and revision. Because the trailing code distinguishes revisions, use it as your matching key — line it up with the board you are replacing, and check with us before mixing a 1A1B with a 1A1A. Our GE Speedtronic Part Number Decoder lays out the full convention.

Keeping an obsolete excitation line running

Mark IV excitation boards are long out of production, so a sealed spare like this one shortens the recovery window when a card finally fails. The DEPB is usually racked with other DS3800 excitation parts — the DS3800DECA LCI exciter control board among them — so it is worth reviewing your whole excitation spares position at the same time. Shop the family through our GE Mark IV DS3800 Boards collection or the wider GE Speedtronic Turbine Control Boards range, and if you are weighing a longer-term upgrade path our Mark V vs Mark VI: DS200 to IS200 guide gives useful context on later control generations.

What we need to quote your DS3800DEPB1A1B

Send the following and we will come back within 24 hours:

• The complete number with suffix: DS3800DEPB1A1B.
• A photo of the board label with its revision and GE markings.
• The turbine or exciter and the Mark IV panel it serves.
• Quantity and how urgent the requirement is.

Request a Quote to start. We deliver worldwide DDP, take purchase orders from approved accounts, and reply within a single business day.

General Information about the Product
Part Number	DS3800DEPB1A1B Mark IV DS3800
Description	GE General Electric DS3800DEPB1A1B DS3800DEPB LCI Excitation Control Board NEW
Condition	newSurplusFactoryPackage With 1 Year Warranty.
