DS200RTBAG2AFB: Ten Relay Outputs for the Mark V-Era Drive Cabinet

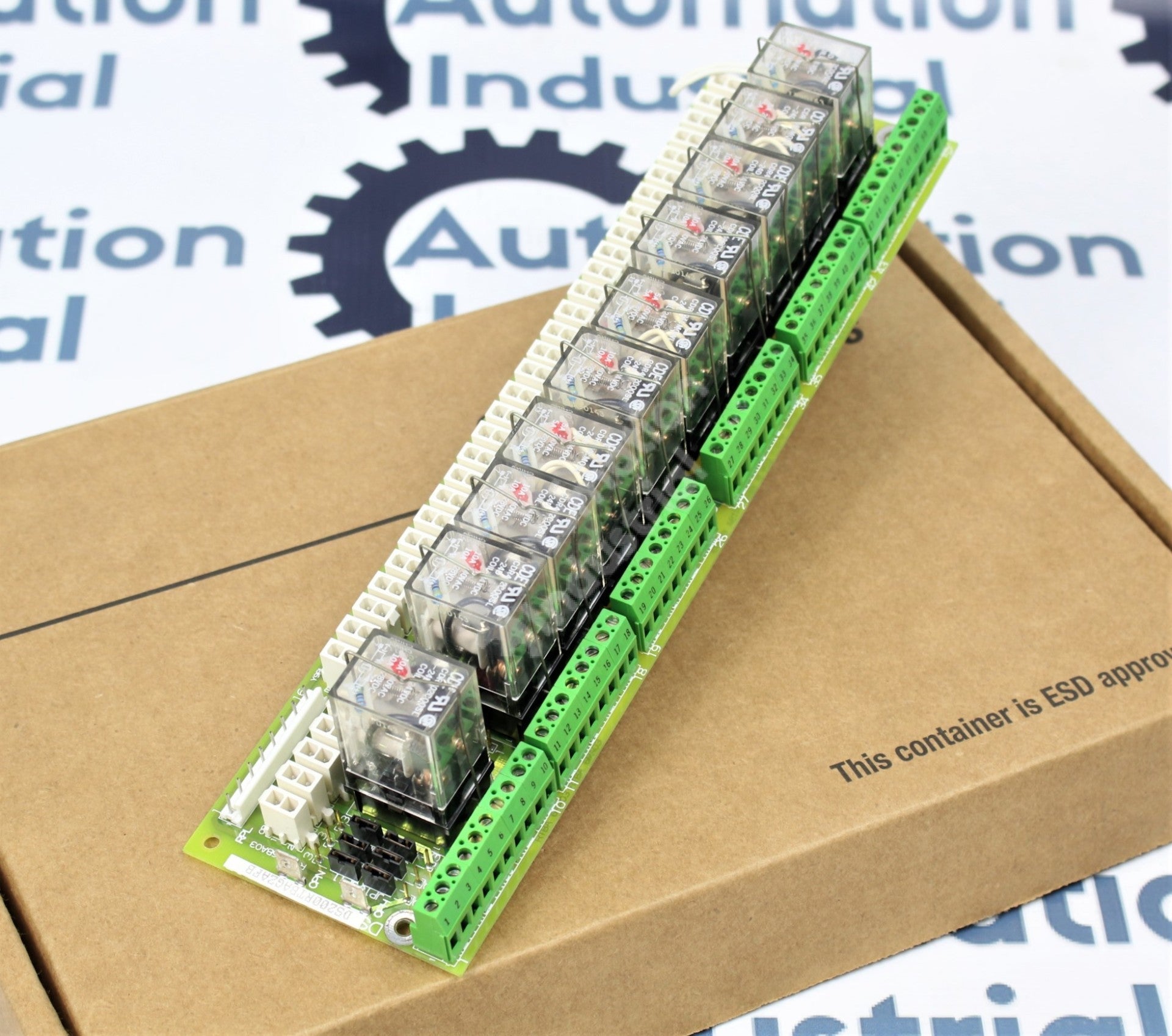

The GE DS200RTBAG2AFB is a Group 2 RTBA relay terminal board from the DS200 family General Electric built around its Speedtronic Mark V generation of turbine and drive controls. Unlike the processor and I/O cards that live inside the Mark V control panel cores — <R>, <S>, <T> and <C> — the RTBA is an optional board mounted in the cabinet of the associated drive or exciter. Its job is easy to verify in the field: it adds ten plug-in relays, designated K20 through K29, that switch external circuits under system control. Seven of those positions carry DPDT relays and the remaining three carry 4PDT relays, and each relay has its own LED that lights when that relay is able to be energized.

The outputs can be driven directly from the system's pilot relays or commanded remotely, and field wiring lands on screw terminals along the board. Two connectors — a 16-pin RPL and a 2-pin OPTPL — carry the board's I/O to the companion LTBA board. GE documented the RTBA in instruction manual GEI-100167, which covers relay descriptions, connection tables, and the configurable jumper hardware.

Before You Replace It: Prove the Fault Is on the Board

Many suspected RTBA failures turn out to be something cheaper. Work through this sequence before ordering:

• Read the per-relay LED. If the LED for the affected position is lit but the contacts never change state, the fault is very likely the relay itself — and RTBA relays are individually replaceable plug-in parts. One burned relay does not require a whole new board.
• LED dark? Look upstream. A dark LED means the relay is not being commanded or powered. Check the command path from the pilot relays, the 16-pin RPL connection to the LTBA board, and connector seating before condemning the RTBA.
• Verify the jumpers. The board carries moveable Berg-type jumpers, including a power-source-selecting jumper documented for the K20–K22 group (JP8) and an RPL connection jumper (JP9). A replacement installed with factory-default jumper settings can misbehave in ways that mimic a hardware failure — always duplicate the jumper positions of the outgoing board.
• Check the screw terminals. Loose field-wiring lugs chatter under vibration and imitate failing contacts. Tighten and retest before going further.

And if your alarm annunciates inside the Mark V panel itself rather than at the drive or exciter cabinet, remember the RTBA is not resident in the <R>, <S>, <T> or <C> cores — trace the fault to its actual source before assuming this board is involved.

Decoding DS200RTBAG2AFB

GE's Mark V-era part numbers pack identification into a fixed structure. DS200 identifies the board family and era; RTBA is the functional acronym, relay terminal board; G2 is the group, a factory configuration variant of the base design; and the trailing letters AFB record this build's revision state — functional revision letters A and F plus artwork revision B, following the convention used across DS200 boards. Groups and revision levels are not automatically interchangeable, so match the full string, not just the RTBA acronym. Our GE Speedtronic Part Number Decoder walks through the format step by step.

Boards That Work Alongside the RTBA

The RTBA never works alone: its commands and status route through the companion LTBA board via the RPL connector, and both sit within the broader DS200 lineup of Mark V-era control, excitation, and drive hardware. For orientation across that lineup, see GE Mark V DS200 Boards Explained, and browse our GE Mark V DS200 Boards and GE Speedtronic Turbine Control Boards collections. Plants planning a control system migration should note that Mark VI-era hardware moved to IS200-prefixed part numbers — our guide Mark V vs Mark VI: DS200 to IS200 explains what carries over and what does not.

What Your Quote Request Should Include

• The full part number with suffix — DS200RTBAG2AFB, not just DS200RTBA — exactly as printed on the board label.
• A photo of the label, and of the jumper area if you can capture one safely.
• Your turbine or drive model and application, and whether the Mark V system is Simplex or TMR.
• Quantity needed, including any shelf spare you want quoted at the same time.
• Urgency — routine stocking order or a unit down.

Request a Quote for DS200RTBAG2AFB

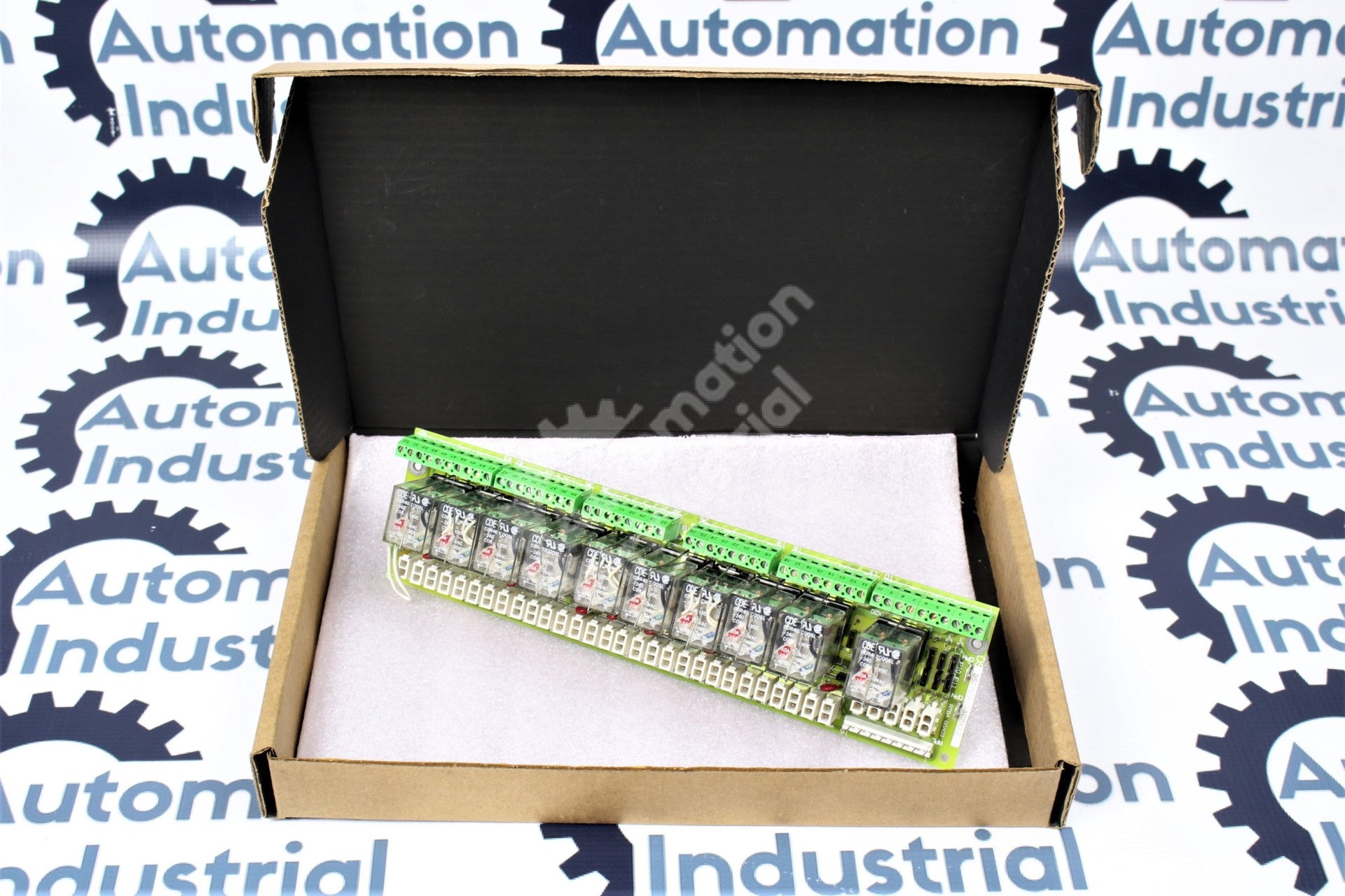

This DS200RTBAG2AFB is new surplus in open-box condition, covered by the one-year warranty noted below. Click Request a Quote and our team will respond within 24 hours. We ship worldwide on DDP terms — duties and customs handled by us — and we accept purchase orders from qualified companies.
