The DS3800HDRA1B1B is a line driver/receiver board from GE's Speedtronic Mark IV (DS3800) family — the card responsible for pushing serial data onto the communication links between panels and pulling it back off cleanly at the other end. This unit is offered as open-box new surplus: unused stock without its original carton, cleaned and tested, and backed by a one-year warranty.

The DS3800HDRA1B1B in the Mark IV communication path

A line driver/receiver is the physical-layer interface for the serial links that tie a Mark IV system together. On the transmit side it drives, buffers and amplifies outgoing signals so they survive the run between cabinets; on the receive side it conditions incoming signals and rejects the electrical noise a turbine hall is full of. In a triple-redundant Mark IV, that traffic moves among the control cores <R>, <S>, <T> and <C> and out to the operator interface, so a healthy driver/receiver is what keeps panels talking to one another. The board presents two 40-pin connectors on its front edge, carries two jumpers that configure its circuits, and uses retention levers to lock into the rack. It is static-sensitive and should only be handled with the rack de-energized.

Is it the driver/receiver, the cable, or the far end?

Communication faults are notorious for pointing at the wrong board. A loss-of-communication alarm, an intermittent link, or garbled data can come from the interconnecting cable, a mis-set jumper, the board at the other end of the link, or the power supply — not necessarily this card. Before swapping it:

• Inspect and reseat the cables at both 40-pin connectors; look for bent pins and partial engagement.
• Confirm the two jumpers match the configuration of the board being replaced — a jumper difference is the classic reason a known-good replacement still will not communicate.
• Check the far-end node and the cable run between them; a link needs a healthy device at each end.
• Verify the rack power supply is in tolerance, since a weak rail degrades signal drive.
• Re-check retention — a board not fully seated in its levers can drop the connection intermittently.

When those are clean and the fault stays with this slot, the HDRA is the likely culprit.

Open-box new surplus: what that means here

This particular board is new-surplus stock supplied without its original box (open-box), then cleaned and tested before dispatch and covered by a one-year warranty. Functionally it is an unused card; only the retail packaging is absent. That makes it a cost-sensible choice for a critical communication spare where sealed factory packaging is not a requirement.

Breaking down the DS3800HDRA1B1B part number

DS3800 is the Mark IV board series, HDRA is the four-letter function code for the line driver/receiver, and 1B1B is the trailing group/revision code. Treat that suffix as a variant marker: match it to the board you are replacing, or ask us to confirm whether another revision (for example a 1A1A) will drop into your panel. Our GE Speedtronic Part Number Decoder walks through each segment of the number.

Information to include with your request

To quote quickly and accurately, please send:

• The full part number and suffix (DS3800HDRA1B1B).
• A photo of the board label showing revision and GE codes.
• The Mark IV panel and turbine the board serves.
• Quantity and whether a unit is currently down.

Request a Quote and we respond within 24 hours. We ship worldwide DDP, accept purchase orders from qualified accounts, and can cross-reference companion communication boards such as the DS3800HMAC media access unit if you are refreshing the whole link.

General Information about the Product
Part Number	DS3800HDRA1B1B Mark IV DS3800

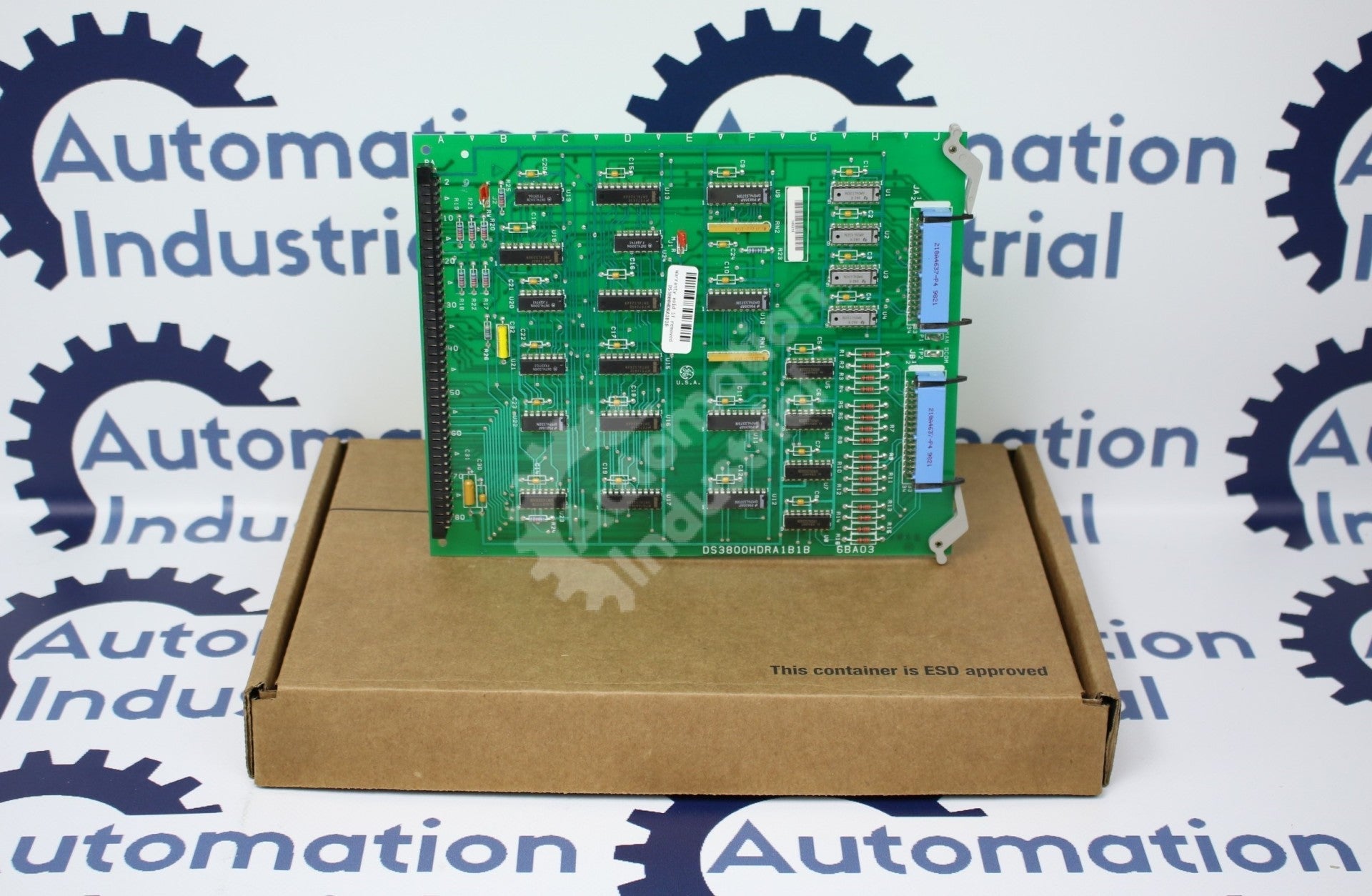

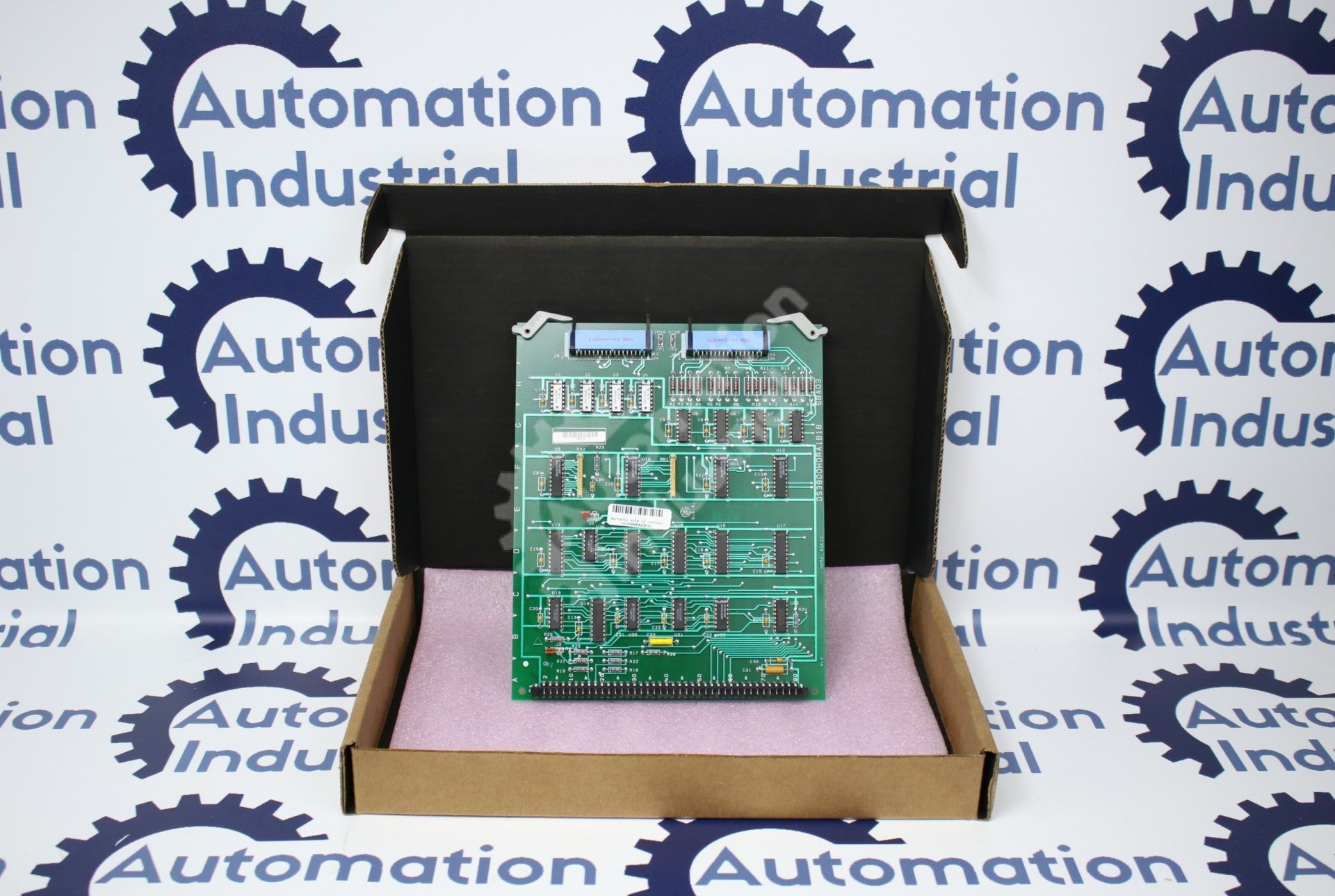

Description	GE DS3800HDRA1B1B DS3800HDRA Line Driver Receiver Board OPEN BOX
Condition	newSurplusNoBox Cleaned and Tested. With 1 Year Warranty.
