What the DS200UPSA is — and is not

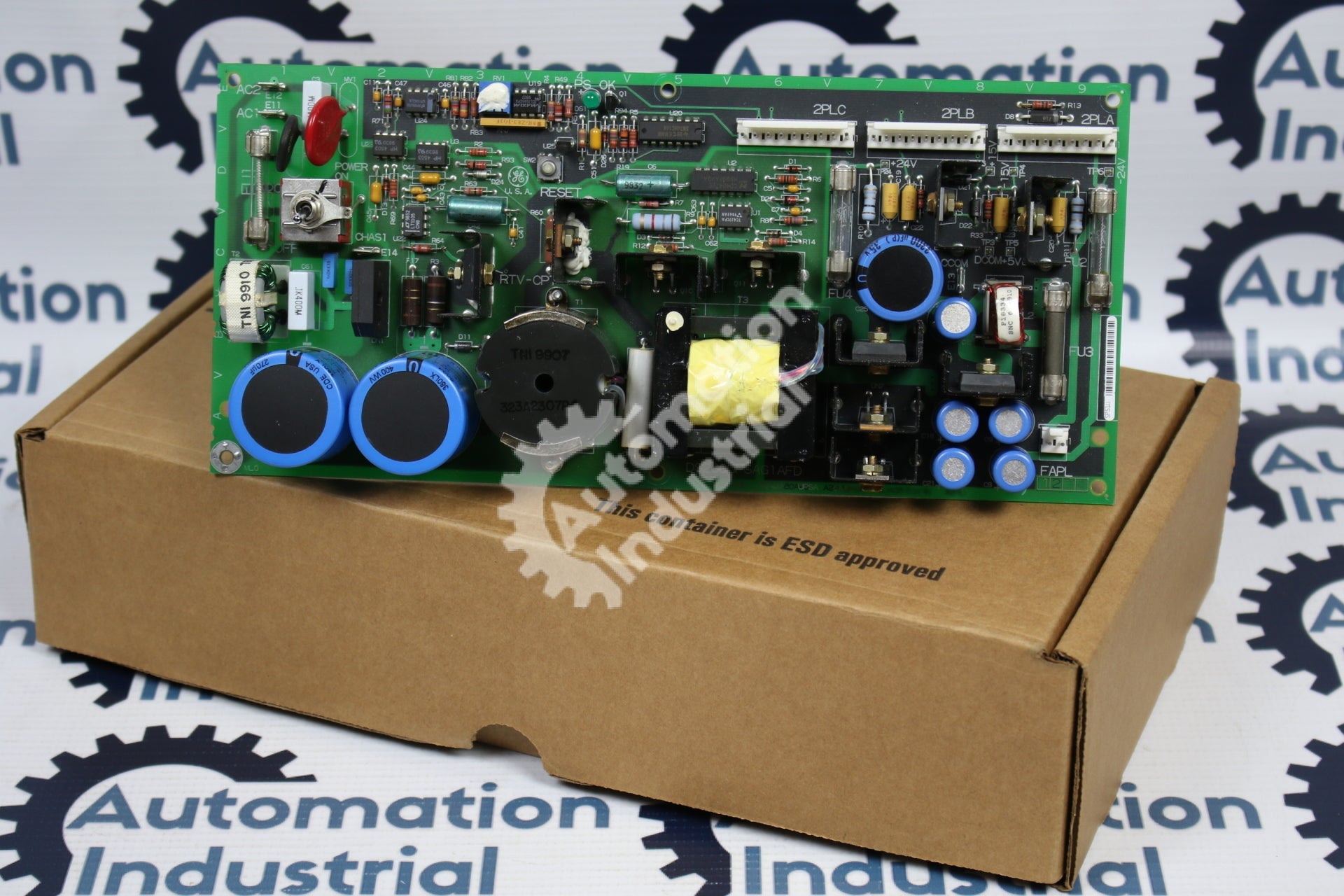

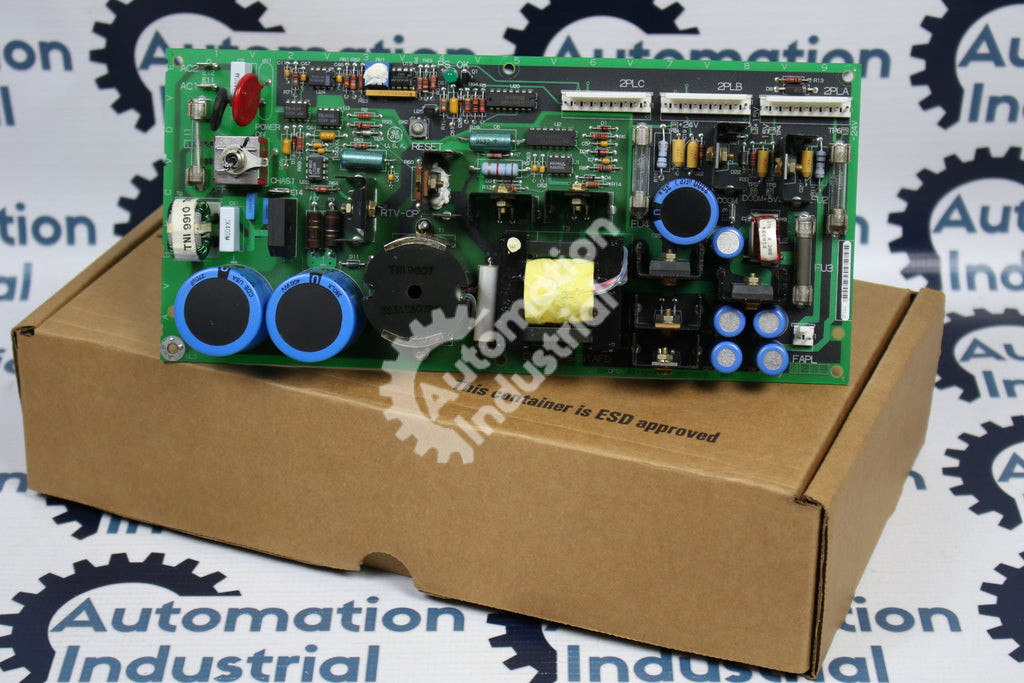

The DS200UPSAG1A is a power supply board from GE's DS200 catalog — the same Salem, Virginia numbering series that fills Speedtronic Mark V panels — built to feed control-level power to GE's excitation and drive-control hardware of that generation. Suppliers catalog it against the EX2000 excitation platform, and GE-era documentation republished in the surplus market describes the UPSA as a two-stage off-line switching supply that accepts an AC or DC line input and delivers control-level output voltages, listing it in service on GE's Innovation Series drive controls under its UC2000 name as well. What it is not: a Mark V core power supply. If a core in your Speedtronic panel has gone dark, the family to investigate is the DS200TCPS supply and the panel's power distribution hardware — not the UPSA. Knowing which side of the plant a DS200 number belongs to is half the battle with this catalog, which is why we keep the taxonomy written down in GE Mark V DS200 Boards Explained.

When a dead rack is not a dead supply

Control power failures invite expensive guesses, so spend the first half hour on the cheap possibilities:

• Incoming feed. Verify the source at the cabinet terminals — breaker, upstream distribution, connection torque — before blaming the board that converts it.
• Fuses. The UPSA carries three fuses protecting against overcurrent. A blown fuse is easy to check and cheap to replace, but treat it as evidence rather than root cause: fuses usually open for a reason, often a downstream short or a failing component, and a new fuse fed into an unresolved fault just opens again. Replace like-for-like ratings only, per the factory instructions.
• Reset and indication. The board carries a reset button and LED indication; note the LED state before and after a reset attempt — it is diagnostic information worth including in your RFQ.
• Stored charge. The electrolytic capacitors on a supply board hold energy after shutdown. Give the board time to bleed down — supplier guidance for this part calls out roughly 30 seconds after power removal — before handling it.

If the input is good, the fuses are intact, and output power is still absent or unstable, the supply itself is a legitimate suspect — and age is on your side of the argument, because these boards have been in continuous service since the 1990s.

EX2000, UC2000, and the Mark V catalog

One board, three associations, all of them defensible. The part number lives in the DS200 series, which is why it appears in Mark V-era listings, including ours. Function-wise, vendors document it as the power supply for GE's EX2000 excitation systems — the exciter cabinets that typically stand beside a Speedtronic-controlled generator — and, under its UC2000 designation, for the controller platform GE reused across drives of the same era. For your purposes, the label on the failed board settles the question: if it reads DS200UPSAG1A, this is the replacement family, whatever the cabinet around it is called.

The G1A suffix and revision tails

The DS-series decode applies across the catalog: DS marks GE Salem; 200 a base-level board; UPSA the functional acronym; G1 the group; and the following A a functional revision that is not backward compatible — making DS200UPSAG1A the catalog number. Everything after that is the backward-compatible revision record, functional then artwork: FD on this unit. Field labels in this family also read DS200UPSAG1ADB and DS200UPSAG1AGD; all share the G1A catalog base. Match the base exactly, tell us the tail, and we will match or advise. The general method is in our GE Speedtronic Part Number Decoder.

Build your RFQ

1. Full number from the board label: DS200UPSAG1AFD here.
2. A photo of the label and, if safe, of the failed board's fuse area.
3. The equipment it serves — EX2000 exciter, drive controller, or other cabinet — plus the generator or turbine package and control system (Mark V Simplex/TMR sites: say which).
4. Symptoms: dead output, blown fuses, intermittent operation, LED behavior.
5. Quantity and urgency.

Delivery worldwide, DDP

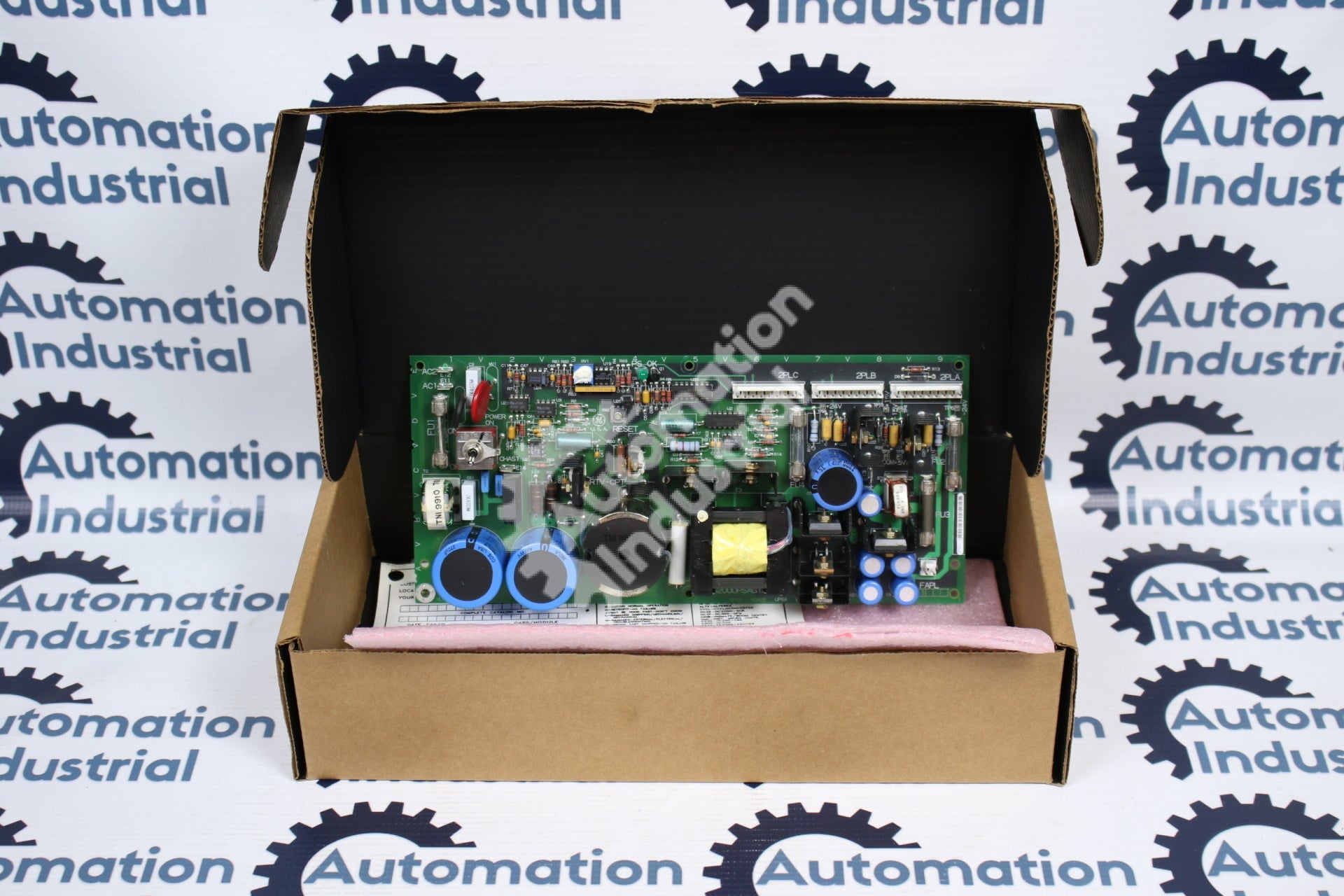

This unit is used, cleaned and tested, with a one-year warranty, as stated in the table below. Send your details through Request a Quote and you will hear from us within 24 hours. We ship worldwide on DDP terms and accept purchase orders — and if the same outage has you reviewing other boards from the panel, the full range is in GE Speedtronic Turbine Control Boards.
