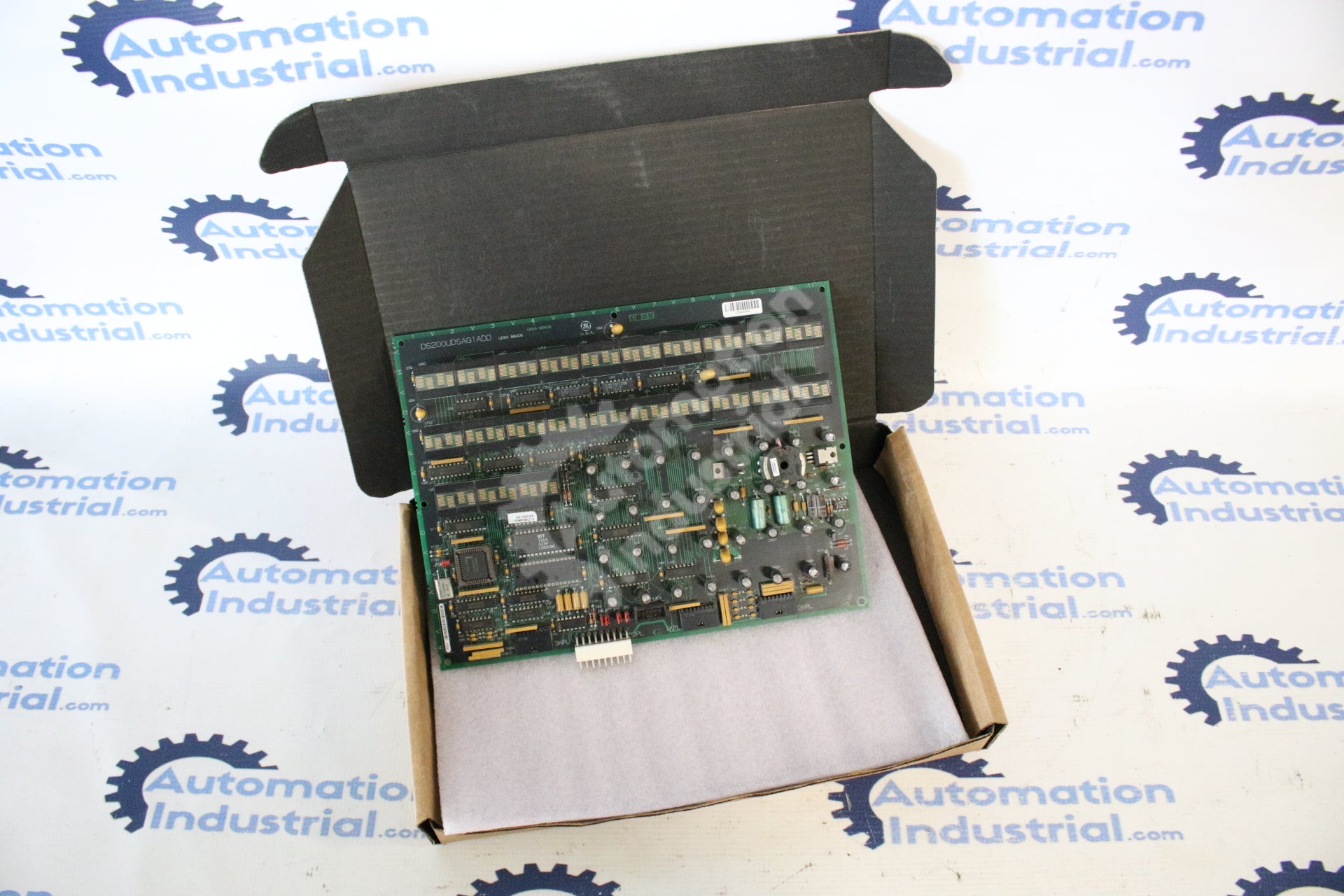

The DS200UDSAG1ADD Excitation Board, Documented Honestly

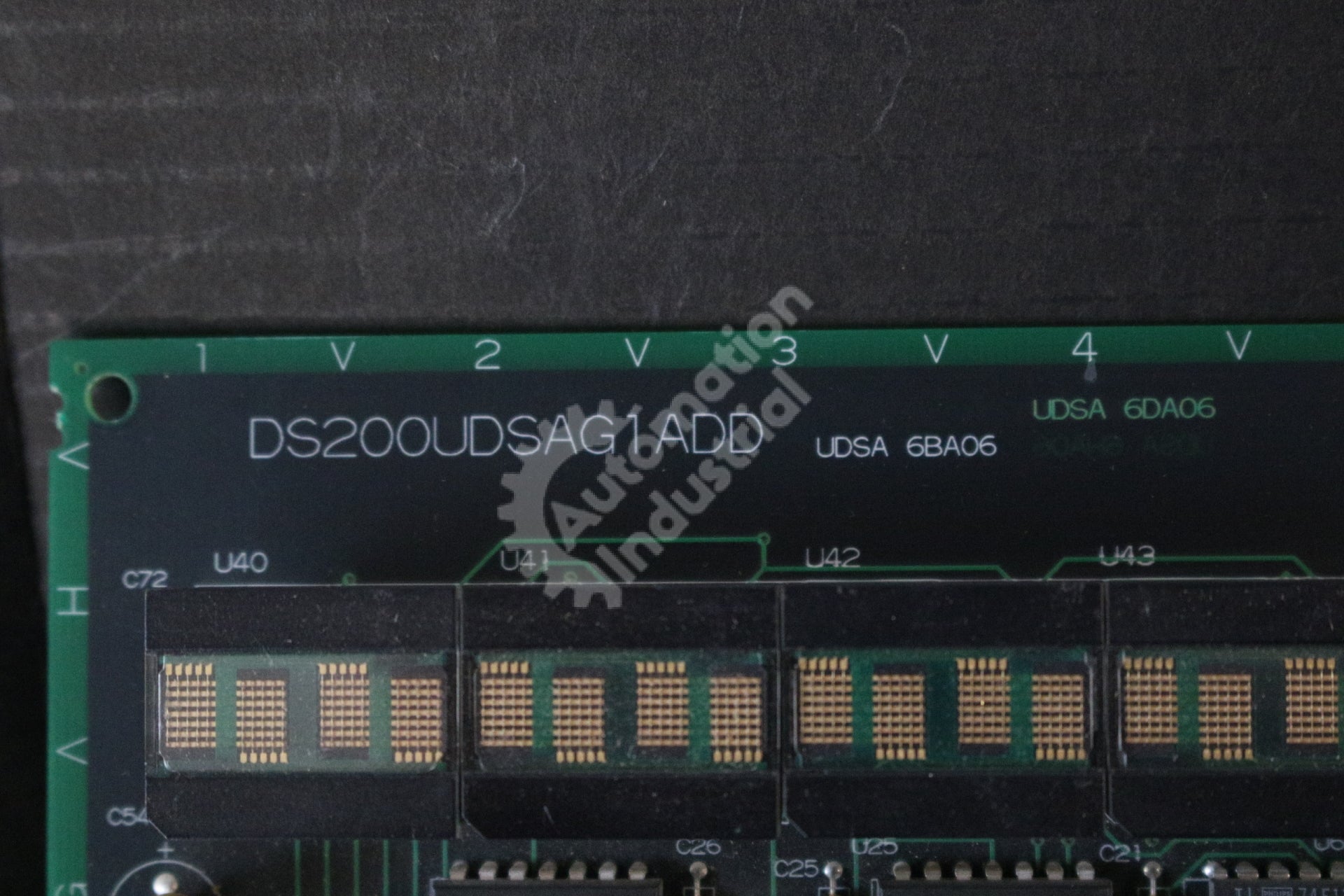

Buying legacy GE hardware works best when the seller tells you what is verified and what is not, so here is the record on the UDSA. The DS200UDSAG1ADD belongs to the DS200 family of GE's Speedtronic Mark V era and is cataloged throughout the surplus market as an excitation board — vendor documentation for this exact revision describes it providing excitation control for generators, and the family is associated with the EX2000-generation excitation equipment of that period. GE's original UDSA manual, however, is not widely published, and descriptions vary between sources. What every source and the hardware itself agree on: an 80196 microprocessor as the processing core, program code held in socketed EPROM modules, 21 four-character displays and 32 LEDs reporting parameters and status from the board's face, a 40-pin connector carrying signals to and from the rest of the system, and — on this ADD revision — a documented set of 14 three-pin configuration jumpers.

A Diagnostic Sequence That Avoids Unnecessary Swaps

Work the list in order; each step is cheaper than the one after it:

• 1. Ribbon cable. The 40-pin ribbon's plastic end connector is easily damaged because the cable offers it no mechanical support. Never tug the cable; grip the connector body. Reseat both ends and inspect for cracked housings or creased conductors — ribbon faults imitate board faults precisely.
• 2. Board indicators. Use what the UDSA shows you. Displays and LEDs that light and update indicate a live processor; note any codes or patterns before powering down, and record them for your quote request — they help identify whether the board or something upstream is unhappy.
• 3. EPROM seating. Socketed chips drift with thermal cycling. Grounded, powered down, reseat them.
• 4. Jumper audit. Fourteen jumpers on this revision means fourteen chances for a configuration mismatch, especially on a board that has been swapped before. Each jumper covers two of its three pins; the position selects the behavior. Compare against drawings or the predecessor board.
• 5. Fault-path sanity check. The UDSA is excitation-side hardware. Alarms rooted in the Mark V control cores <R>, <S>, <T> or <C> have their own suspects — exhaust those paths before ordering here.

Breaking Down DS200UDSAG1ADD

Under the DS200 numbering convention, this part number reads: DS200 — Mark V-era board series; UDSA — the functional acronym for this excitation-system board; G1 — Group 1, the configuration group; ADD — the revision block, functional revisions A and D plus artwork revision D. Because factory documentation for the UDSA is sparse, treat revision letters as a matching requirement rather than a formality: order the string on your label, or send the label and let us confirm compatibility. Full decoding guidance lives in our GE Speedtronic Part Number Decoder.

Boards and Systems Around the UDSA

The UDSA does not operate in isolation — it exchanges signals with other boards in its drive or exciter lineup through that 40-pin connector, and it shares its generation with the full DS200 range of Mark V-era control, excitation, and drive electronics. Two resources map that territory: GE Mark V DS200 Boards Explained for the board families, and Mark V vs Mark VI: DS200 to IS200 for how the successor generation renumbered and re-platformed this hardware. Stock-wise, the GE Mark V DS200 Boards collection holds this board's siblings, and the GE Speedtronic Turbine Control Boards collection covers the wider Speedtronic line.

How to Ask for a Quote That Matches Your Panel

• Full part number with suffix: DS200UDSAG1ADD. If the label shows anything extra, include it.
• Photos: board label, jumper field, and — if you recorded them — the display codes at failure.
• Application: exciter or drive model, generator frame, turbine model, Mark V Simplex or TMR.
• EPROM plan: confirm whether you can transfer firmware chips from the failed board, since surplus boards can arrive with sockets empty.
• Quantity, destination country for DDP shipping, and urgency.

Request a Quote for the ADD Revision

This DS200UDSAG1ADD is used stock, cleaned and tested, carrying the one-year warranty shown below. Submit a Request a Quote and you will hear from us within 24 hours — worldwide DDP delivery, purchase orders accepted.
