DS200UDSAG1AAA: An Excitation-System Board You Can Read at a Glance

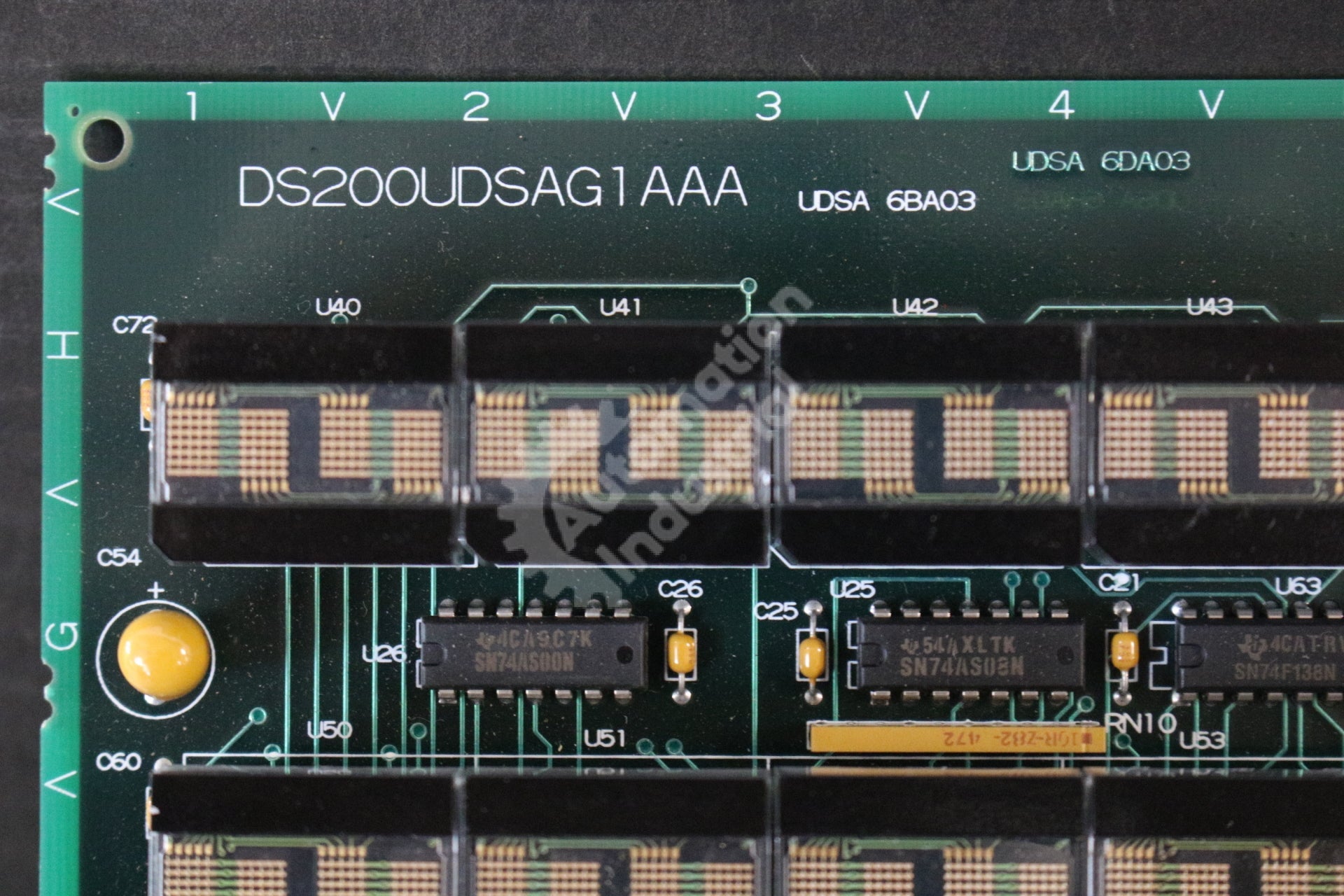

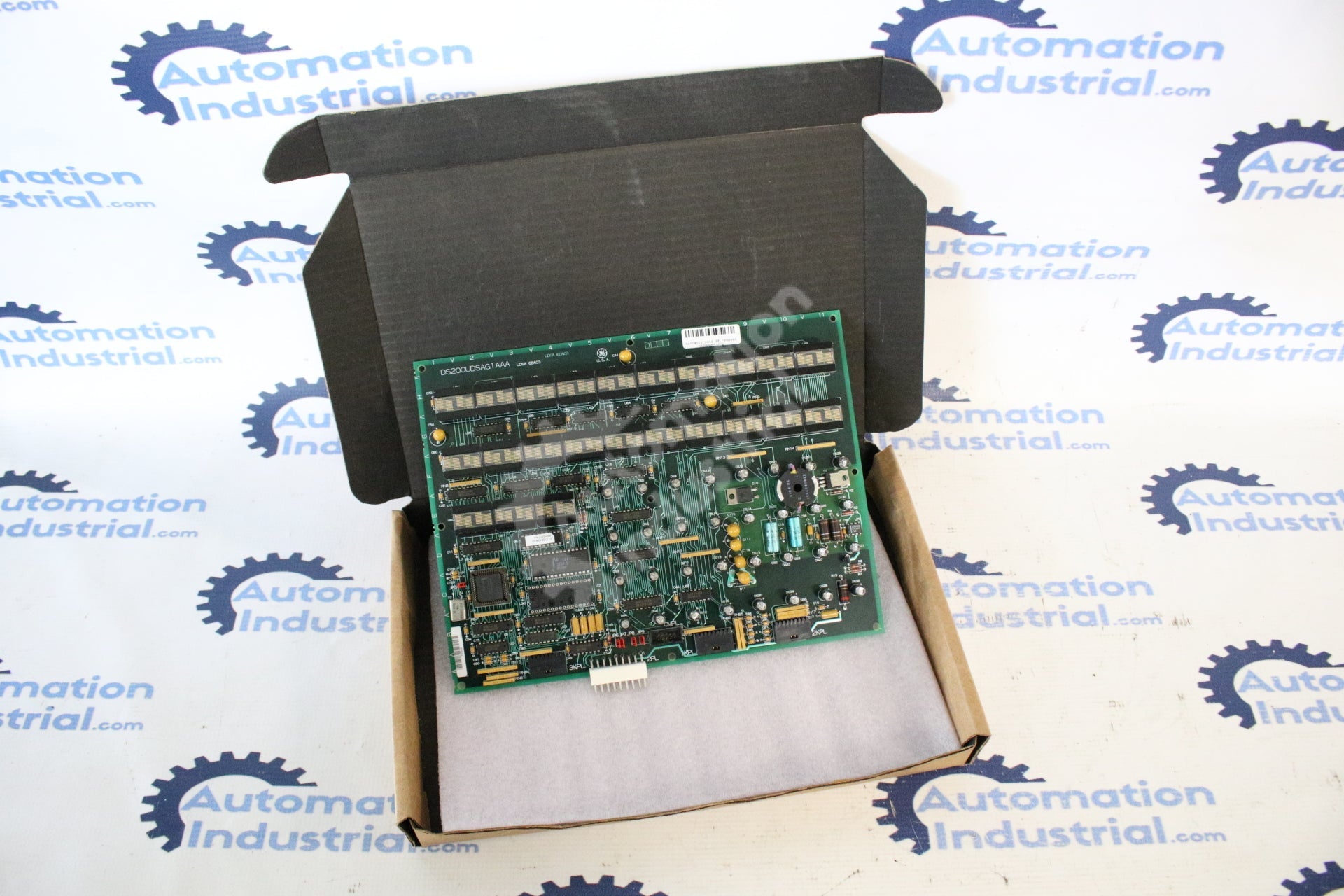

Few boards in GE's Mark V-era DS200 family announce their own status as visibly as the UDSA. The face of the DS200UDSAG1AAA carries 21 four-character displays and 32 LEDs, driven by an onboard 80196 microprocessor running firmware held in socketed EPROM modules, with signals moving on and off the board through a 40-pin ribbon connector. Across the surplus market — and in our catalog — the UDSA is listed as an excitation board, associated with the EX2000-generation excitation equipment that accompanied Mark V-era Speedtronic installations. We will be straight with you about the limits of the record: GE's original instruction manual for the UDSA is not widely published, and functional descriptions vary between vendors, so we describe what can be verified on the hardware and match every order by exact part number rather than by assumption.

Check These Before Condemning the Board

A UDSA that looks dead is not always a dead UDSA. Run these checks first:

• Blank displays: start at the ribbon. The 40-pin ribbon cable's plastic end connector has little mechanical support and damages easily when the cable is tugged instead of gripped by the connector body. A partially seated or damaged ribbon can take out the board's inputs and outputs while the board itself is healthy. Reseat carefully — hold the connector, never pull the cable.
• Odd behavior after handling: reseat the EPROMs. Firmware lives in socketed EPROM chips. Decades of thermal cycling can walk a chip out of its socket; a controlled reseat (powered down, wrist strap on) has revived more than one Mark V-era card.
• Wrong behavior on a replacement: audit the jumpers. The board configures through three-pin JP-numbered jumpers — each jumper bridges two of its three pins, and the choice changes board behavior. Vendor documentation records 12 jumpers on some UDSA revisions and 14 on others. If a swap misbehaves, compare the jumper map against the outgoing board pin by pin.
• Confirm the fault path. The UDSA serves excitation-side equipment, not the Mark V panel cores <R>, <S>, <T> or <C>. If your alarm originates in a core, resolve that path first before ordering excitation hardware.

Firmware EPROMs: The Detail That Trips Up Replacements

Here is the catch that surprises buyers: surplus UDSA boards are documented shipping with empty EPROM sockets. The application firmware for your installation lives on the chips, not the board, which means a replacement plan should include transferring the EPROMs from the failed board — wear a wrist strap, lift each chip by alternating ends with a small screwdriver, and seat them in the replacement with matching orientation. When you request a quote, tell us whether your existing EPROMs are intact and recoverable; it changes what you should order and how you should prepare for the swap. It is also a reason to keep a failed UDSA rather than scrapping it.

What the Part Number Tells You

DS200UDSAG1AAA parses into the standard DS200 fields: DS200, the Mark V-era board series; UDSA, the functional acronym under which GE cataloged this excitation-system board; G1, the Group 1 configuration; and AAA, the revision block — two functional revisions and an artwork revision, all at level A, making this an early-revision build. Revision letters on the UDSA are not guaranteed interchangeable in either direction, so match the full string or send us what you have and let us verify. The field-by-field logic is laid out in our GE Speedtronic Part Number Decoder.

Quoting the Right Board the First Time

Because published UDSA documentation is thin, the label photo does the heavy lifting. A complete request includes:

• Full part number with suffix — DS200UDSAG1AAA — plus a clear photo of the board label and, ideally, the jumper area.
• The equipment it serves: exciter or drive model, generator, turbine model.
• Your Mark V architecture (Simplex or TMR) and site location for DDP delivery.
• Whether your existing EPROMs are recoverable from the failed board.
• Quantity and urgency — forced outage versus planned spare.

For surrounding context while you gather that, see GE Mark V DS200 Boards Explained, browse the GE Mark V DS200 Boards collection and the wider GE Speedtronic Turbine Control Boards range, or compare generations in Mark V vs Mark VI: DS200 to IS200.

Request a Quote — Answered Within 24 Hours

This DS200UDSAG1AAA is a used board, cleaned and tested, with the one-year warranty shown below. Click Request a Quote and our team responds within 24 hours. We ship worldwide on DDP terms and accept purchase orders.
