How the Mark V Powers Each Core

The DS200TCPS takes the panel's 125 VDC bus and turns it into the regulated low-voltage rails a Mark V core runs on. That includes the +5 VDC logic supply — adjustable at the board with a set potentiometer — along with the analog, RTD and servo-drive rails, commonly documented as ±15 VDC and ±24 VDC. Every processor, analog channel and servo output in the core draws from this one board, which is why a marginal TCPS can produce symptoms all over a core.

GE fits one TCPS per core. On a TMR machine that means a separate supply in each of <R>, <S> and <T>, with more in the <C> and I/O cores, so that no single supply failure can take down more than its own core. The board's input is DC — its 125 VDC comes from the TCPD power-distribution board in the <PD> core — and it will not run on AC; an AC-only installation needs a <DACA> converter to generate the 125 VDC.

Measure Before You Replace

The single best defense against buying the wrong board is to measure carefully first — and to trust the measurement only if the tools are right. Several classic TCPS "faults" turn out to be measurement or input problems, not board problems.

• Take the rail voltages at the board's silkscreened test points with a recently calibrated meter, or read them off the DIAGC display for the core. An uncalibrated meter has led technicians to mis-trim the +5 VDC rail and manufacture an intermittent fault that imitates a failing supply.
• Confirm the 125 VDC input is present before anything else. A missing feed — tripped source, lost <DACA> output, AC with no converter — looks exactly like a dead board.
• If several cores show low or lost rails at once, a ground on the shared 24 VDC bus is far more likely than three supplies failing together; find the grounded device before condemning any board.

The TCPS is a real wear item — it runs warm and can become audibly noisy with age — so board failures do happen. The point is simply to confirm it with a good measurement and a verified input before spending on a replacement.

Decoding DS200TCPSG1APE

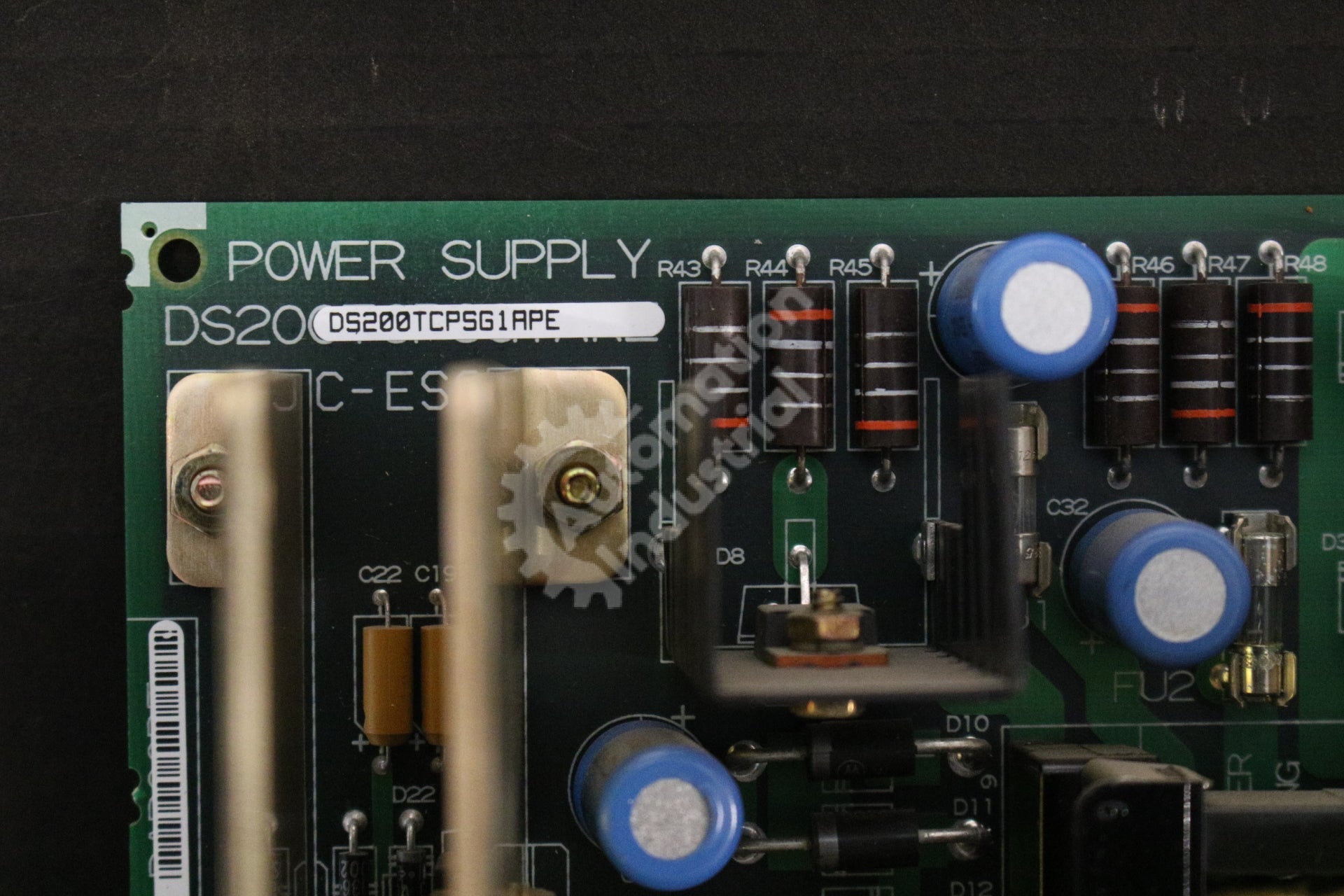

This board carries the number DS200TCPSG1A, completed as DS200TCPSG1APE. In that string DS200 is the Mark V board series, TCPS is the DC-input power-supply function, G1 is the group — the supply is normally built as group 1 — and APE is the revision. Revision tails such as APE, AME, ARE and AHC mark successive versions of the same board, so match the revision your panel uses or confirm that a newer one supersedes it before you fit it. The GE Speedtronic Part Number Decoder covers each field, and the number should be read from the board silkscreen.

The Boards Upstream and Downstream of the TCPS

The supply sits in the middle of the Mark V power path. Upstream, the TCPD board in the <PD> core provides its 125 VDC; downstream, it powers the core's working cards, alongside boards such as the TCDA digital I/O and the TCQA analog I/O. The GE Mark V DS200 Boards Explained guide shows how those pieces fit, and the GE Mark V DS200 Boards collection lists what we carry. If you are comparing control generations, Mark V vs Mark VI: DS200 to IS200 explains the move to the IS200 platform.

What Helps Us Quote Quickly

• The full part number with revision (DS200TCPSG1APE), from the board.
• A photo of the label and silkscreen.
• Turbine model and whether the Mark V is Simplex or TMR.
• Which core the supply serves.
• Quantity and how soon you need it.

Request a Quote for the TCPS

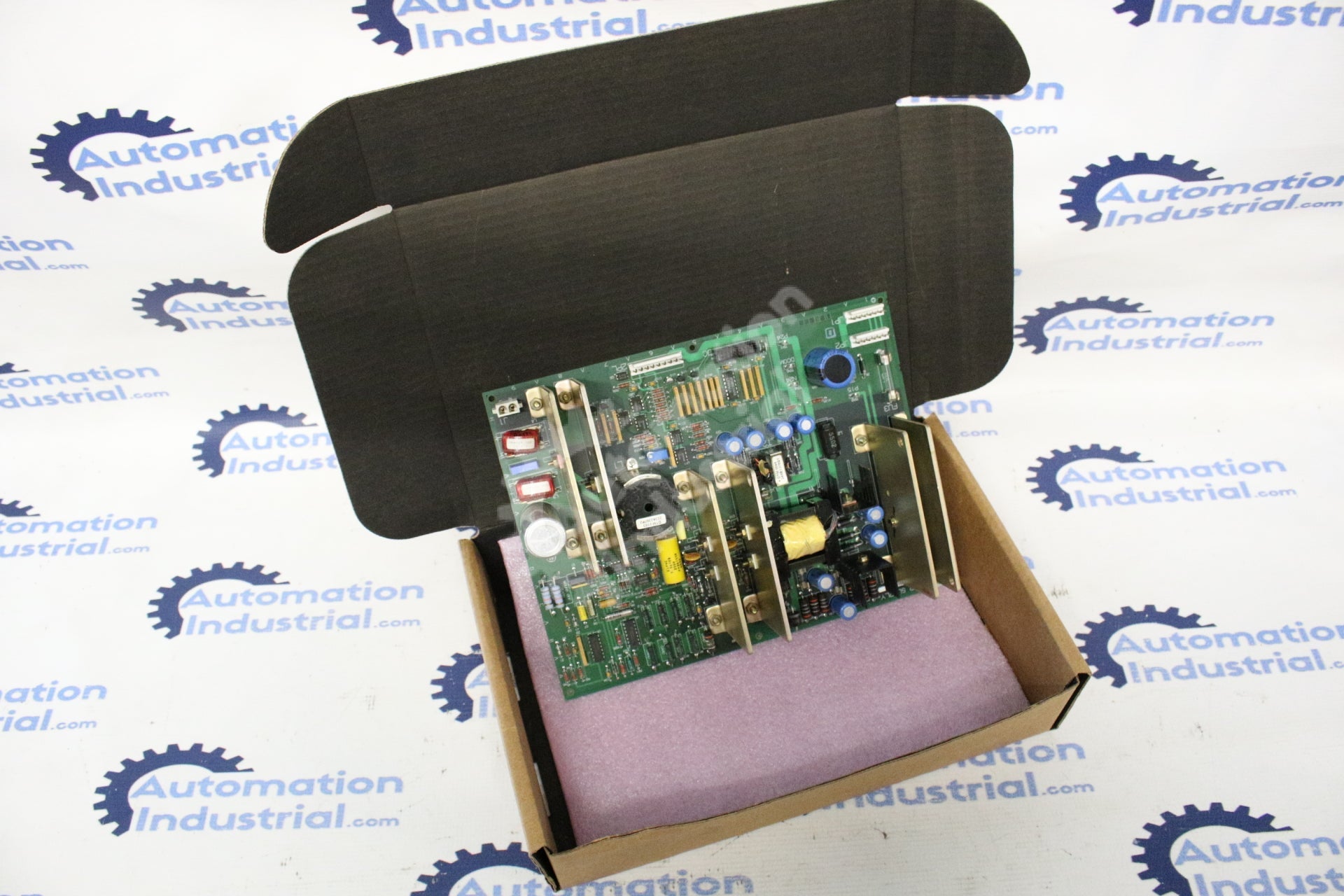

This DS200TCPSG1APE is a used board, cleaned and tested, with a one-year warranty. Send the details above through the Request a Quote button and we will reply within 24 hours with availability and lead time. We ship worldwide DDP and accept purchase orders.
