DS200TCPDG1BEC in the Mark V Architecture

BEC is the detail that matters on this listing. DS200TCPDG1BEC is a later revision level of GE's Group 1 TCPD power distribution board — the card that sits in the <PD> core of a Speedtronic Mark V panel and hands fused 125 V DC to everything else: the DS200TCPS power supplies in <R>, <S>, <T>, and <C>, the TCEA emergency protection boards on the protective core's X, Y, and Z channels, and the solenoid and ignition feeds carried through the digital-side terminal boards. Incoming power arrives as battery-backed 125 V DC or as 115/230 V AC rectified by a DACA converter; either way, every fuse, LED, and switch between the plant supply and the panel's cores lives on this one board.

Matching Revision Letters: BCC, BDC, BEC

We stock the G1B board at three revision levels — BCC, BDC, and this BEC — plus the Group 2 G2BEC. The convention for reading the block: first letter, functional revision; second, a subsequent functional revision; third, artwork revision. In that reading, BEC sits later than BDC, which sits later than BCC. Most sites replace like for like; where your documentation allows a later revision, verify it against your panel drawings rather than assume it. Send the full number exactly as printed and we will confirm the correct match from stock. The complete lettering system — including why G1 must never be swapped for G2, and why a G-group number is never an H-group number — is documented in our GE Speedtronic Part Number Decoder.

Field Troubleshooting Notes from Mark V Sites

Two decades of public Mark V field reports carry a consistent lesson: the TCPD is accused often and guilty rarely. Before ordering, verify:

• Incoming power first. All 36 green fuse LEDs dark means nothing is arriving from the battery or DACA converter. One LED dark means one open fuse — and nearly always a downstream cause that will take out its replacement too.
• Core problems belong to cores. A rebooting <S> core in one well-documented case was chased through distribution outputs, wiring, and cards for weeks — the durable fix was reseating a power ribbon and then replacing that core's TCPS supply.
• DC system health. A leaking station battery produced a persistent ground fault at another site that survived disconnection of every TCPD output; ripple from a charger running without its battery causes equally confusing panel-wide behavior.
• Switch positions. Eight toggle switches on this board power cores individually, including the X, Y, and Z protective channels; confirm none was left off after maintenance.

What does condemn a TCPD: burned AC terminations (AC1H/AC1N/AC2H/AC2N), fuse canisters that no longer grip, mechanically failed switches, connector damage. Those faults are visible — photograph them and send them with your RFQ.

Neighbors on the 125 V DC Bus

Diagnosis that clears the TCPD usually lands on one of its neighbors, all of which we quote: DS200TCPS core supplies, the DACA converter, TCEA protection boards, and the digital-side terminal boards. Start from the GE Mark V DS200 Boards collection or the broader GE Speedtronic Turbine Control Boards catalog; GE Mark V DS200 Boards Explained ties the acronyms together, and Mark V vs Mark VI: DS200 to IS200 covers the successor platform.

Preparing Your Request for Quote

• Full part number with revision block: DS200TCPDG1BEC
• Board label photo (and damage photos if you want our read on the failure mode)
• Turbine frame and fuel; panel configuration (Simplex or TMR)
• Quantity; forced outage, planned outage, or stocking spare
• Delivery country for DDP routing; PO details if ordering on terms

Availability, Warranty, and Delivery

This used DS200TCPDG1BEC has been cleaned and tested and carries the one-year warranty stated below. Submit a Request a Quote and receive a firm answer within 24 hours; we ship worldwide DDP and accept purchase orders. If your label shows a different revision or group, tell us — matching the exact string up front is faster than returning the wrong board.

General Information about the Product
Part Number	DS200TCPDG1B Mark V DS200

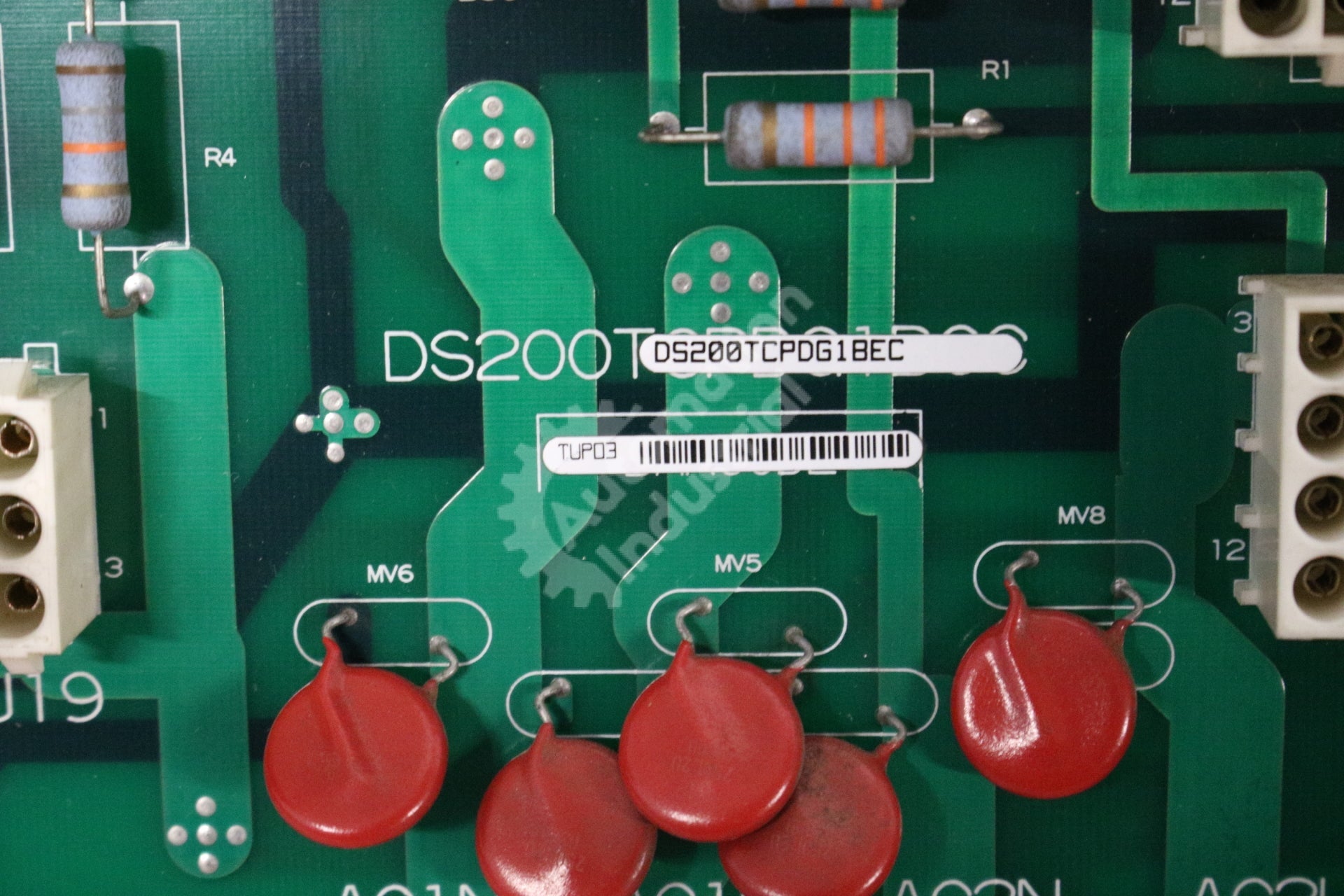

Description	GE DS200TCPDG1B DS200TCPDG1BEC Power Distribution Board Mark V
Condition	used Clean and Tested. With 1 Year Warranty.
