Why Stocking a Shelf-Ready TCEA Is Different From Stocking Any Other Board
The DS200TCEAG2B operates inside the Mark V's <P> protective core, alongside two other units that together form the <X>, <Y>, and <Z> processors. They monitor shaft speed, flame, and auto-synchronizing, feeding the unit's overspeed protection. Precisely because of that, many plants prefer to keep a new TCEA, in factory packaging, ready to install — rather than depend on the turnaround time of testing a reconditioned board when the part involved is part of the equipment's life-safety protection chain.
What's Outside the Scope of This Page
We won't describe overspeed trip setpoints, the internal voting logic, or how to conduct an overspeed test here. Overspeed protection is life-safety: any trip adjustment or test must follow exclusively the GE manual applicable to your board's exact revision and your plant's official procedure — never a generic commercial description.
Installing the New Board Safely
- Before energizing, manually replicate the position of each Berg jumper from the old board — they identify the processor position (<X>, <Y>, or <Z>) and need to be consistent across the core's three TCEA boards.
- Transfer the PROM modules from the old board using an anti-static wrist strap — the new board arrives with empty sockets.
- Verify whether your unit uses a G1 or G2 group TCEA before buying — we haven't found, in an independent technical source, confirmation that the groups are interchangeable with each other without prior validation against the label of the board being removed.
- Confirm the TCPS fuses before considering any board definitively faulty.
Reading the Part Number

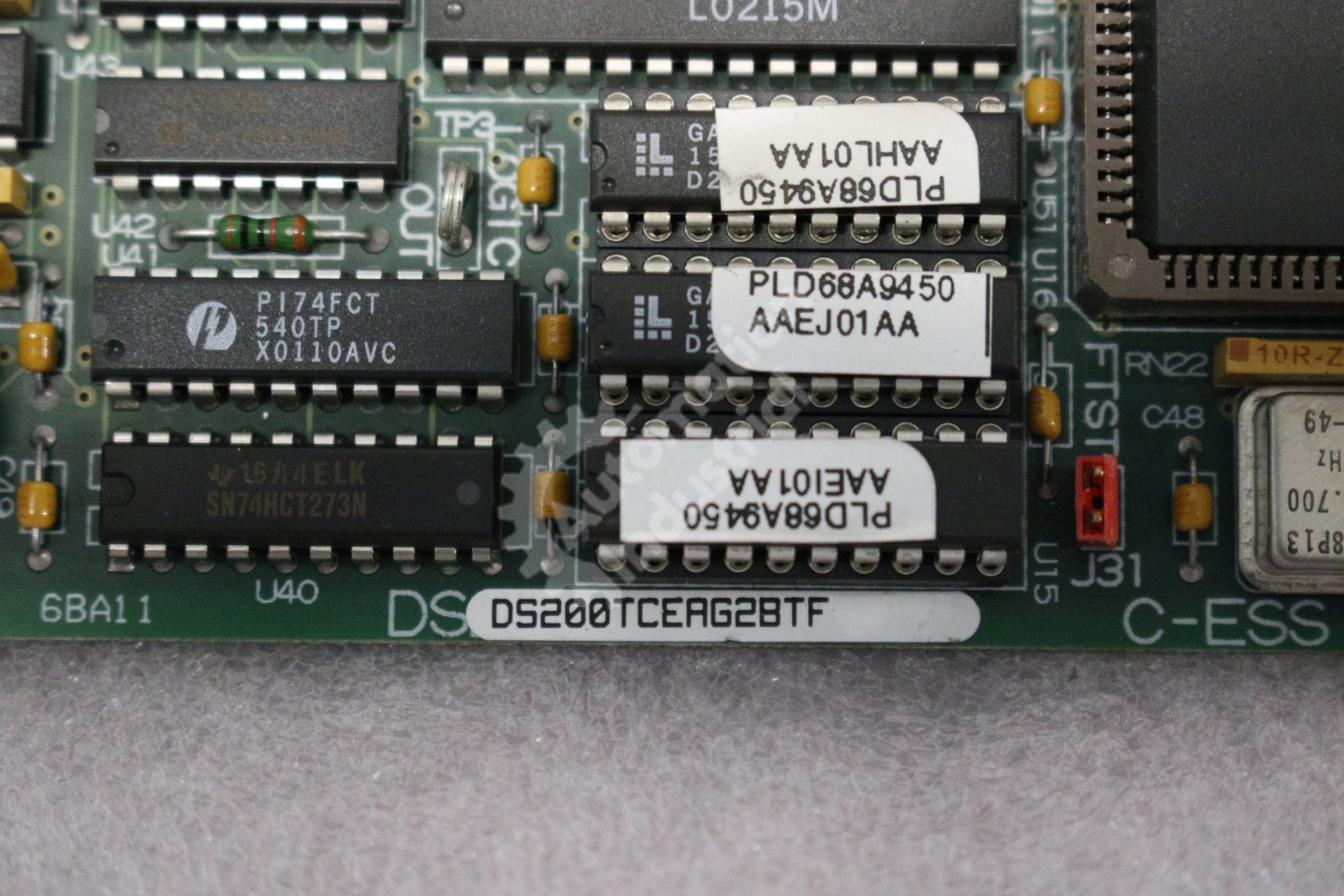

DS200TCEAG2B is the base; DS200TCEAG2BTF is the full revision stamped on the physical label. Always provide the complete code when requesting a quote.
This Unit
New surplus in original factory packaging, with a 1-year warranty.
What to Send With Your Quote
- Full part number with suffix, with a photo of the label
- Confirmation of the group (G1 or G2) currently used on your unit
- Turbine model and Mark V Simplex or TMR
- Urgency
Request a quote through Request a Quote: response within 24 hours, worldwide DDP dispatch, purchase orders accepted.
General Information about the Product |
Part Number |
DS200TCEAG2B Mark V DS200 |
Description |

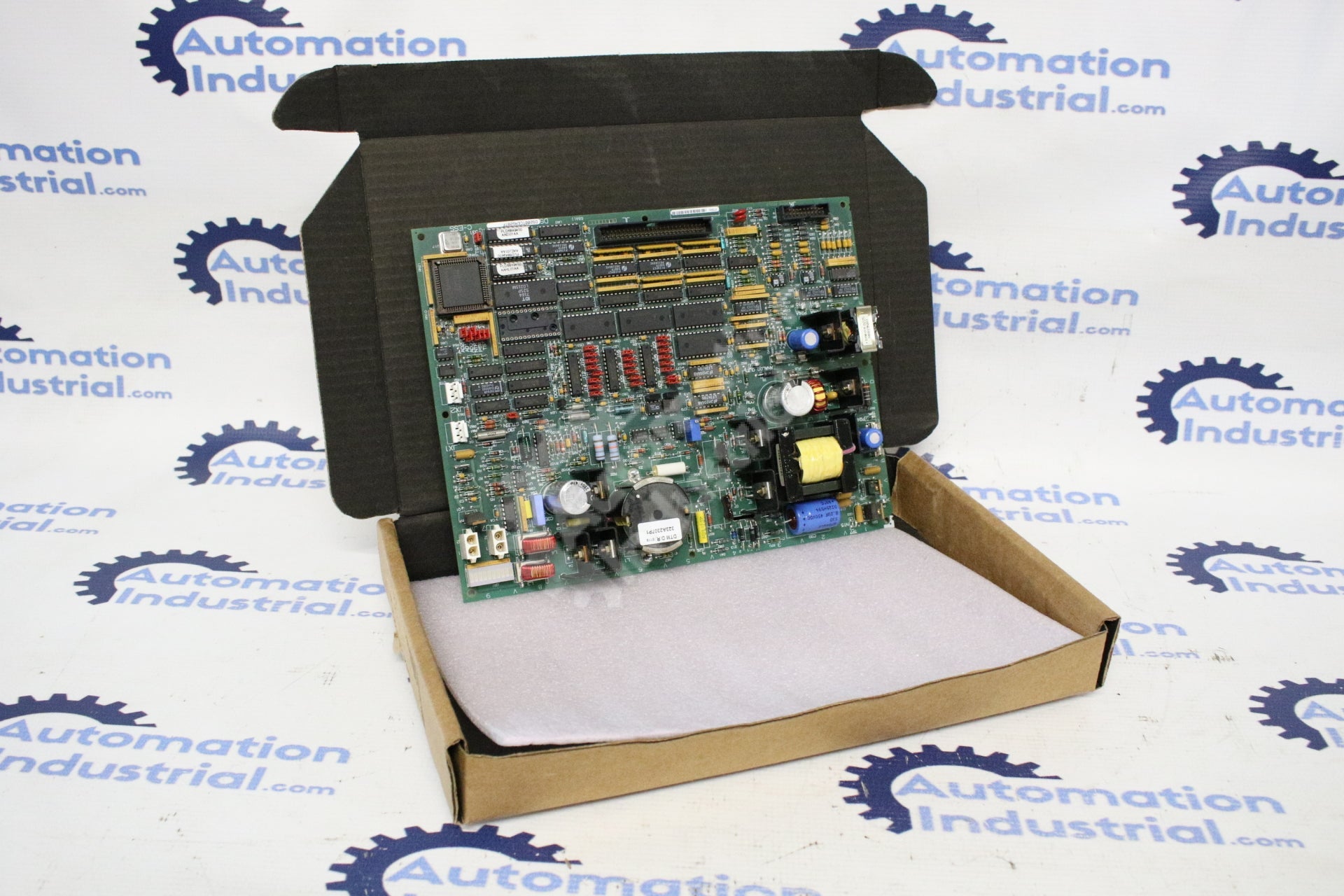

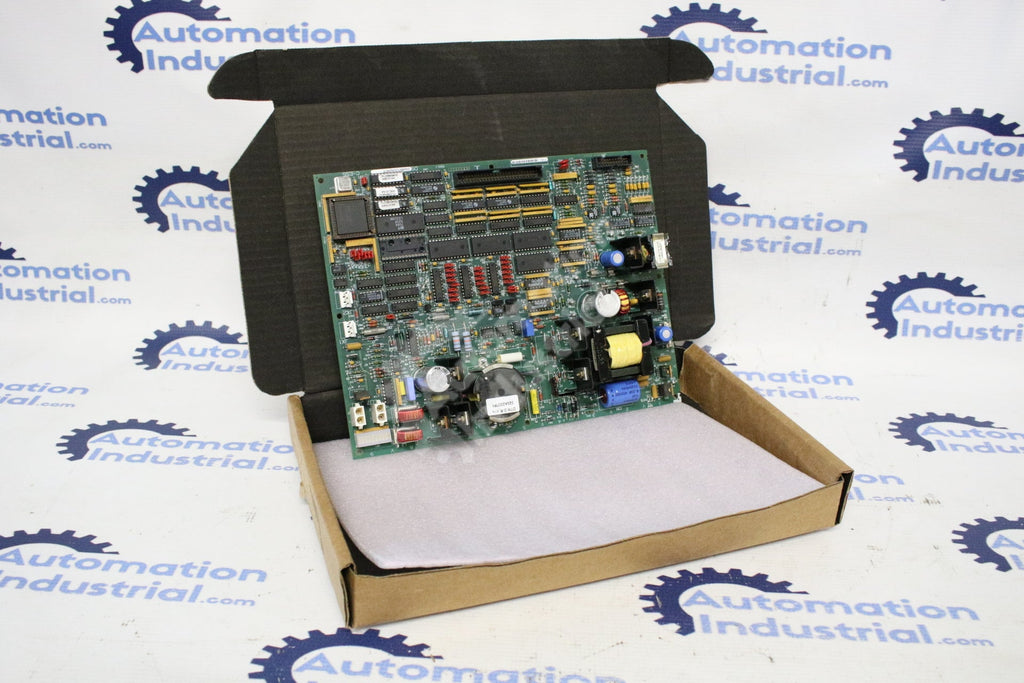

GE DS200TCEAG2B DS200TCEAG2BTF Emergency Overspeed Board Mark V NEW |
Condition |
newSurplusFactoryPackage Original Factory Packaged. With 1 Year Warranty. |
