The Mark V's "Protective Processor"

GE documentation also refers to the TCEA as the Protective Processor — a name that sums up its role within the <P> core well. The DS200TCEAG1B is one of three units in that core (positions <X>, <Y>, and <Z>), each with its own power supply and power-supply diagnostics, monitoring shaft speed, flame, and auto-synchronizing.

From the TCEA to the Trip

When a trip condition is identified, the signal travels from the TCEA to the Turbine Trip Board (TCTG), which applies 2-out-of-3 voting among the relays on the three boards before actually tripping the unit — a layer of redundancy that exists precisely so a single faulty board can't cause a false trip, nor fail to act when needed. We won't detail the internal trip logic, the setpoints involved, or how to test them here — that belongs in the GE manual for your exact revision and your plant's official overspeed test procedure.

What to Investigate Before Requesting a Replacement

• Berg jumper position: identifies which processor (<X>, <Y>, or <Z>) the board represents, along with other settings that must be identical across the core's three units. Record the exact position before removing the old board.
• PROM module revision: must be transferred from the old board to the new one, with ESD precautions, and must match what the I/O Configurator expects.
• TCPS fuses (the core's power supply, usually position 5): rule out before assuming a TCEA fault.
• Origin of the replacement board: if the problem persists after the swap, it's worth testing the "new" board in a different position to see if the symptom follows it.

Reading the Part Number

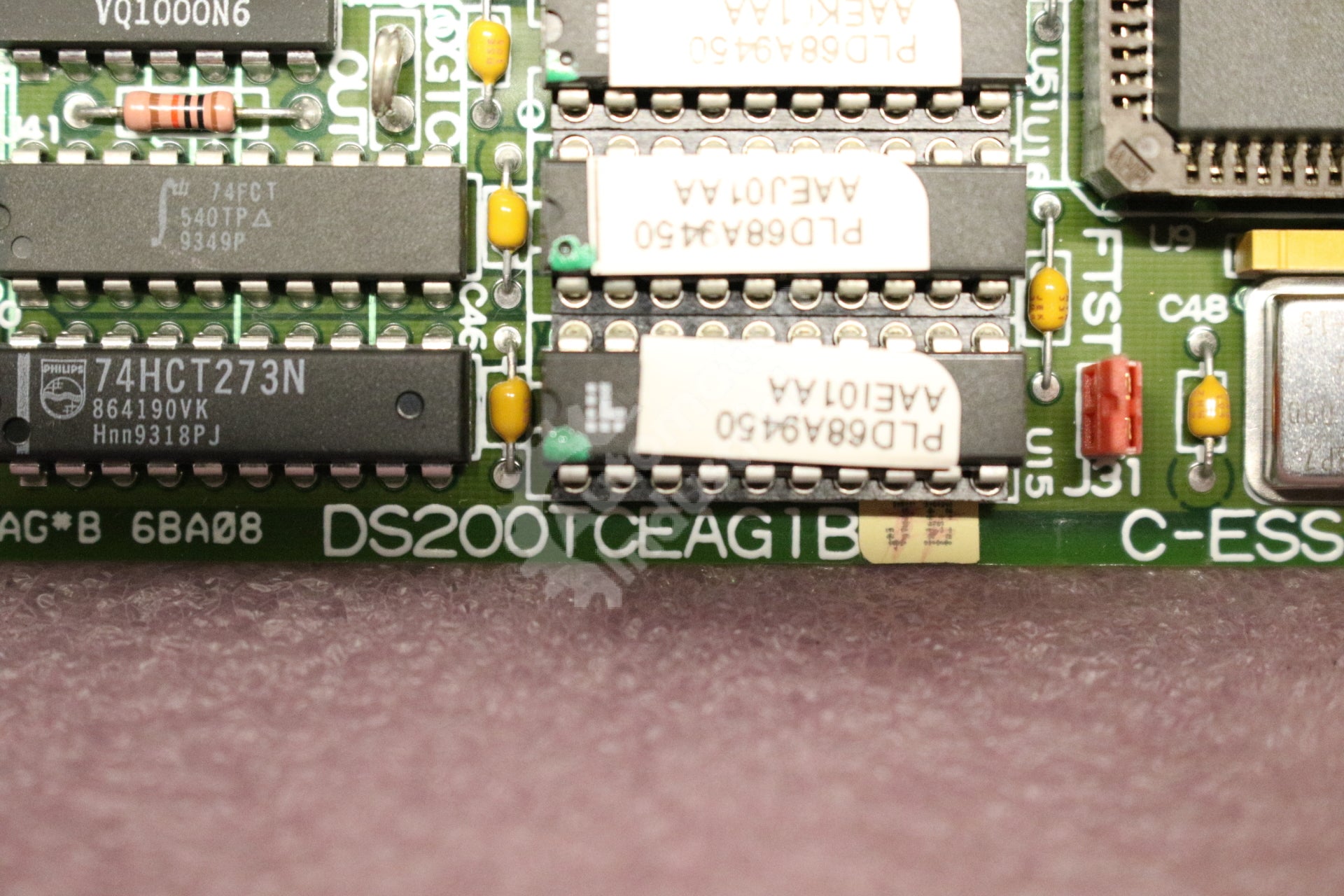

DS200TCEAG1B is the base; DS200TCEAG1BJE is the full revision stamped on the physical label. Always provide the complete code when requesting a quote.

This Unit

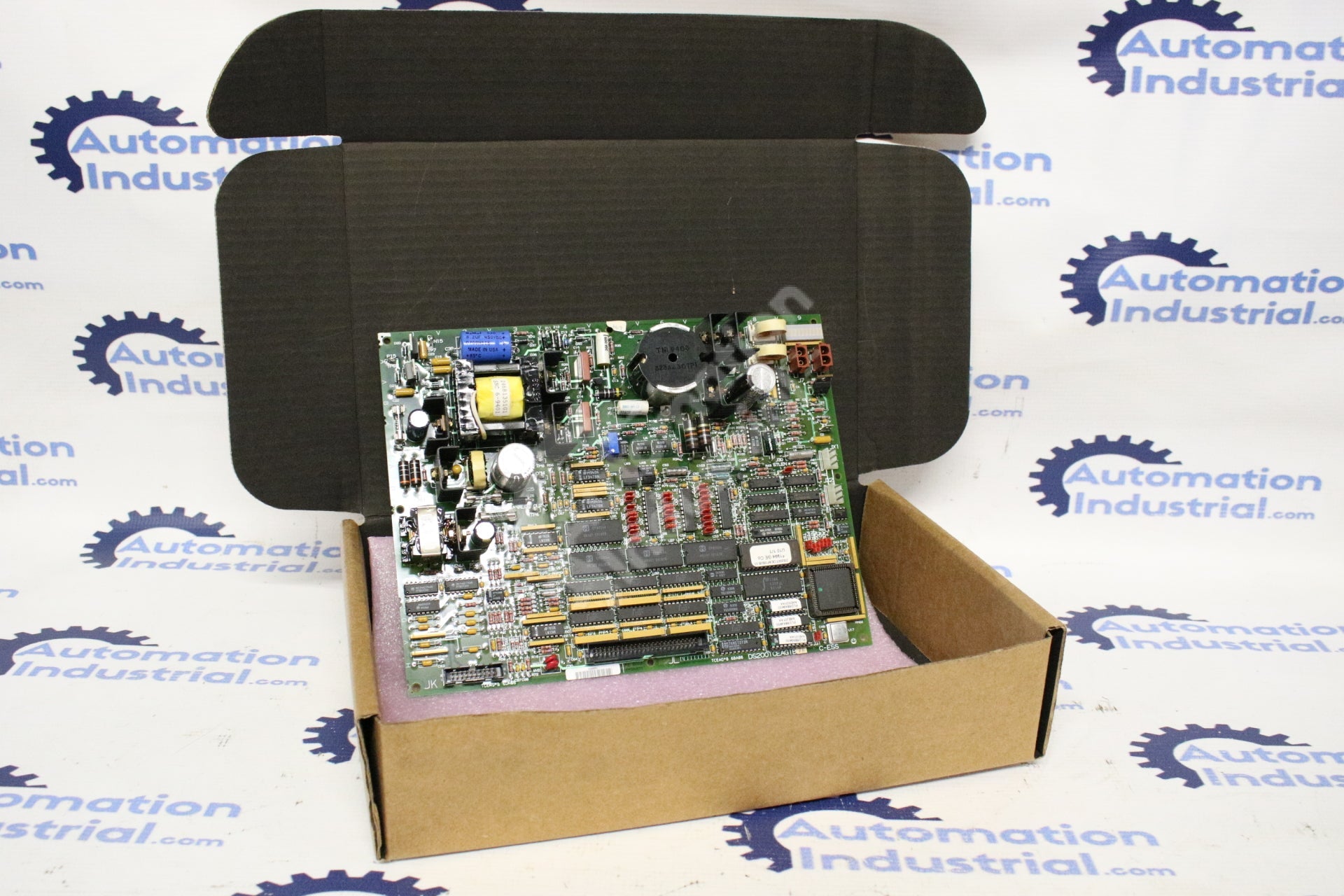

Used, cleaned and tested, with a 1-year warranty.

What to Send With Your Quote

• Full part number with suffix, with a photo of the label
• Which position (<X>, <Y>, or <Z>) the board occupies and the revisions of the other two
• Turbine model and Mark V Simplex or TMR
• Urgency

Request a quote through Request a Quote: response within 24 hours, worldwide DDP dispatch, purchase orders accepted.
