What the DS200TCDAG1ACA Does and Where It Lives

The DS200TCDAG1ACA is a Digital I/O board used in the GE Speedtronic Mark V turbine control system. It belongs to the base TCDA circuit design (functional group G1), and its job is straightforward but critical: it interfaces the panel's control logic to the field-level contact inputs and relay outputs the Mark V uses to sense switches, limit contacts, and permissives, and to drive solenoids, contactors, and annunciator circuits. Which points behave as inputs and which as outputs is set by software configuration, not by rewiring the card.

In a Mark V panel, the TCDA is installed in one of the control processor racks – the <R>, <S>, or <T> core in a TMR (triple modular redundant) panel, or the single core in a Simplex panel – and TCDA cards are also documented as part of the <C> (communication) core card set on many installations. On the I/O side, the TCDA works together with a companion relay board (commonly called TCRA) and with I/O termination/expansion cards such as TCQA, TCQE, and TCEA, and it terminates the panel's IONET.

How to Diagnose Before You Buy a Replacement

This is the step most sellers skip, and it is the one that actually protects your budget. TCDA-related diagnostic alarms – for example, a message that a DCC I/O card socket went to state A2, or a card that cycles continuously between states A2 and A7 after a trip – do not automatically mean the card itself has failed. In documented field cases, the identical symptom has been traced to:

• IONET termination resistors in the wrong position. The IONET should loop through all the TCEA cards and terminate only at the TCDA. If the termination jumpers are IN on a TCEA card (they should be OUT there, and IN on the TCDA), you will see this exact continuous state-changing fault with a perfectly healthy TCDA installed.
• AC ripple or transient spikes on the DC control bus – ripple noticeably above normal, or spikes from a battery charger or from de-energizing large unsuppressed DC coils (contactors, older relays) without RC suppression, can produce the same nuisance resets.
• A firmware/PROM revision issue rather than a hardware fault. GE issued at least one Technical Information Letter addressing IONET communication problems that were resolved with a PROM upgrade, not a board swap.
• A loose card, a poorly seated connector, or an intermittent ground on one of the field cable conductors feeding the card.
• The TCDA's own power supply (the TCPS card), not the TCDA itself. Check the supply voltages feeding the card before condemning it.

It is also worth remembering that the TCDA and its companion relay board (TCRA) are different animals reliability-wise: the TCRA carries electromechanical relays that wear out mechanically with switching cycles, while the TCDA is solid-state logic. If what is actually failing is a relay output that will not pick up, the fault is very often on the TCRA side, not this board. Field experience with Mark V cards generally shows mean time between failures in the low hundreds of thousands of hours for many of these boards – a card can run trouble-free for eight-plus years and then fail simply because every electronic component eventually does, with timing driven mostly by cabinet heat, humidity, dust, and voltage transients rather than a fixed shelf life. None of this means a genuinely failed card shouldn't be replaced – it means a TCDA diagnosis deserves a few minutes of jumper and cable-checking first, so you do not reorder the same fault twice.

Reading This Part Number

DS200TCDAG1ACA breaks down as: DS200 (the Mark V-era board series prefix), TCDA (the functional acronym for this Digital I/O design), G1 (the Mark V product grouping for this board), and the trailing ACA characters, which encode the functional and artwork revision levels of this specific unit. The G1 grouping is not interchangeable with the H1 grouping sold under the same TCDA acronym – they are different hardware groups – and while later revisions inside the same group are generally backward-compatible with earlier ones in that group, you should not assume a G1 board is a drop-in replacement for an H1 board (or the reverse) without checking your system documentation. When sourcing a replacement, match the full string – DS200TCDAG1ACA, not just "TCDA" or "DS200TCDAG1" – ideally against the physical label on the card you are pulling.

Related Boards and Newer Generations

Inside the Mark V panel, the TCDA is normally discussed alongside its companion relay card and the other cards sharing its core: TCQA, TCQE, TCEA, STCA, and UCPB are boards you may see referenced in the same troubleshooting threads. If your site is migrating away from Mark V entirely, GE's later Mark VI platform replaced the DS200 board series with the IS200 series using a different I/O architecture – for how the two generations map to each other in general terms, see our Mark V vs Mark VI: DS200 to IS200 guide. For a full breakdown of how GE's Speedtronic part numbers are constructed, see the GE Speedtronic Part Number Decoder, and for how the TCDA fits among the other DS200 board families, see GE Mark V DS200 Boards Explained.

What to Include in Your Quote Request

To get an accurate quote and avoid a mismatched board landing on your dock, please send us:

• The complete part number as printed on the card, including the full suffix (e.g., DS200TCDAG1ACA) and revision letters
• A photo of the board's label, if possible – this is the fastest way to confirm an exact match
• Your turbine model and Mark V panel configuration (Simplex or TMR)
• Quantity needed
• How urgent the requirement is (planned outage or unplanned turbine-down event)

Request a Quote

This DS200TCDAG1ACA is offered as new-surplus, factory-packaged stock (see condition details below). We don't list prices online because every Mark V board quote accounts for exact revision match, testing, and current availability – submit a Request a Quote and our team will respond within 24 hours. Alotechparts.com ships worldwide on a DDP basis, accepts purchase orders, and supports both planned outages and emergency turbine-down situations.

General Information about the Product
Part Number	DS200TCDAG1A Mark V DS200

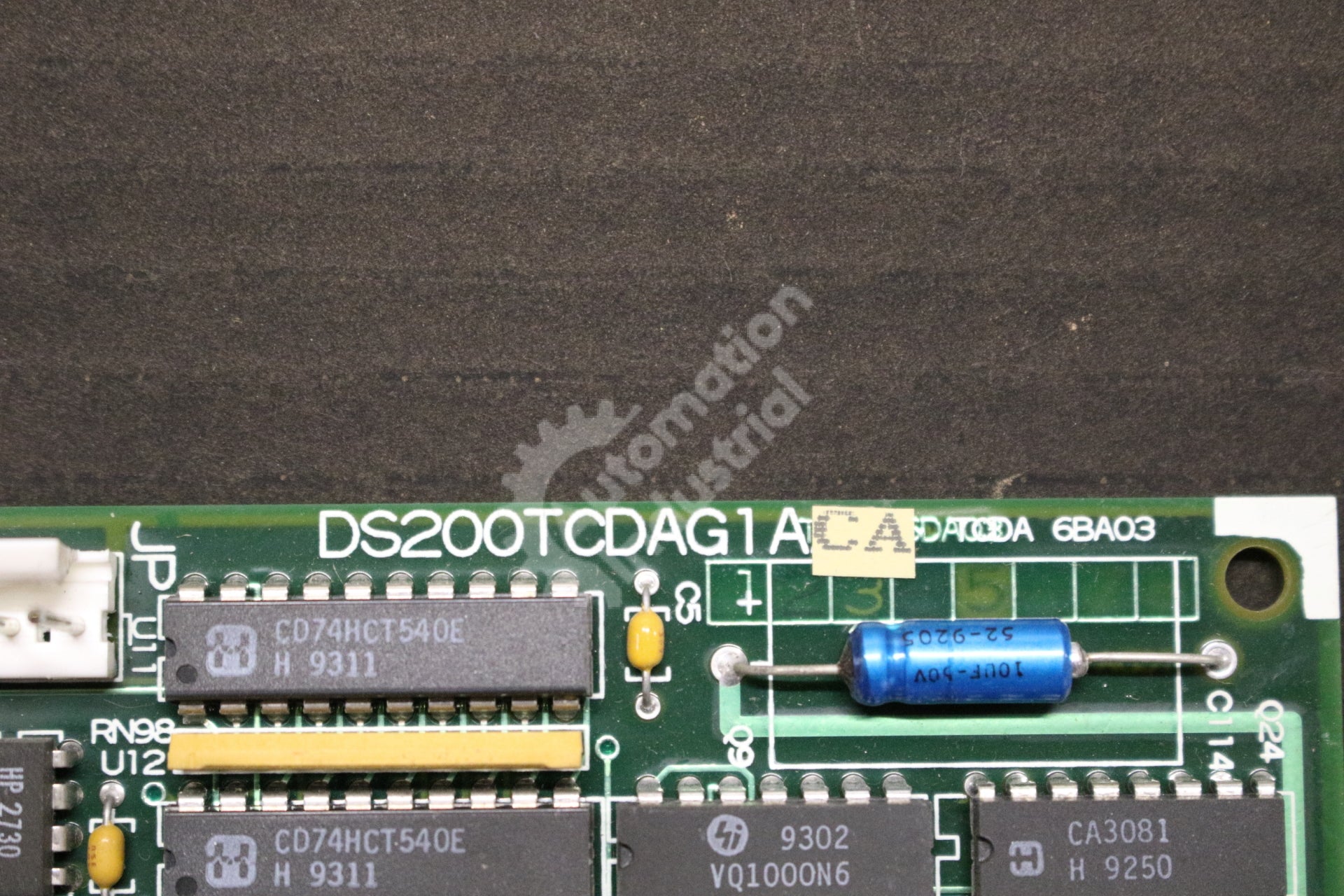

Description	GE DS200TCDAG1A DS200TCDAG1ACA Digital I/O Board Mark V NEW

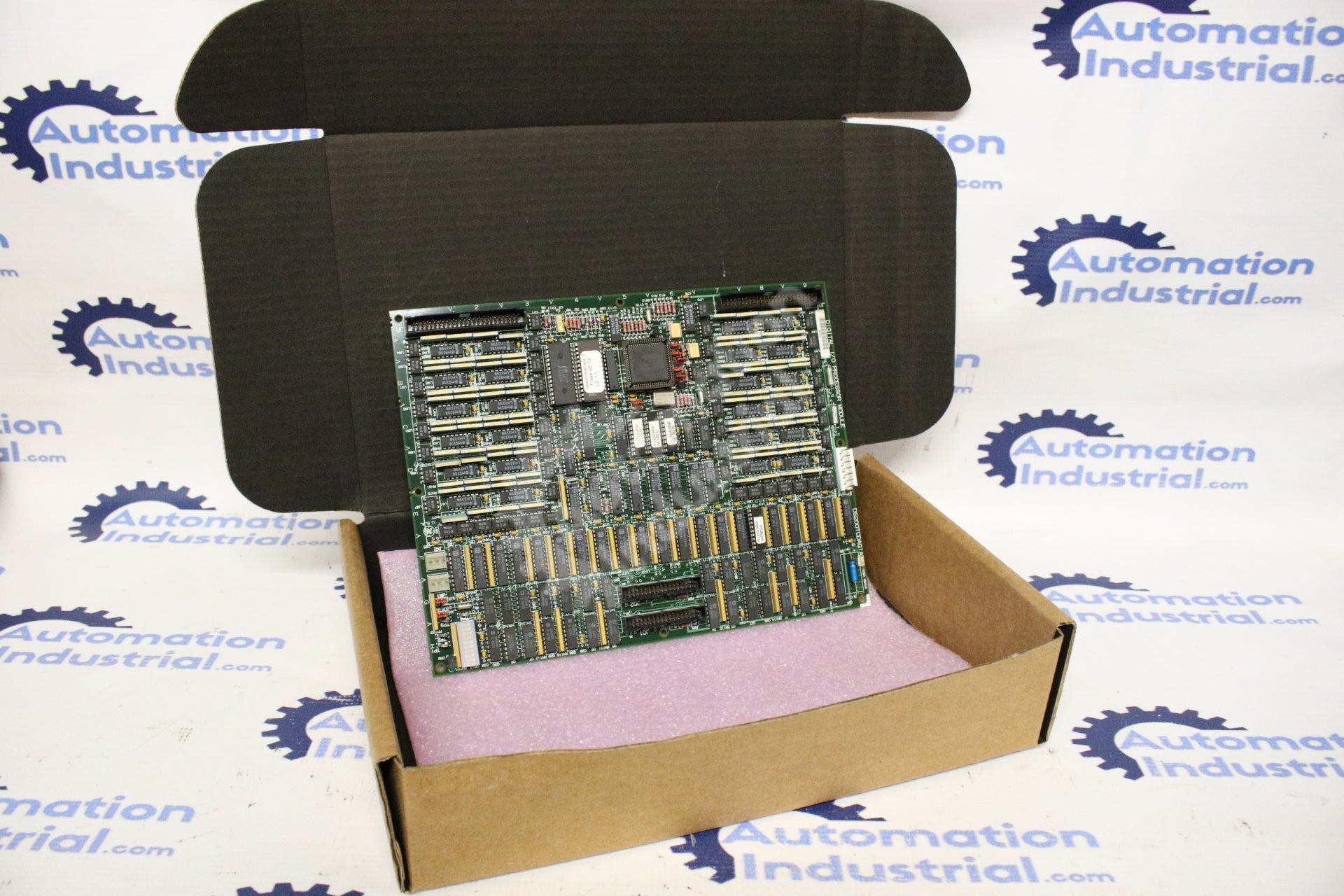

Condition	newSurplusFactoryPackage Original Factory Packaged. With 1 Year Warranty.
