Product description

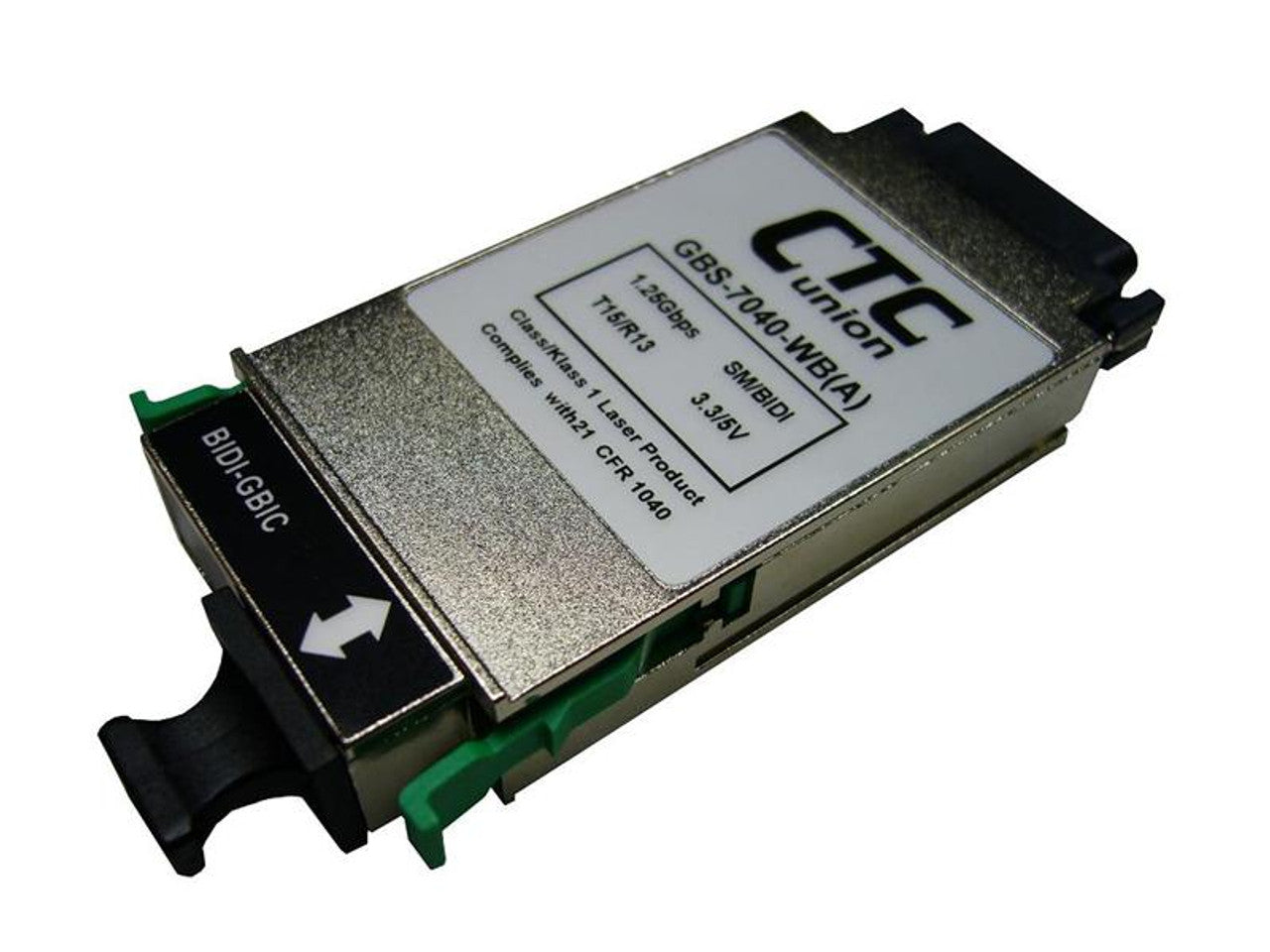

GBIC optical modules are equipped with the industry standard SC optical connector. The capacity of GBIC modules is 1.25 GigaBit.
The GBIC Bi-Directional single strand series covers single strand fiber optic applications for single-mode long haul fiber (20km to 80km).
GBIC modules are extremely versatile, working with any active equipment that support the GBIC type of interface: Ethernet switches, routers and other networking equipment.
Fiber power budget according to available models
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| GBS-7020-WA |
20Km |
Tx:1310nm Rx:1550nm |
-8 |
-23 |
15 |
| GBS-7020-WB |
20Km |
Tx:1550nm Rx:1310nm |
-8 |
-23 |
15 |
| GBS-7040-WA |
40Km |
Tx:1310nm Rx:1550nm |
-3 |
-23 |
20 |
| GBS-7040-WB |
40Km |
Tx:1550nm Rx:1310nm |
-3 |
-23 |
20 |
| GBS-7060-WA |
60Km |
Tx:1310nm
Rx:1550nm |
0 |
-24 |
24 |
| GBS-7060-WB |
60Km |
Tx:1550nm
Rx:1310nm |
-2 |
-25 |
23 |
| GBS-7080-WA |
80Km |
Tx:1490nm Rx:1550nm |
0 |
-27 |
27 |
| GBS-7080-WB |
80Km |
Tx:1550nm Rx:1490nm |
0 |
-27 |
27 |
Additional information on available optical modules: PDF datasheet
