Description
The Kidde FX-5RD is a 5-zone conventional fire alarm control panel that supports both Class A and Class B initiating circuits. It includes two NACs with 3.5 A of regulated 24 VDC power, a built-in dual-line dialer, and front-panel programming for streamlined installation and maintenance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Kidde |
| Category |
Fire Alarm Systems |
| Part Number |
FX-5RD |
| Subcategory |
Conventional Fire Alarm Control Panel |
| Type |
Conventional FACP |
| Zone Capacity |
5 Class B IDCs or 2 Class A IDCs |
| NAC Circuits |
2 Class B or 1 Class A, 2.0 A each, 3.5 A total |
| Input Power |
120 VAC, 60 Hz |
| System Output |
4.25 A total |
| Auxiliary Power |
27.4 VDC regulated, 0.5 A resettable |
| Communicator |
Built-in dual-line dialer/modem (Contact ID or 4/2) |
| Display |
Two-line LCD for event status |
| Programming |
Front-panel programming and one-person walk test |
| Detector Support |
CleanMe® compatible detectors for drift compensation and maintenance alerts |
| Battery Support |
Two 24 Ah maximum; two 10 Ah batteries fit inside cabinet |
| Standards |
UL 864 9th Edition, CSFM, FDNY approved |
| Dimensions |
3.75 in D x 14.23 in W x 19.5 in H |
| Cabinet Color |
Red |
| Weight |
16 lbs |
Information About FX-5RD

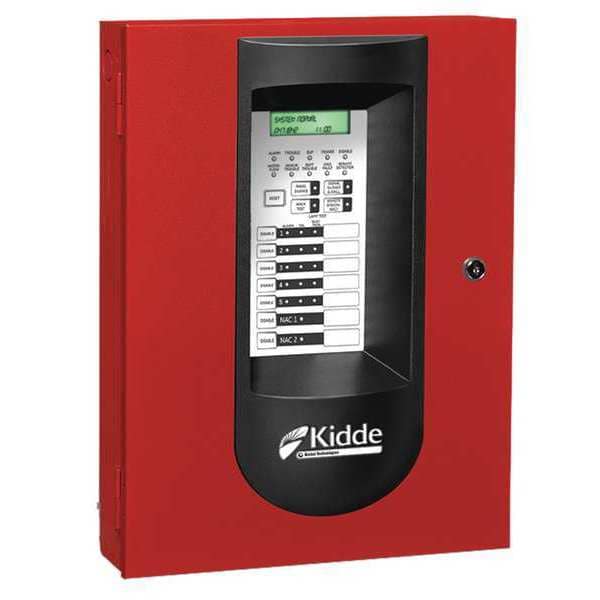

The FX-5RD is a Kidde five-zone conventional fire alarm control panel designed for small to medium-sized installations requiring both Class A and Class B circuit support. It features built-in dialer communication, a two-line LCD display, and flexible NAC outputs for horn, strobe, or auxiliary power applications. With CleanMe® detector compatibility, the panel provides advanced functions such as automatic drift compensation and remote maintenance alerts, reducing false alarms and simplifying servicing. Its UL 864 9th Edition listing and CSFM/FDNY approval make it compliant with major regulatory standards for dependable life safety performance.
Key Features:
- Five Detection Zones: Supports 5 Class B IDCs or can be paired into 2 Class A IDCs.
- Flexible Notification Outputs: Provides 2 NACs configurable as Class B or a single Class A, rated at 3.5 A total.
- Integrated Dialer: Factory-installed dual-line dialer/modem supports Contact ID or 4/2 formats for central station reporting.
- User-Friendly Setup: Front-panel programming and one-person walk test simplify installation and commissioning.
- CleanMe® Detector Support: Enables drift compensation and remote maintenance alerts to minimize false alarms.
- Auxiliary Power: Provides 27.4 VDC regulated, resettable 0.5 A auxiliary output for peripherals.
- Battery Charging: Supports up to two 24 Ah batteries, with cabinet space for two 10 Ah sealed lead-acid batteries.
- Regulatory Compliance: Listed to UL 864 9th Edition and approved by CSFM and FDNY for code-compliant installations.
- Compact Cabinet: Red steel housing with accessible controls, suitable for wall-mounted use.
The FX-5RD delivers the reliability and precision required for conventional fire alarm protection in commercial, institutional, and residential buildings.
