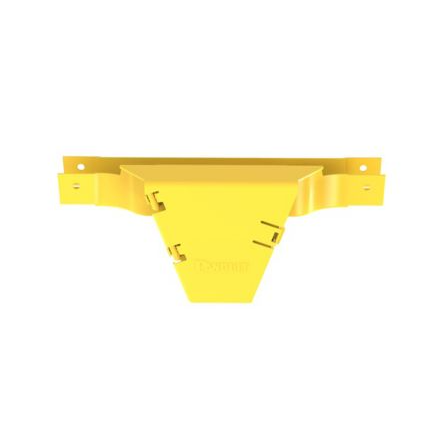

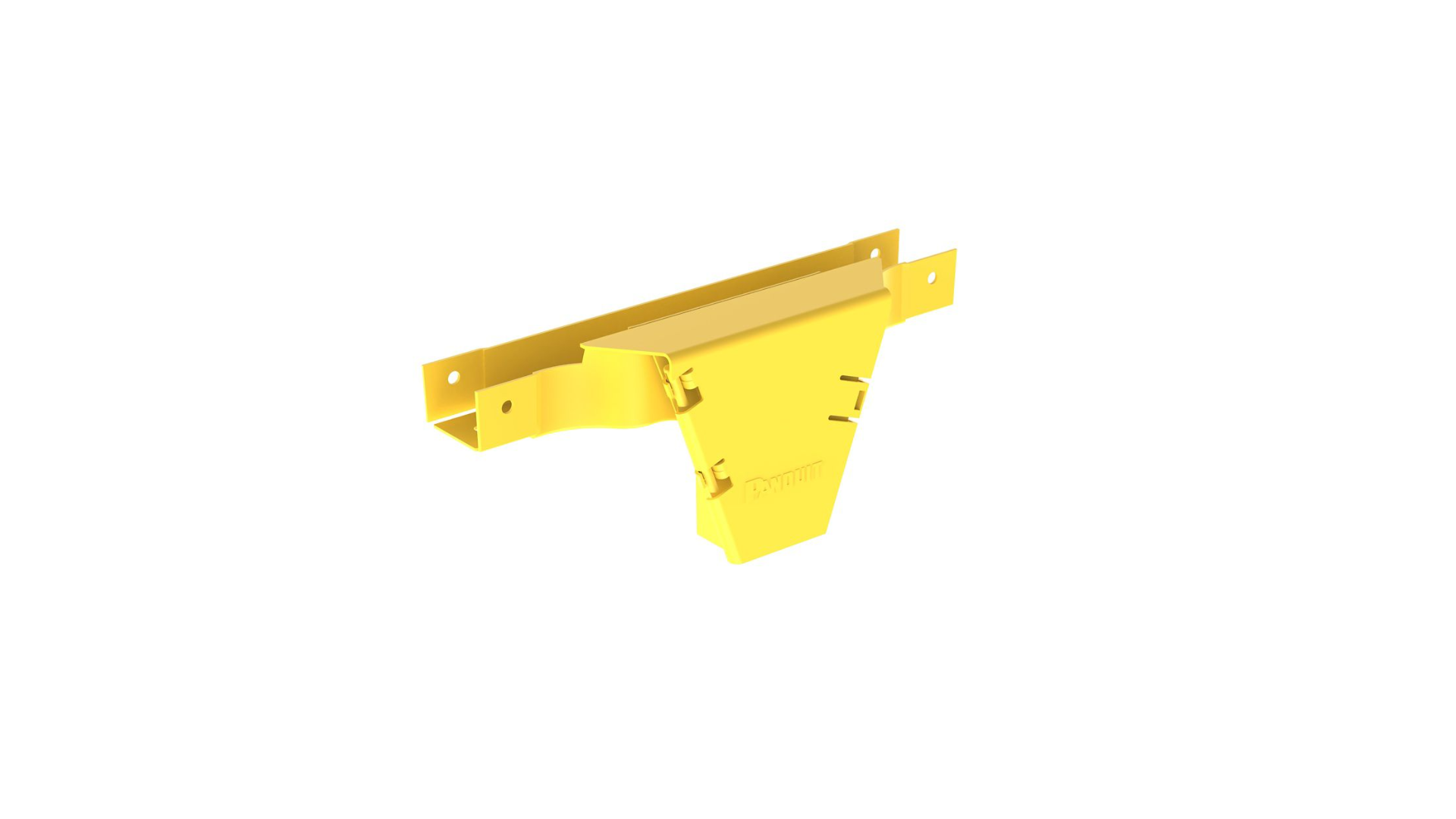

FVTHD2X2LYL FiberRunner® Vertical Tee, 90°, 2x2, Yellow
The FiberRunner® 2x2 Vertical Tee creates a 90° vertical drop from a horizontal run. The vertical tee attaches to a 2x2 channel and/or fittings to create a 90° vertical drop from a horizontal run. The vertical tee fitting accepts a channel cover in conjunction with the channel. It can be used with the QuikLock™ Coupler or Channels, snap rivets or bolts with channels, and the 1-port spillout. This product includes a hinged door.
Product Drawing
| UPC |
61305676852 |
| Std. Pkg. Qty. |
1 |
| Std. Pkg. Volume (cf) |
0.2891 |
| Std. Ctn. Qty. |
5 |
| Std. Ctn. Volume (cf) |
1.4457 |
| Application |
Data Centers and Telco Central Offices |
| Product Type |
Tee Fitting |
| Sub Brand |
FiberRunner™ |
| Bend Radius (In.) |
2 |
| Bend Radius (mm) |
50.8 |
| Channel Material |
PC |
| Color |
Yellow |
| Fitting Type |
Vertical Tee |
| Fitting Material |
PC.ABS |
| For Use With |
2x2 FiberRunner System |
| Material |
PC/ABS |
| Overall Height (In.) |
5.76 |
| Overall Height (mm) |
146.3 |
| Overall Length (In.) |
4.11 |
| Overall Length (mm) |
104.4 |
| Overall Width (In.) |
14.22 |
| Overall Width (mm) |
361.2 |
| Standards Met |
RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions |
2x2 |
