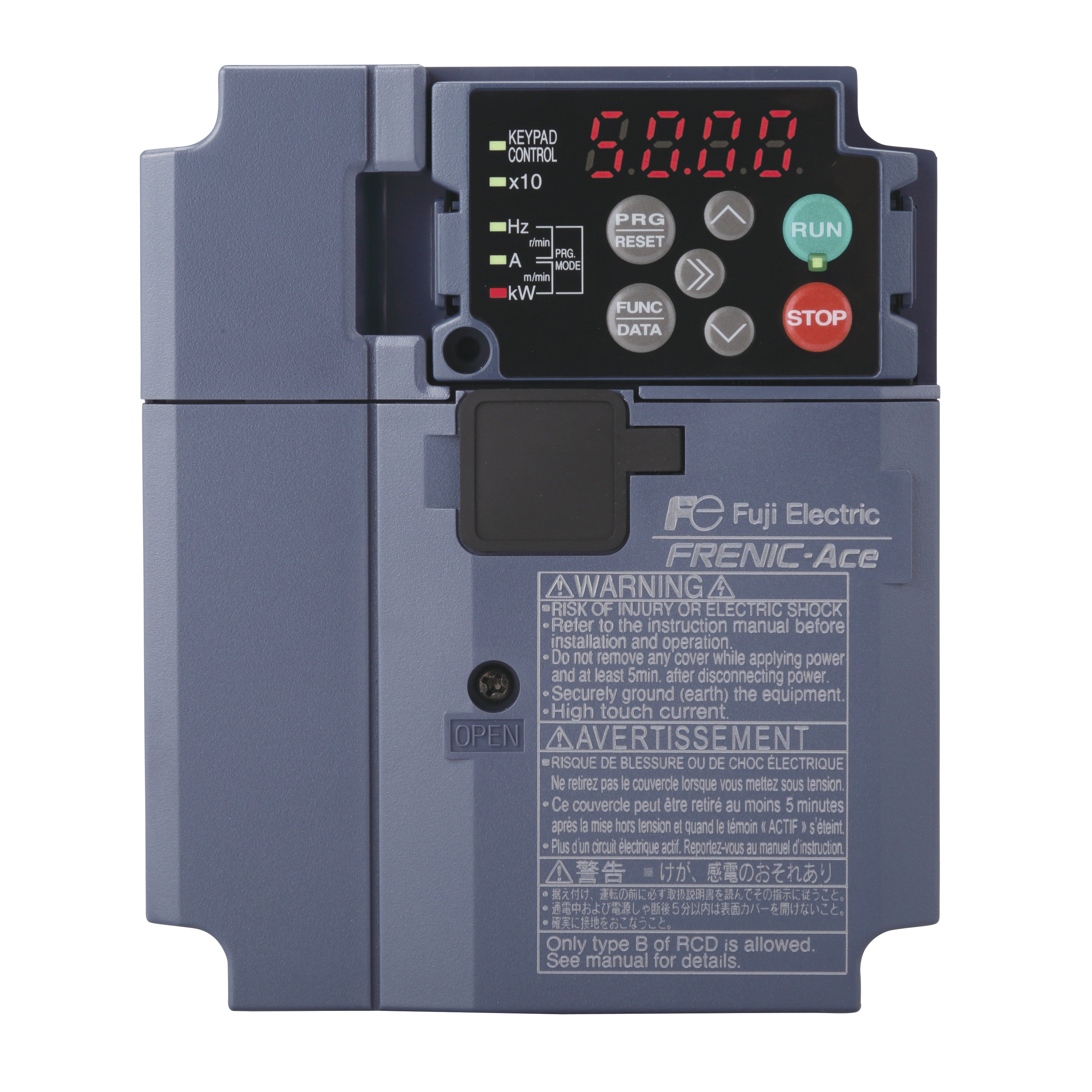

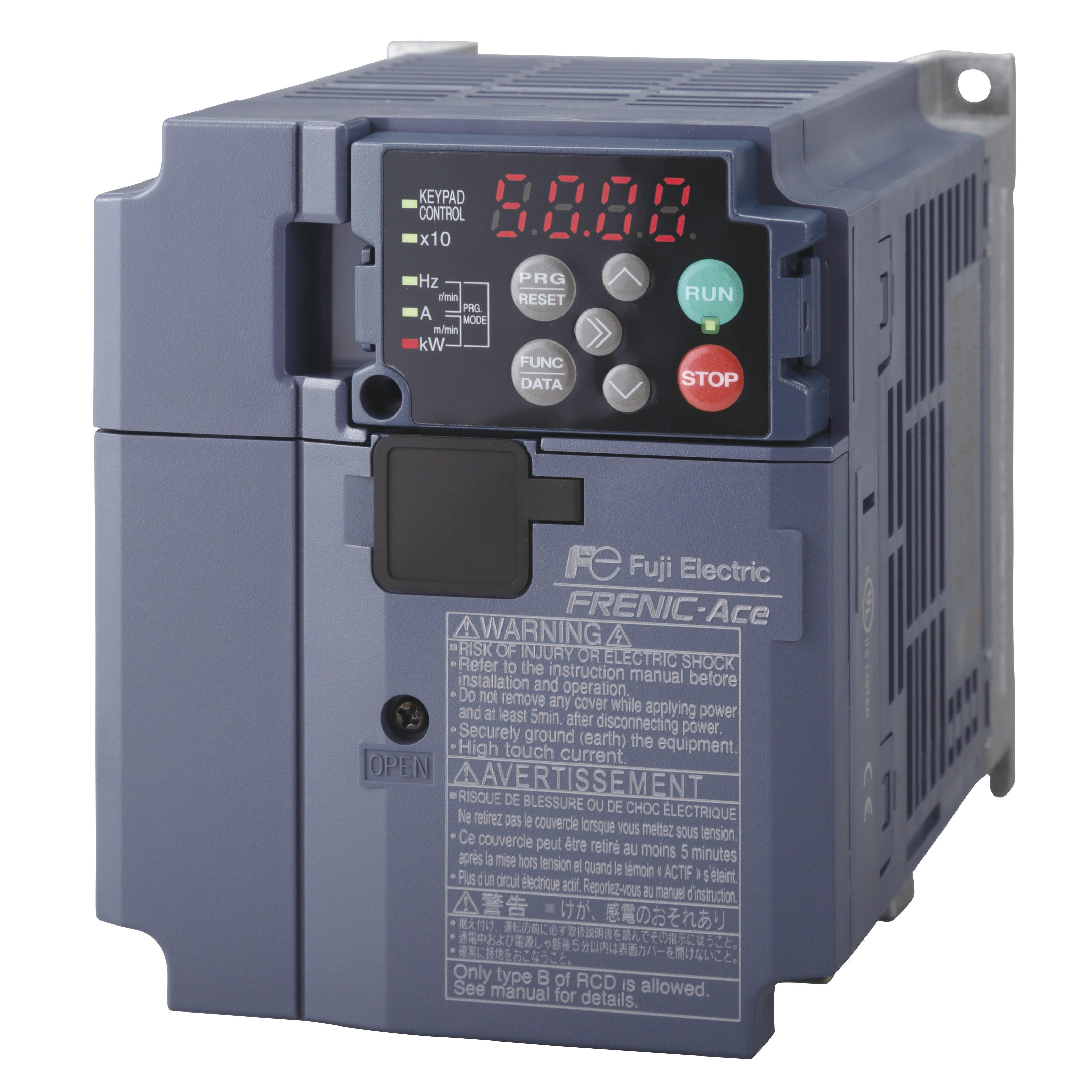

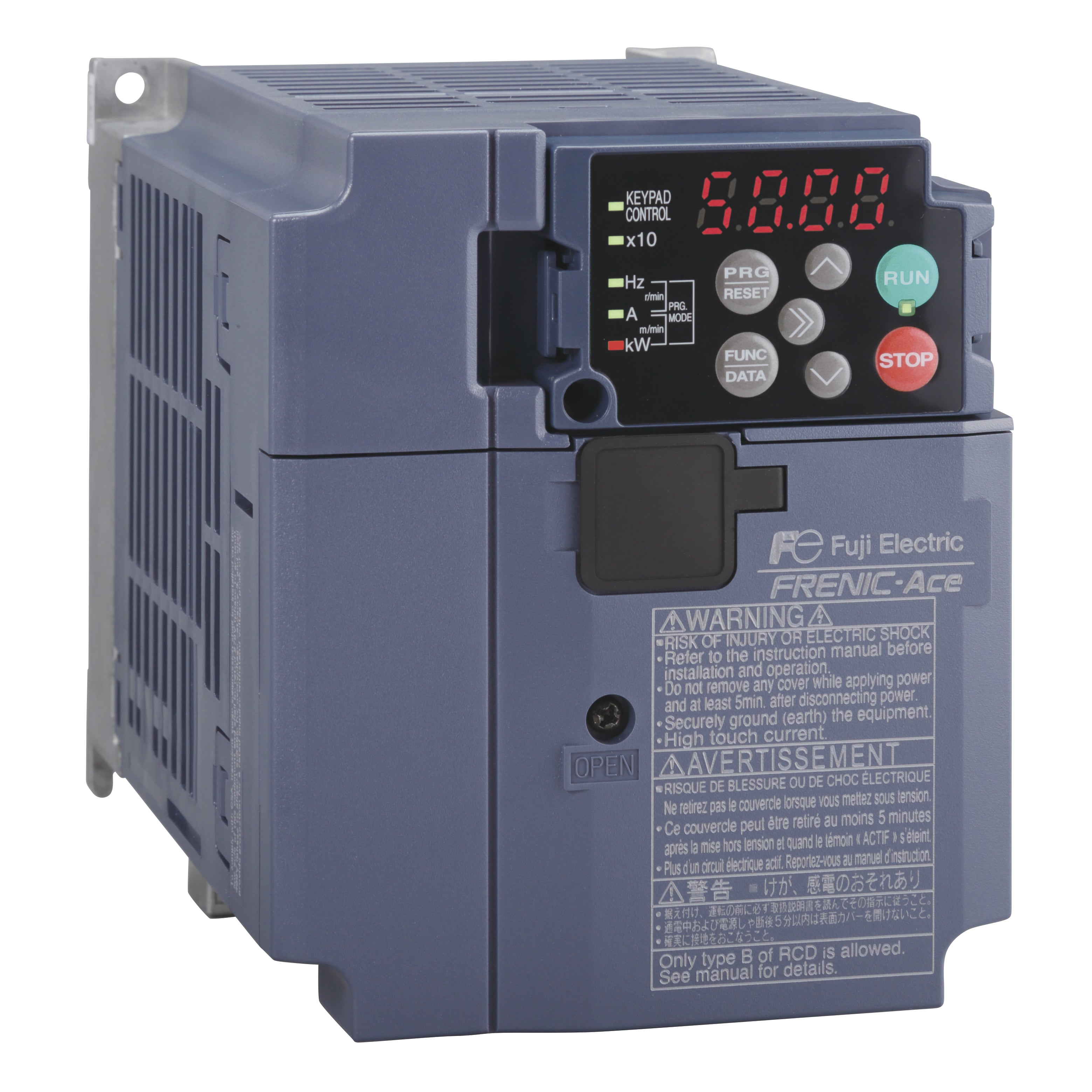

A versatile general-purpose drive built for energy efficiency and reliable performance, the Fuji Electric FRN0168E2S-4GB is a FRENIC-Ace (E2) series general-purpose variable frequency drive (VFD) for 460V three-phase applications rated 100 HP / 150A (Normal Duty / VT) and 75 HP / 112A (Heavy Duty / CT).
The FRENIC-Ace (E2) is engineered for energy-intensive applications where variable-torque loads — fans, pumps, and compressors — represent the greatest opportunity for energy savings. Its optimized V/f energy-saving mode automatically reduces output voltage at partial loads, minimizing motor iron losses and cutting energy consumption by up to 30% compared to fixed-speed operation. For tighter speed regulation, the drive supports dynamic torque vector control without an encoder, delivering improved low-speed torque and better transient response.
Standard features include: built-in PID controller, auto-tuning, 8-step multi-speed operation, DC braking, RS-485 Modbus RTU, coast-to-stop and ramp-to-stop modes, and a comprehensive protection suite. Optional fieldbus cards support PROFIBUS-DP, DeviceNet, EtherNet/IP, and CC-Link.
Common applications for the FRN0168E2S-4GB include general-purpose factory automation, centrifugal pumps and water/wastewater treatment, and air compressors and industrial blowers. The dual Normal Duty / Heavy Duty rating provides flexibility: Normal Duty (VT) for fans and pumps, Heavy Duty (CT) for conveyors and machinery requiring higher overload capacity. UL/cUL listed and CE marked.
