FS-AP-W6T6817C, Cloud Managed Wi-Fi 6 802.11ax 6817 Mbps Wireless Access Point, Seamless Roaming & 4 × 4 MU-MIMO Three Radios, Manageable via FS Controller or Standalone (PoE Injector Included)

Equipped with the latest and fastest Wi-Fi 6 (802.11ax) technology, FS-AP-W6T6817C is built to provide your business with next-level coverage, ease of installation and management.

It supports 4x4 MU-MIMO, and can simultaneously deliver services on the one 2.4GHz and two 5GHz bands, achieving a rate of up to 6817 Mbps.

With built-in smart antennas that enable signals to follow Stations (STAs), providing better coverage, the AP is ideal for high-density scenarios such as midsize and large enterprise offices, education institutions, and business spaces.

Specifications

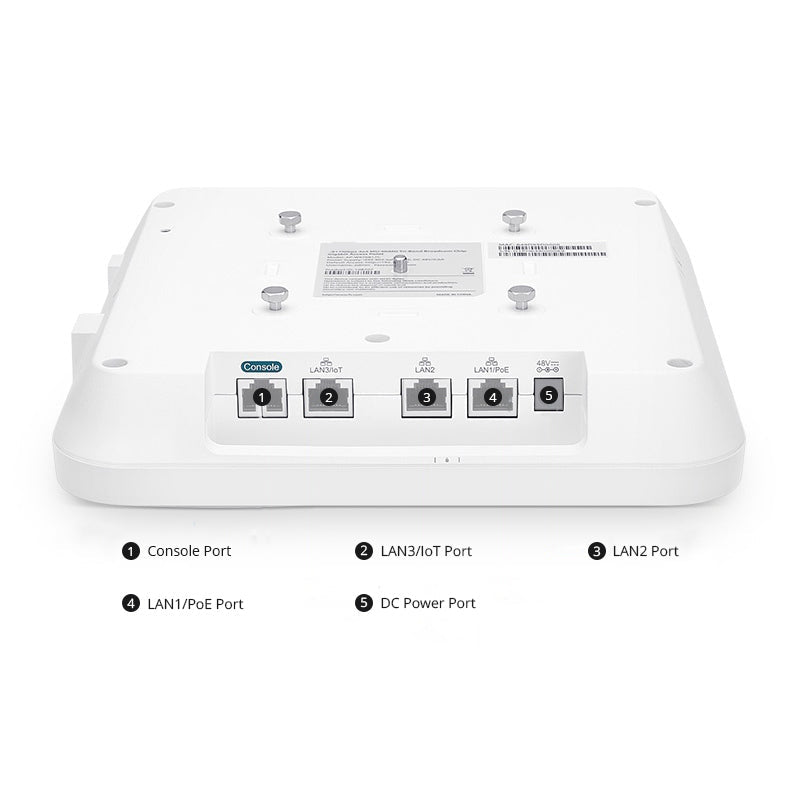

• Wired Interfaces: 3x 10/100/1000M RJ45 (PoE)

• Wireless Standards: 802.11a/b/g/n/ac/ax

• Antenna Type: Integrated Antenna

• Frequency Band: 2.4 GHz and 5 GHz

• Antenna Gain: 2.4GHz: 3 dBi; 5 GHz: 3 dBi

• Transmission Rate: 6817 Mbps

• AP Chip: BCM49408

• MIMO: 2.4GHz: 4x4:4; 5 GHz: 2x2:2; 5 GHz: 4x4:4

• Antenna Type: Integrated Antenna

• Multiple SSIDs: 48

• Power Supply: IEEE 802.3af/at PoE, DC 48V/0.6A

• Reference Coverage Radius: 30m

• Power Consumption: 25.5W

• Max Number of Users: 1536

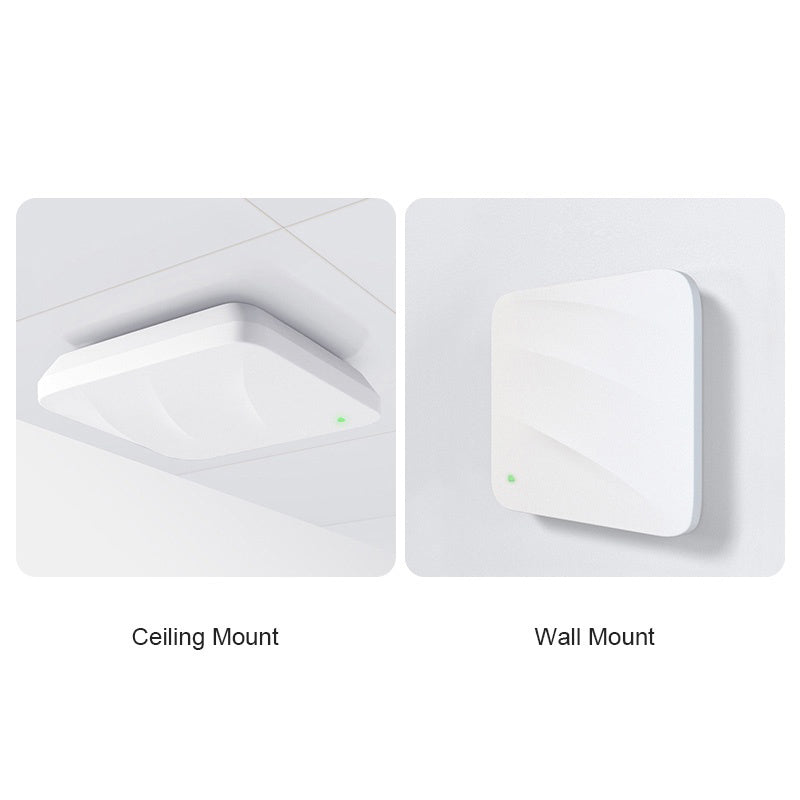

• Mount: Ceiling/Wall/T-Shaped Keel/Triangular Keel/Beam/Threaded Rod

• Recommended Number of Users: 100

• Operating Temperature: -10 to 50°C (50 to 122°F)

• Operating Mode: FAT/FIT/Cloud AP

• Storage Temperature: -40 to 70°C (40 to 158°F)

• Environment: Indoor


Product Highlights

• Three Radios 6817 Mbps: 2.4 GHz (4×4), 5 GHz (4×4 and 2x2)

• Managed via Airware Cloud/WLAN Controller/Security Gateway or Operate Alone

• Seamless Roaming with Airware Cloud/Wireless Controller/Security Gateway

• WPA3, WIDS and RF Interference Tracking, etc. Ensure Data Security

• Support OFDMA, MU-MIMO, 1024-QAM

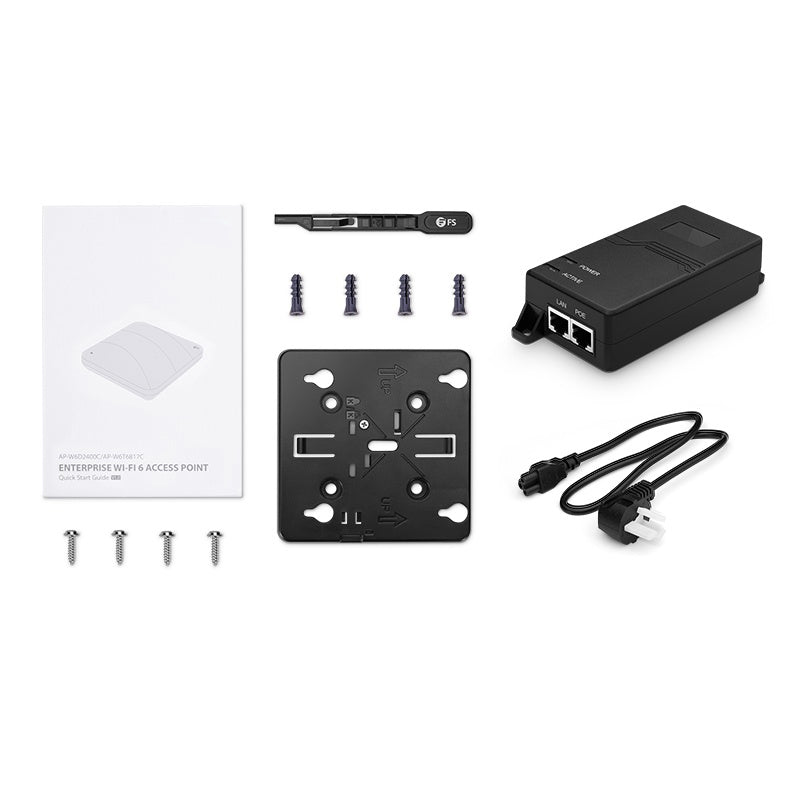

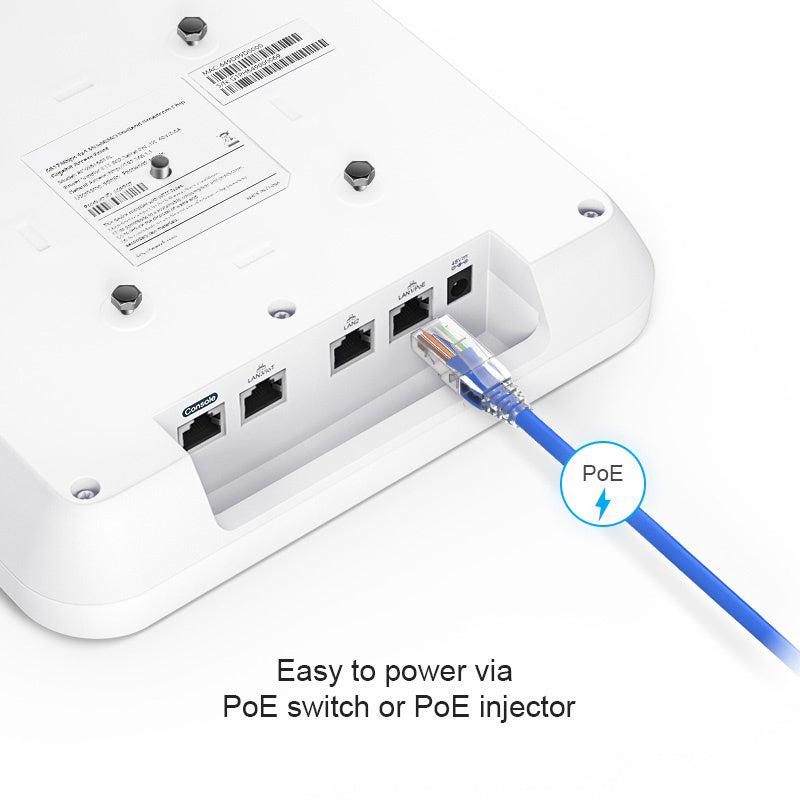

• Powered Using PoE+ (PoE Injector Included in Box)

Connectivity Solutions



Wi-Fi 6, The End of Slow Networking
Every user will get smooth, consistent fast connections, every time.



Enterprise Level Security You Can Trust
Protect network security with stronger encryption and rogue device monitoring.

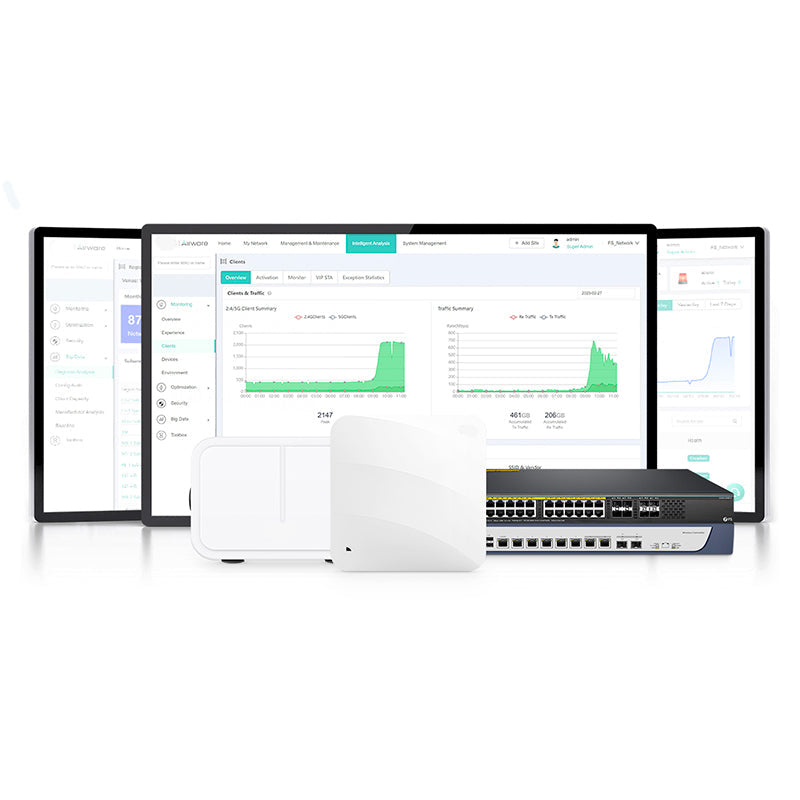

Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location, streamlining operations and enabling quick deployment with Zero Touch Provisioning.
