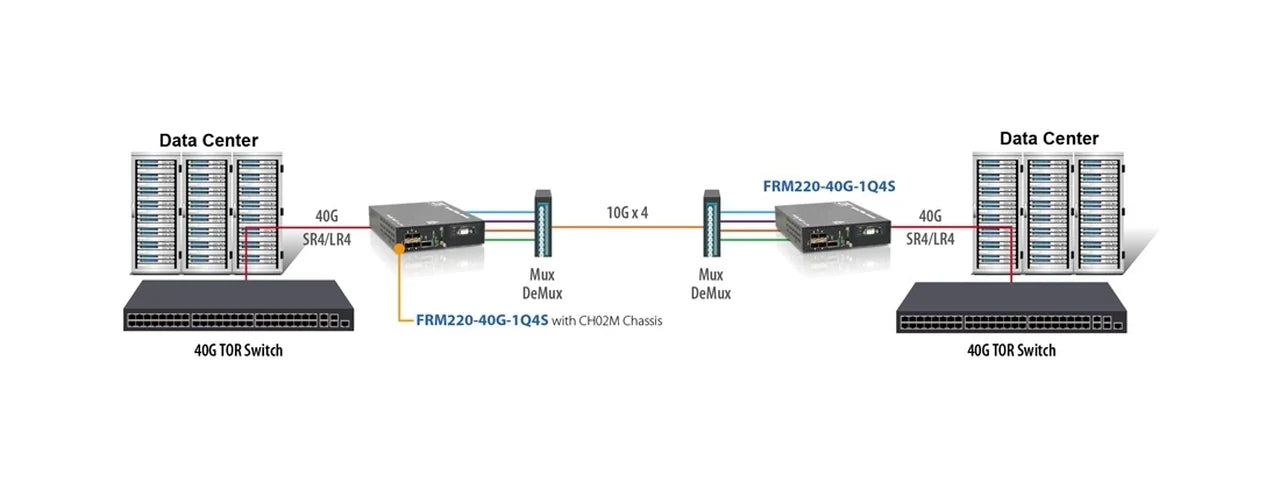

The FRM220-40G-1Q4S is a 40G QSFP⁺ to 4x 10G SFP⁺ transponder that provides media conversion and distance extension for 40G over 10G links. The FRM220-40G-1Q4S meets the growing need for more bandwidth for data centers and enterprises.
The emergence of high-end servers and Ethernet switches with 40G Ethernet interfaces increases the need for media conversion (multi-mode to single-mode) and link range extension.

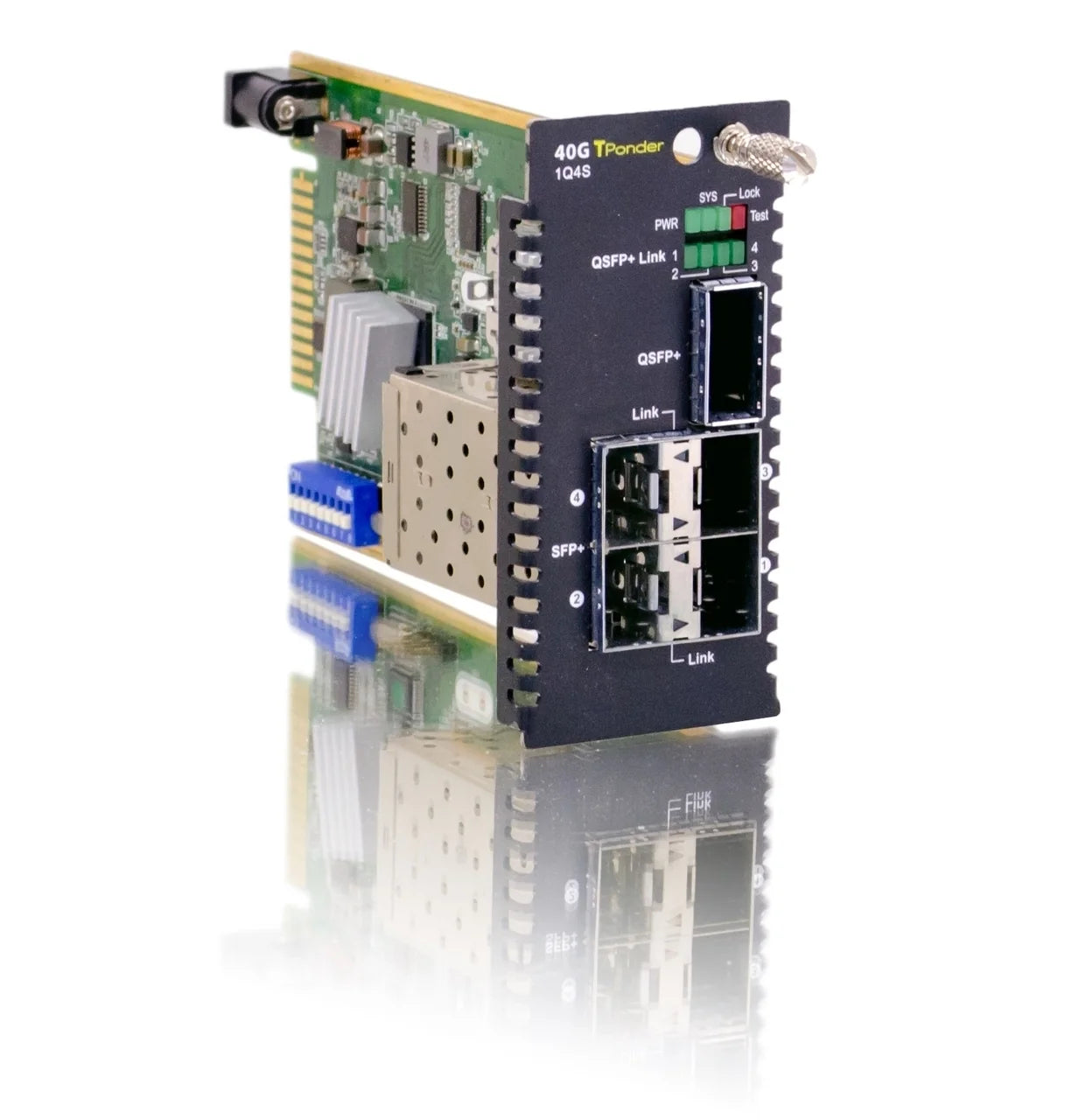

The FRM220-40G-1Q4S is a two slot wide hot-swappable card with one QSFP⁺ slot for QSFP⁺ 40G transceiver and four SFP⁺ slots for SFP⁺ 10G transceivers. The installation and setup is simple plug and play.
The FRM220-40G-1Q4S can be inserted into any powered FRM220-CH20,CH08, CH04 chassis or CH02M, CH02/SMT standalone chassis with QSFP+ and SFP+ transceivers required for the application.
Unit supports web-based, in-band management telnet, SNMP or console management when installed in the FRM220-CH20 chassis or in the small standalone casing of FRM220-CH02M that provides a separate console port.
Features
- Device Management via FRM220 Chassis with NMC
- Multiple functions in one module: 40G converter/repeater and Quad 10G optical multiplexer
- 40G link interface --Ethernet/IEEE: 802.3ba 40GE-LR4
- 40G multi-link (fiber) interfaces --Ethernet/IEEE: 802.3ba XLAUI and OIF: CEI-11G
- QSFP⁺ ports for flexibility and scalability
- Hot-swap support (module and interfaces)
- Supports 1x 40G QSFP⁺ and 4x 10G SFP⁺
- Supports DMI function for QSFP⁺ & SFP⁺ module
- Supports Loopback test function
- 3R function.
Product Specification Sheet
Technical specifications
| Interfaces: |
Two QSFP+ slots supporting 40G multi-link (fiber) interfaces Ethernet/IEEE: 802.3ba XLAUI and OIF: CEI-11G data rates |
| Connectors: |
QSFP+ slots with LC or MPO optical connectors, supporting SR4, LR4, ER4 (connectors dictated by QSFP+ module) |
| Access type: |
40G Ethernet |
| Equipment function: |
3R Transponder (Regenerator / Reshaper / Retimer) |
| Front LEDs: |
PWR, Sys, Lock, Loopback, Link1, Link2, Link3, Link4 |
| Power: |
12V/1A |
| Temperature: |
0~50°C (Operating); -10~70°C (Storage) |
| Humidity: |
10~90% non-condensing |
| Consumption: |
less than 12W |
| Dimensions(WxDxH): |
155mm x 88mm x 21mm (card only) |
| Weight: |
150g (card only) |
| Compliance: |
CE, FCC, LVD, RoHS |
| MTBF: |
65,000 hours |
