- L2+ managed POE switch with 24GE + 4SFP+, 12port POE with max 185W limit and smart fan temperature control
[/shortdesc]
[properties]
| Properties |
FS-124F-POE |
| Description |
Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 12 port PoE with maximum 185 W limit. |
| Product Family |
FortiSwitch |
| Product Type |
Switch |
| Total Network Interfaces |
24x GE RJ45 and 4x 10GE SFP+ |
Dedicated Management
10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port |
1 |
| Form Factor |
1 RU Rack Mount |
| Power over Ethernet (PoE) Ports |
12 (802.3af/at) |
PoE Power Budget
(single/dual PSU) |
185 W |
| Mean Time Between Failures |
> 10 years |
[/properties]
[specifications]
| Switching Capacity (Duplex) |
128 Gbps |
| Packets Per Second (Duplex) |
190 Mpps |
| MAC Address Storage |
32 K |
| Network Latency |
< 1µs |
| VLANs Supported |
4 K |
| Link Aggregation Group Size |
8 |
| Total Link Aggregation Groups |
16 |
| Packet Buffers |
2 MB |
| DRAM |
512 MB DDR3 |
| FLASH |
64 MB |
| ACL |
768 |
| Spanning Tree Instances |
16 |
| Route Entries (IPv4/IPv6) |
- |
| Multicast Route Entries |
- |
| Host Entries |
- |
| Dimensions in. |
1.73 x 10.24 x 17.32 |
| Power Required |
100240V AC, 50-60 Hz |
| Power Supply |
AC built in |
| Redundant Power |
No |
| Power Consumption (Average / Maximum) |
235.9 W / 237.4 W |
| Heat Dissipation |
102.982 BTU/h |
| Operating Temperature |
32°113°F (0°45°C) |
| Certification |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]

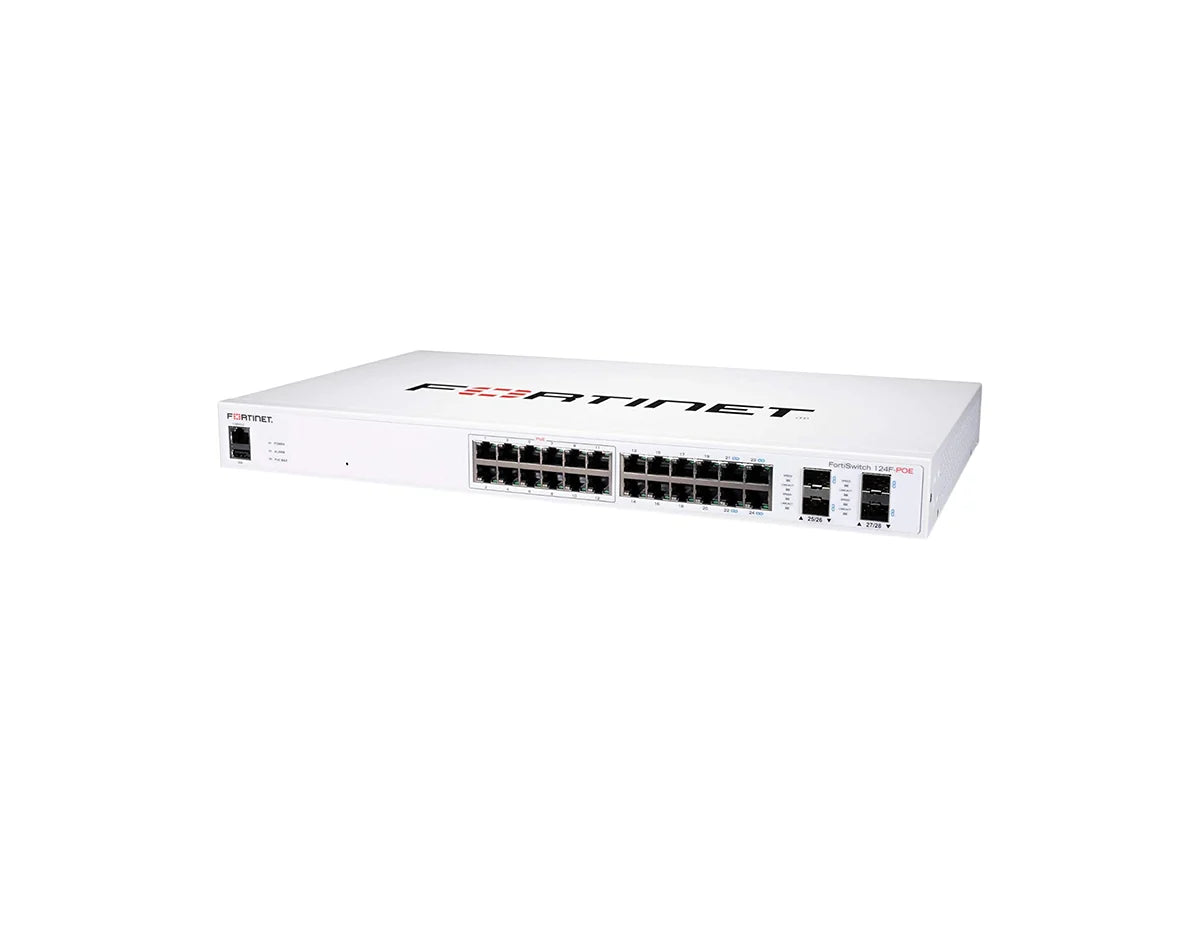

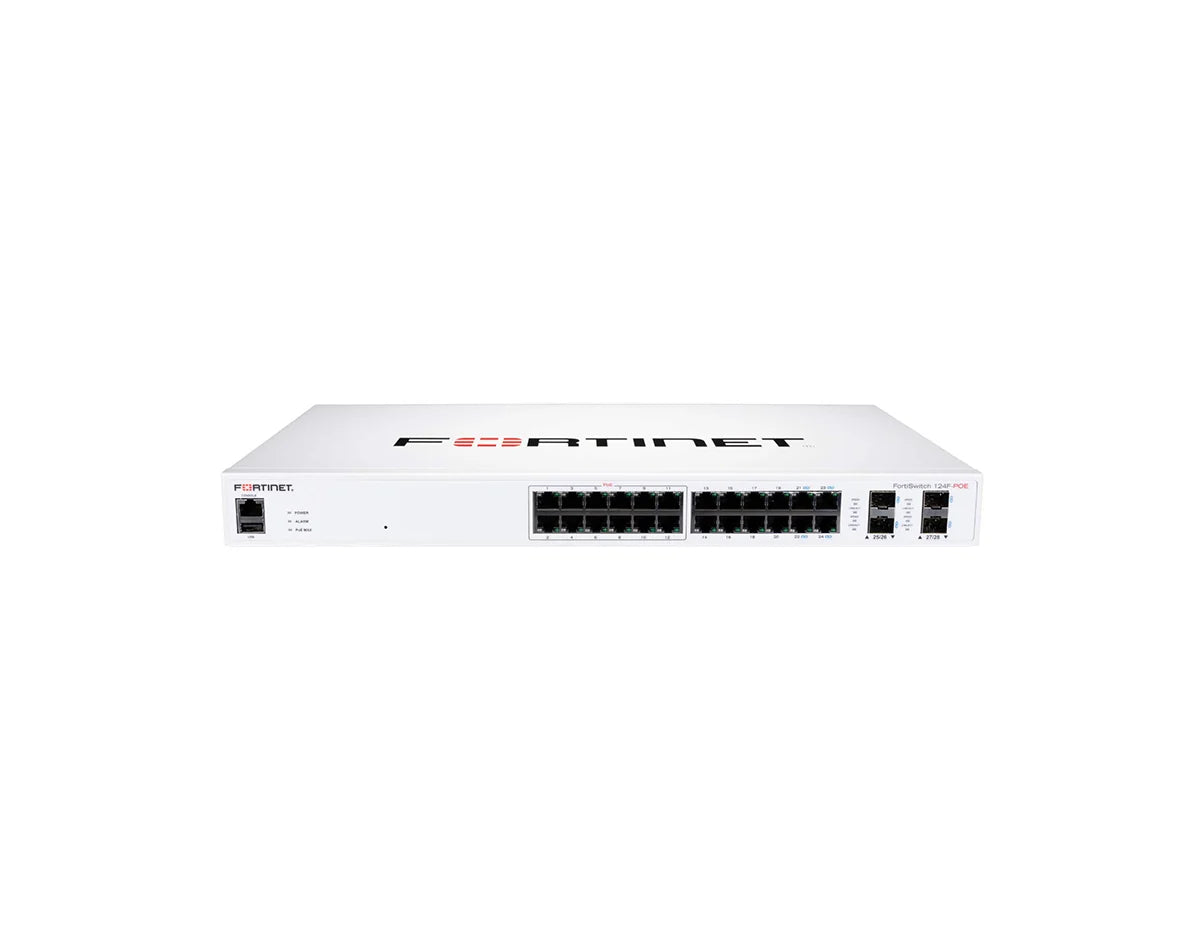

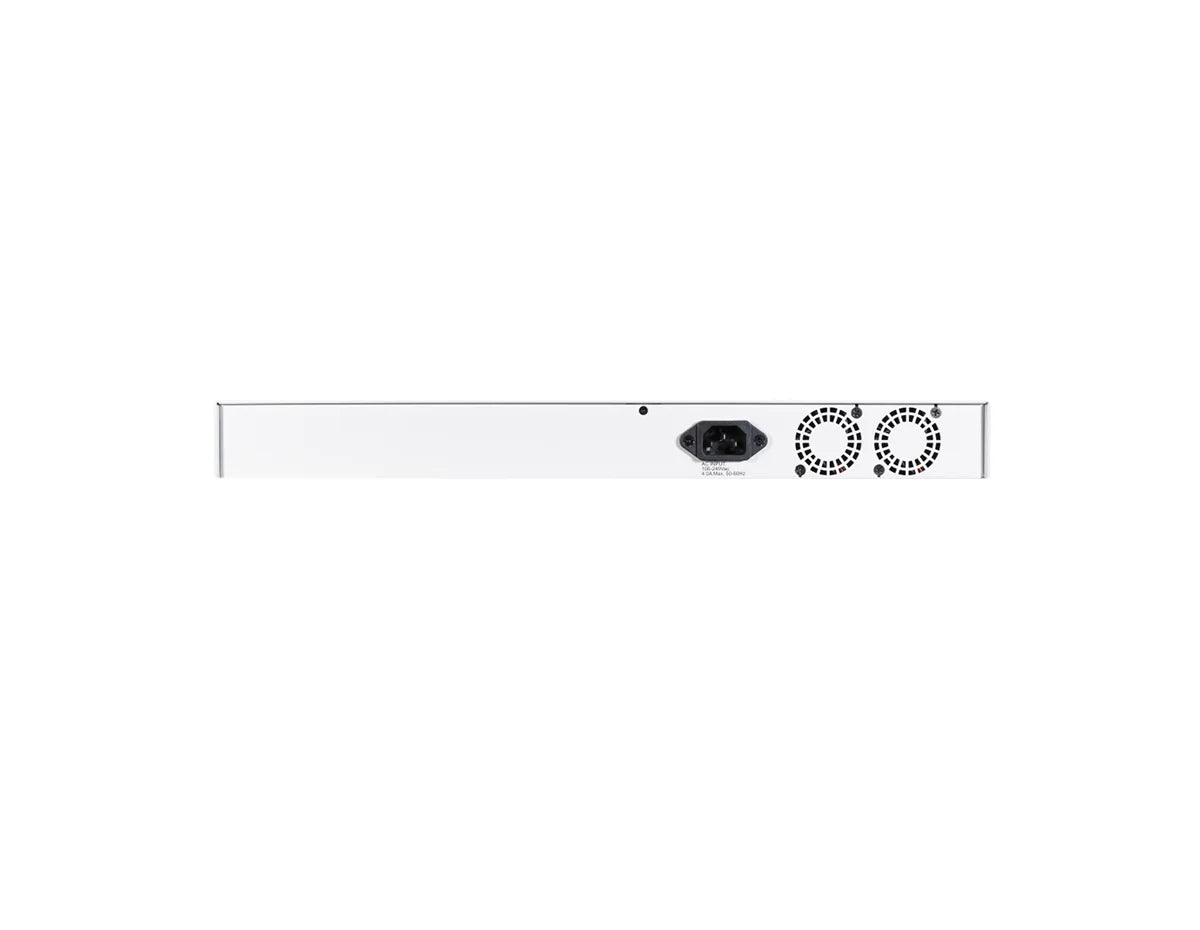

Fortinet FS-124F-POE Switch
The FS-124F-POE is a 24-port switch that supports PoE+ on 12 ports with maximum PoE+ budget of 185 W. It offers reliable connectivity and flexibility as it has 4 SFP+ uplinks. It can be integrated into the FortiGate NGFW security fabric via FortiLink. It offers centralized management and converged security. It is ideal for SD-Branch and campus deployments.
Quick Specs:
- 24x GE RJ45 ports
- 4x 10GE SFP+ uplinks
- 128 Gbps of switching capacity
- Rack-mountable
- Layer 2/3 functionalities
Please see the related tabs for the FS-124F-POE datasheet and compatible accessories.
