- L2+ managed POE switch with 24GE + 4SFP+, 24port POE with max 370W limit and smart fan temperature control
[/shortdesc] [properties]
| Properties |
FS-124F-FPOE |
| Description |
Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 24 port PoE
with maximum 370 W limit |
| Product Family |
FortiSwitch |
| Product Type |
Switch |
| Total Network Interfaces |
24x GE RJ45 and 4x 10GE SFP+ |
Dedicated Management
10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port |
1 |
| Form Factor |
1 RU Rack Mount |
| Power over Ethernet (PoE) Ports |
24 (802.3af/at) |
PoE Power Budget
(single/dual PSU) |
370 W |
| Mean Time Between Failures |
> 10 years |
[/properties]
[specifications]
| Switching Capacity (Duplex) |
128 Gbps |
| Packets Per Second (Duplex) |
190 Mpps |
| MAC Address Storage |
32 K |
| Network Latency |
< 1µs |
| VLANs Supported |
4 K |
| Link Aggregation Group Size |
8 |
| Total Link Aggregation Groups |
16 |
| Packet Buffers |
2 MB |
| DRAM |
512 MB DDR3 |
| FLASH |
64 MB |
| ACL |
768 |
| Spanning Tree Instances |
16 |
| Route Entries (IPv4/IPv6) |
- |
| Multicast Route Entries |
- |
| Host Entries |
- |
| Dimensions in. |
1.73 x 10.24 x 17.32 |
| Power Required |
100240V AC, 50-60 Hz |
| Power Supply |
AC built in |
| Redundant Power |
No |
| Power Consumption (Average / Maximum) |
449.8 W / 451.3 W |
| Heat Dissipation |
118.327 BTU/h |
| Operating Temperature |
32°113°F (0°45°C) |
| Certification |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]

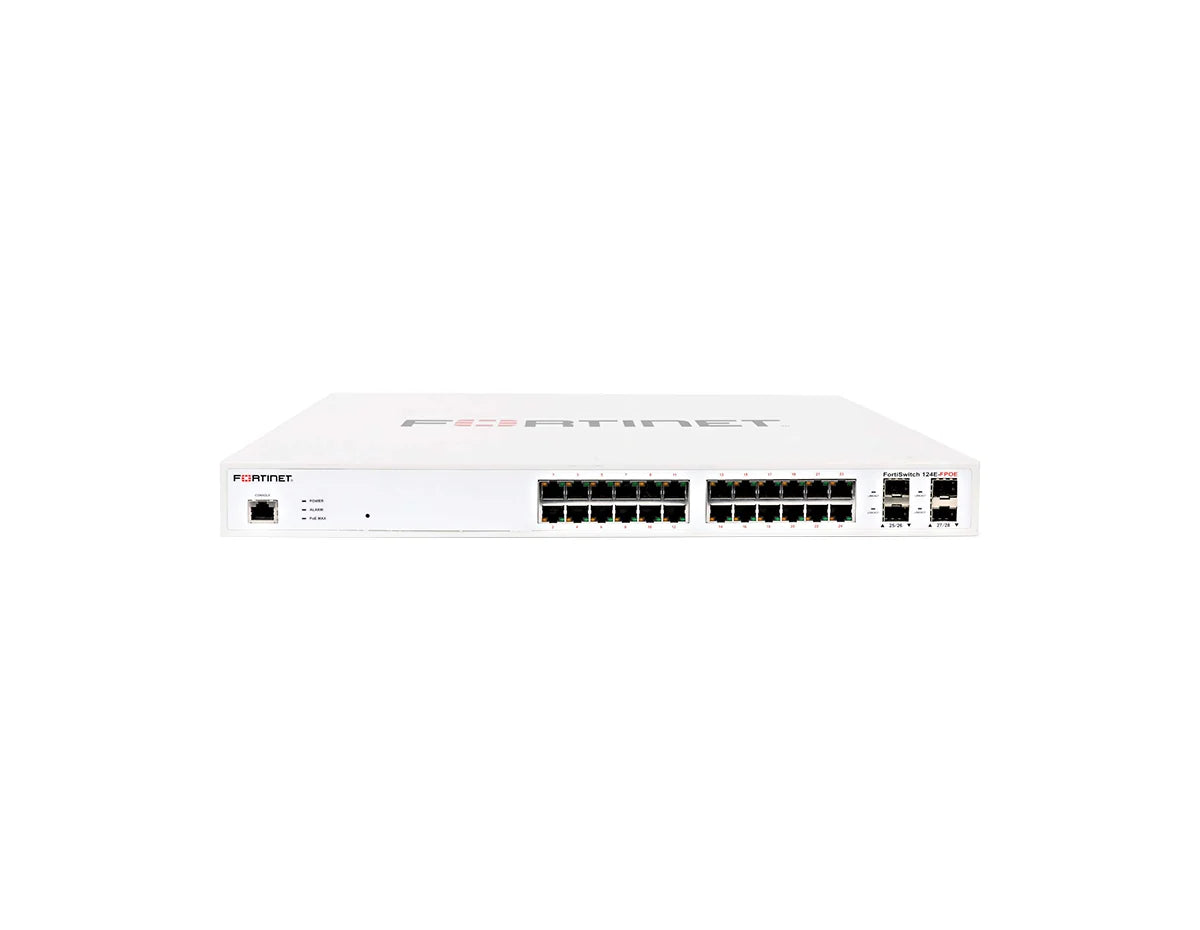

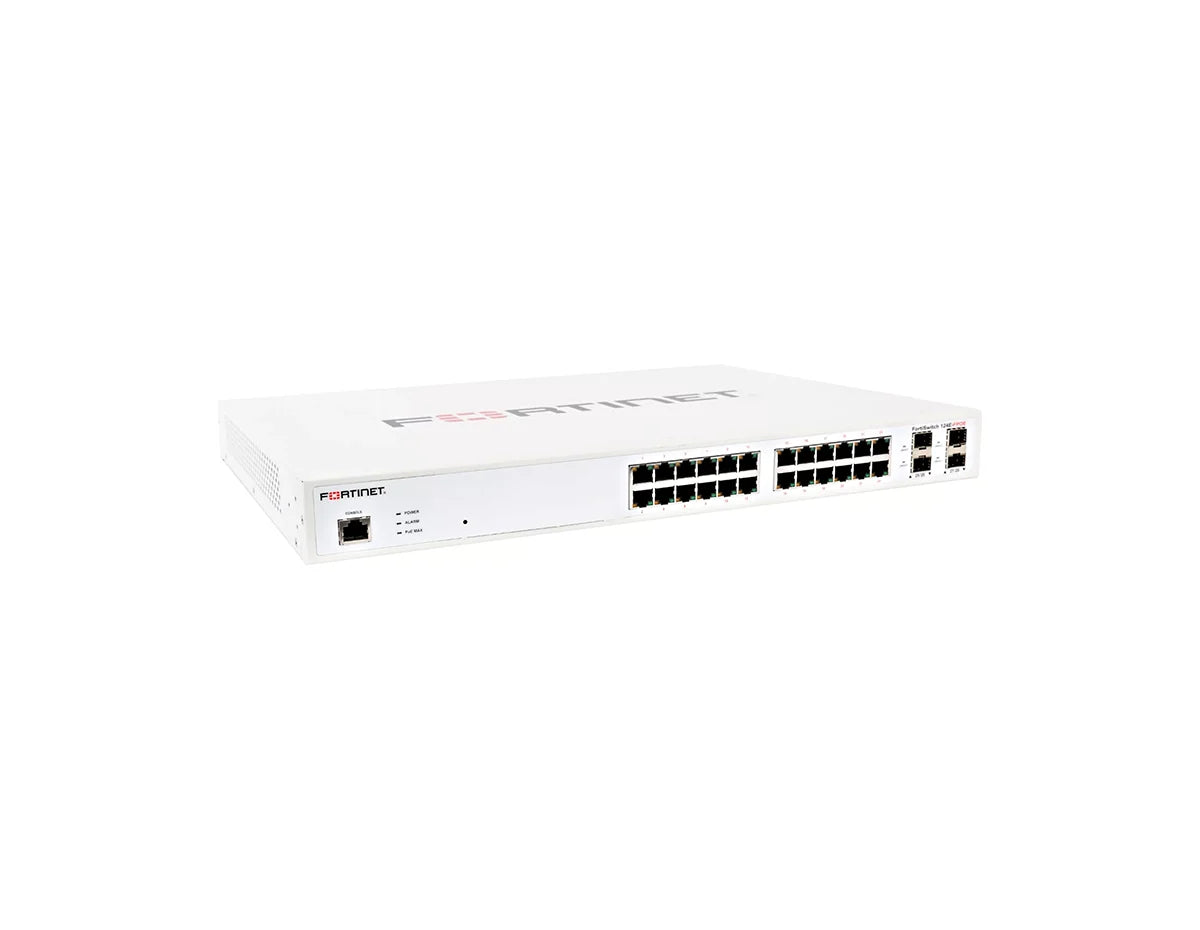

Fortinet FS-124F-FPOE Switch
The FS-124F-FPOE is a stackable switch that offers a switching capacity of 128 Gbps. It is well-suited for SD-Branch and campus deployments and can be integrated with the FortiGate NGFW using the management protocol FortiLink. Additionally, it is compatible with non-FortiLink deployments. It is equipped with 24x GE RJ45 ports, 4x 10GE SFP+ ports, and 24 PoE ports.
Quick Specs:
-
1RU Rackmount
-
24x GE RJ45 ports + 4x 10GE SFP+ ports + 24 PoE ports
-
Layer2 FortiGate switch controller compatible PoE+ switch
-
Packets Per Second (Duplex): 190 Mpps
Please see the related tabs for the FS-124F-FPOE datasheet and compatible accessories.
