[properties]
| Properties |
FS-108F |
| Description |
Layer 2 FortiGate switch controller compatible switch with 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 – 240VAC, and PSE dual powered
|
| Product Family |
FortiSwitch |
| Product Type |
Switch |
| Total Network Interfaces |
7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP
|
Dedicated Management
10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port |
1 |
| Form Factor |
Desktop |
| Power over Ethernet (PoE) Ports |
- |
PoE Power Budget
(single/dual PSU) |
- |
| Mean Time Between Failures |
> 10 years |
[/properties][specifications]
| Switching Capacity (Duplex) |
20 Gbps |
| Packets Per Second (Duplex) |
30 Mpps |
| MAC Address Storage |
8 K |
| Network Latency |
4µs |
| VLANs Supported |
4 K |
| Link Aggregation Group Size |
8 |
| Total Link Aggregation Groups |
8 |
| Packet Buffers |
512 KB |
| DRAM |
256 MB DDR3 |
| FLASH |
32 MB |
| ACL |
768 |
| Spanning Tree Instances |
16 |
| Route Entries (IPv4/IPv6) |
- |
| Multicast Route Entries |
- |
| Host Entries |
- |
| Dimensions in. |
1.18 x 4.72 x 7.09 |
| Power Required |
100–240V AC, 50/60 Hz / PoE-PSE(af) |
| Power Supply |
12V/1A DC power adapter included,
PoE-PD Built in |
| Redundant Power |
— |
| Power Consumption |
6.2 W |
| Heat Dissipation |
21.142 BTU/h |
| Operating Temperature |
32°-113°F (0°–45°C) |
| Certification |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]

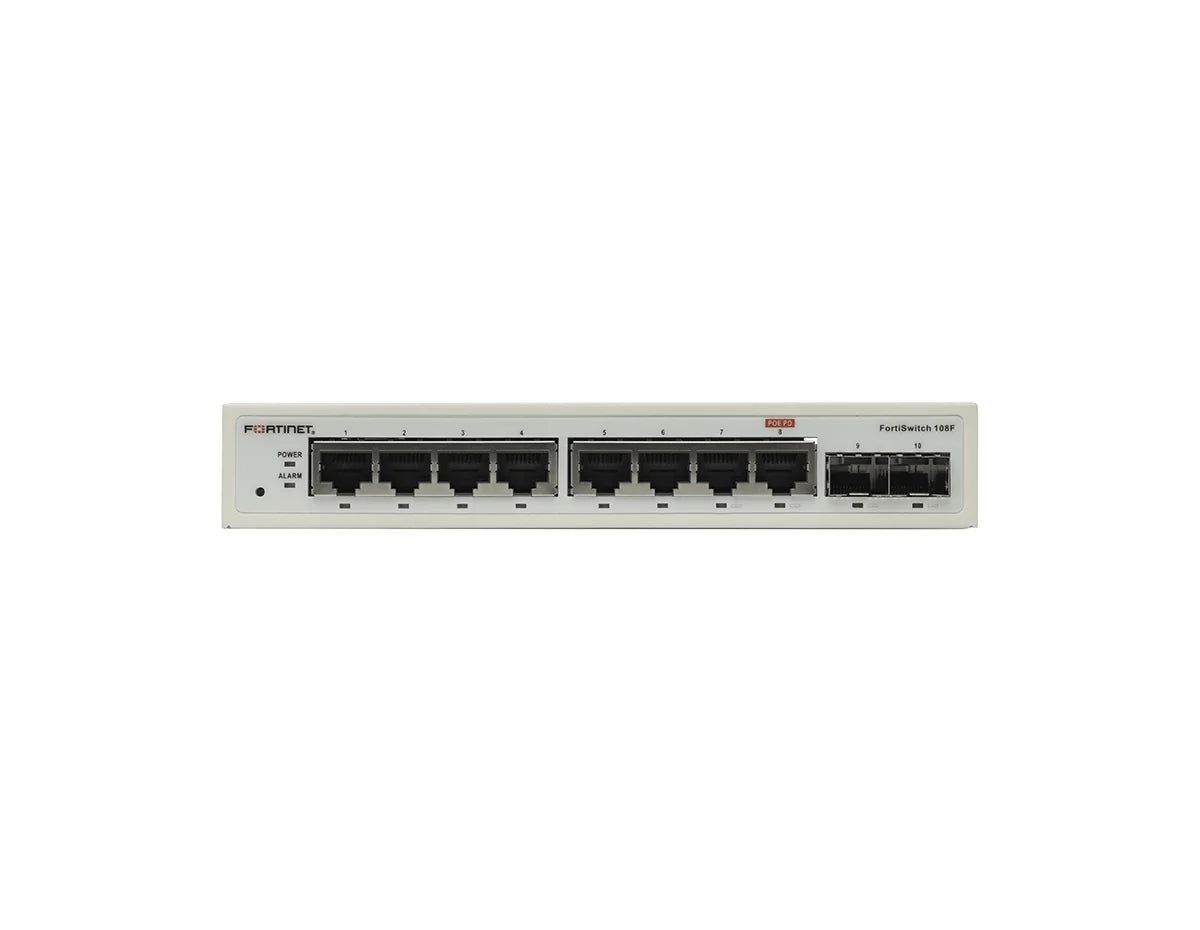

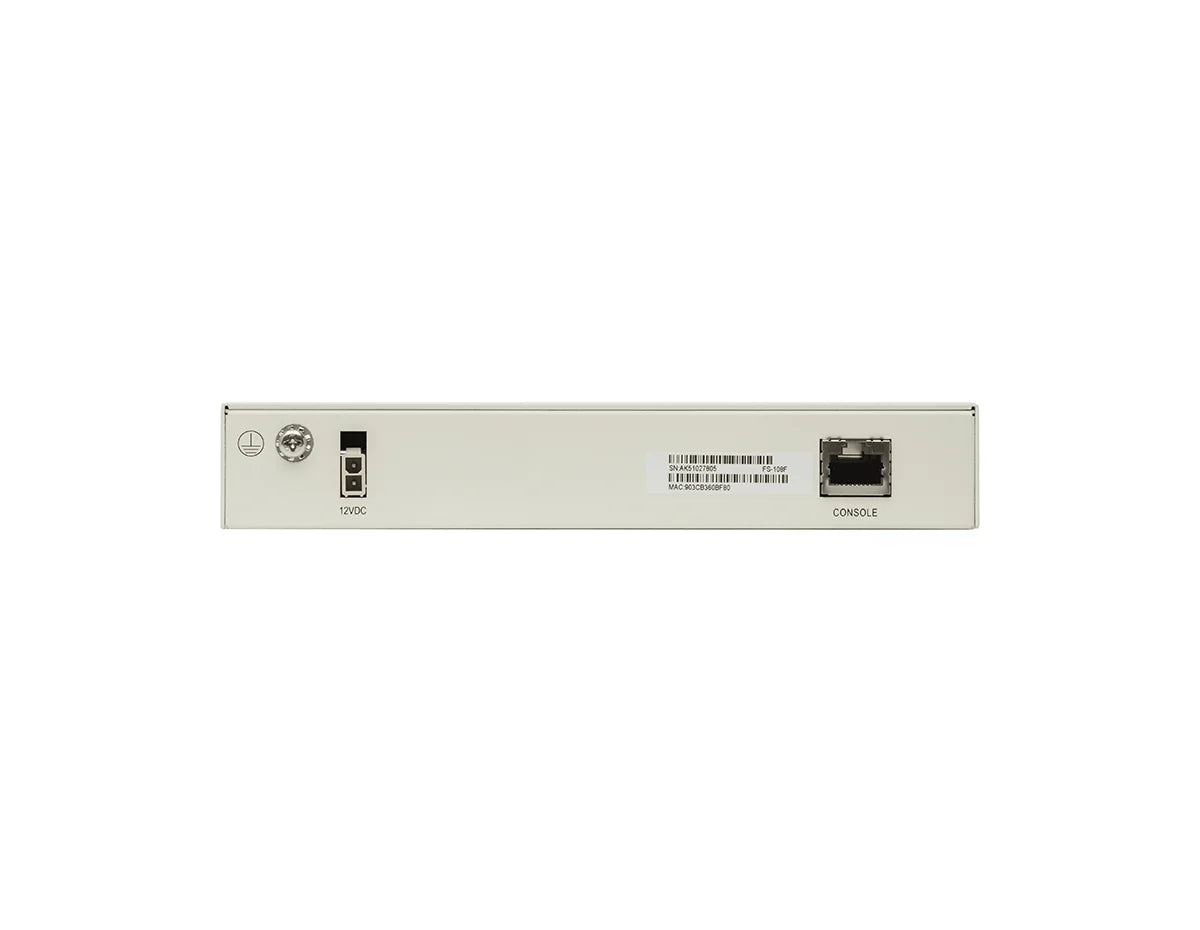

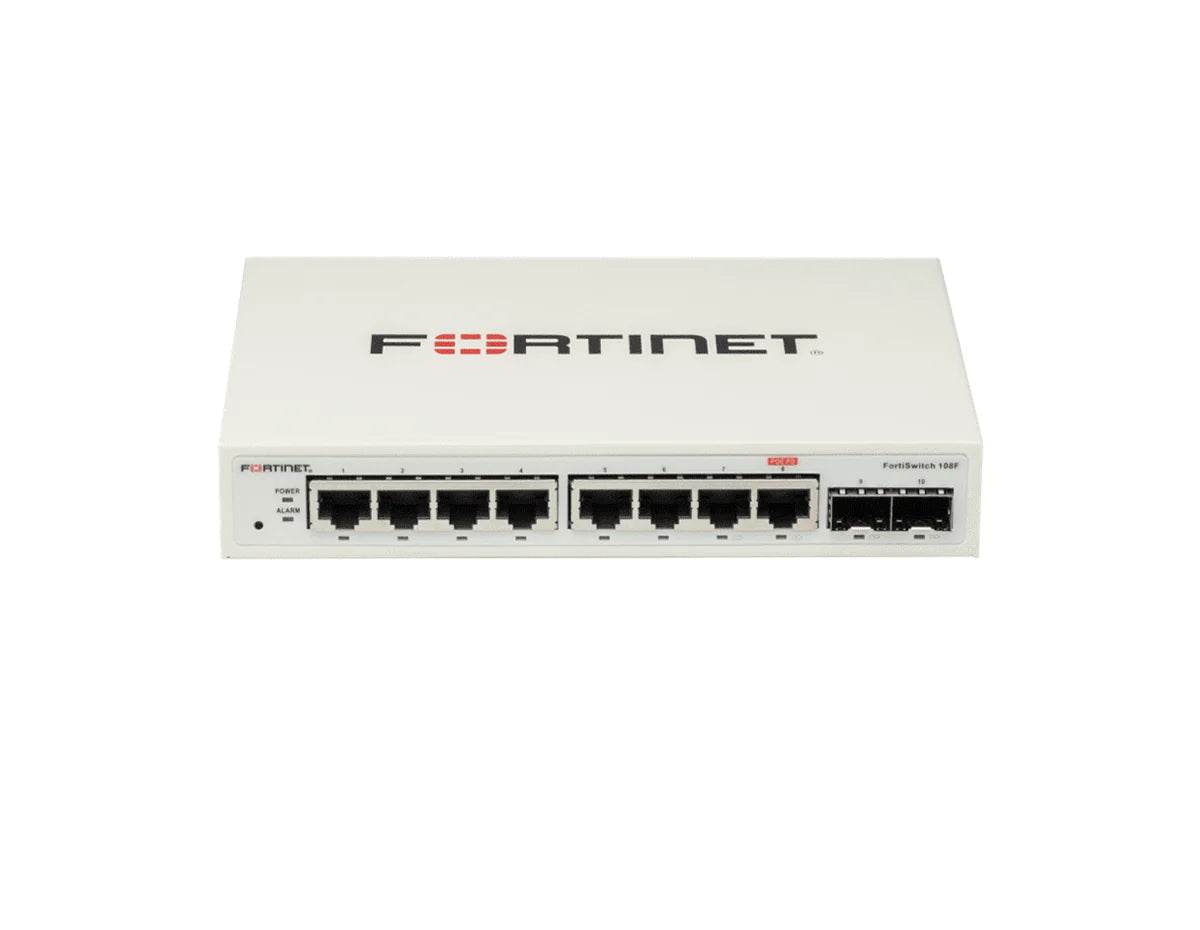

Fortinet FS-108F Switch
The FS-108F is a fanless and compact switch that is suitable for small networks with lower traffic. It has 20 Gbps of switching capacity. It is managed and stackable. It is an entry-level switch from the FortiSwitch product series. It also offers Layer 2/3 functionalities.
Quick Specs:
- 7x GE RJ45 + 1x GE/POE-PD RJ45 ports
- 2x GE SFP uplink ports
- Desktop
- PSE dual powered
Please see the related tabs for the FS-108F datasheet and compatible accessories.
