[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 4x PoE+ ports, powered by SP5 ASIC, delivering up to 10 Gbps firewall throughput and including a 3-Year Enterprise Protection bundle[/shortdesc]
[properties]
| SKU |
FWF-70G-POE-A-BDL-809-36 |
| Form Factor |
Desktop |
| Wireless Standard |
802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| PoE Interfaces |
4x GE RJ45 PoE/+ Ports |
| Firewall Throughput |
10 Gbps |
| Interfaces |

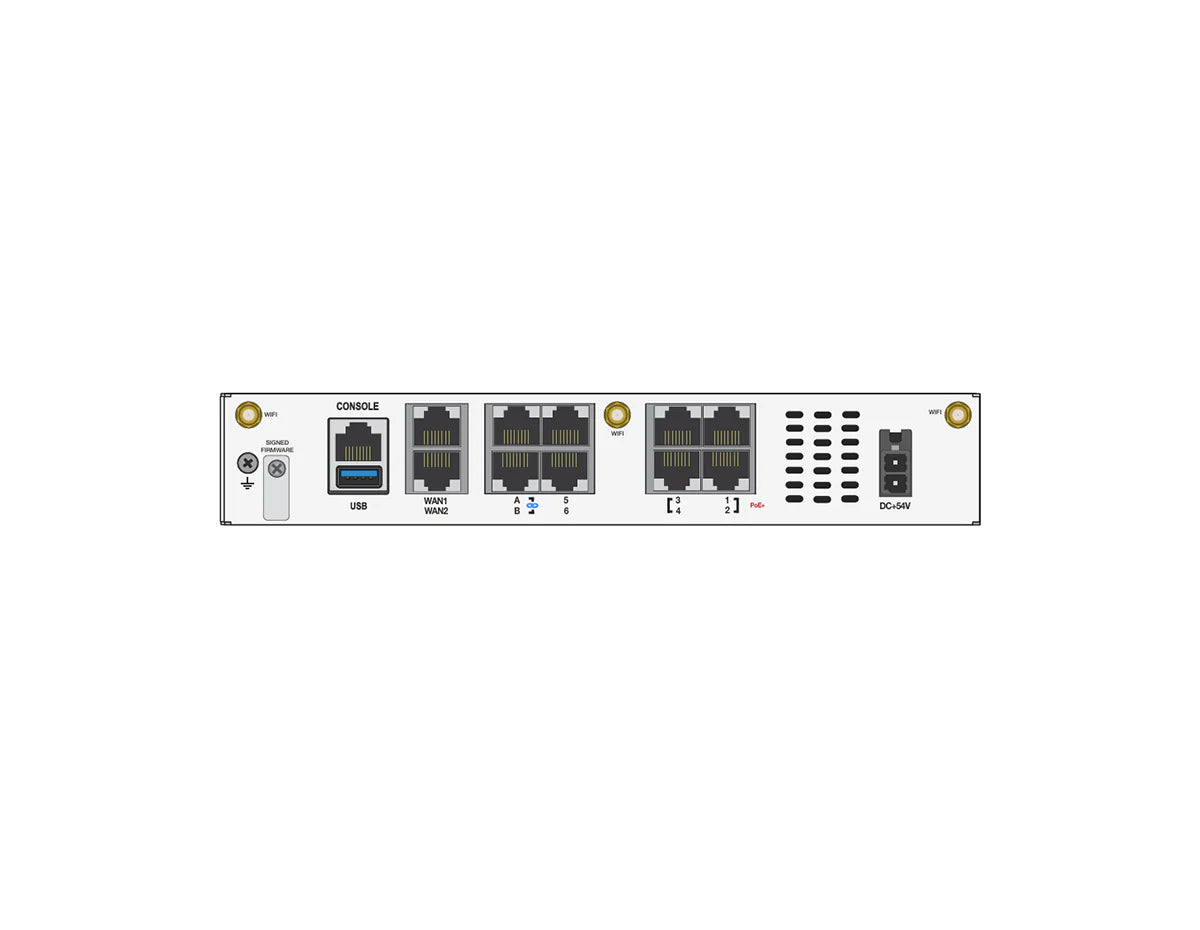

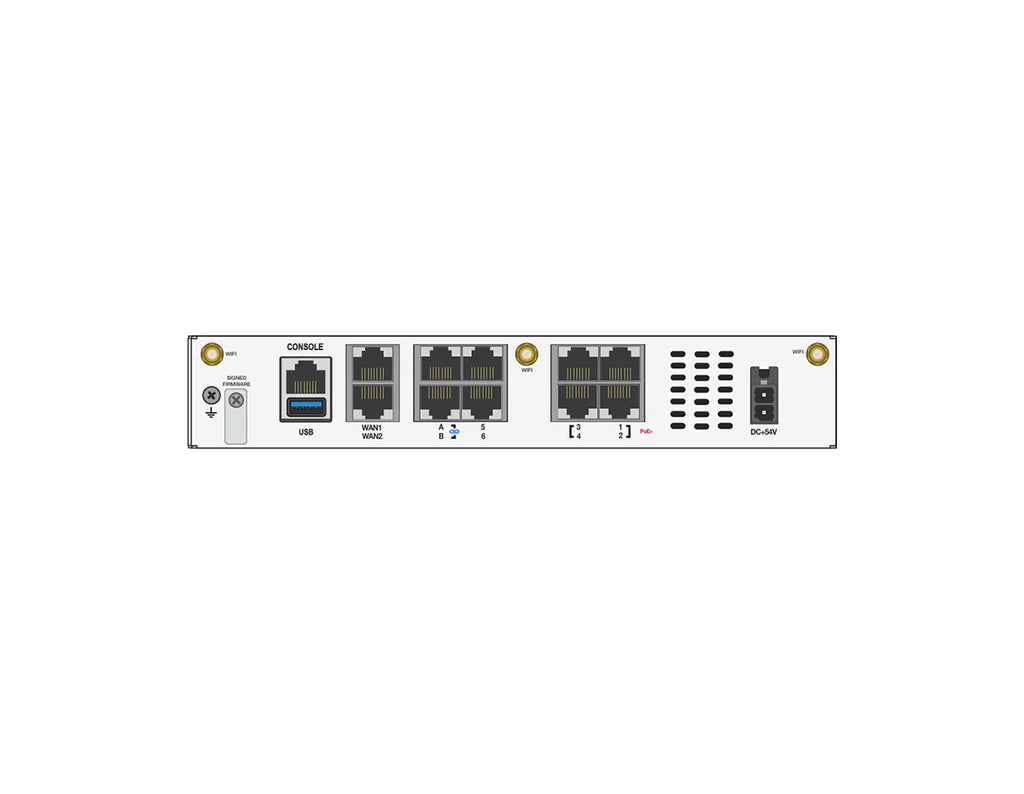

2x GE RJ45 WAN, 2x GE RJ45 FortiLink (default), 2x GE RJ45 Ports, 4x GE RJ45 PoE/+, 1x USB, 1x RJ45 Console |
| Dimensions (H x W x L) |
40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches) |
| Weight |
0.973 kg (2.145 lbs) |
| Power Input |
Powered by External DC Power Adapter (100–240V AC, 50/60 Hz) |
| Bundle Included |
3 Year FortiGuard Enterprise Protection Bundle |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput |
2.5 Gbps |
| NGFW Throughput |
1.5 Gbps |
| Threat Protection Throughput |
1.3 Gbps |
| System Performance and Capacity |
| Firewall Latency |
2.46 us |
| Concurrent Sessions (TCP) |
1.4 Million |
| New Sessions/Second (TCP) |
100,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput |
7.1 Gbps |
| SSL Inspection Throughput |
1.4 Gbps |
| Wireless Specifications |
| Radio |
Dual Radio (2.4 GHz / 5 GHz) |
| Antenna Ports |
3x SMA (External) |
| Hardware Specifications |
| USB Port |
1x USB Port |
| Console Port |
1x RJ45 Console Port |
| Total Available PoE Power Budget |
60 W |
| Environment and Power |
| Power Consumption (Avg / Max) |
76 W / 79 W |
| Heat Dissipation |
269.39 BTU/hr |
| Operating Temperature |
32F to 104F (0C to 40C) |
| Storage Temperature |
-31F to 158F (-35C to 70C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
Fanless |
| Certifications |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20) |
[/accesories]
Integrated PoE+ and Wi-Fi 6 Security with Enterprise Protection

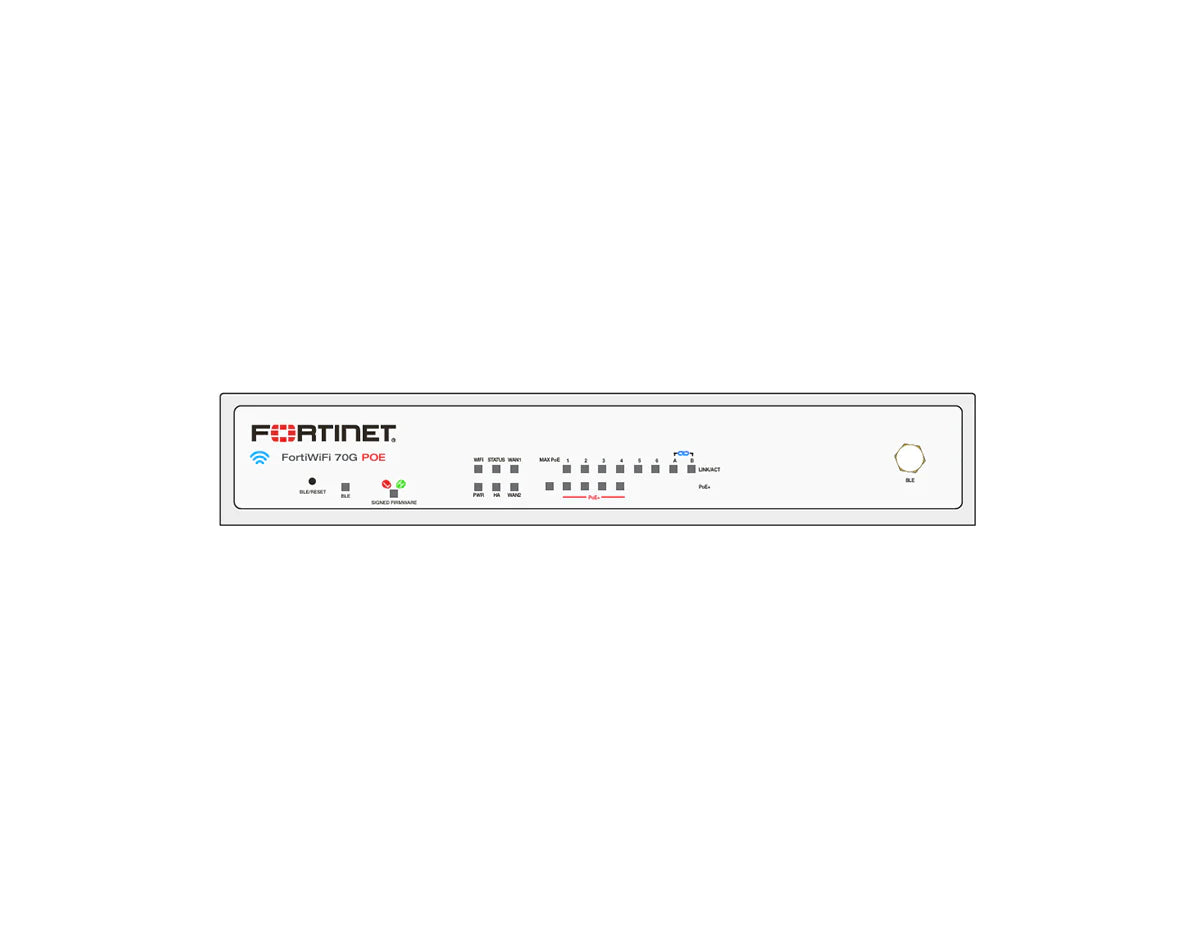

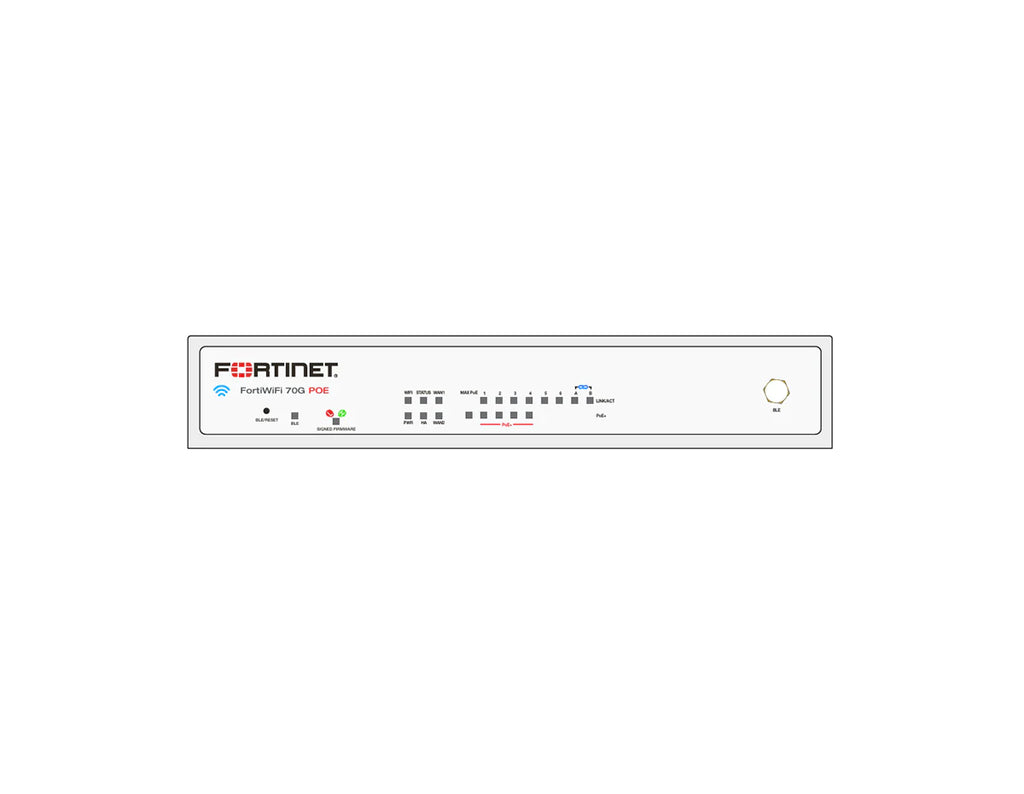

The FortiWiFi 70G-POE (FWF-70G-POE-A-BDL-809-36) is a converged Next-Generation Firewall designed to simplify branch office deployments. This 3-Year Enterprise Protection bundle includes FortiGuard security services to enhance protection. Powered by the Fortinet SP5 ASIC, it delivers up to 10 Gbps firewall throughput, integrated Wi-Fi 6, and a total available PoE power budget of 60W to support powered devices.
This all-in-one appliance reduces hardware complexity by combining networking, security, wireless, and power delivery into a single compact device. It ensures robust protection against sophisticated cyber threats while providing high-speed connectivity for users and IoT devices.
Key Benefits
-
3-Year Enterprise Protection: Includes a 3-year FortiGuard Enterprise Protection bundle to enhance NGFW security.
-
Integrated PoE+ Ports: Features 4x GE RJ45 PoE/+ ports with a 60W total PoE budget to power compatible devices.
-
Powered by SP5 ASIC: Delivers up to 10 Gbps firewall throughput and up to 7.1 Gbps IPsec VPN throughput.
-
Integrated Wi-Fi 6: Built-in dual-band 802.11ax access point provides secure, high-speed wireless coverage.
-
Unified Management: Consolidates security, Wi-Fi, switching, and PoE power management into a single FortiOS console.
-
Secure SD-WAN: Integrated SD-WAN capabilities help optimize application performance and secure direct internet access.
Ideal Use Cases
-
Retail Branches: Powers compatible endpoints while securing Wi-Fi and SD-WAN connectivity with enterprise-grade NGFW capabilities.
-
Small Offices: All-in-one solution reducing the need for separate wireless and power delivery components.
-
Distributed Sites: Combines firewalling, SD-WAN, and Wi-Fi 6 to support secure connectivity for users and devices.
Technical Specifications Summary
-
Firewall Throughput: 10 Gbps (1518/512/64 byte UDP packets)
-
IPS Throughput (Enterprise Traffic Mix): 2.5 Gbps
-
NGFW Throughput (Enterprise Traffic Mix): 1.5 Gbps
-
Threat Protection Throughput (Enterprise Traffic Mix): 1.3 Gbps
-
IPsec VPN Throughput (512 byte): 7.1 Gbps
-
Firewall Latency (64 byte UDP packets): 2.46 us
-
Concurrent Sessions (TCP): 1.4 Million
-
New Sessions/Second (TCP): 100,000
-
Total Available PoE Power Budget: 60 W
-
Dimensions (H x W x L): 40.5 x 216 x 160 mm
-
Operating Temperature: 0C to 40C (32F to 104F)
Upgrade Your Network Security
Streamline your branch with the FortiWiFi 70G-POE and 3-Year Enterprise Protection bundle.
