[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and dedicated GE SFP fiber port, delivering up to 5 Gbps firewall throughput and unified security for branch offices [/shortdesc]
[properties]
| SKU |
FWF-50G-SFP-A |
| Form Factor |
Desktop |
| Wireless Standard |
802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Fiber Interface |
1x GE SFP Slot |
| Firewall Throughput |
5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |
| Interfaces |

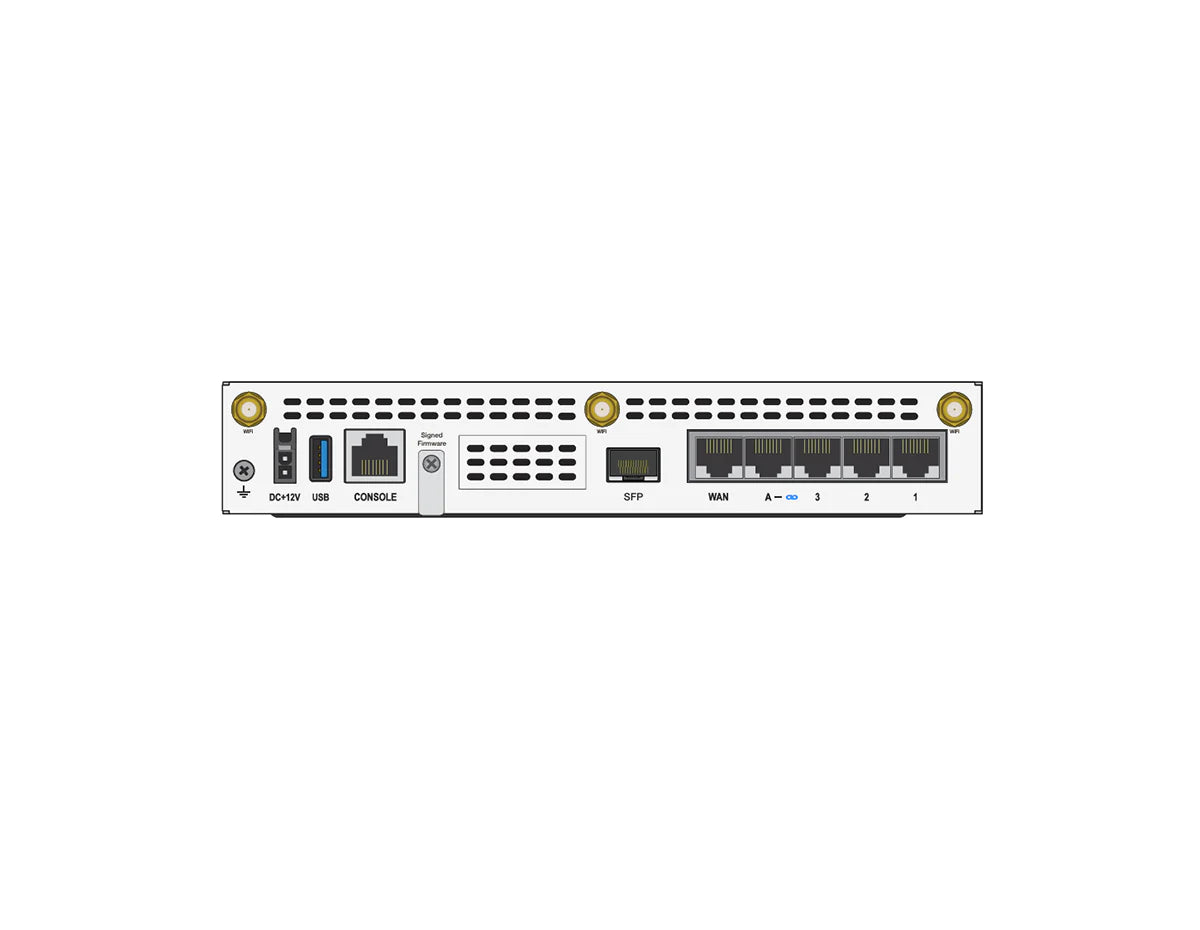

1x GE SFP, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console |
| Dimensions (H x W x L) |
40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches) |
| Weight |
1.0 kg (2.2 lbs) |
| Power Input |
12VDC, 3A (External Adapter) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput |
2.25 Gbps |
| NGFW Throughput |
1.25 Gbps |
| Threat Protection Throughput |
1.1 Gbps |
| System Performance & Capacity |
| Firewall Latency |
2.42 μs |
| Concurrent Sessions (TCP) |
720,000 |
| New Sessions/Second (TCP) |
85,000 |
| Firewall Policies |
2,000 |
| IPsec VPN Throughput |
4.5 Gbps |
| SSL Inspection Throughput |
1.3 Gbps |
| Wireless Specifications |
| Radio |
Dual Radio (2.4 GHz / 5 GHz) |
| MIMO |
2x2 MU-MIMO |
| Max WiFi Speeds |
1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
| Antennas |
3x External SMA Antenna Ports |
| Hardware Specifications |
| USB Port |
1x USB Port |
| Console Port |
1x RJ45 Console Port |
| Environment & Power |
| Power Consumption (Avg / Max) |
12.5 W / 13.9 W |
| Heat Dissipation |
47.4 BTU/h |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
Fanless 0 dBA |
| Certifications |
| Compliance |
FCC, ISED, CE, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]
Secure Fiber Connectivity with Integrated Wi-Fi 6

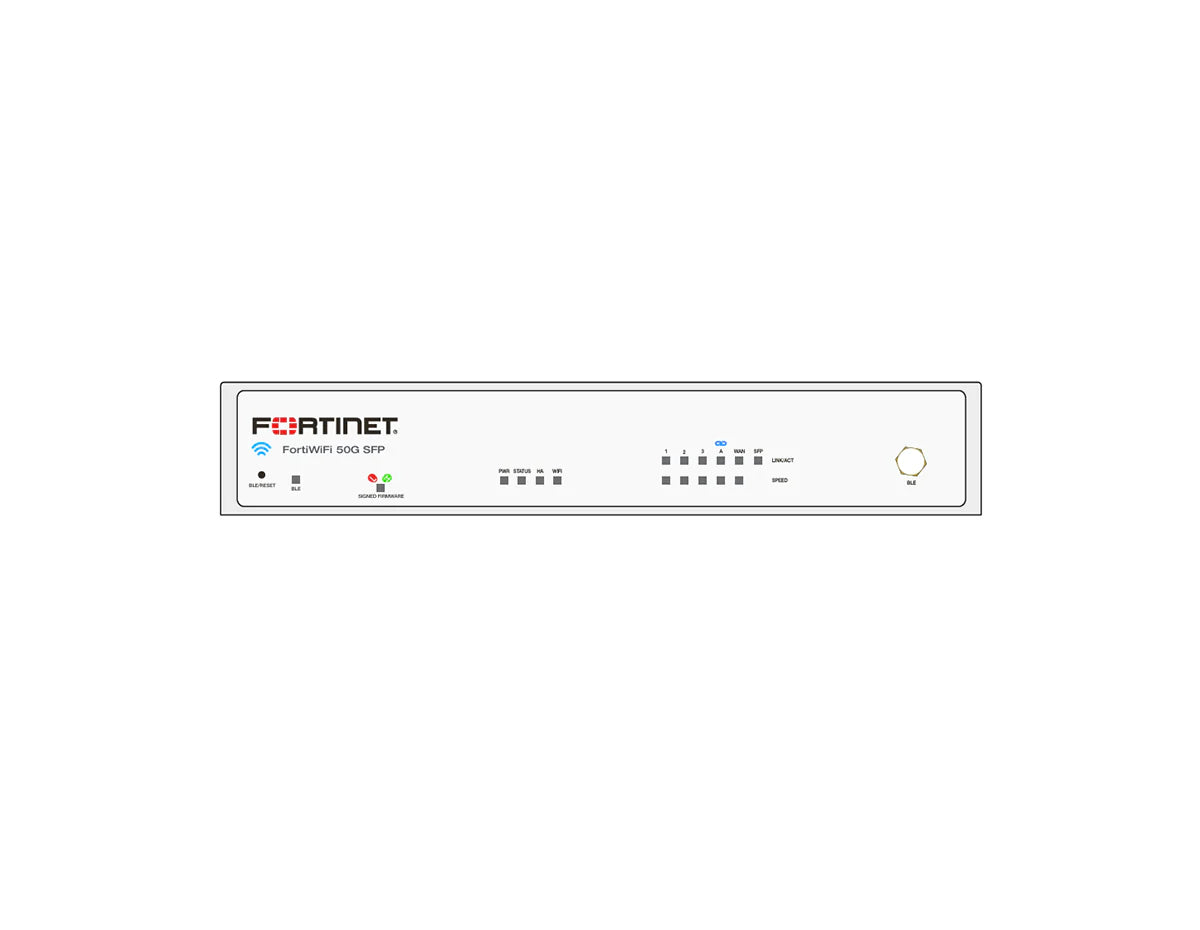

The FortiWiFi 50G-SFP (FWF-50G-SFP-A) is designed for modern branch offices that require direct fiber connectivity and high-speed wireless access in a single appliance. Powered by Fortinet's cutting-edge SP5 ASIC, this device integrates a Next-Generation Firewall (NGFW), Secure SD-WAN, an SFP port, and Wi-Fi 6 (802.11ax) capabilities, eliminating the need for media converters and separate access points.
With its dedicated SFP slot, the FWF-50G-SFP supports long-distance fiber uplinks or direct fiber internet connections, ensuring low latency and high reliability. The fanless desktop design ensures silent operation, making it perfect for noise-sensitive environments like retail stores, medical offices, and small businesses.
Key Benefits
-
SFP Fiber Connectivity: Integrated GE SFP slot enables direct fiber connection, reducing hardware clutter and points of failure.
-
Powered by SP5 ASIC: Delivers exceptional performance with 5 / 5 / 4 Gbps firewall throughput and 4.5 Gbps IPsec VPN throughput.
-
Integrated Wi-Fi 6: Built-in dual-band 802.11ax radio with 2x2 MIMO provides secure, high-performance wireless coverage for staff and guests.
-
Fanless Design: Operates silently (0 dBA), ensuring suitability for desktop placement in any office environment.
-
Unified Management: FortiOS provides a single pane of glass for managing wired, fiber, wireless, and security policies.
-
Secure SD-WAN: Delivers application-aware steering and optimized performance for cloud applications over fiber or copper links.
Ideal Use Cases
-
Fiber-Connected Branches: Perfect for locations utilizing fiber-to-the-premise (FTTP) internet without needing extra converters.
-
Retail & Small Business: All-in-one security, fiber WAN, and Wi-Fi 6 solution in a compact, silent form factor.
-
Long-Distance Uplinks: Enables secure connectivity in campuses or warehouses where copper cabling limits are exceeded.
Technical Specifications Summary
-
Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
-
IPS Throughput: 2.25 Gbps
-
NGFW Throughput: 1.25 Gbps
-
Threat Protection Throughput: 1.1 Gbps
-
IPsec VPN Throughput: 4.5 Gbps
-
SSL Inspection Throughput: 1.3 Gbps
-
Firewall Latency: 2.42 μs
-
Session Capacity: 720,000 concurrent TCP sessions; 85,000 new TCP sessions/second
-
Wi-Fi Performance: Dual radio (2.4/5 GHz), 2x2 MU-MIMO, 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz, 3x SMA antenna ports
-
Power & Physical: 12.5 W / 13.9 W (avg/max); 40.5 x 216 x 160 mm; 1.0 kg
Upgrade Your Network Security
Deploy the FortiWiFi 50G-SFP today for high-speed fiber connectivity and robust security.
