[shortdesc] Next-generation firewall with integrated Wi-Fi 6, SD-WAN support, dual-band 802.11ax wireless, up to 500 Mbps threat protection, 30GB onboard SSD for local logging, compact desktop design for small offices [/shortdesc]
[properties]
| Product SKU |
FWF-31G-A |
| Form Factor |
Desktop |
| Internal Storage |
30GB SSD |
| Wi-Fi Standard |
802.11ax Wi-Fi 6 (Dual Radio) |
| Firewall Throughput |
4 Gbps |
| Threat Protection Throughput |
500 Mbps |
| Network Interfaces |
4x GE RJ45 Ports (1x WAN, 2x LAN, 1x FortiLink) |
| Dimensions (H x W x L) |
1.6 x 5.6 x 6.3 inches (40.5 x 142 x 160 mm) |
| Weight |
1.5 lbs (0.7 kg) |
| Power Input |
External DC power adapter (12VDC, 2A; 100-240V AC, 50/60 Hz) |
[/properties]
[specifications]
| System Performance |
| Firewall Throughput |
4 Gbps |
| IPS Throughput |
800 Mbps |
| NGFW Throughput |
570 Mbps |
| Threat Protection |
500 Mbps |
| Wireless Specifications |
| Radio Configuration |
Dual Radio (2.4 GHz and 5 GHz) |
| Wireless Standards |
802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Antenna Ports |
3x External Wi-Fi Antenna Ports |
| System Capacity |
| Concurrent Sessions (TCP) |
600,000 |
| New Sessions per Second |
30,000 |
| Firewall Policies |
2,000 |
| Hardware & Environment |
| Console Port |
1x RJ45 |
| Power Consumption |
12.85 W average / 14.2 W maximum |
| Heat Dissipation |
48.42 BTU/hr |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-35°C to 70°C |
| Humidity |
20% to 90% non-condensing |
[/specifications]
[accesories]
| Included Hardware |
FortiWiFi 31G Appliance, External DC Power Adapter (included in the box) |
| Additional Accessories |
Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adapter (SP-FG-30G-PA-10(-XX)) |
[/accesories]

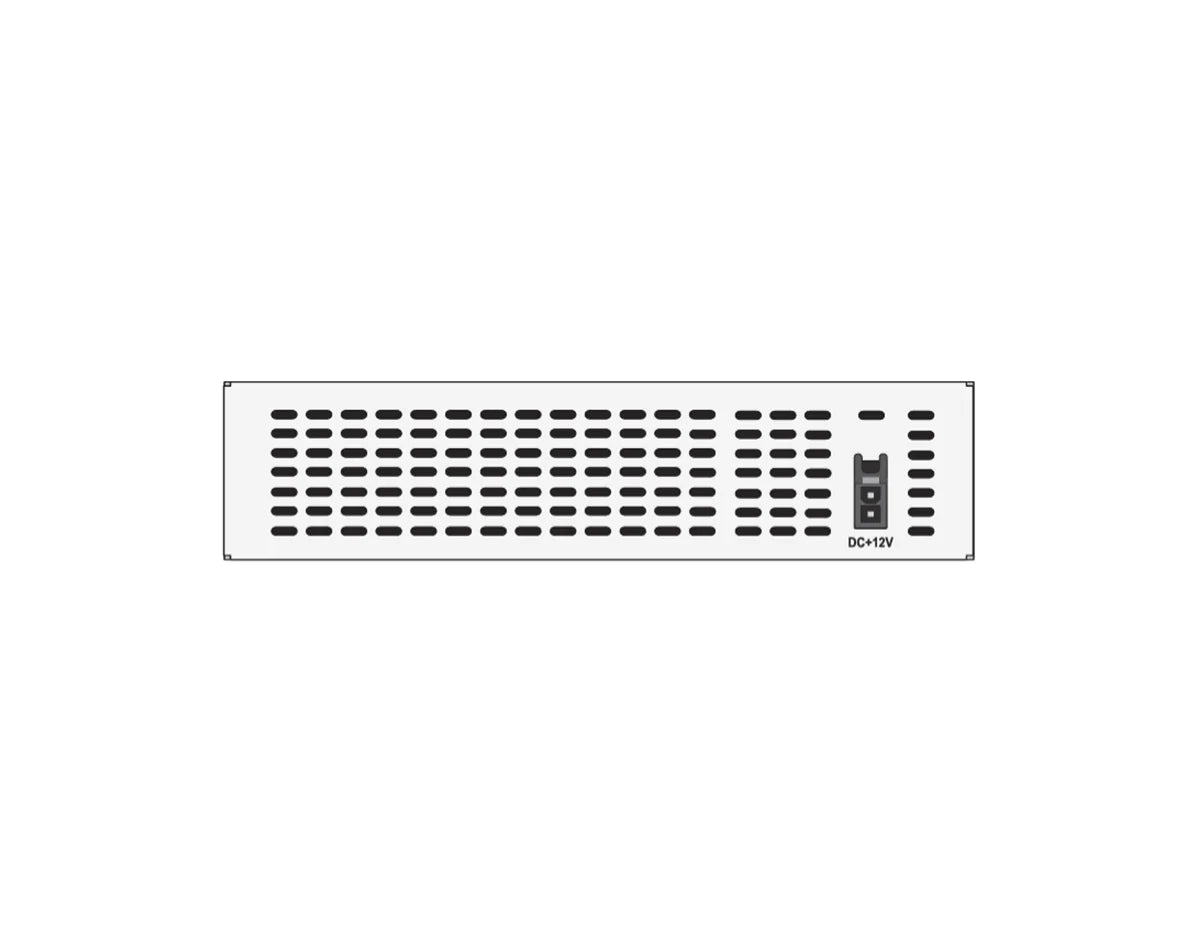

FortiWiFi 31G Next Generation Firewall
The FortiWiFi 31G (FWF-31G-A) is a compact next-generation firewall designed for edge deployments that require integrated security, wireless connectivity, and local data retention. With a built-in 30GB SSD, the device supports onboard event logging and reporting, making it well suited for environments with limited or intermittent connectivity.
Powered by Fortinet’s Secure SD-WAN ASIC SP4 architecture, the FortiWiFi 31G delivers consistent threat protection performance while enabling secure SD-WAN, firewall inspection, and IPsec VPN acceleration within a single platform.
Integrated Wireless and Security
-
30GB Onboard SSD: Enables local logging and reporting without reliance on constant cloud connectivity.
-
Built-in Wi-Fi 6: Dual-band 802.11ax wireless provides high-speed and secure access for users and devices.
-
Secure SD-WAN ASIC SP4: Accelerates security inspection and VPN performance.
-
Compact Desktop Design: Suitable for desktops or wall-mounted deployments using an optional mount kit.
-
All-in-One Platform: Combines firewall, SD-WAN, and wireless controller capabilities in a single appliance.
Typical Deployment Scenarios
- Branch offices requiring local log retention for compliance purposes
- Retail environments needing secure Wi-Fi and offline log buffering
- Small businesses seeking an integrated security and wireless solution
- Remote locations with limited uplink bandwidth
Key Technical Highlights
-
Firewall Performance: Up to 4 Gbps IPv4 and IPv6 firewall throughput
-
Threat Protection: 500 Mbps with enterprise traffic mix and logging enabled
-
Wireless Connectivity: Dual radio Wi-Fi 6 with external antenna support
-
Interfaces: 1x GE WAN, 2x GE LAN, 1x GE FortiLink, 1x RJ45 console
-
Power & Environment: External 12VDC power adapter, operating range 0°C to 40°C
Upgrade Your Network Security
Enhance visibility, performance, and wireless connectivity at the network edge with the FortiWiFi 31G and its integrated storage and Wi-Fi 6 capabilities.
