[shortdesc] 10x GE RJ45 ports, 10 Gbps firewall throughput, 1 Gbps NGFW throughput, 700 Mbps threat protection, desktop form factor [/shortdesc]

[properties]

Product SKU	FG-60F
Description	10x GE RJ45 ports including 5x internal ports, 2x WAN ports, 1x DMZ port, and 2x FortiLink ports
Product Family	Entry-Level FortiGate Firewalls
Product Type	Firewall
Form Factor	Desktop
Firewall Throughput	10 / 10 / 6 Gbps (1518 / 512 / 64 byte, UDP)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps
Network Interfaces	10x GE RJ45 ports including internal, WAN, DMZ, and FortiLink ports
Dimensions (H x W x L)	1.5 x 8.5 x 6.3 inches
Power Input	100-240V AC, 50-60 Hz External DC Power Adapter

[/properties]

[specifications]

System Performance
Firewall Throughput (1518 / 512 / 64 byte, UDP)	10 / 10 / 6 Gbps
Firewall Latency (64 byte UDP packets)	3.3 μs
Firewall Throughput (Packets Per Second)	9 Mpps
IPS Throughput	1.4 Gbps
SSL Inspection Throughput	630 Mbps
Application Control Throughput	1.8 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps
CAPWAP Throughput	8 Gbps
VPN Performance
IPsec VPN Throughput (512 byte packets)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
System Capacity
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	2,000
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	500
High Availability Configurations	Active/Active, Active/Passive, Clustering

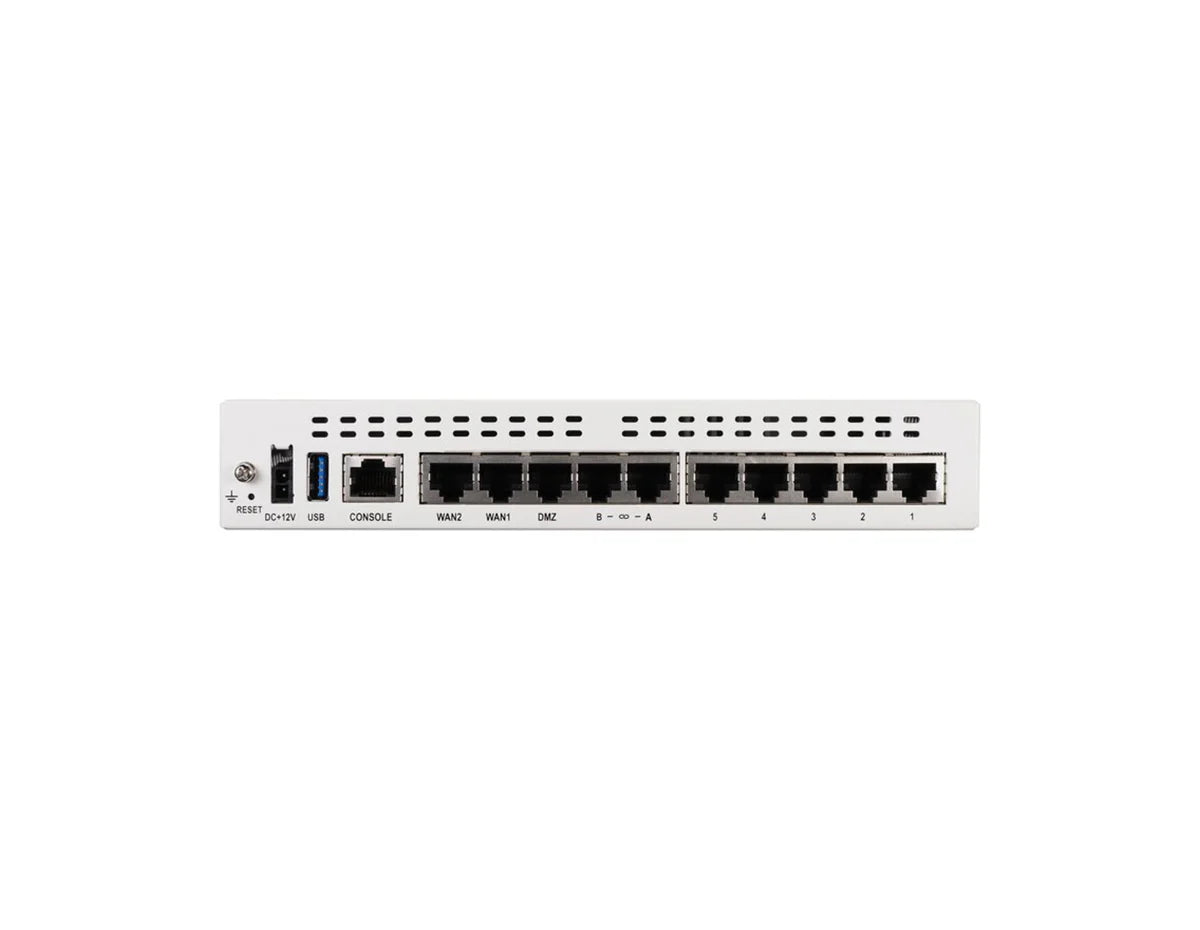

Hardware & Interfaces
GE RJ45 Internal Ports	5
GE RJ45 WAN Ports	2
GE RJ45 DMZ Port	1
GE RJ45 FortiLink Ports	2 by default
Total GE RJ45 Ports	10
USB Port	1
Console Port	1x Console Port (RJ45)
Wireless Interface	0
Power & Environment
Dimensions (in.)	1.5 x 8.5 x 6.3
Form Factor	Desktop
Power Required	100-240V AC, 50-60 Hz External DC Power Adapter
Maximum Current	100V AC / 1.0A, 240V AC / 0.6A
Power Consumption (Average / Maximum)	10.17 W / 12.43 W
Operating Temperature	32°F to 104°F (0°C to 40°C)
Regulatory Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

Converged Next-Generation Firewall and SD-WAN for Branch Security

The Fortinet FortiGate 60F is a compact next-generation firewall designed for secure networking at distributed enterprise sites, branch offices, small business environments, and WAN edge deployments. It integrates firewalling, SD-WAN, network controller functionality, and security in one desktop appliance, helping IT teams consolidate core security and connectivity functions without adding unnecessary hardware complexity.

Built on Fortinet’s purpose-built security processing architecture and powered by FortiOS, the FG-60F supports high-speed firewall performance, secure SD-WAN, IPsec VPN, IPS, NGFW inspection, and threat protection services. Its 10x GE RJ45 port design includes WAN, DMZ, FortiLink, and internal interfaces, giving buyers a practical platform for perimeter protection, branch connectivity, access layer security, and centralized network management through Fortinet’s security fabric ecosystem.

Key Benefits

• Converged Security Platform: Combines firewalling, SD-WAN, network controller functionality, and security services in one appliance for simplified branch and edge deployment.
• High Firewall Performance: Delivers up to 10 Gbps firewall throughput, helping businesses support fast network traffic inspection across compact environments.
• Integrated SD-WAN: Supports secure WAN edge deployments with application identification, overlay acceleration, and unified FortiOS management.
• Access Layer Integration: FortiLink-enabled ports allow FortiSwitch devices to operate as a logical extension of the firewall for unified LAN security control.
• Centralized Management: Works with FortiManager and FortiGate Cloud for visibility, analytics, reporting, configuration, and streamlined multi-site operations.

Ideal Use Cases

• Branch Offices: A strong fit for distributed business locations that need firewalling, WAN control, and secure connectivity in a compact appliance.
• Secure SD-WAN: Supports WAN edge transformation with integrated SD-WAN, security inspection, and unified management from FortiOS.
• Small Business Networks: Provides enterprise-grade firewall functions in a desktop form factor suitable for smaller environments with limited space.
• Perimeter Protection: Helps inspect incoming and outgoing traffic, enforce security policies, and protect applications and data with FortiGuard services.

Technical Specifications

• Product Series: FortiGate 60F Series
• Product Type: Next-Generation Firewall and Secure SD-WAN Appliance
• Total GE RJ45 Ports: 10 GE RJ45 ports
• WAN Ports: 2 x GE RJ45 WAN ports
• DMZ Port: 1 x GE RJ45 DMZ port
• Internal Ports: 5 x GE RJ45 internal ports
• FortiLink Ports: 2 x GE RJ45 FortiLink ports by default
• USB Port: 1 x USB port
• Console Port: 1 x RJ45 console port
• Firewall Throughput: 10 / 10 / 6 Gbps for 1518, 512, and 64 byte UDP packets
• IPS Throughput: 1.4 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 700 Mbps
• IPsec VPN Throughput: 6.5 Gbps
• Concurrent Sessions: 700,000 TCP sessions
• New Sessions per Second: 35,000 TCP sessions
• Form Factor: Desktop

Deploy Secure Branch Connectivity with FortiGate 60F

Choose the Fortinet FortiGate FG-60F to standardize branch security, perimeter protection, and SD-WAN connectivity on a compact firewall platform built for practical B2B network deployments.
