[shortdesc] Next-generation firewall, 27 Gbps firewall throughput, 5 Gbps IPS throughput, 3.5 Gbps NGFW throughput, Secure SD-WAN, including 1 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP). [/shortdesc]

[properties]

Product SKU	FG-200F-BDL-950-12
Bundle Type	Hardware + UTP Bundle
Product Family	Mid-Range FortiGate Firewalls
Product Type	Next-Generation Firewall / SD-WAN Appliance
Form Factor	Rack Mount, 1 RU
Firewall Throughput	27 / 27 / 11 Gbps (1518 / 512 / 64 byte, UDP)
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
Network Interfaces	16x GE RJ45 Ports, 2x GE RJ45 Management/HA Ports, 8x GE SFP Slots, 2x 10 GE SFP+ Slots, 2x 10 GE SFP+ FortiLink Slots
Dimensions (H x W x L)	1.73 x 17.01 x 13.47 inches
Power Input	100-240V AC, 50-60 Hz

[/properties]

[specifications]

System Performance
Firewall Throughput (1518 / 512 / 64 byte, UDP)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
IPS Throughput	5 Gbps
SSL Inspection Throughput	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300000
Application Control Throughput	13 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
CAPWAP Throughput	20 Gbps
VPN Performance
IPsec VPN Throughput (512 byte packets)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	500
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
Virtual Domains (Default / Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel Mode)	256 / 128
Maximum Number of FortiTokens	5000
Maximum Number of Registered FortiClients	N/A
High Availability Configurations	Active/Active, Active/Passive, Clustering
Hardware & Interfaces
GE RJ45 Ports	16
GE RJ45 Management / HA Ports	2
GE SFP Slots	8
10 GE SFP+ FortiLink Slots (default)	2
10 GE SFP+ Slots	2
USB Port	1
Console Port	1x Console Port (RJ45)
Onboard Storage	0
Wireless Interface	0
Power & Environment
Power Required	100-240V AC, 50-60 Hz
Maximum Current	100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum)	101.92 W / 118.90 W
Operating Temperature	32°F to 104°F (0°C to 40°C)
Regulatory Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Hardware	FortiGate 200F Device
Included Services	1 Year FortiGuard Unified Threat Protection (UTP) Suite + 1 Year FortiCare Premium Support

[/accesories]

High-Performance Next-Generation Firewall and UTP Bundle for Enterprise Networks

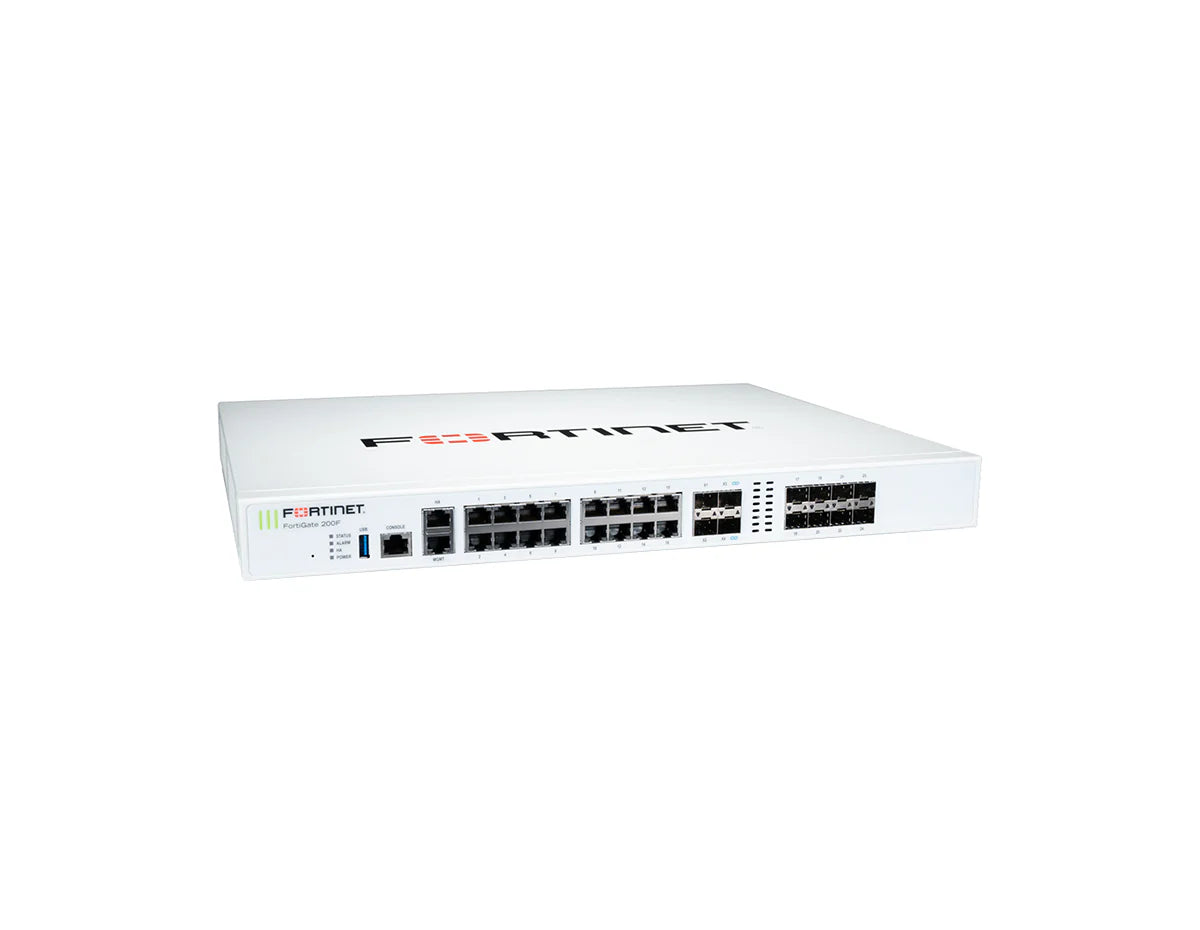

The Fortinet FortiGate FG-200F-BDL-950-12 is a next-generation firewall UTP bundle designed for organizations that need high-throughput security, deep network visibility, and consolidated secure networking in a physical appliance. It combines FortiGate 200F hardware, firewall protection, secure SD-WAN, and included FortiGuard Unified Threat Protection services in a 1 RU rack mount appliance.

FG-200F-BDL-950-12 delivers up to 27 Gbps IPv4 firewall throughput, 5 Gbps IPS throughput, 3.5 Gbps NGFW throughput, and 3 Gbps threat protection throughput. This bundle includes 1 year FortiCare Premium Support and 1 year FortiGuard Unified Threat Protection, helping businesses deploy advanced threat prevention, web filtering, application control, and security services from day one.

Key Benefits & Features

• Unified Threat Protection Bundle: Includes 1 year FortiGuard Unified Threat Protection services with FortiCare Premium Support for a complete hardware and security services package.
• High-Throughput Security: Delivers strong firewall, IPS, NGFW, and threat protection performance for security-driven network edge deployments.
• Flexible Network Connectivity: Provides GE RJ45, GE SFP, and 10 GE SFP+ interfaces to support copper, fiber, uplink, and FortiLink deployment needs.
• Secure SD-WAN Capability: Supports FortiGate WAN Edge use cases through FortiOS for unified networking, security, and management.
• Hardware-Accelerated Processing: Uses NP6XLite and CP9 processors to accelerate firewall, VPN, SSL inspection, IPS, and content security functions.
• Integrated Security Fabric Control: Works with FortiOS, FortiManager, FortiSwitch, FortiAP, and FortiGuard services for centralized visibility and policy enforcement.

Ideal Use Cases

• Branch Offices needing firewall protection, SD-WAN, VPN, and centralized policy control
• Enterprise Network Edge deployments requiring high firewall throughput and IPS inspection
• Secure SD-WAN projects managed through one FortiOS operating system framework
• Segmentation Projects using FortiOS and FortiLink-based access layer integration
• UTP Security Deployments requiring included FortiGuard services and premium support coverage

Technical Specifications

• Brand: Fortinet
• SKU: FG-200F-BDL-950-12
• Bundle Type: Hardware + UTP Bundle
• Included Services: 1 Year FortiGuard Unified Threat Protection (UTP) Suite + 1 Year FortiCare Premium Support
• Product Series: FortiGate 200F Series
• Product Type: Next-Generation Firewall and Secure SD-WAN appliance
• GE RJ45 Ports: 16
• Management and HA Ports: 2 GE RJ45 management/HA ports
• GE SFP Slots: 8
• 10 GE SFP+ Slots: 2 standard 10 GE SFP+ slots and 2 10 GE SFP+ FortiLink slots by default
• IPv4 Firewall Throughput: 27 / 27 / 11 Gbps for 1518 / 512 / 64 byte UDP packets
• Firewall Throughput: 16.5 Mpps
• IPS Throughput: 5 Gbps
• NGFW Throughput: 3.5 Gbps
• Threat Protection Throughput: 3 Gbps
• IPsec VPN Throughput: 13 Gbps
• Concurrent Sessions: 3 million TCP sessions

Deploy Secure High-Speed Network Protection

Choose the Fortinet FortiGate FG-200F-BDL-950-12 to standardize network edge security with high firewall throughput, flexible interface options, secure SD-WAN support, included UTP services, and FortiOS-driven management.
