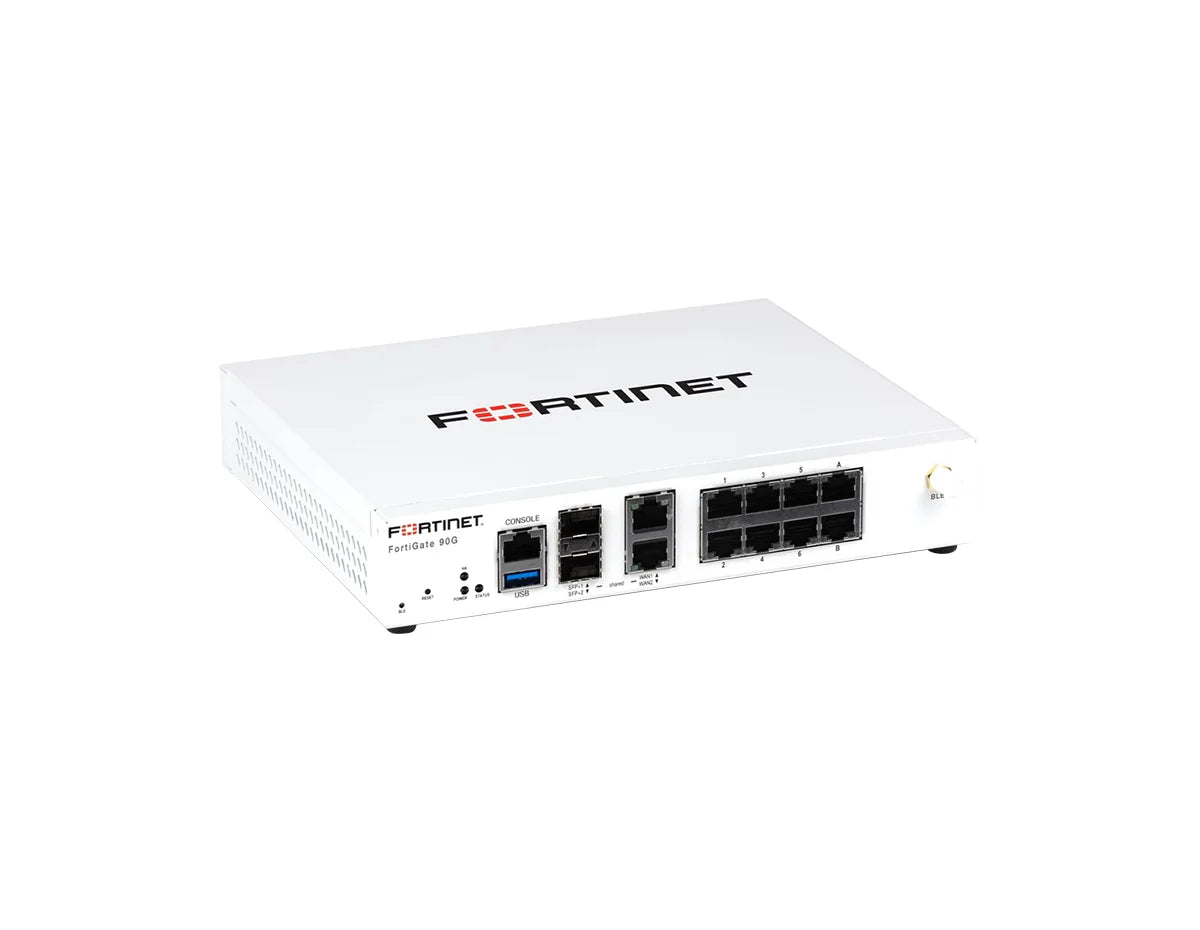

[shortdesc] Firewall, desktop, 8x GE RJ45, 2x 10GE/GE shared media WAN, up to 28 Gbps firewall, SD-WAN [/shortdesc]
[properties]
| Model / SKU |
FortiGate 90G / FG-90G |
| Form Factor |
Desktop |
| Firewall Throughput |
28 Gbps |
| NGFW Throughput |
2.5 Gbps |
| Threat Protection Throughput |
2.2 Gbps |
| Interfaces |

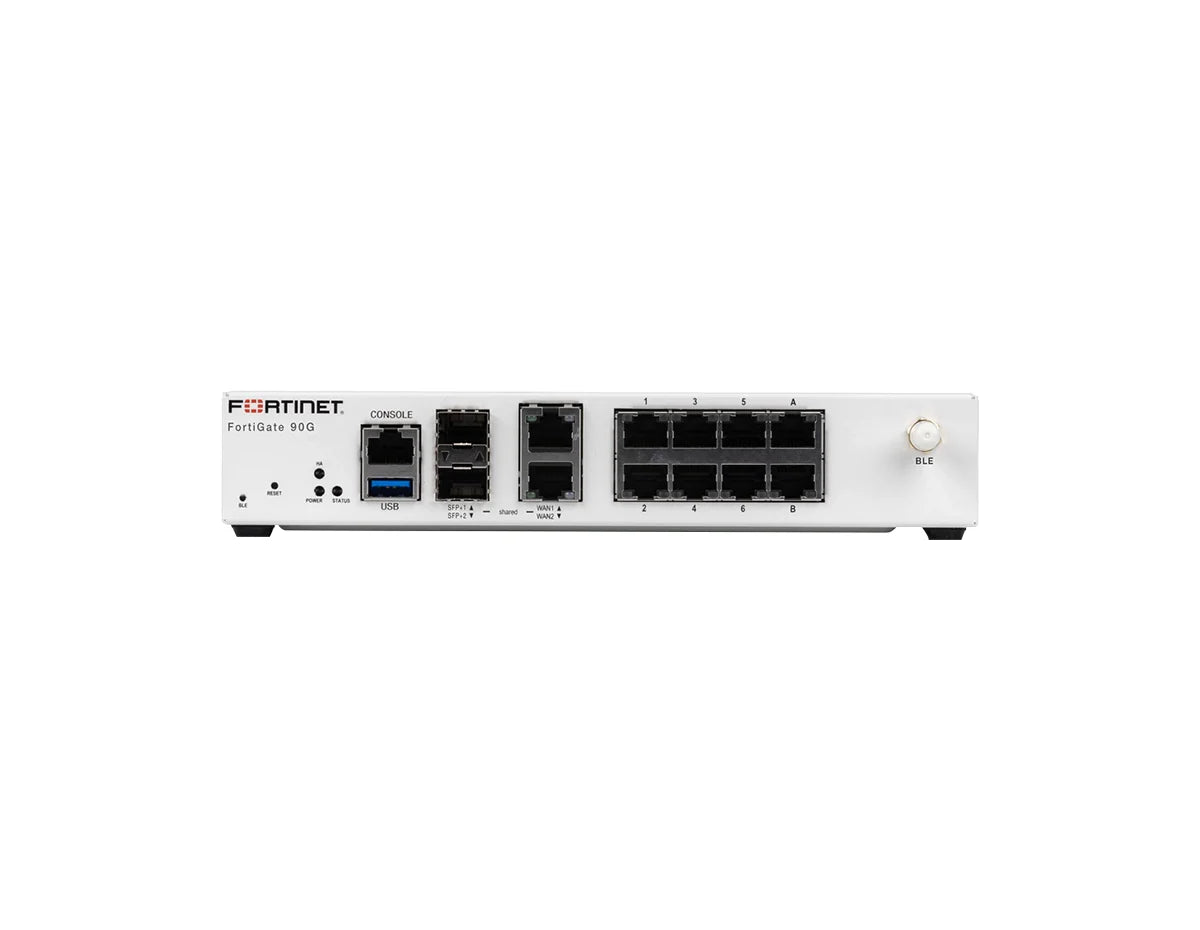

8x GE RJ45 Ports, 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 Shared Media Ports |
| Power Input |
12V DC, 3A (dual redundancy optional) |
| Dimensions (H x W x L) |
42 x 216 x 178 mm (1.65 x 8.5 x 7.0 inches) |
| Weight |
1.12 kg (2.47 lbs) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Certifications |
Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/properties]
[specifications]
| System Performance - Enterprise Traffic Mix |
| IPS Throughput |
4.5 Gbps |
| System Performance and Capacity |
| Firewall Throughput (1518/512/64 byte UDP) |
28 / 28 / 27.9 Gbps |
| Firewall Latency (64 byte UDP) |
3.23 μs |
| Firewall Throughput (Packets Per Second) |
41.85 Mpps |
| Concurrent Sessions (TCP) |
3 Million |
| New Sessions/Second (TCP) |
124,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) |
25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2,500 |
| SSL-VPN Throughput |
1.4 Gbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
2.6 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
1,400 |
| SSL Inspection Concurrent Sessions |
300,000 |
| Application Control Throughput (HTTP 64K) |
6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) |
23.6 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel) |
128 / 64 |
| Maximum Number of FortiTokens |
500 |
| Hardware & Interfaces |
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP Shared Media Pairs |
2 |
| GE RJ45 Internal Ports |
8 |
| USB Ports |
1 |
| Console Port (RJ45) |
1 |
| Trusted Platform Module (TPM) |
Included |
| Bluetooth Low Energy (BLE) |
Included |
| Environment & Power |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) |
19.9 W / 20.53 W |
| Heat Dissipation |
70.0 BTU/hr |
| Storage Temperature |
-35°C to 70°C (-31°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
21.73 dBA |
| Operating Altitude |
Up to 10,000 ft (3048 m) |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
[/specifications]
[accesories]
| Included Accessories |
External DC Power Adapter (1 adapter included) |
| Optional Accessories |
- Rack Mount Tray (SP-RACKTRAY-02)
- Wall Mount Kit, pack of 20 (SP-FG60F-MOUNT-20)
- Mounting Ear Bracket, 10 pairs pack (SP-EAR-FG90G-10)
- AC Power Adaptor, pack of 5 (SP-FG60E-PDC-5)
- 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC)
- 1 GE SFP SX Transceiver Module (FN-TRAN-SX)
- 1 GE SFP LX Transceiver Module (FN-TRAN-LX)
- 1 GE SFP Transceiver Module, 90km range (FR-TRAN-ZX)
- 10 GE SFP+ RJ45 Transceiver Module (FN-TRAN-SFP+GC)
- 10 GE SFP+ Transceiver Module, Short Range (FN-TRAN-SFP+SR)
- 10 GE SFP+ Transceiver Module, Long Range (FN-TRAN-SFP+LR)
- 10 GE SFP+ Transceiver Module, Extended Range (FN-TRAN-SFP+ER)
- 10 GE SFP+ Transceiver Module, 30km Long Range Single BiDi (FN-TRAN-SFP+BD27)
- 10 GE SFP+ Transceiver Module, 30km Long Range Single BiDi (FN-TRAN-SFP+BD33)
- 10 GE SFP+ Passive Direct Attach Cable, 1m (FN-CABLE-SFP+1)
- 10 GE SFP+ Passive Direct Attach Cable, 3m (FN-CABLE-SFP+3)
- 10 GE SFP+ Passive Direct Attach Cable, 5m (FN-CABLE-SFP+5)
|
[/accesories]
The FortiGate 90G series redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for hybrid mesh firewall and secure SD-WAN deployments, the FG-90G delivers high throughput with up to 28 Gbps firewall performance and 25 Gbps IPsec VPN performance. This makes it an exceptional choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.
Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational overhead. It features flexible connectivity options, including two shared media ports (RJ45/SFP+) that allow businesses to upgrade WAN connectivity without replacing hardware. Working with FortiGuard AI-Powered Security Services, the FG-90G supports coordinated, automated threat protection against modern attack vectors, including zero-day and file-based threats.
Next-Gen 10G Connectivity and SP5 ASIC Performance
Key Benefits
-
SP5 ASIC Acceleration: Built on Fortinet’s secure SD-WAN ASIC SP5 for up to 28 Gbps firewall throughput and 4.5 Gbps IPS throughput.
-
10GE Shared Media Flexibility: Includes 2x shared media ports supporting 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 connectivity.
-
Efficient Desktop Operation: Low power draw at 19.9 W average and low acoustic output at 21.73 dBA.
-
Converged Networking and Security: Integrates firewalling, SD-WAN, and security in one appliance running FortiOS.
-
Deep Encrypted Traffic Inspection: Delivers 2.6 Gbps SSL inspection throughput (IPS, avg. HTTPS) for visibility into encrypted sessions.
-

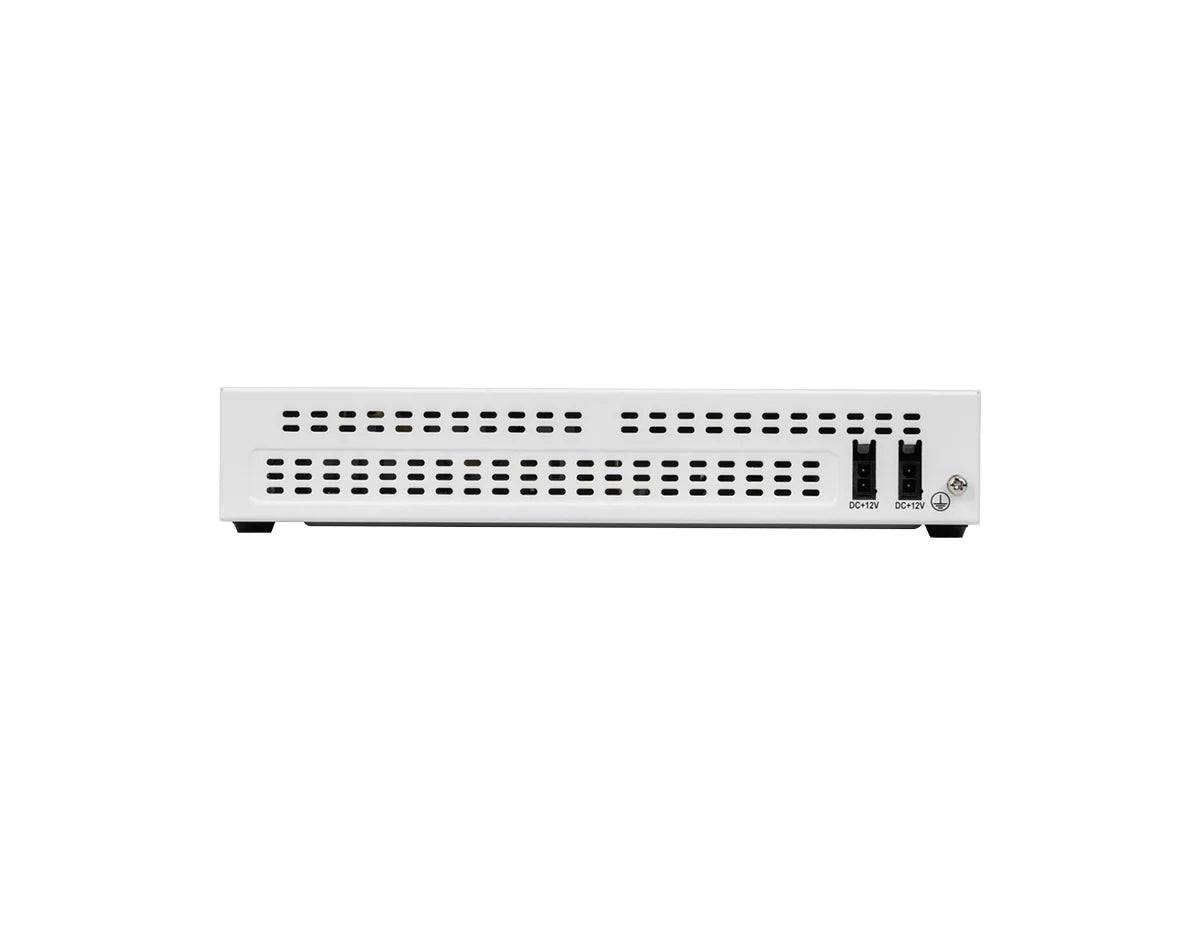

Redundant Power Capable: Supports up to two external DC power adapters (redundancy optional) with 12V DC, 3A input rating.
Ideal Use Cases
-
High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
-
Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
-
Hybrid Mesh Firewalls: Unified security across distributed environments.
-
Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.
Technical Specifications Summary
-
Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
-
IPS Throughput (Enterprise Traffic Mix): 4.5 Gbps
-
NGFW Throughput (Enterprise Traffic Mix): 2.5 Gbps
-
Threat Protection Throughput (Enterprise Traffic Mix): 2.2 Gbps
-
IPsec VPN Throughput (512 byte): 25 Gbps
-
SSL-VPN Throughput: 1.4 Gbps
-
Concurrent Sessions (TCP): 3 Million
-
New Sessions/Second (TCP): 124,000
-
Interfaces: 8x GE RJ45, 2x shared media ports (10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45)
-
Power: 12V DC, 3A (dual redundancy optional)
-
Consumption: 19.9 W average / 20.53 W maximum
-
Physical: 42 x 216 x 178 mm; 1.12 kg
-
Environment: 0°C to 40°C operating; 21.73 dBA noise level
Upgrade Your Network Security
Accelerate your business with the 10G-ready performance of the FortiGate 90G.
