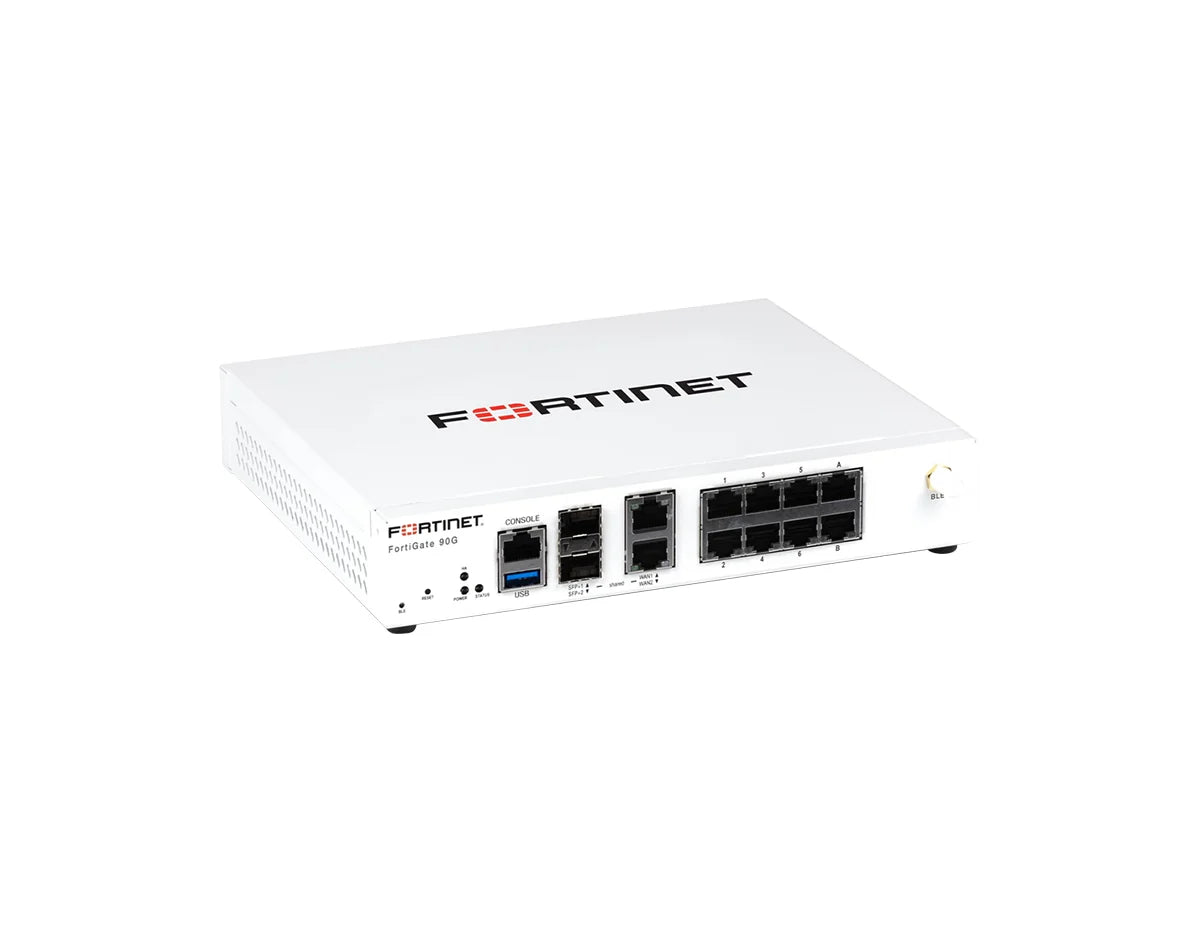

[shortdesc] Firewall, desktop, 8x GE RJ45, 2x 10GE RJ45/SFP+ shared WAN, 28 Gbps throughput, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FortiGate / FG-90G-BDL-809-12
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1-Year Contract)
Form Factor	Desktop
Firewall Throughput	28 Gbps
NGFW Throughput	2.5 Gbps
Threat Protection Throughput	2.2 Gbps
Interfaces	8x GE RJ45 ports, 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media ports
Power Input	12V DC, 3A (dual redundancy optional)
Dimensions (H x W x L)	42 x 216 x 178 mm (1.65 x 8.5 x 7.0 inches)
Weight	1.12 kg (2.47 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	4.5 Gbps
System Performance and Capacity
Firewall Throughput (1518/512/64 byte UDP)	28 / 28 / 27.9 Gbps
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	41.85 Mpps
Concurrent Sessions (TCP)	3 M
New Sessions/Second (TCP)	124,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	1.4 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,400
SSL Inspection Concurrent Sessions	300,000
Application Control Throughput (HTTP 64K)	6.7 Gbps
CAPWAP Throughput (HTTP 64K)	23.6 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	128 / 64
Maximum Number of FortiTokens	500
Hardware & Interfaces
10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	8
USB Ports	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Bluetooth Low Energy (BLE)	Included
Environment & Power
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	19.9 W / 20.53 W
Heat Dissipation	70.0 BTU/hr
Storage Temperature	-35°C to 70°C (-31°F to 158°F)
Humidity	10% to 90% non-condensing
Noise Level	21.73 dBA
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories

External DC Power Adapter (1 adapter included)

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit (SP-FG60F-MOUNT-20) Mounting Ear Brackets (SP-EAR-FG90G-10) AC Power Adaptor (SP-FG60E-PDC-5) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 10 GE SFP+ RJ45 Transceiver Module (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver Module, Short Range (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver Module, Long Range (FN-TRAN-SFP+LR)

[/accesories]

The FortiGate 90G-BDL-809-12 redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for hybrid mesh firewalls and secure SD-WAN deployments, the FG-90G delivers high speed with 28 Gbps firewall throughput and 25 Gbps IPsec VPN performance. This makes it a strong choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.

Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational costs. It features flexible connectivity options, including two 10GE shared media ports (RJ45/SFP+) that allow businesses to easily upgrade their WAN infrastructure without replacing the appliance. This bundle includes 1 Year FortiCare Premium and FortiGuard Enterprise Protection.

Next-Gen 10G Connectivity and SP5 ASIC Performance

Key Benefits

• SP5 ASIC Power: Powered by Fortinet’s SP5 ASIC to deliver up to 28 Gbps firewall throughput and up to 4.5 Gbps IPS performance.
• 10GE High-Speed Ports: Includes 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 shared media ports for flexible, high-bandwidth WAN connectivity.
• Compact Efficiency: Desktop form factor with energy-efficient operation (Average 19.9 W) and low noise (21.73 dBA).
• Converged Security: Integrates NGFW and secure SD-WAN capabilities under FortiOS to simplify operations and improve total cost of ownership.
• Deep Visibility: Supports SSL inspection throughput of up to 2.6 Gbps to help detect threats in encrypted traffic.
• Redundant Power Capable: Supports up to 2 external DC power adapters (redundancy optional) for enhanced reliability.

Ideal Use Cases

• High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
• Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
• Hybrid Mesh Firewalls: Unified security across on-premise, cloud, and remote locations.
• Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
• IPS Throughput (Enterprise Mix): 4.5 Gbps
• NGFW Throughput (Enterprise Mix): 2.5 Gbps
• Threat Protection Throughput (Enterprise Mix): 2.2 Gbps
• IPsec VPN Throughput (512 byte): 25 Gbps
• SSL-VPN Throughput: 1.4 Gbps
• Concurrent SSL-VPN Users (Tunnel Mode): 200

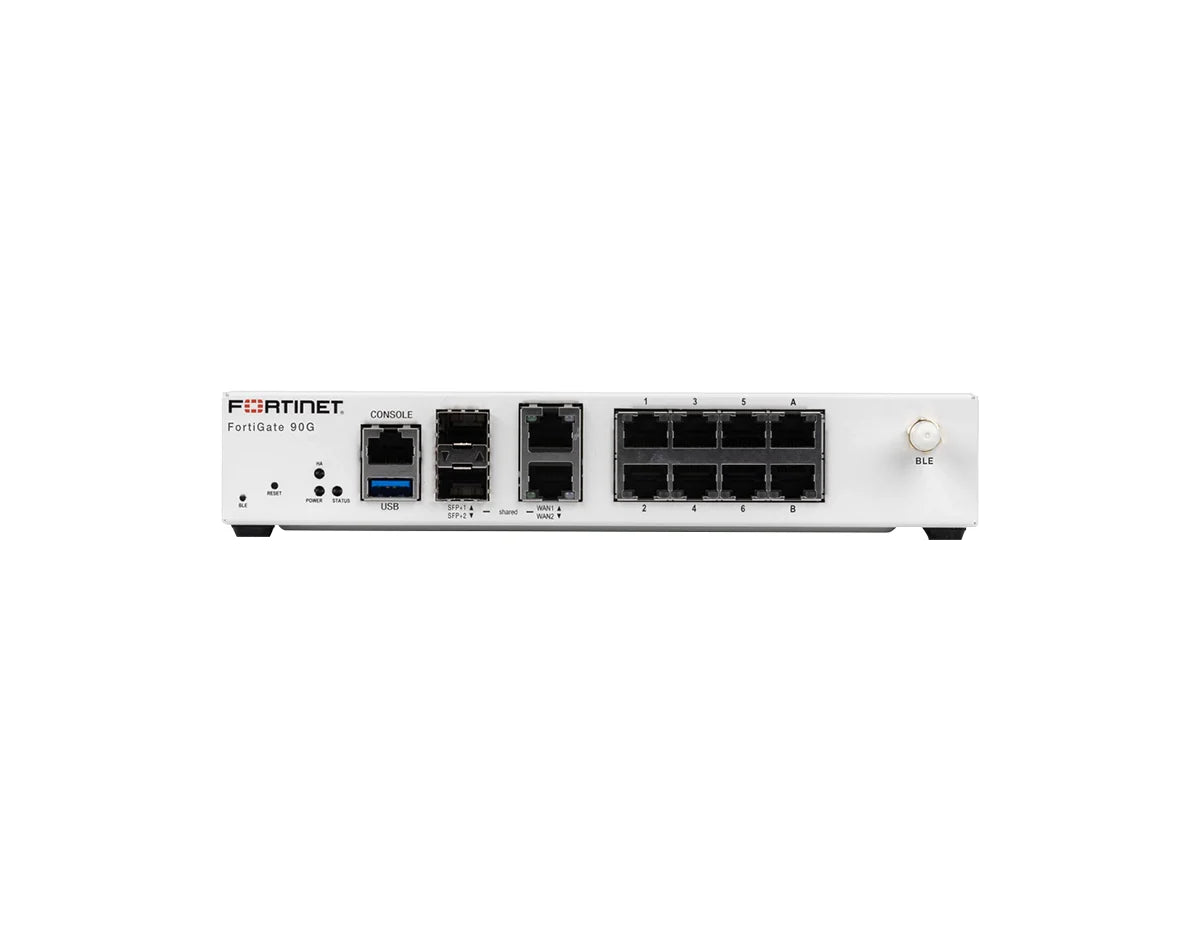

• Interfaces: 8x GE RJ45 internal ports; 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media pairs; 1x USB; 1x RJ45 console

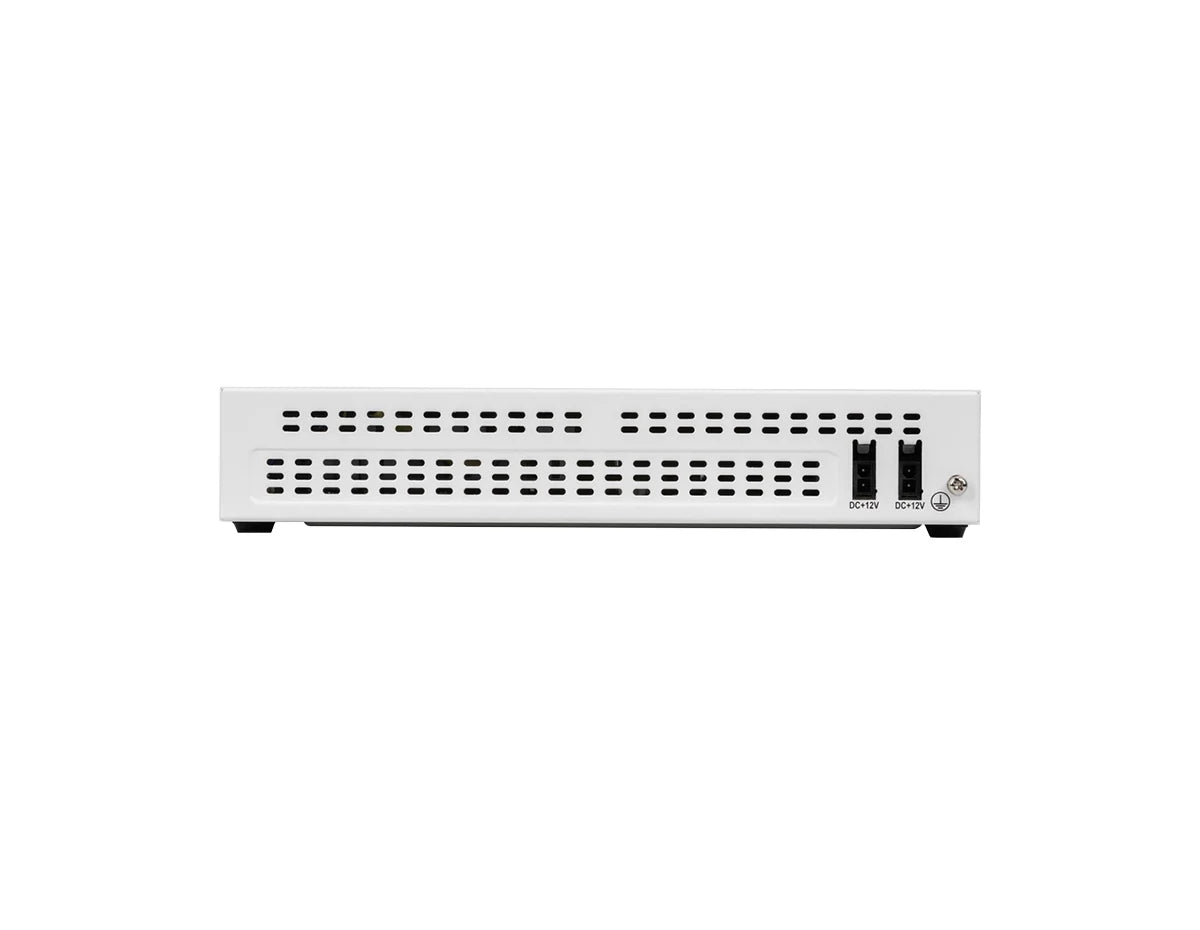

• Power: 12V DC, 3A input (dual redundancy optional); up to 2 external DC adapters (1 included); 19.9 W avg / 20.53 W max
• Physical: 42 x 216 x 178 mm; 1.12 kg; desktop form factor
• Environment & Compliance: 0°C to 40°C; -35°C to 70°C storage; 10% to 90% non-condensing; 21.73 dBA; FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Accelerate your business with the 10G-ready performance of the FortiGate 90G-BDL-809-12.
