[shortdesc]FG-4800F-DC-BDL-950-60 NGFW, DC power, 400GE QSFP-DD, NP7/CP9 SPUs, 87 Gbps IPS, FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 5 Year term[/shortdesc]
[properties]
| Property |
Value |
| Model / SKU |
FG-4800F-DC-BDL-950-60 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year) |
| Form Factor |
Rack Mount 4 RU |
| Firewall Throughput (IPv4 1518 byte) |
3.1 Tbps |
| IPS Throughput |
87 Gbps |
| Interfaces (Summary) |
8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/28, 12x 50GE/25GE/10GE SFP56/28, 2x 10GE RJ45 Management Ports |
| Power Input |
-72V to -40V DC |
[/properties]
[specifications]
| Specification |
Value |
| Performance / Throughput |
| IPS Throughput |
87 Gbps |
| NGFW Throughput |
77 Gbps |
| Threat Protection Throughput |
75 Gbps |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) |
3.1/3.1/0.93 Tbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) |
3.1/3.1/0.93 Tbps |
| Firewall Latency (64 byte, UDP) |
3.6 μs |
| Concurrent Sessions (TCP) |
280 Million / 1.8 Billion* |
| New Sessions/Second (TCP) |
915,000 / 25 Million* |
| Interfaces / Ports |
| Hardware Accelerated 400GE/200GE/100GE/40GE QSFP-DD/QSFP56/QSFP28/QSFP+ Slots |
8 |
| Hardware Accelerated 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots |
12 |
| Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP slots |
8 |
| Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP High Availability and Aux Slots |
4 |
| 10GE/GE RJ45 Management Ports |
2 |
| USB Port (3.0) |
1 |
| Console Port |
1 |
| VPN / SD-WAN / NGFW |
| IPsec VPN Throughput (512 byte) |
1,800 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
| Client-to-Gateway IPsec VPN Tunnels |
200,000 |
| SSL-VPN Throughput |
18 Gbps |
| SSL Inspection Throughput |
63 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
60,000 |
| Dimensions / Weight / Form Factor |
| Form Factor |
Rack Mount 4 RU |
| Dimensions (H x W x L) |
175 x 435 x 663 mm (6.89 x 17.13 x 26.10 inches) |
| Weight |
41.2 kg (90.83 lbs) |
| Power / Consumption |
| Power Input |
-72V to -40V DC |
| Power Consumption (Average/Maximum) |
1602 W / 1918.2 W |
| DC Current (Maximum) |
40.94A @ 48VDC |

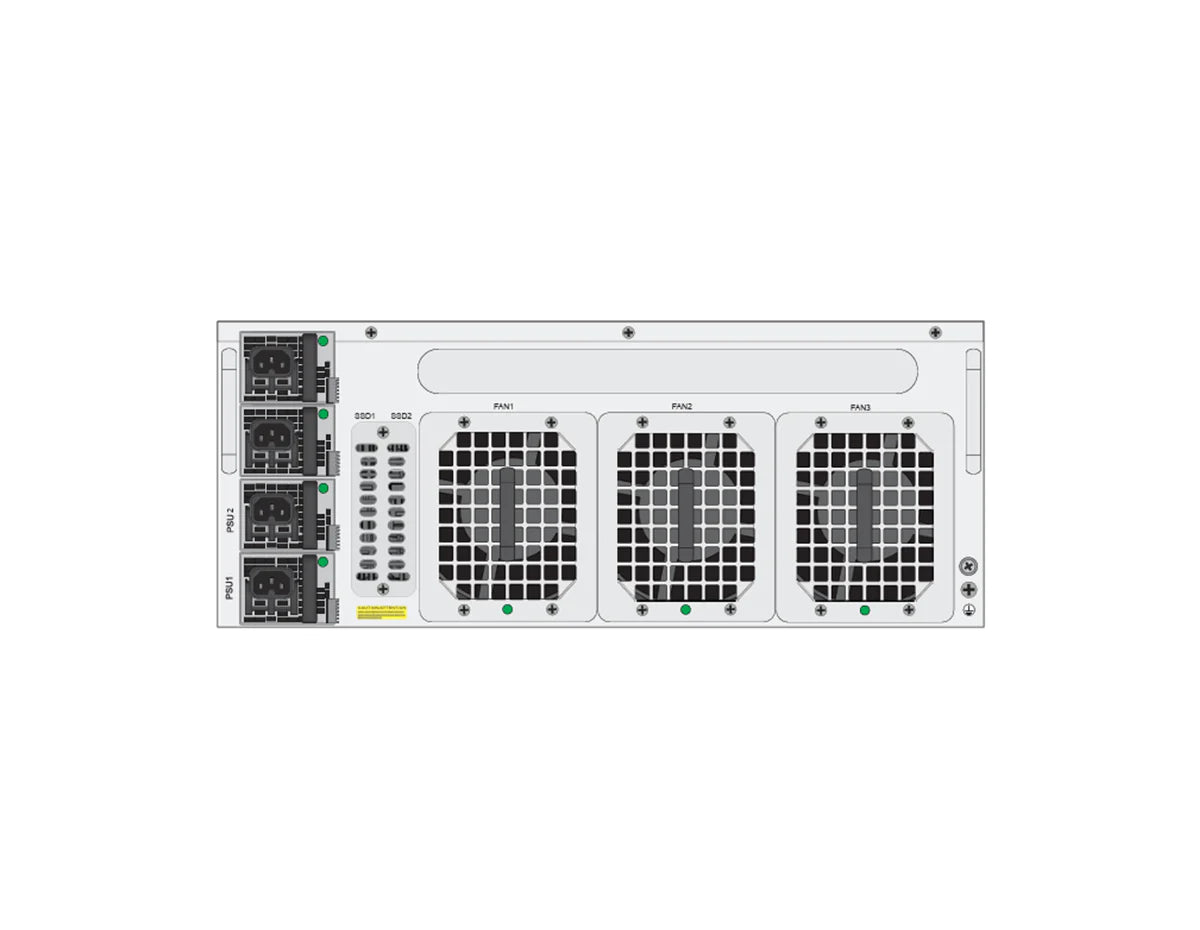

| Redundant Power Supplies |
Hot Swappable, 2+2 |
[/specifications]
[accesories]
| Item |
Description |
| Included — Transceivers |
2x SFP+ (SR 10 GE) |
| Optional — Hyperscale Firewall License (LIC-FGT-HYPSC) |
Hyperscale Firewall License for hardware session setup acceleration and logging; enables hardware acceleration of CGNAT features and is required for starred session metrics. |
| Optional — DC Power Supply (SP-FG4000F-DC-PS) |
DC power supply for FG-4200F-DC/4400F-DC/4800F-DC/6000F-DC, comes with 3m DC cable. |
| Optional — Fan Tray (SP-FG4K6K-FAN) |
Spare Hotswappable Fan Module for FG-420xF/440xF/480xF/6000F. |
| Optional — Transceiver Modules |
Examples include FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SFP+SR (10 GE SFP+ SR), FN-TRAN-SFP28-SR (25 GE SFP28 SR), FN-TRAN-QSFP28-SR (100 GE QSFP28 SR), FN-TRAN-QSFP56-FR4 (200 GE QSFP56 FR4), and FN-TRAN-QSFPDD-LR4 (400 GE QSFPDD LR4). |
| Optional — Cables |
400 GE QSFPDD Passive Direct Attach Cable options include FN-CABLE-QSFPDD-DAC-01 (1m) and FN-CABLE-QSFPDD-DAC-B5 (2.5m). |
[/accesories]

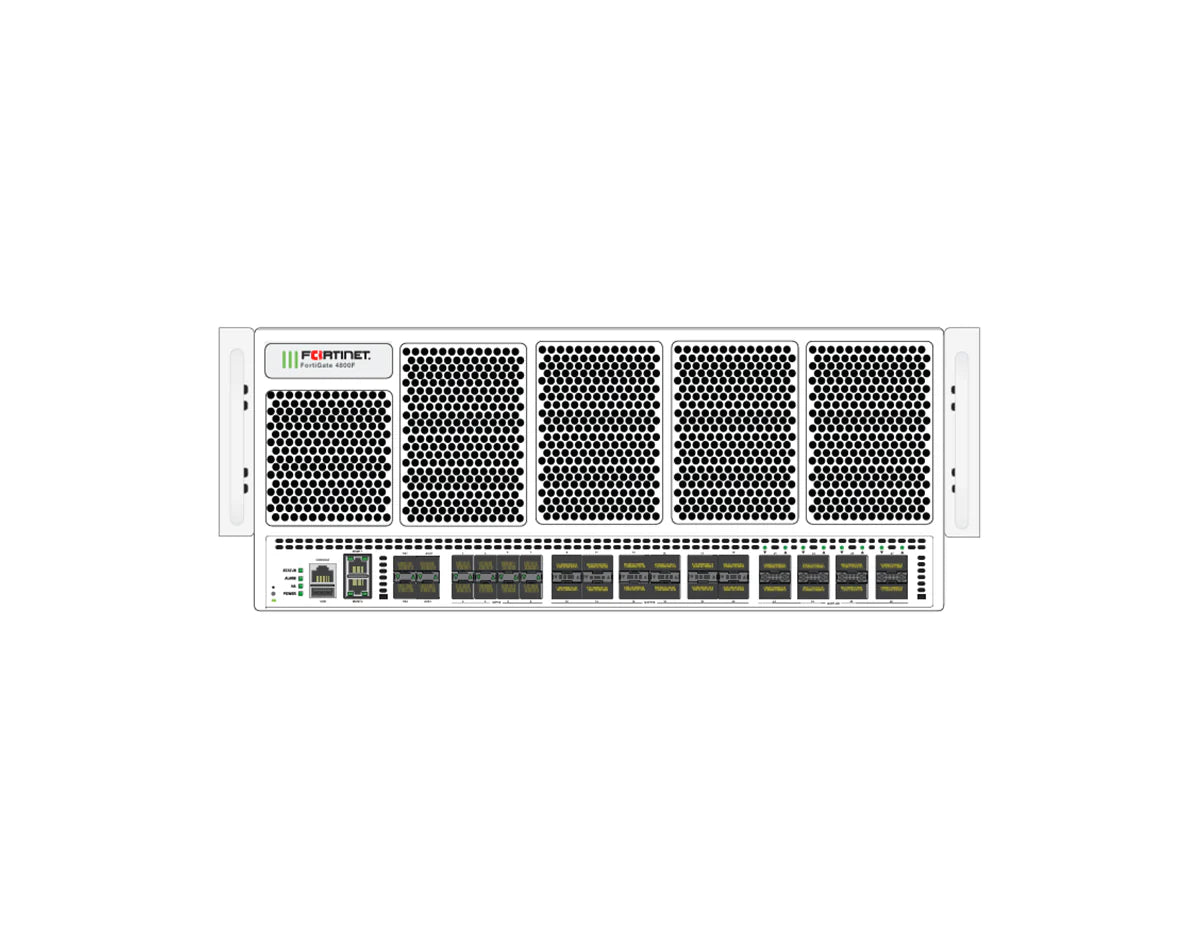

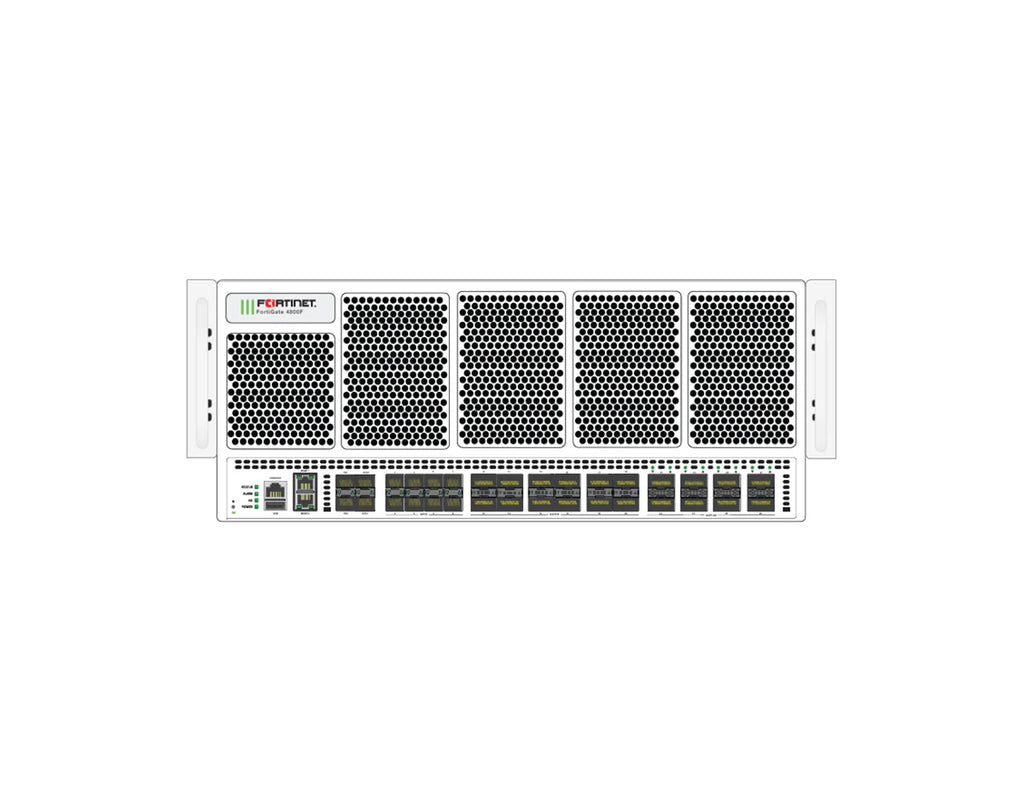

The Fortinet FortiGate 4800F-DC is built for DC-powered data centers and service provider environments that require high-speed NGFW connectivity and consistent performance at scale. It supports dense interfaces including multiple 400GE/200GE QSFP-DD slots for core segmentation and aggregation.
FG-4800F-DC-BDL-950-60 bundles the appliance with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 5 Year term, aligning support and security services under one SKU.
Secure Networking with Hyperscale Performance and DC Power Support
- DC power input for telecom and data center infrastructures.
- 8x 400GE/200GE QSFP-DD slots for core segmentation.
- NP7 and CP9 SPUs accelerate firewalling and security inspection.
- Integrated ZTNA enforcement within the NGFW solution.
- High scale sessions and tunnel capacity for hyperscale environments.
- Bundle includes FortiCare Premium + FortiGuard UTP, 5 year.
Upgrade Your Network Security
Request a quote for FG-4800F-DC-BDL-950-60 to deploy 5-year UTP coverage.
