[shortdesc] FG-4200F-DC-BDL-950-60 NGFW, DC power, NP7/CP9 SPUs, 8x 100GE QSFP28, up to 800 Gbps firewall, FortiCare Premium + FortiGuard UTP, 5 Year. [/shortdesc]
[properties]
| Brand |
Fortinet |
| Model / SKU |
FG-4200F-DC-BDL-950-60 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year) |
| Form Factor |
Rack Mount, 3 RU |
| Firewall Throughput |
800 Gbps |
| Threat Protection Throughput |
45 Gbps |
| Interfaces Summary |
8x 100GE/40GE QSFP28/QSFP+, 18x 25GE SFP28 (25GE/10GE/GE) + 2x 25GE HA, 2x GE RJ45 Mgmt |
| Power Input |
-48V to -60V DC |
| Dimensions (H x W x L) |
5.22 x 17.20 x 26.17 in (132.5 x 437 x 664.8 mm) |
| Weight |
59.75 lbs (27.1 kg) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput |
52 Gbps |
| NGFW Throughput |
47 Gbps |
| Threat Protection Throughput |
45 Gbps |
| System Performance & Capacity |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) |
800 / 788 / 400 Gbps |
| Firewall Latency (64 byte, UDP) |
3.02 μs |
| Concurrent Sessions (TCP) |
210 Million / 450 Million* (with Hyperscale Firewall License) |
| New Sessions/Second (TCP) |
1 Million / 7 Million* (with Hyperscale Firewall License) |
| IPsec VPN Throughput (512 byte) |
210 Gbps |
| Interfaces & Modules |
| 100 GE QSFP28 / 40 GE QSFP+ Slots |
8 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
16 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots |
2 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots |
2 (Hardware Accelerated) |
| GE RJ45 Management Ports |
2 |
| USB Port |
1 |
| Console Port |
1 |
| Power & Environment |
| DC Current (Average / Maximum) |
20A / 100Apk |
| Power Consumption (Average / Maximum) |
931 W / 1291 W |
| Heat Dissipation |
4405 BTU/h |
| Redundant Power Supplies |
Default 1+1 Redundant, Hot Swappable |
[/specifications]
[accesories]
| Included in Box |
2x DC power supplies, 2x SFP+ (SR 10 GE) Transceivers |
| Optional Accessories |
Hyperscale Firewall License (LIC-FGT-HYPSC), Rack mount sliding rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG4000F-DC-PS), Spare Fan Tray (SP-FG4K6K-FAN), Various SFP/QSFP Transceivers |
[/accesories]

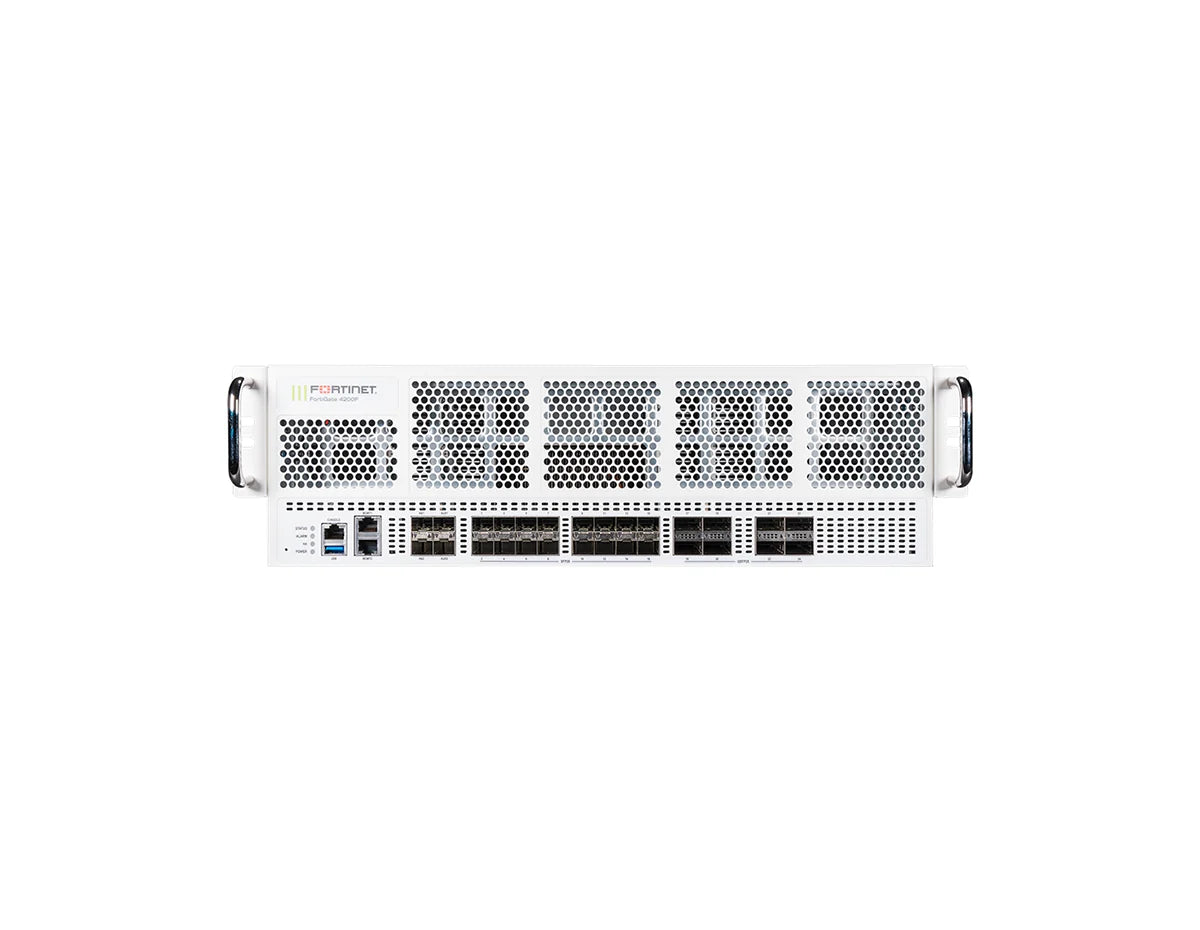

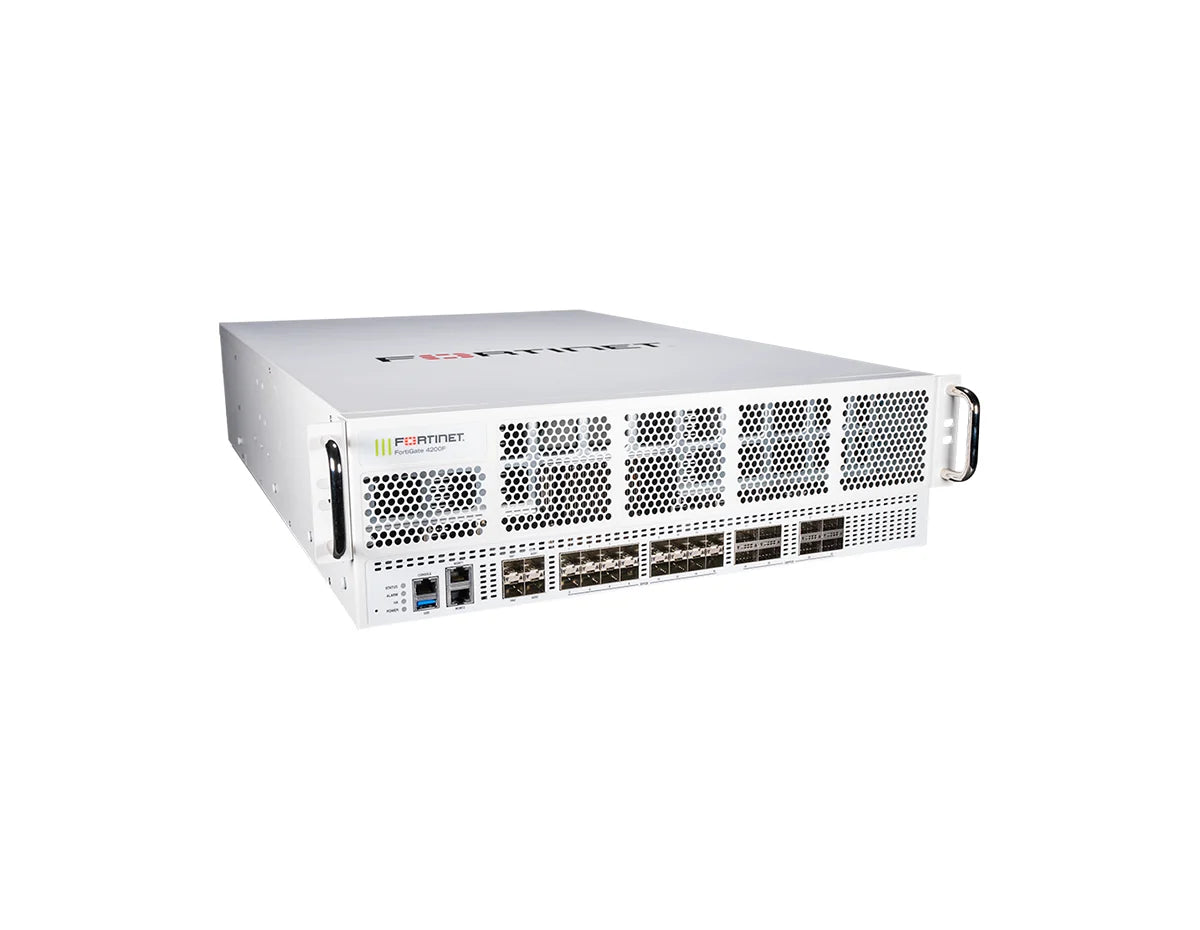

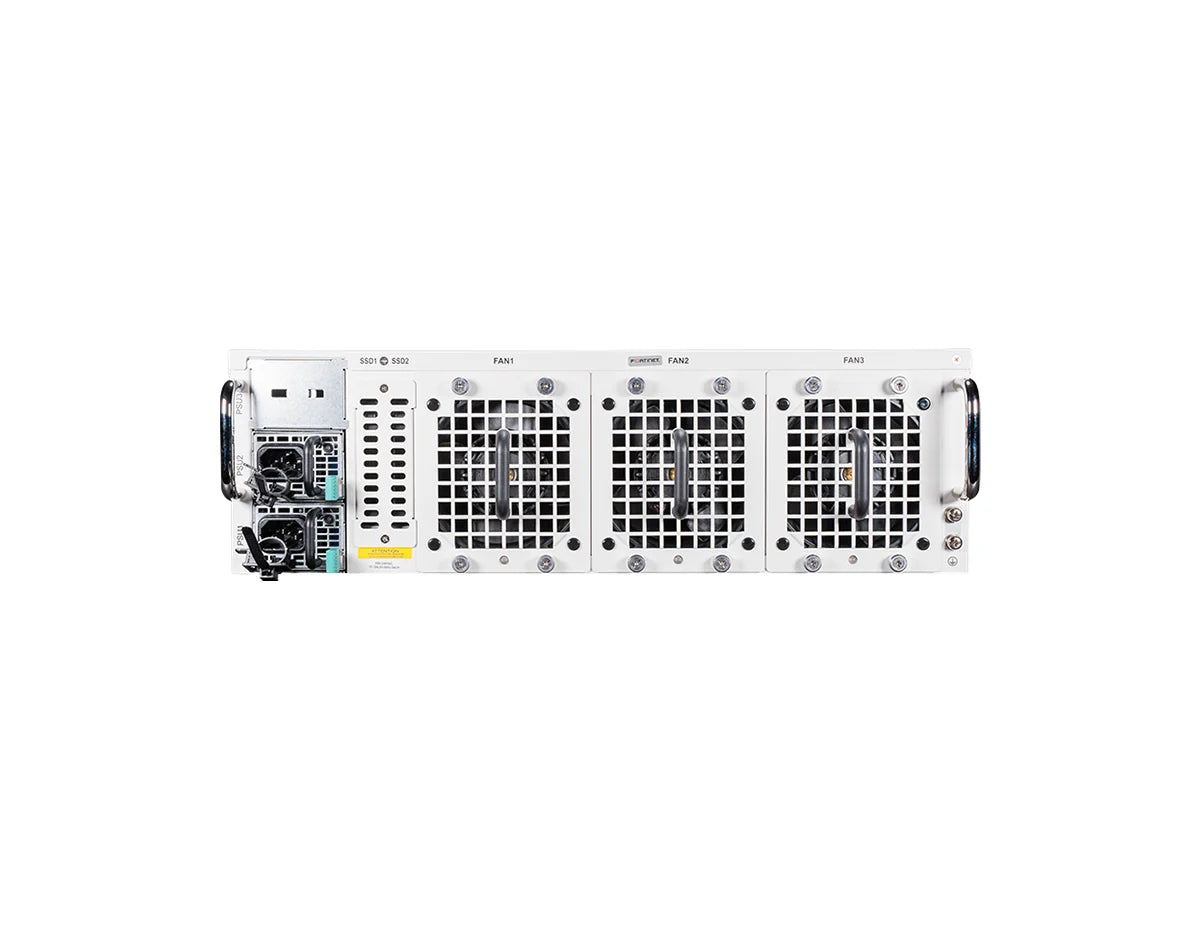

The Fortinet FortiGate 4200F-DC Series consolidates networking and security for DC-powered data centers and service provider networks. Its SPU-accelerated design supports high-speed segmentation for 100 GE architectures.
This bundle SKU includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 5 Year term. Use it to standardize support and security services while maintaining the same FG-4200F-DC hardware.
Hyperscale Security for DC Power Environments
- Up to 800 Gbps firewall throughput with NP7 and CP9 SPUs.
- 8x 100GE/40GE QSFP28/QSFP+ plus 18x 25GE SFP28 ports.
- DC power input -48V to -60V with redundant supplies.
- Enterprise Mix: 52 Gbps IPS, 47 Gbps NGFW, 45 Gbps protection.
- IPsec VPN up to 210 Gbps; supports 210M sessions.
- Includes FortiCare Premium + FortiGuard UTP (5 Year).
Upgrade Your Network Security
Deploy the FG-4200F-DC-BDL-950-60 for DC-powered NGFW protection with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
