[shortdesc]
- 32 x 10/100/1000 RJ45 (16 bypass pairs) ports, 1 x MGMT, 1 x HA, dual AC power supplies
[/shortdesc]
[properties]
| Product Name |

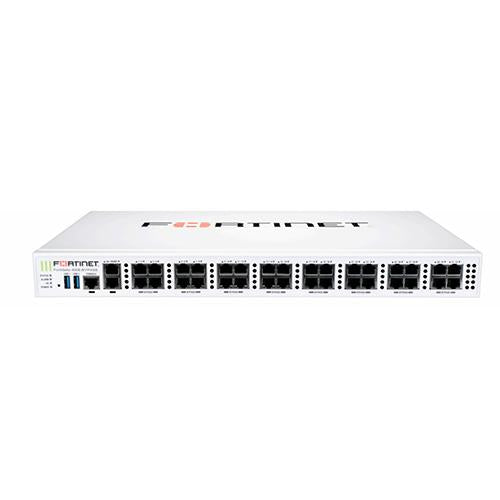

Fortinet FG-400E-BYPASS Firewall |
| Product Description |
High-performance NGFW with extensive connectivity options |
| Type |
Network Security Appliance |
| Connectivity |
32 x 10/100/1000 RJ45 ports (16 bypass pairs), 1 x MGMT port, 1 x HA port |
| Power Supply |
Dual AC power supplies |
| Hardware Acceleration |
SPU NP6Lite and CP9 |
| Firewall Throughput |
32 Gbps |
| IPS Throughput |
6.5 Gbps |
| NGFW Throughput |
5.5 Gbps |
[/properties]
[specifications]
| Threat Protection Throughput |
4 Gbps |
| Concurrent Sessions |
3.5 million |
| New Sessions per Second |
310 |
| IPsec VPN Throughput |
20 Gbps |
| SSL VPN Throughput |
4.5 Gbps |
| Dimensions (H x W x D) |
1.75 x 17 x 15.4 inches (44.45 x 431.8 x 391.16 mm) |
| Weight |
17.64 lbs (8 kg) |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity Range |
20% to 90% non-condensing |
| Compliance |
CE, FCC, RoHS |
[/specifications]32 x 10/100/1000 RJ45 (16 bypass pairs) ports, 1 x MGMT, 1 x HA, dual AC power supplies
